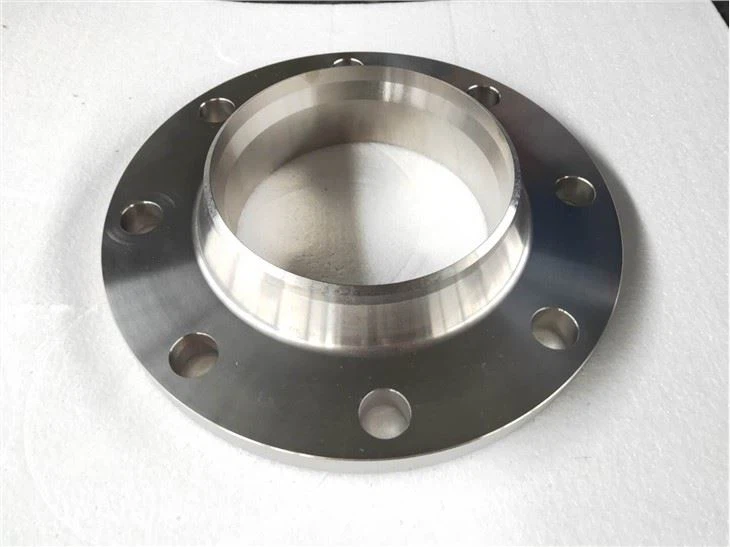

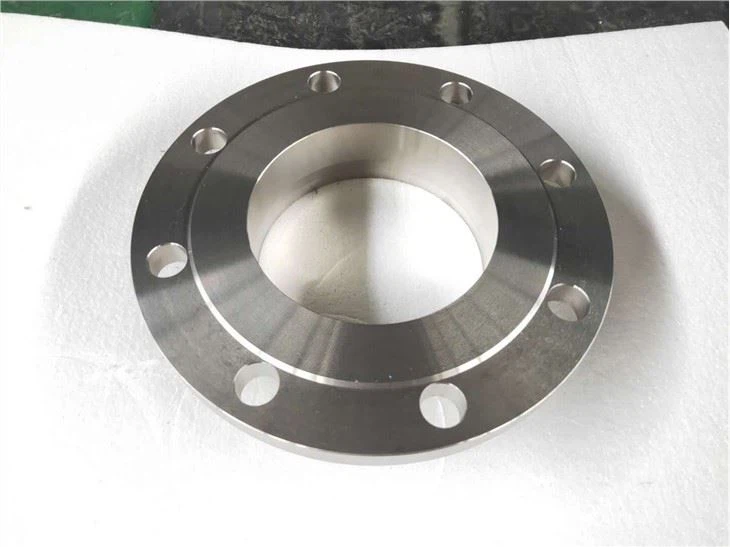

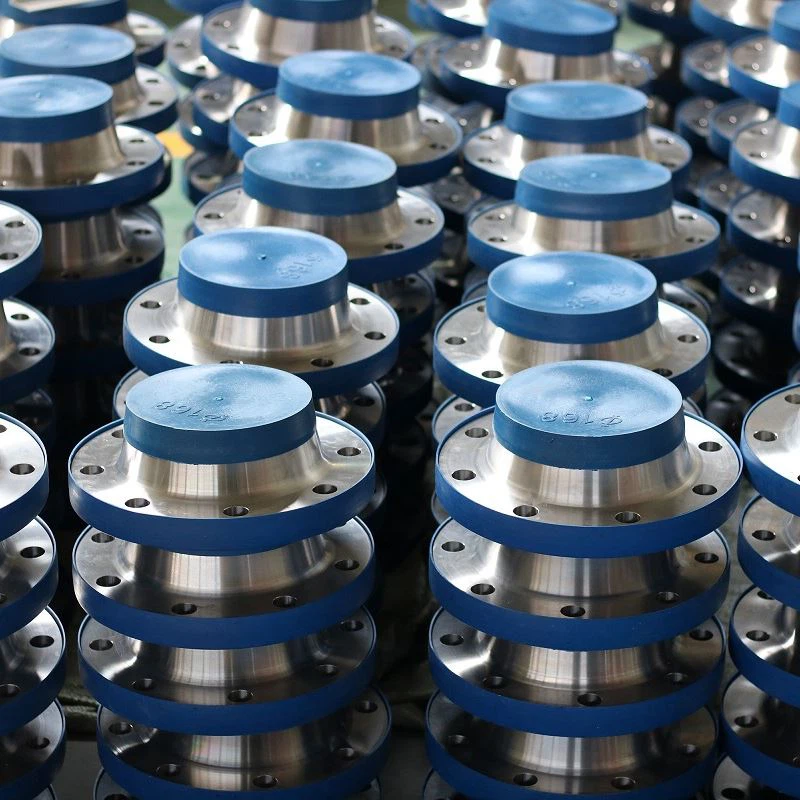

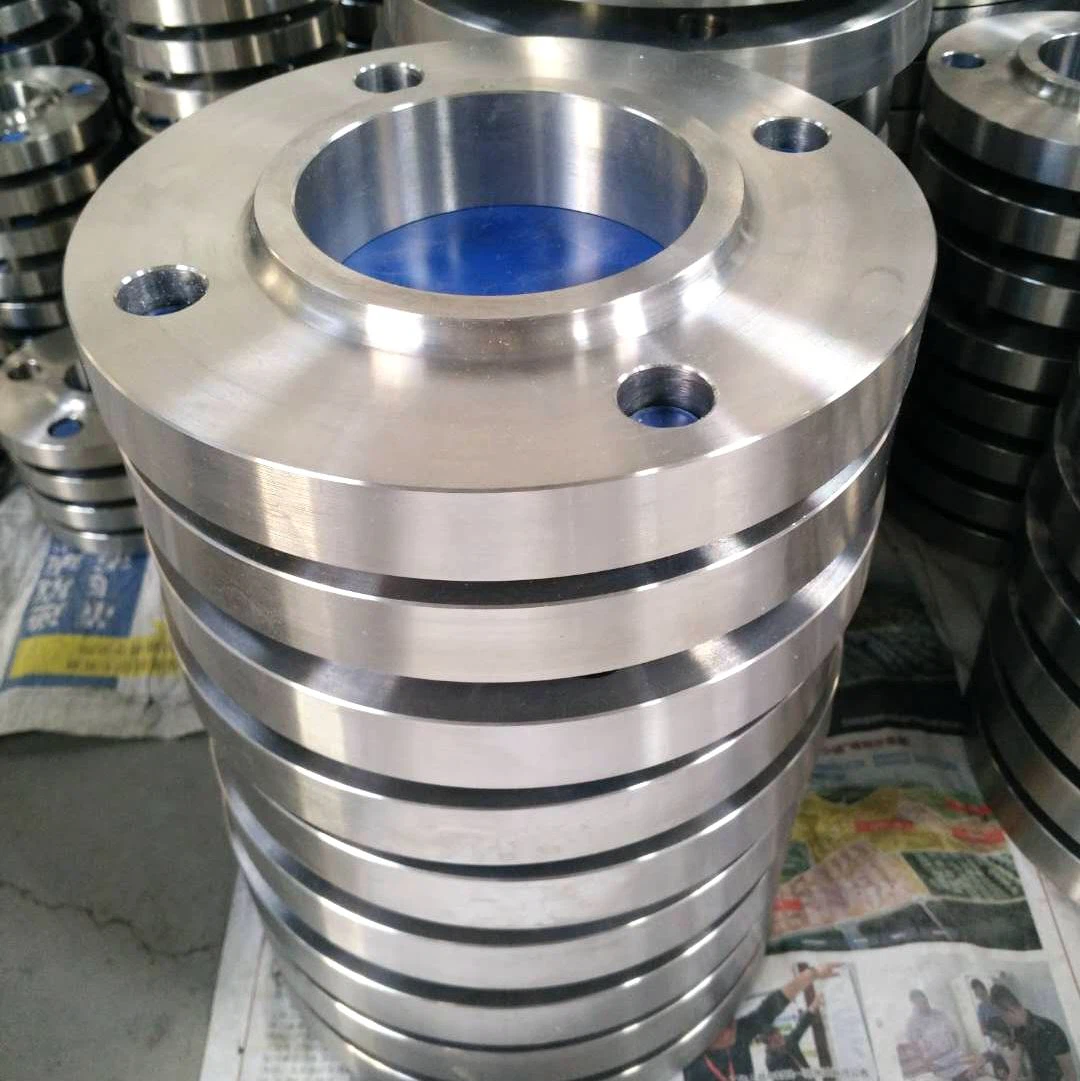

Nickel Pipe Flange

Nickel pipe flanges

Standard Specification: ANSI B16.5 /ASME B16.5/ ASTM B16.51 / ASME B16.47

Other Standard: BS Flanges, DIN Flanges, EN Flanges, etc.
Size: 1/2" to 18"
Class/Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64, etc/
Flange Face Type: Flat Face(FF), Raised Face(RF), Ring Type Joint(RTJ)
Material:

Pure nickel: N4 / NO2201/ 2.4068 / Ni201, N6 / NO2200 / 2.4066 / / Ni201

Hastelloy: Hastelloy C276 / N10276 / 2.4819

Monel alloy: Monel 400 / NO4400, Monel 600/NO6600

Inconel alloy: NO6625/2.4856, NO8926/1.4529

Other nickel alloys: Incoloy 800 / 800H, N08825 / 2.4858, Alloy 200 / N08020

Duplex stainless steel: 2205/104462 / A182-F51 / S31803, 2007 / 1.4410 / A 182-F53 / S32750

Raised Face or Flat Face
Nickel Blind Flanges Nickel Plate Flanges
Nickel Slip-On Flanges Nickel Forged Flanges
Nickel Lap Joint Flanges Nickel Socket Weld Flanges
Nickel Threaded Flanges

Studies have shown that the effect of alloying elements on improving the corrosion resistance of alloys comes from the stability of the passivation film formed on the surface of nickel alloys. The nickel content in nickel alloys is more than 30%, of which W(Ni+Fe)≥50% is called iron-nickel-based corrosion-resistant alloy, and W(Ni)≥50% is called nickel-based corrosion-resistant alloy. In actual use Zhongdu can be considered as a nickel-based corrosion resistant alloy

Application areas of nickel pipe flanges / nickel alloy flanges:

1. Ocean: Marine structures in the marine environment, seawater desalination, mariculture, seawater heat exchange, etc.

2. Environmental protection field: flue gas desulfurization device for thermal power generation, wastewater treatment, etc.

3. Energy field: nuclear power generation, comprehensive utilization of coal, sea tide power generation, etc.

4. Petrochemical industry: oil refining, chemical and chemical equipment, etc.

5. Food field: salt making, soy sauce brewing, etc.

In the above-mentioned many fields, ordinary stainless steel 304 is not competent. In these special fields, special stainless steel is indispensable and irreplaceable. In recent years, with the rapid economic development and the continuous improvement of the industrial field, more and more projects require higher-grade stainless steel. With the increase in demand for nickel-based alloys in various industries.
