API 6D Trunnion Mounted Ball Valve

Introduction of Titanium API 6D Trunnion Mounted Ball Valve:

A Titanium API 6D Trunnion Mounted Ball Valve is engineered with titanium, renowned for its superior corrosion resistance and strength, making it ideal for harsh environments such as offshore oil rigs, chemical processing plants, and aerospace applications. This valve adheres strictly to API 6D standards, ensuring robust performance and reliability in high-pressure scenarios. Its trunnion-mounted design facilitates smooth operation and reduced torque requirements, while features like fire-safe construction (API 607/ API 6FA compliant), anti-static design, and a blow-out proof stem further enhance safety and functionality. Suitable for both full-port and reduced-port configurations, this valve provides efficient flow control and longevity in critical industrial operations.

Key Features and Specifications:

Design Standards:

Design: API 6D (Specification for Pipeline Valves), ASME B16.34 (Valves - Flanged, Threaded, and Welding End), API 607/ API 6FA (Fire Safe Design).

Side Entry Ball: This indicates that the ball is accessed from the side for maintenance and repairs without removing the valve from the pipeline.

Anti-static Design, Anti-blow-out Stem: Ensures safety and reliability during operation.

Valve Design:

3-piece Design: Typically fabricated from forged materials for durability and strength.

Reduce Bore: This suggests that the bore size of the valve may be smaller than the pipe size, which can help in reducing costs and weight.

Face to Face: Conforms to ASME B16.10 (Face to Face and End to End Dimensions of Valves).

Flange Connection: ASME B16.5 Class 150 RF for sizes up to 26 inches; ASME B16.47 for larger sizes.

Pressure-Temperature Ratings:

Follows ASME/ANSI B16.34 standards for pressure-temperature ratings, ensuring the valve's capability to withstand specific pressure and temperature ranges.

Testing and Inspection:

Testing: Conforms to API 6D and API 598 (Valve Inspection and Testing).

Inspection: Ensures the valve meets stringent quality and performance standards.

Additional Features:

Automatically Drain Plug (NPT): Available as an option on valves sized 2" to 4" and as a basic function on valves sized 6" and larger.

Double Bleed and Block: Option available on smaller valves, basic function on larger ones.

Sealant Emergency Injection Fittings: Option for valves sized 2" to 4", basic function for larger valves.

Options:

With Locking Device: Enhances safety and security by preventing unauthorized operation.

Extended Stem: Specifically for cryogenic applications where the valve is exposed to very low temperatures.

Actuator Installation: Allows for automated operation using pneumatic or electric actuators.

Gear Box: Facilitates manual operation when automated control is not required or possible.

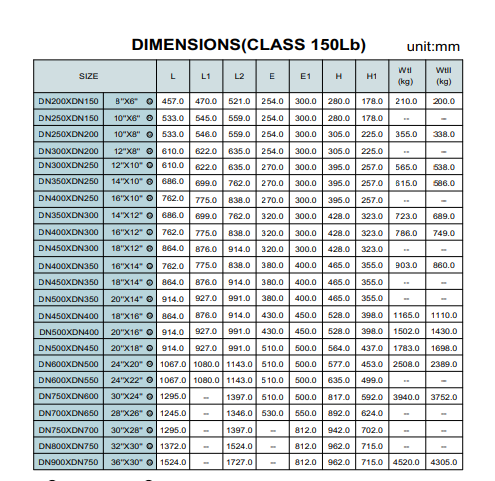

Size Range:

Size: Available in sizes ranging from 3"x2" to 8"x4".

Summary:

This API 6D Trunnion Mounted Ball Valve is designed for a wide range of demanding applications in various industries, offering robust construction, compliance with industry standards, and a variety of optional features to enhance functionality and safety. It is suitable for use in critical environments such as oil and gas production, refining, and subsea installations, where reliability and performance are paramount.
