Titanium Gr1 Gr2 Electric V-Port Ball Valve

Product Background and Introduction:

Special material valves are designed to meet specific requirements in various industries where standard materials may not be suitable due to corrosive or extreme operating conditions. Here is the introduction of special material valves in English:

Special material valves are specifically designed to handle challenging environments and demanding applications where standard materials may not suffice. These valves are crafted from high-performance alloys or specially engineered materials to provide superior corrosion resistance, high temperature tolerance, and exceptional durability.

Titanium Alloys: Titanium alloys possess low density, high strength, outstanding corrosion resistance, and excellent weldability. They are widely applied in industries such as petrochemicals, aerospace, marine engineering, and medical devices.

Copper Alloys: Copper alloys are widely used in valve manufacturing due to their excellent corrosion resistance, high hardness, wear resistance, and good thermal and electrical conductivity.

Zirconium Alloys: Zirconium alloys are known for their exceptional corrosion resistance and high-temperature capabilities, making them ideal for applications in the chemical industry and nuclear power sector.

Nickel Alloys: Nickel alloys offer excellent corrosion resistance, allowing them to withstand prolonged exposure to various acids, alkalis, and harsh environments. They find extensive use in the manufacturing of high-end machinery and chemical equipment.

Stainless Steel: Stainless steel is renowned for its excellent corrosion resistance and high-temperature performance, making it a preferred choice for valves used in industries such as chemical processing, refining, and nuclear power.

Specifications:

Dimension Standards: Conforming to API602, ASME B1.20.1, ASME B16.11, ASME B16.5, AP1598 for consistent sizing and compatibility.

Material Standards: ASTM B381/B367, ASME SB381/SB367 ensuring compliance with material properties and quality standards.

Size and Pressure Ratings:

Size: DN15-50 (corresponding to NPS 1/2" - 2"), indicating a range suitable for various pipeline sizes.

Pressure Ratings: PN1.0 Mpa to PN420 Mpa (approximately Class 150 to Class 2500), covering a broad spectrum of pressure requirements.

End Connections:

Available End Connections: Screwed (NPT), Socket Weld, Flanged End, Screwed Parallel, Screwed Taper, providing flexibility for installation and integration into different piping systems.

Titanium Grades:

Grades Available: Including GR I, GR-2, GR-3, GR-4, GR-5, GR-7, offering a selection of titanium alloys suitable for different environmental and operational conditions.

Description of Titanium Ball Valves:

Titanium ball valves are a type of valve used in special processes and environmental conditions. Due to the excellent corrosion resistance and high strength of titanium alloys, titanium ball valves find widespread application in industries such as chemical processing, marine engineering, and aerospace. Based on their structure and function, titanium ball valves can be categorized into different types, each with specific advantages and applications.

Some Common Titanium Ball Valves We Provide:

Floating Ball Valve: The floating ball valve features a simple structure where the ball can move slightly under the pressure of the medium to achieve sealing. This type of titanium ball valve is typically used for general fluid control and is suitable for medium to low pressure and temperature conditions.

Trunnion Mounted Ball Valve: In a trunnion mounted ball valve, the ball is fixed within the valve body, and flow control is achieved by rotating the stem. This design is suitable for high pressure and high temperature conditions, offering more reliable sealing and operational performance.

V-Port Ball Valve: The V-port ball valve has a V-shaped design in the ball, allowing for better regulation performance and precise fluid control, making it suitable for applications where accurate flow regulation is required.

Multi-Port Ball Valve: Multi-port ball valves have multiple inlet and outlet passages, enabling complex fluid distribution and merging functions, suitable for intricate fluid control systems.

Product Design Features:

V Port ball valves are specialized valves that feature a V-shaped ball orifice, which offers distinct advantages over traditional full-bore or standard bore ball valves. Here are the key features of V Port ball valves:

Flow Control Precision:

V-shaped Ball: The unique V-shaped orifice allows for precise control of flow rates. This design offers a linear flow characteristic, meaning flow control is more accurate compared to standard ball valves, especially at lower flow rates.

Rangeability:

High Rangeability: V Port ball valves typically have high rangeability, which refers to the ratio of maximum to minimum controllable flow rates. This allows for fine-tuning of flow rates across a wide range of conditions, making them suitable for applications where precise control is critical.

Versatile Applications:

Process Control: Used in industries such as chemical processing, oil and gas, power generation, and water treatment where precise flow control is required.

Throttling Applications: Ideal for applications where throttling and modulation of flow are necessary, such as in cooling water circuits, steam systems, and batch processing.

Durability and Reliability:

Robust Construction: Made from materials such as stainless steel, carbon steel, or alloys like titanium, ensuring durability and resistance to corrosion in various operating conditions.

Tight Shut-Off: Provides tight shut-off capabilities to prevent leakage and ensure system integrity.

Reduced Pressure Drop:

Efficient Flow Path: The V-shaped ball design minimizes pressure drop across the valve, improving energy efficiency in systems where pressure loss needs to be minimized.

Actuation Options:

Manual and Automated: Can be operated manually with a lever or handle, or automated using actuators (electric, pneumatic, or hydraulic) for remote operation and integration into automated control systems.

Bi-Directional Flow Capability:

Versatile Flow Configurations: Allows for bi-directional flow capability, meaning the valve can handle flow in both directions depending on the application requirements.

Customization Options:

Port Sizes and End Connections: Available in a range of sizes from small to large diameters and can be customized with various end connections (flanged, threaded, welded) to suit specific piping requirements.

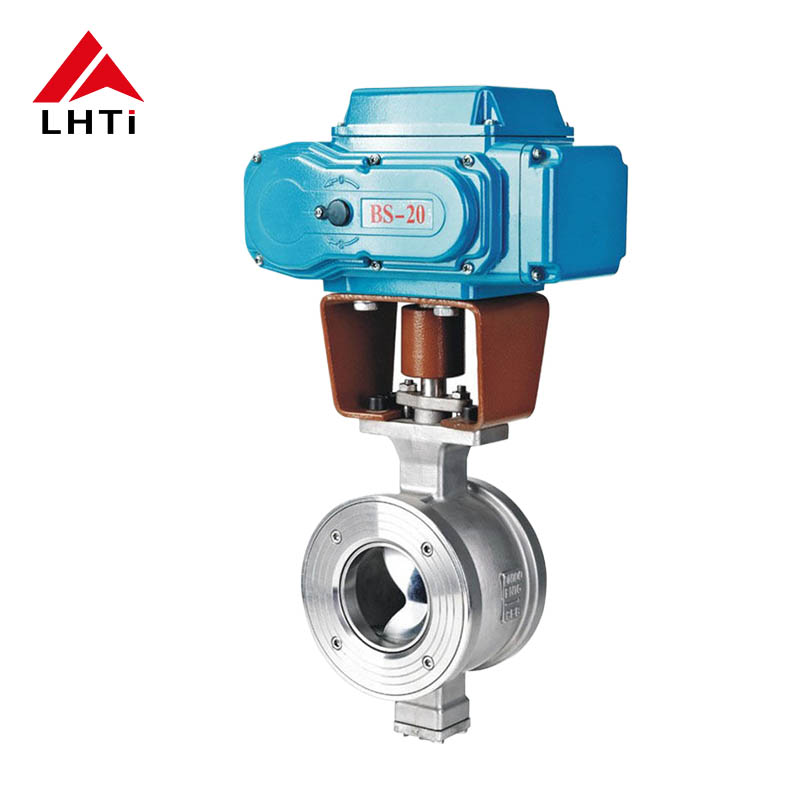

The HK60Q-EX-V Explosion-proof Electric V-Port Ball Valve offers several key features that cater to environments requiring explosion-proof capabilities, such as power plants, oil and gas facilities, chemical plants, shipyards, and other hazardous applications. Here's a breakdown of its notable features:

Key Features of HK60Q-EX-V Explosion-proof Electric V-Port Ball Valve:

Explosion-proof Design:

The actuator is designed with excellent sealing performance, ensuring it meets explosion-proof standards required for hazardous environments.

Wide Application Range:

Suitable for use in power plants, oil and gas facilities, chemical plants, shipyards, and other industries where explosion-proof equipment is mandatory.

Control Options:

Available in manual control, signal control, and AC/DC power configurations, providing flexibility in operation based on application requirements.

Communication Protocols:

Supports multiple communication protocols such as RS485, facilitating integration into various control systems and networks.

Actuator Features:

Fully Enclosed Squirrel Cage Click: Ensures a compact design with a large torque capacity, essential for reliable valve operation.

Overheat Protection Switch: Built-in to prevent motor damage due to overheating, enhancing operational safety and longevity.

Motor Protection: Designed to prevent blockages and motor damage under adverse conditions, ensuring continuous and reliable operation.

Handwheel Design:

Ensures safety, reliability, and ease of operation. The ergonomic design also promotes labor-saving benefits, making manual operation straightforward and efficient.

Considerations:

Material Compatibility: Verify that the valve materials are suitable for the specific media and environmental conditions in which it will operate.

Environmental Ratings: Ensure compliance with relevant safety standards and certifications for explosion-proof equipment in your region or industry.
