Tantalum Tubes

Send Inquiry

Chat Now

Product Introduction

Advantages of tantalum tubes

1. High melting point: Tantalum has a very high melting point, which makes it suitable for high-temperature applications.

2. Corrosion resistance: Tantalum is highly resistant to corrosion and can withstand exposure to a wide range of chemical environments, making it ideal for use in chemical processing equipment and other harsh environments.

3. Biocompatibility: Tantalum is biocompatible and non-toxic, making it an ideal material for medical implants and other biomedical applications.

4. Ductility: Tantalum is highly ductile and can be easily formed into a variety of shapes and sizes, making it suitable for use in a wide range of applications.

5. Electrical conductivity: Tantalum is an excellent conductor of electricity and can be used in electronic components such as capacitors and resistors.

6. Resistance to fatigue: Tantalum has a high resistance to fatigue and can withstand repeated loading and unloading over time, making it ideal for use in structural applications where durability is important.

Product name:Tantalum Tubes

Standard: ASTM B521

Material: RO5200, RO5400, RO5252(Ta2.5W), RO5255(Ta10W), RO5240(Ta40Nb)

Type: Seamless/Welded

OD: 1-150mm

WT: 0.2-5mm

L: Max 6000mm

Surface: Polished

Tolerance of Tantalum Tubings

OD, inch(mm)	Diameter Tolerance, inch(mm), +/-	Permissible Variation in wall thickness, %, +/-
＜1(25.4)	0.004(0.102)	5
1-1.5(25.4-38.1)	0.005(0.127)	5
1.5-2(38.1-50.8)	0.006(0.152)	5
2-2.5(50.8-63.5)	0.007(0.178)	5
2.5-3.5(63.5-88.9)	0.010(0.254)	5

Tantalum Welded Tubes and Seamless Tubes Comparison
	Advantages	Disadvantages	Specification
Welded Tube	1)The wall thickness is even and the inner surface is of good quality.	1)Poor flexibility, not suitable for producing more specifications but less quantities	Usually suitable for the production of large quantities
	2)High production efficiency and low cost	2)Welds are usually the weak links
	3)Easy to produce large diameter tubing	3)Welds are difficult to clean
	4)Short lead time	4)The ellipticity is not easy to control
	5)Easy to control product quality	5)High requirement for the dimension precision of strip
Seamless Tube	1)Can produce small size tube and capillary tube	1)Difficult to control wall thickness uniformity	Usually suitable for the production of small quantities but various specifications
	2)Good flexibility, suitable for producing small quantities but various specifications	2)Long lead time and low yield
	3)The performance of the whole tube is uniform	3)Complex equipment and large investment
		4)Difficult to produce large size tubes

Detailed Images：

Applications:

Generally, tantalum has excellent corrosion resistance and is usually used in chemical processing equipment.

Corrosion resistant nozzles

Electrode tubes

Reaction vessel

Heat exchanger pipe

Condenser

Bayonet heater

Helical coil

Thermocouple

Protective tube

About our company:

Baoji Lihua Non-ferrous Metals Co.,Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing various non-ferrous metals, called“China Titanium Valley”.We are specialized in manufacturing,researching and marketing non-ferrous metals, mainly for titanium, nickel& nickel alloy, tantalum mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI /ASTM/ASME/JIS/DIN etc. Lihua is certified by ISO9001:2008,TUV and IQNET. Our company's products have passed SGS,BV, LR'S,TUV and other international inspection agency inspection.

Our advantages:

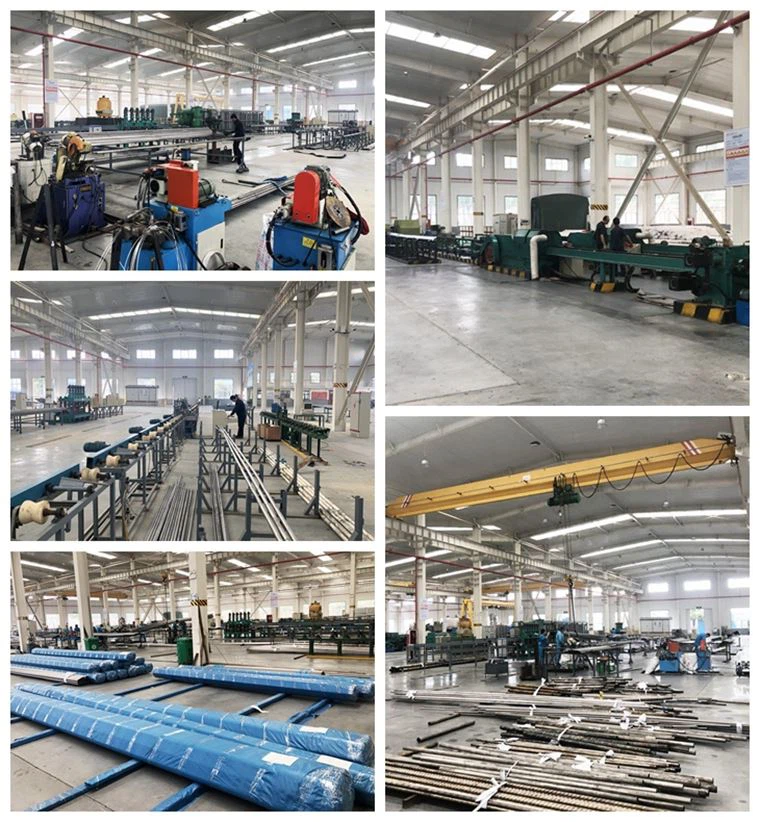

1.Equipment advantages:There are trimming machines, milling machines, annealing furnaces, shearing machines, bending machines, straightening machines,sandblasting machines,punching machines and forging hammers.

2.Product advantages:There are many material in stock, can provide samples,which can be processed and customized according to drawings.

3.Price advantages:Factory shipments, no middlemen, low ex-factory prices.

4.Quality assurance: Our company have been certificated by ISO9001:2015.Provide products bill of materials and third test report.

5.Service advantage:Professional export team provides you with services, and you can return for free if you encounter product quality problems.
