ASTM B348 Titanium Bar

ASTM B348 Titanium Bar

Product Name: Titanium Bar
Standard: ASTM B348
Material: GR1, GR2, GR5, GR7, GR12
Shape: Round, Square, Flat, Hex
Diameter: 6-350mm
Length: Max 6000mm
Surface: Bright
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium bar manufacturer

Send Inquiry

Chat Now

Product Introduction

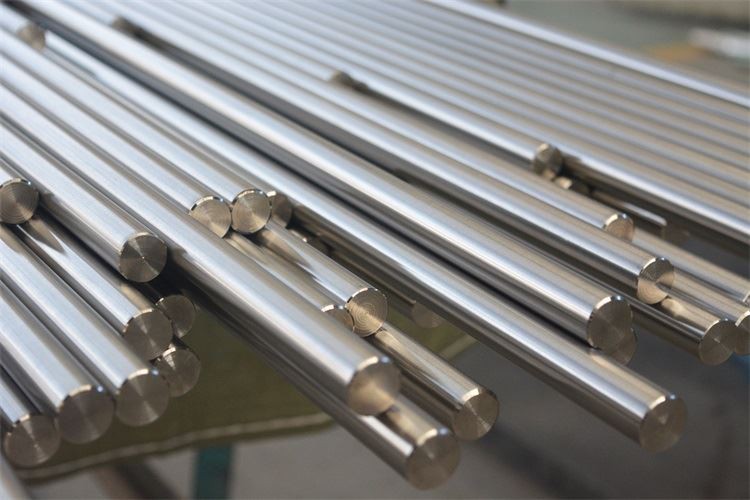

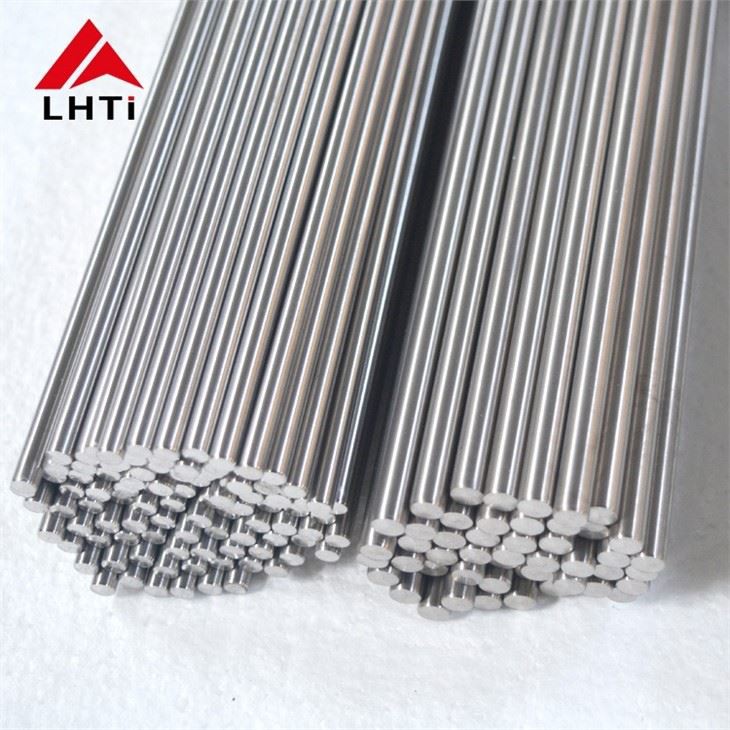

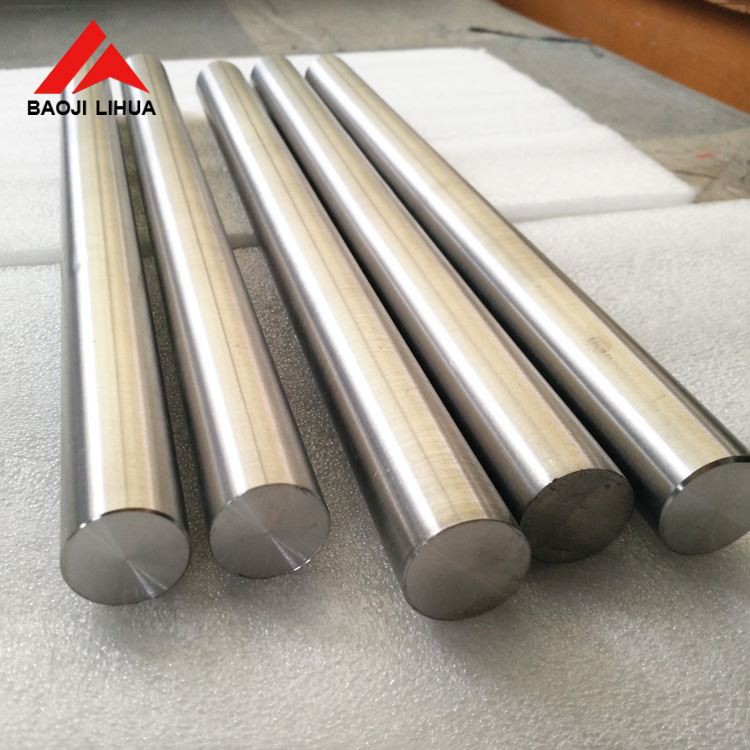

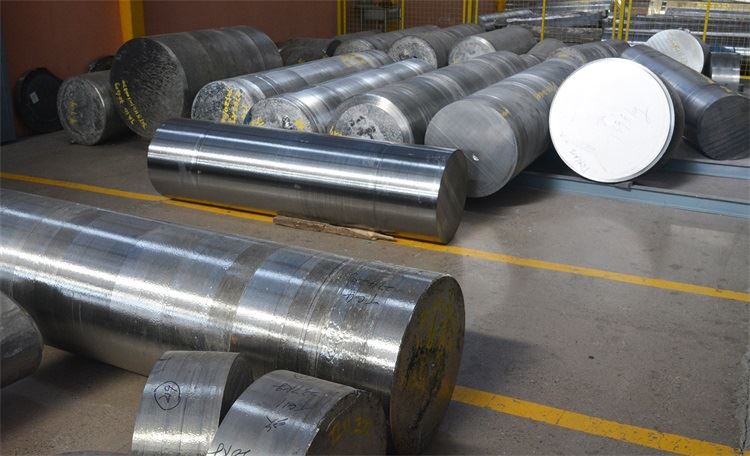

ASTM B348 Titanium Bar

ASTM B348 Standard Specification for Titanium and Titanium Alloy Bars and Billets. Due to their high strength and light weight, they are widely used in the components for high-temperature environment, including aircraft equipment, petrochemical and chemical industries.

Product Information

Standard: ASTM B348, AMS 4928, ASTM F67, ASTM F136, ISO 5832-2

Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc.

Russian Grade: BT1-100,BT1-0,BT6 etc.

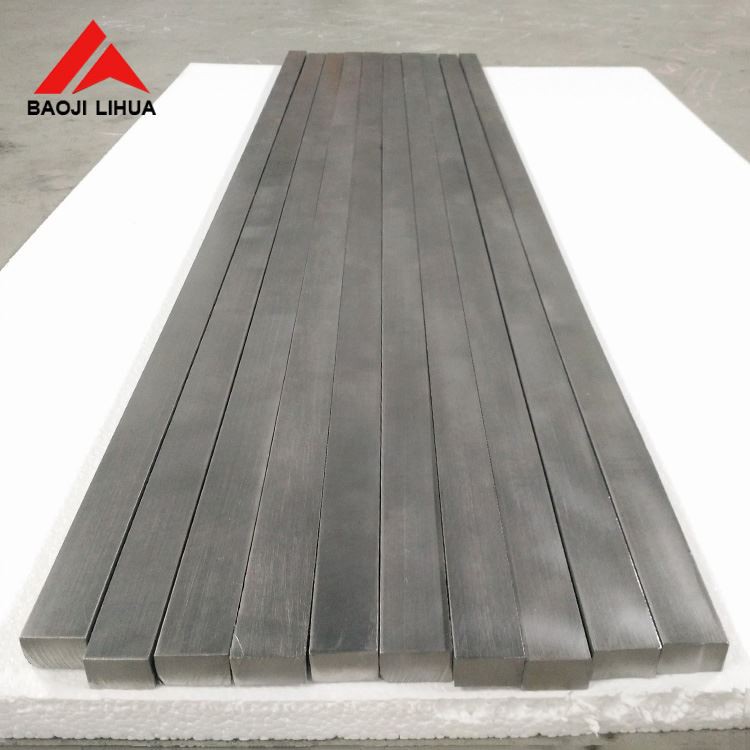

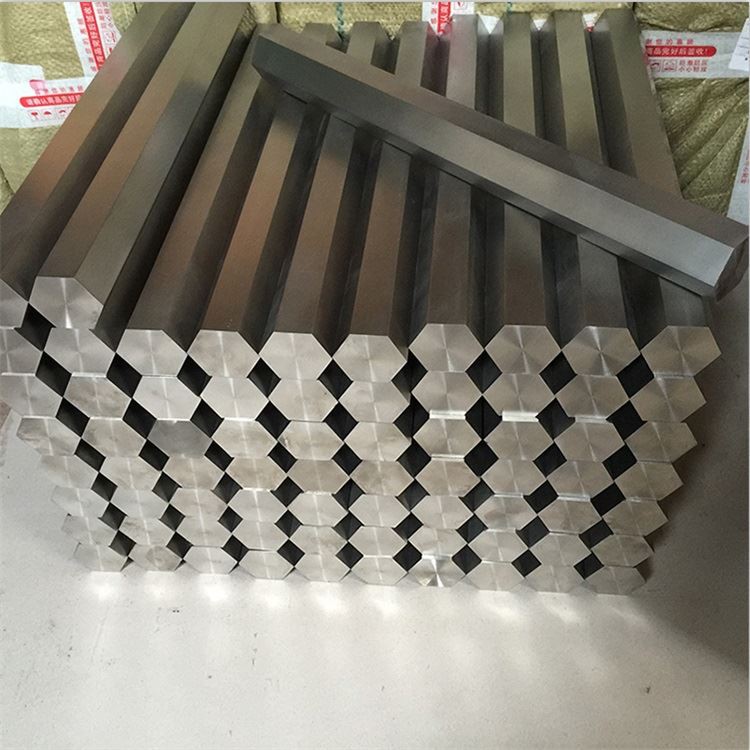

Shape: Round, Square, Flat, Hex

Diameter: 3-350mm

Length: up to 6000mm, random length is also ok and the price is lower

Surface: Polishing, Pickling

Condition: R/M/Y

Mechanical Properties

Grade	Tensile strength(min)		Yield strength(min)		Elongation(%)
Grade	ksi	M Pa	ksi	M Pa	Elongation(%)
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18
