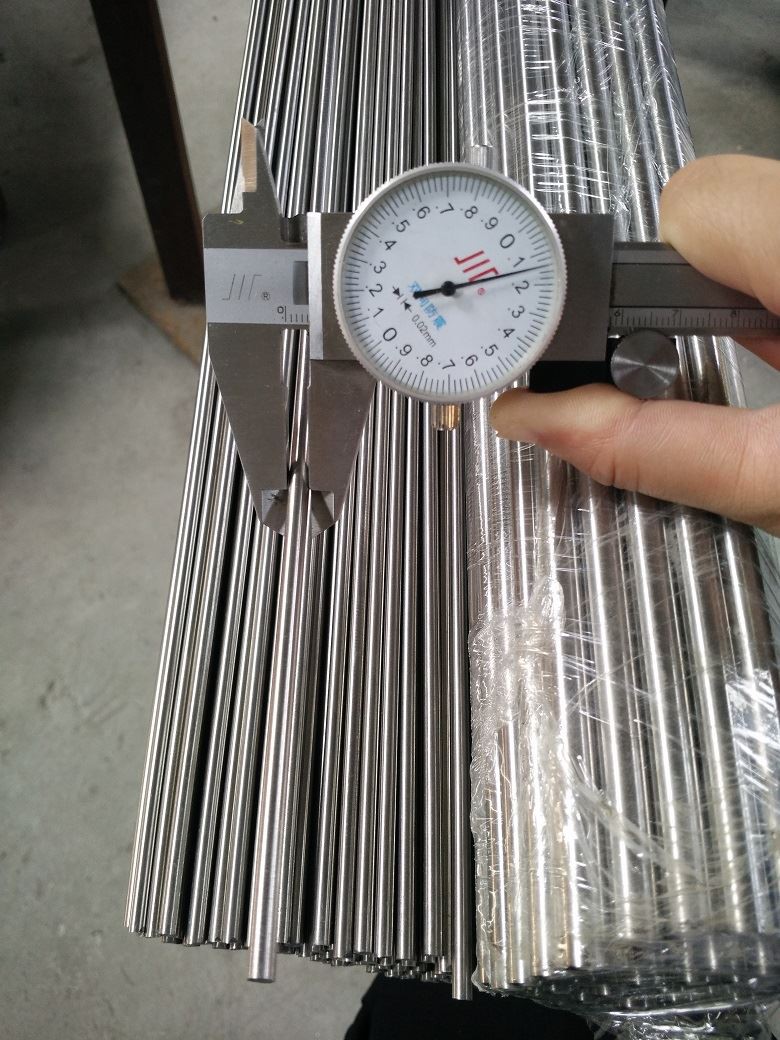

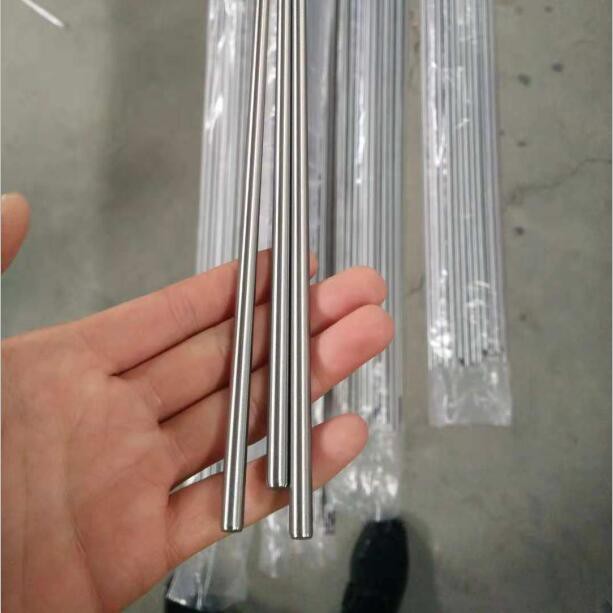

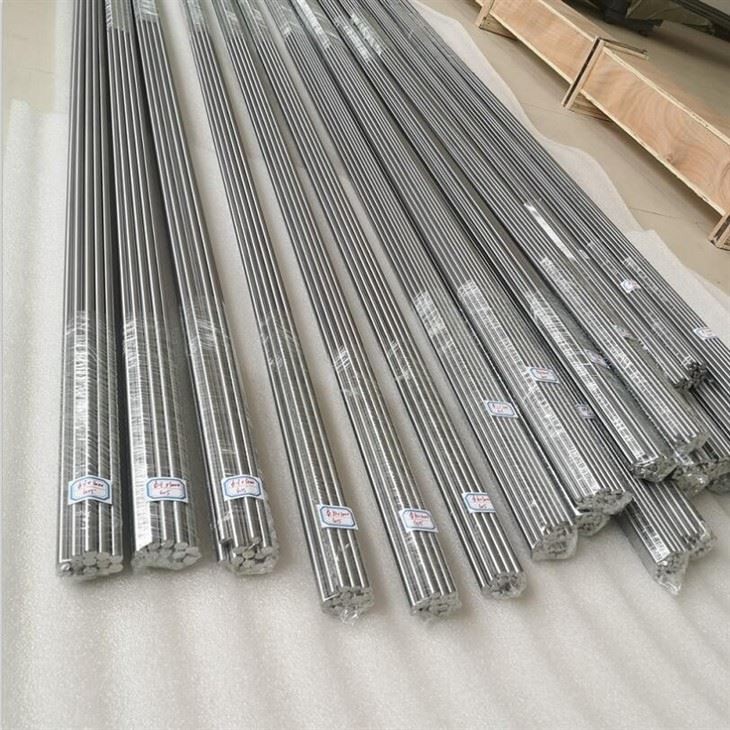

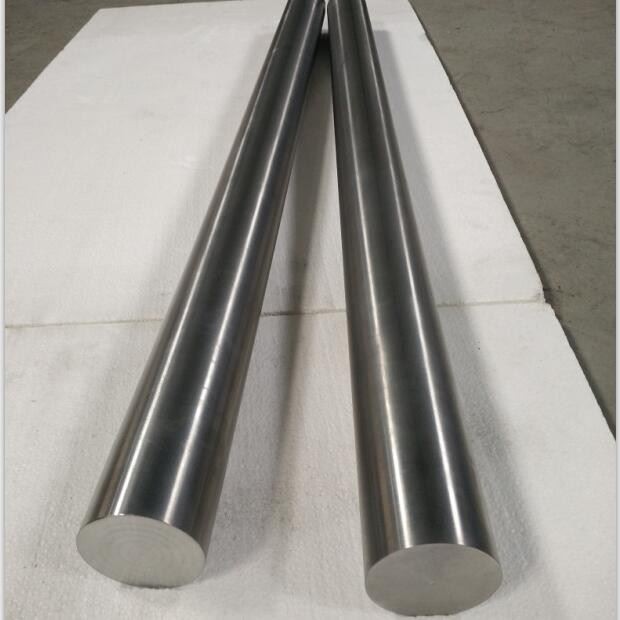

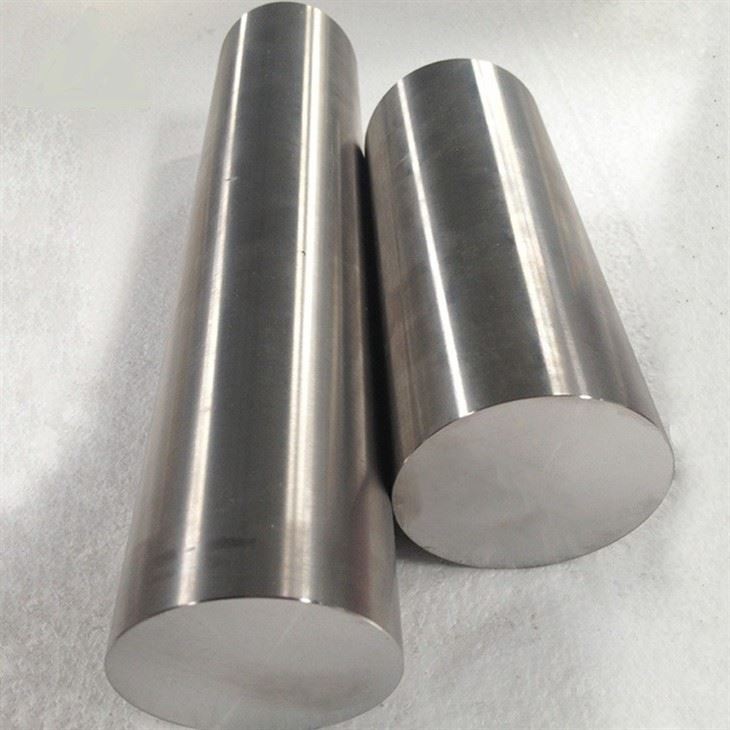

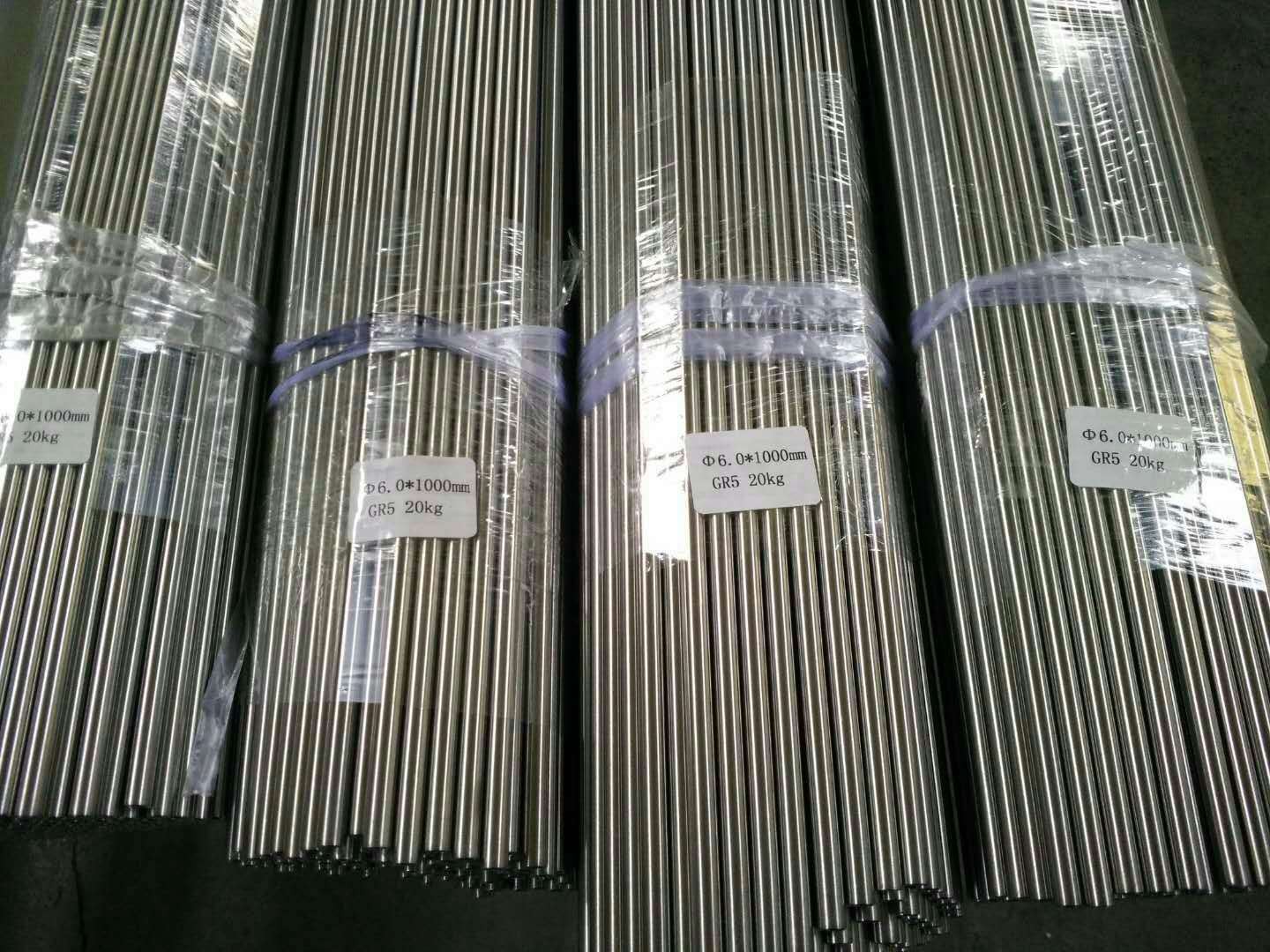

Titanium Rod Grade 5

Product name:Titanium rod grade 5

Material: Gr1, Gr2, Gr3, Gr4, Gr5 Ti6Al4V, Gr7 Ti-0.2Pd, Gr9, Gr12 Ti-0.3Mo-0.8Ni, Gr23

Specification: Φ3.0-Φ280mm×L1000－6000MM

Standards: ASTM B348, ASTM F67, ISO5832-2 ASTM F136, ISO5832-3, AMS4928, MIL4911, ASTMF1713-08, ASTMF1295, ISO5832-11, etc.

Titanium rod use: mainly used in mechanical equipment, electroplating industry, various precision parts, chemical industry.

Quality Assurance: We are a manufacturer of titanium rod, and the product quality has undergone strict inspection and mature processing technology (such as chemical composition, mechanical properties, metallographic structure, tolerance, tax system, flaw detection). There are many discounts on the price of titanium rods.

The composition of Gr5 titanium material is Ti-6Al-4V, which belongs to the (a+b) type titanium alloy and has good comprehensive mechanical properties. Greater specific strength. The strength of Gr5 titanium is sb=1.012MPa, the density g=4.4*103, the specific strength sb/g=23.5, and the specific strength sb/g of alloy steel is less than 18. Titanium alloy has low thermal conductivity. The thermal conductivity of titanium alloy is 1/5 of that of iron and 1/10 of that of aluminum. The thermal conductivity of TC4 is l=7.955W/m·K. Coefficient of linear expansion=7.89*10-6℃, specific heat=0.612cal/g·℃. The modulus of elasticity of titanium alloy is low. The modulus of elasticity of TC4 is E=110GPa, which is about 1/2 of steel, so it is prone to deformation during processing of titanium alloy. The surface modification of TC4 (Ti-6Al-4V) and TA7 (Ti-5Al-2.5Sn) titanium alloys adopts two implantation schemes. Tests show that after ion implantation, the titanium alloy increases the microhardness and significantly reduces The sliding friction coefficient is improved, and the wear resistance is effectively improved. In order to explore the modification mechanism, X-ray photoelectron spectroscopy (XPS) analysis was performed on the injected and uninjected samples, and satisfactory results were obtained. The Gr5 titanium-titanium alloy has excellent properties A series of advantages such as its corrosion resistance, low density, high specific strength, better toughness and weldability, etc., have been successfully applied in aerospace, petrochemical, shipbuilding, automotive, mold, medicine and other sectors.
