Titanium Industrial Bar

Titanium Industrial Bar

Product name: Titanium industrial bar
Standard: ASTM / ASME B381,AMS 4928
Material Grade: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc.
Technique: Forged, CNC machined
Type: titanium round bar
Quality test: Appearance, Chemical composition, Physical properties,Ultrasonic Testing
Available size:Diameter 5-200*Length Max-6000mm

Send Inquiry

Chat Now

Product Introduction

Titanium industrial bar

Product name:Titanium bar/Titanium rod

Grades: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12

Standard: ASTM B348, AMS 4928

Diameter: 3.0mm, 4.0mm, 5.0mm, 6.0mm,8.0mm, 10mm, 12mm, 15mm 16mm 20mm,25mm,30mm,35mm etc.

Diameter 5-200*Length Max-6000mm

Supply status: Annealed(M)

Package: Carton box or plywood case.

MTC: EN10204.3.1 certificate

MOQ : 10 kgs

Applications : Petroleum ,chemical industry, Marine etc.

Titanium rods, also known as titanium bar or titanium alloy bars, are widely used in various fields due to their unique characteristics.

In aerospace industry, titanium rods are used to manufacture aircraft parts, missile parts, spacecraft components, and fuel tanks. The high strength, lightweight and corrosion-resistant properties of titanium alloys make it an ideal material for high-performance aerospace applications.

In the medical field, titanium rods are used to make various implants, such as dental implants, bone plates, and joint replacements due to its biocompatibility, strength and resistance to corrosion.

In the chemical industry, titanium rods are used for their corrosion resistance, high-temperature resistance, and low toxicity properties. They are used to make chemical reactors, heat exchangers, and other equipment that require resistance to corrosive chemicals and high temperatures.

In the marine field, titanium rods are used to make ship components, propellers, and underwater equipment due to its excellent resistance to seawater corrosion.

In the sports industry, titanium rods are used to make golf club heads, bicycle frames, and other sports equipment, as they are lightweight, strong, and durable.

In the automotive industry, titanium rods are used to make engine components, exhaust systems, and suspension parts, due to their high strength and resistance to high temperatures.

Overall, titanium rods are a versatile and valuable material that has a wide range of applications in multiple industries.

1. Available Size and standards.

Grade

Technology

Standard

Specification(mm)

Gr1.Gr2.Gr4.Gr5.Gr7.

Gr9.Gr12. Gr5 Eli

Forging

ASTM B348 F136 F67

Φ(60~350)X≤4000

Rolling

Φ(6~100)X≤6000

2.Tolerance of diameter

Diameter(mm)	h7	h8	h9	h10	h11	h12
Diameter(mm)	Tolerance precision (um)
3Max	10	14	25	40	60	100
3~6	12	18	30	48	75	120
6~10	15	22	36	58	90	150
10~18	18	27	43	70	110	180
18~30	21	33	52	84	130	210
30~50	25	39	62	100	160	250
50~80m	30	46	74	120	190	300
80~120	35	54	87	140	220	350
120~180	40	63	100	160	250	400
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

3.Detailed images of Titanium industrial bars

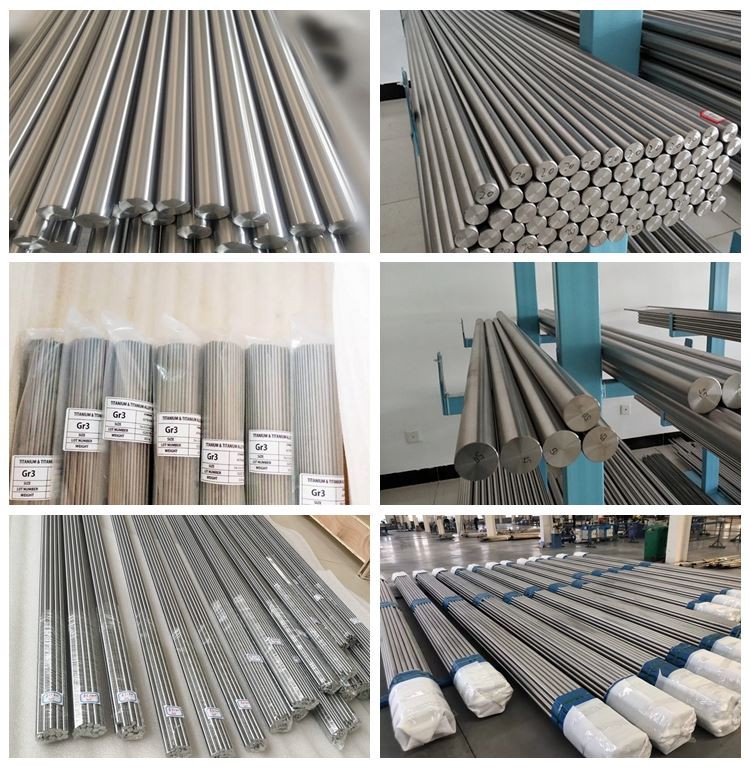

Titanium bar (3)

About us:

1. Since 2006, we've been providing high-quality products & service for over 15 consecutive years.

2. The factory covers an area of 25,000 square meter.

3. We have over 110 employees, including a group of experts in non-ferrous industry.

4. We have a professional team for international trade.

5. We are an ISO9001 certified company.

6. We've been awarded as a High-Tech Enterprise.

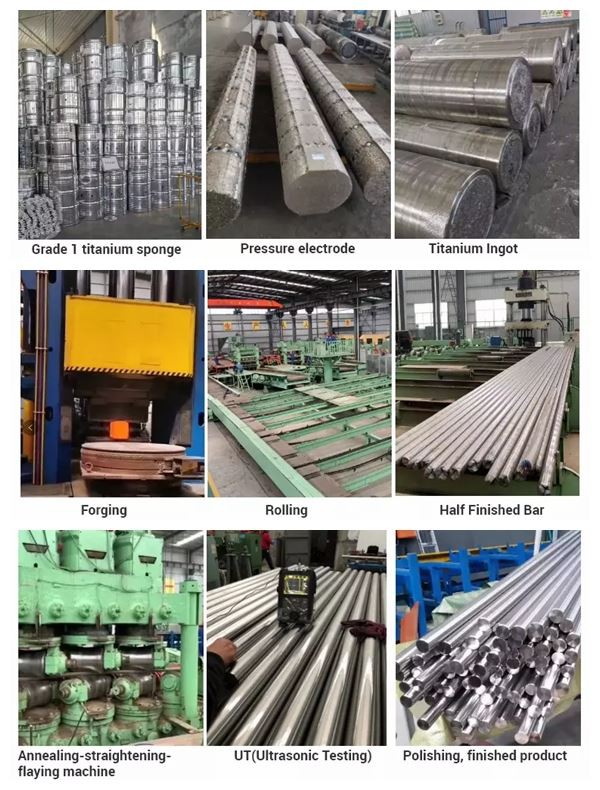

Titanium bar (8)
