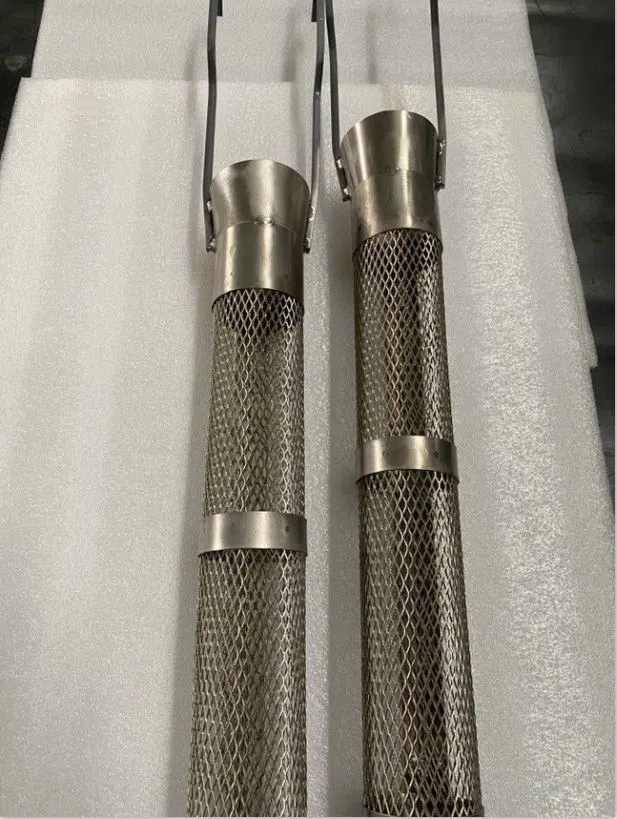

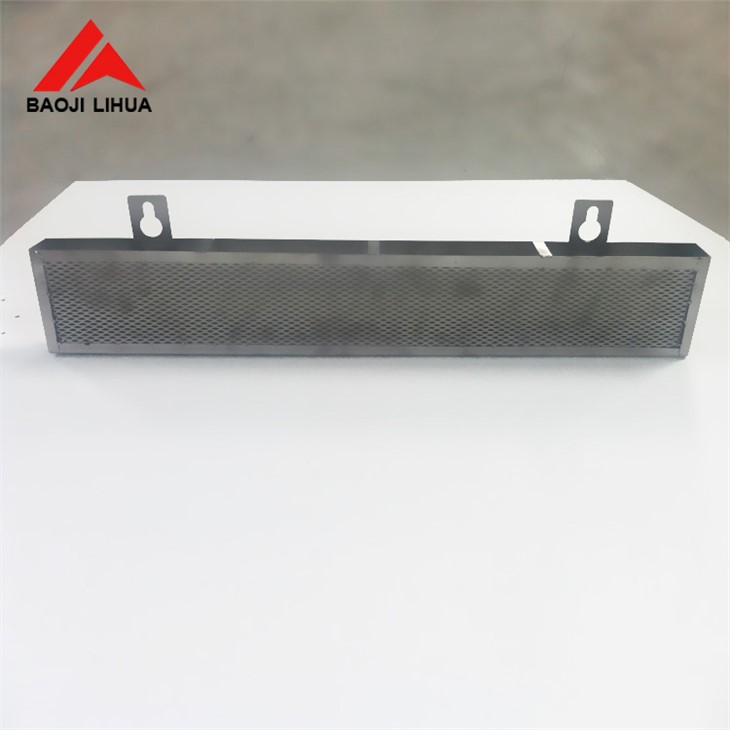

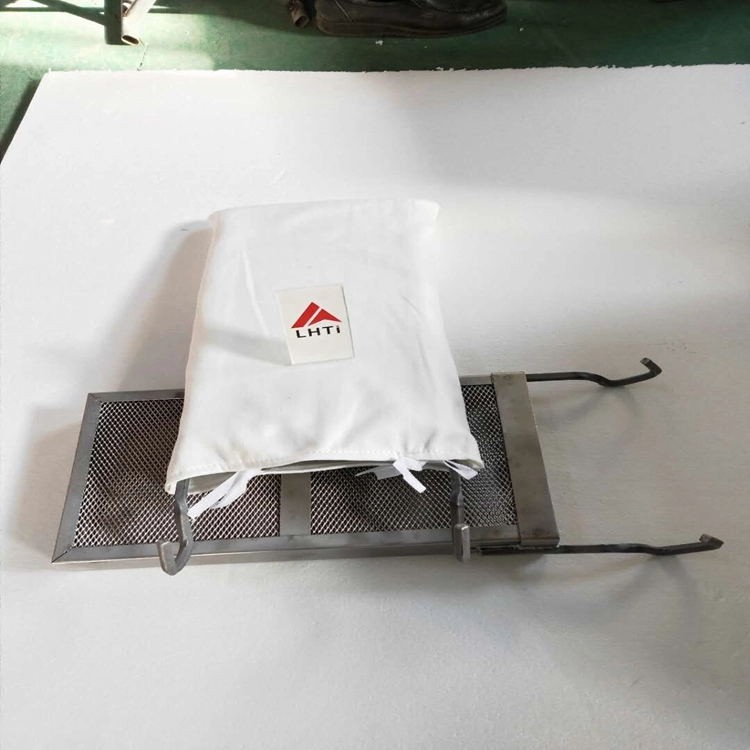

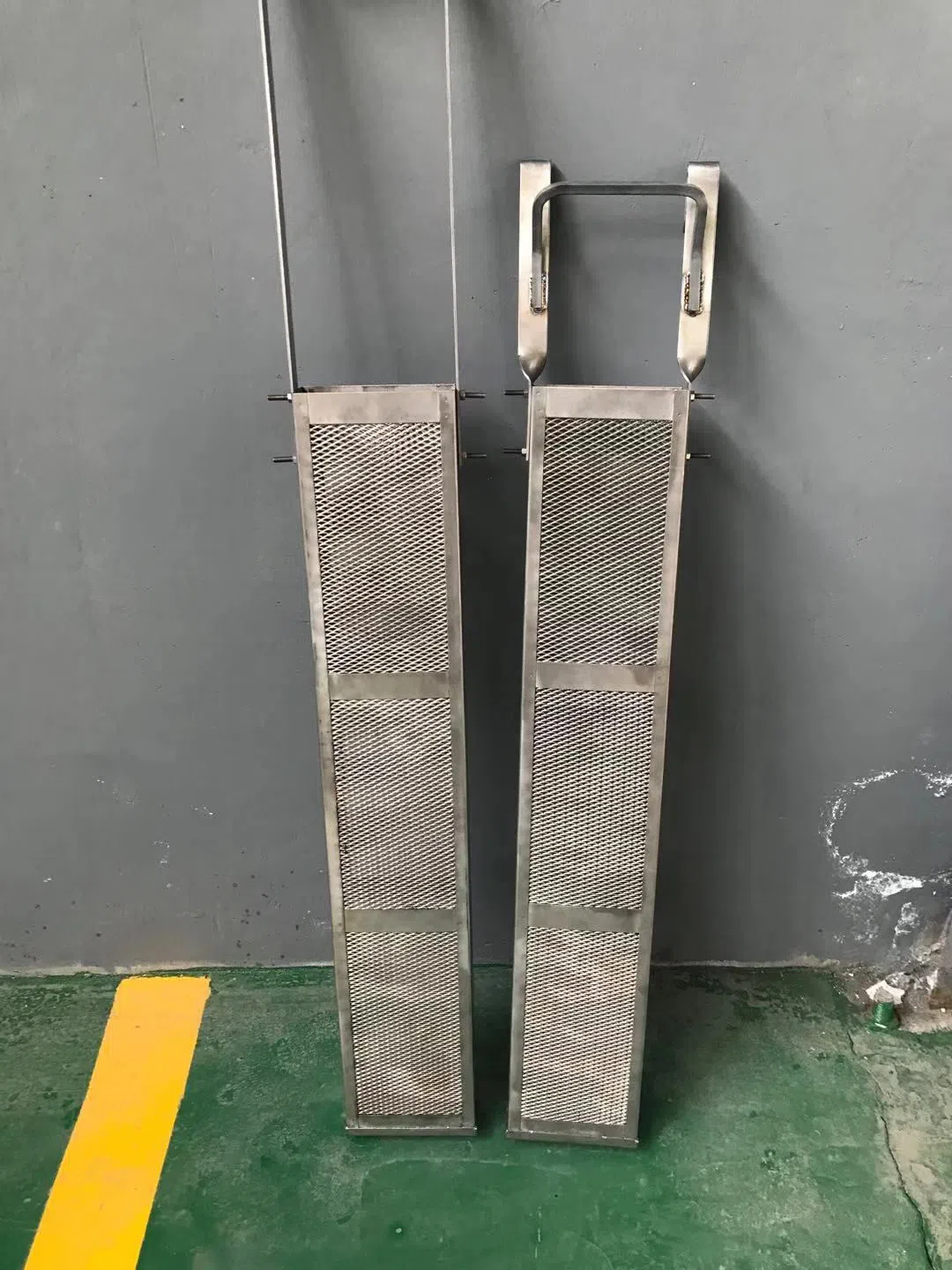

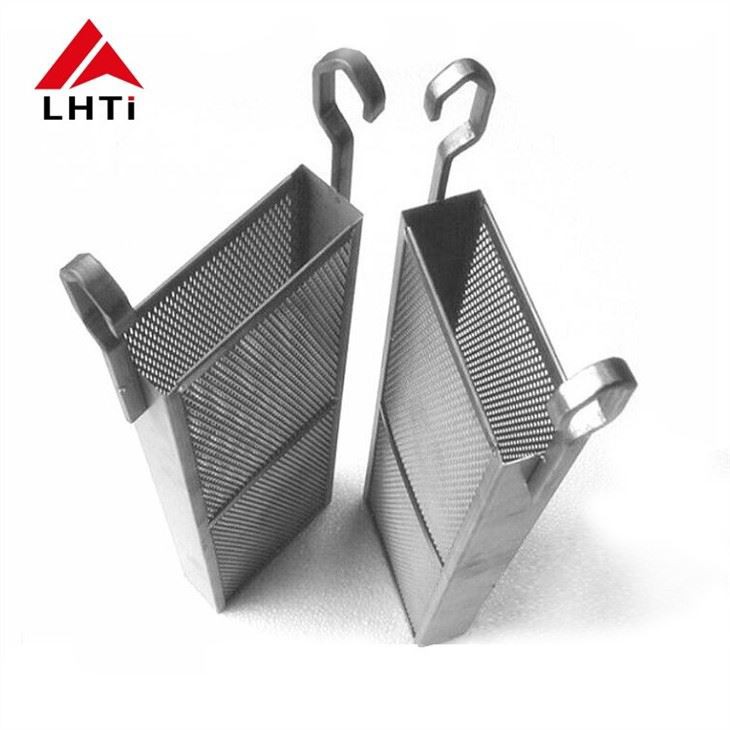

Titanium Plating Basket

Titanium Plating Basket

Product Name: Titanium Anode Basket
Material: Gr1, Gr2
Size: Customized
Application: Anodizing Electroplating Plating
Shape: Rectangular, round and spiral etc.
MOQ:10pcs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Basket Manufacturer

Send Inquiry

Chat Now

Product Introduction

Titanium Plating Basket

Product Information

Material: Gr1, Gr2

Size: Customized

Application: Electroplating, anodizing, plating etc.

Surface: Sand Blasting, Acid Washing, Brush Coating etc.

Shape: Rectangular, round and spiral etc.

MOQ: 10pcs

Characteristics

1. Used in the electroplating industry, it can effectively control the ratio of anode to cathode;

2. The anode has good solubility and produces less anode mud;

3. It is convenient to load or supplement anode materials;

4. The anode material is fully used, saving energy consumption;

5. Titanium basket has the characteristics of acid resistance, alkali resistance, corrosion resistance, high temperature resistance and high strength;

6. Titanium basket uses a mesh drawn from industrial pure titanium plates, which has high tensile strength and durability.

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	30
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25
