Titanium Anode Baskets For Electroplating

Precautions

1. Titanium anode basket and anode bag are soaked in 10% lye for 6-8 hours, washed with water and dried, and then soaked in 5% dilute sulfuric acid

2. When it is found that the titanium basket hook becomes significantly hot, the number of titanium baskets can be increased or the cross-sectional size of the titanium basket hook can be increased to improve the conductivity of the titanium basket

3. The mouth of the titanium basket should be slightly higher than the liquid level by 30-40mm to prevent the anode slag from flowing out

4. The lower end of the titanium basket should be 100~150mm higher than the part (the side close to the liquid level can be considered to install a shield) to avoid excessive current concentration of the lower part, causing scorching

5. Titanium basket and the anode should be in close contact, otherwise the anode potential on the titanium basket will rise sharply, causing oxygen and chlorine evolution reactions on the surface of the titanium basket, causing damage to the titanium basket and oxidation of additives

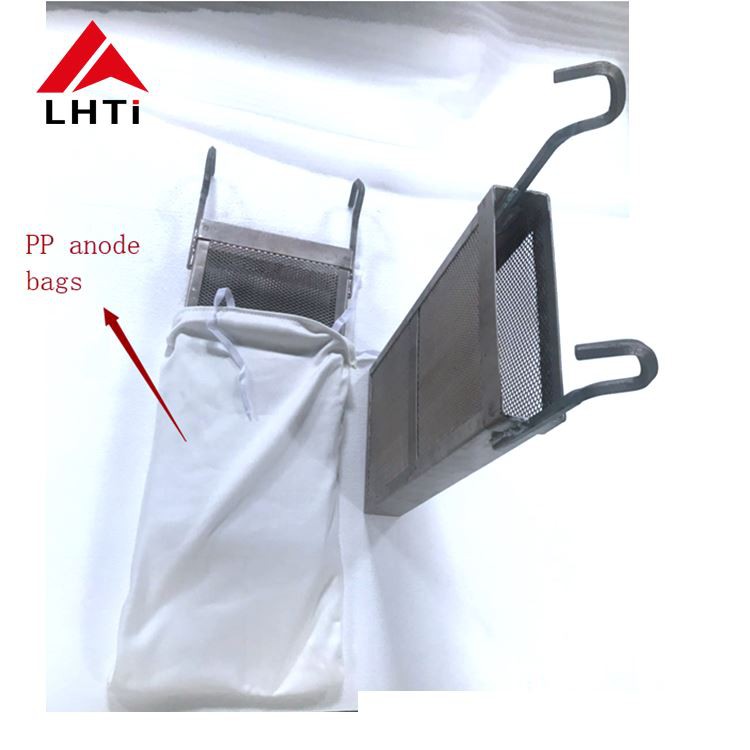

6. The anode bag should be tightly packed with the titanium basket, and a few centimeters should be left at the bottom of the bag to store the anode sludge that may be produced.

7. Clean the anode bag and titanium basket every half month to one month, and replace the damaged anode bag to ensure that the plating solution and the plating tank are free from pollution.

8. Replenish or enrich the anode material in time to avoid "overhead" when the amount of nickel is not enough, otherwise the titanium will be eroded.

Product Information

Material: Gr1, Gr2

Size: Customized

Application: Electroplating, anodizing, plating etc.

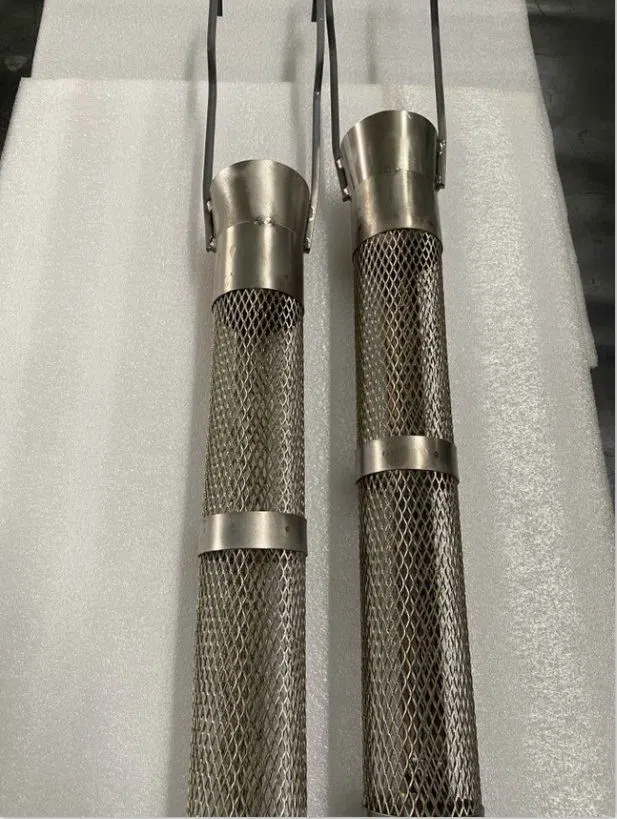

Shape: Rectangular, round and spiral etc.

MOQ: 10pcs

Advantages

Sufficient mechanical strength

Good electrical conductivity

Light weight

Sturdiness and durability

Convenient loading and unloading of parts

Appropriate loading

Can provide customized services

Toughness, light weight,Stability dimension

Lower electricity consumption,high catalytic

Strong corrosion resistance,long working life

High property of acid and alkali resistance,

 Bear high & low temperature, etc.

Physical Properties (Min)

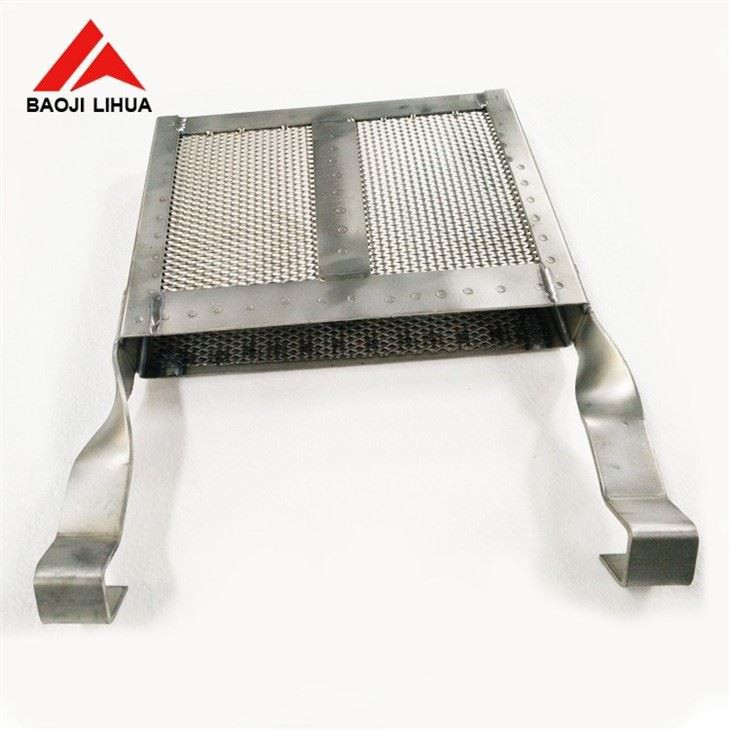

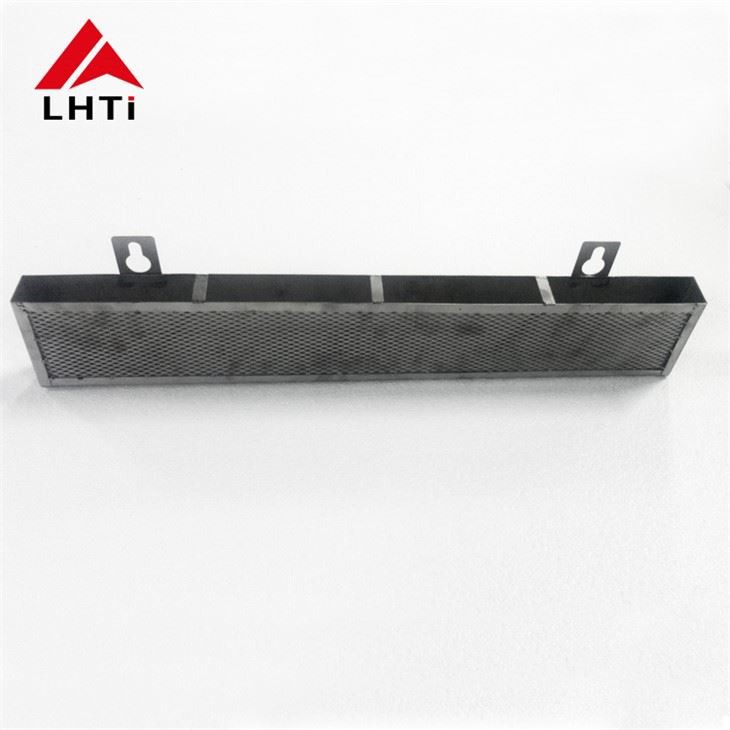

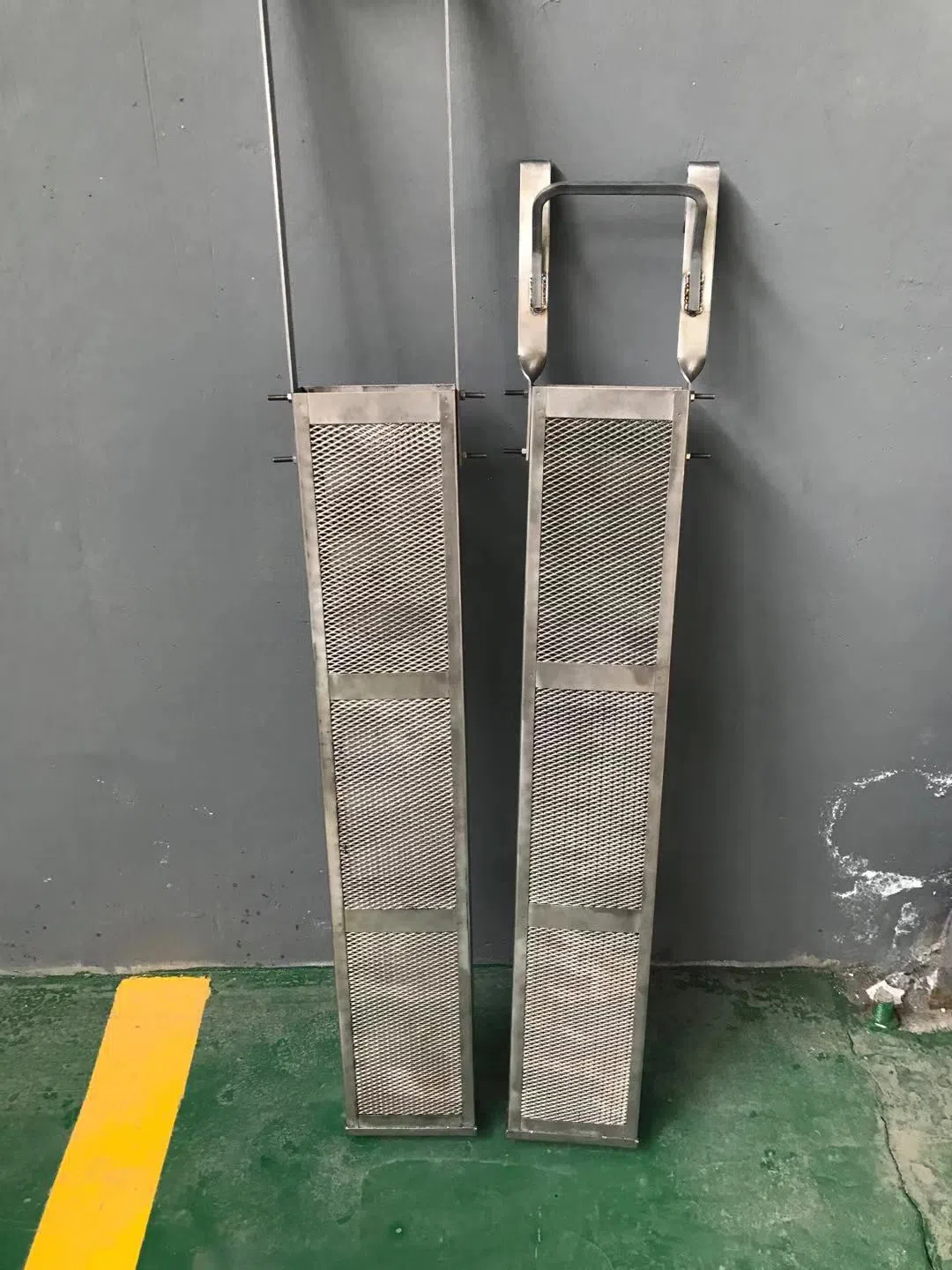

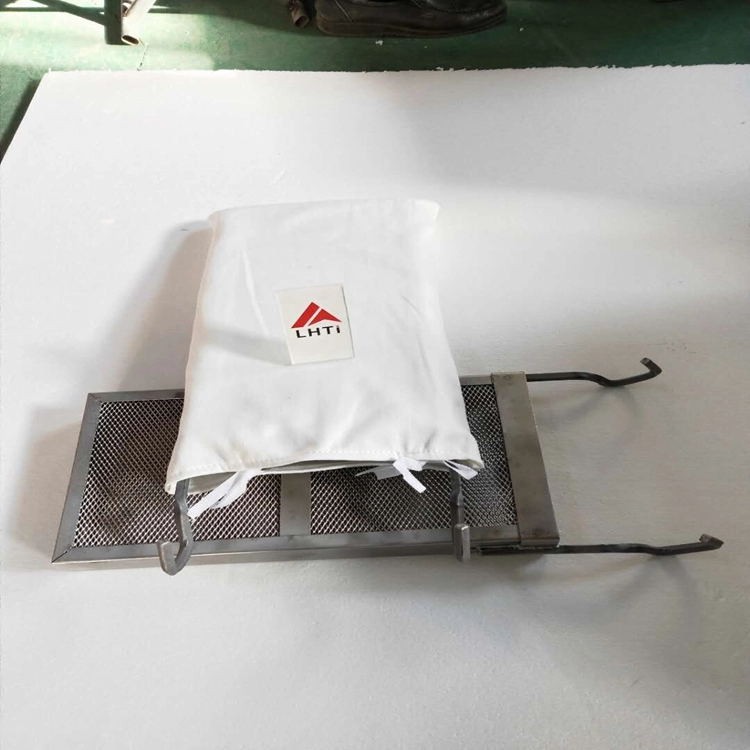

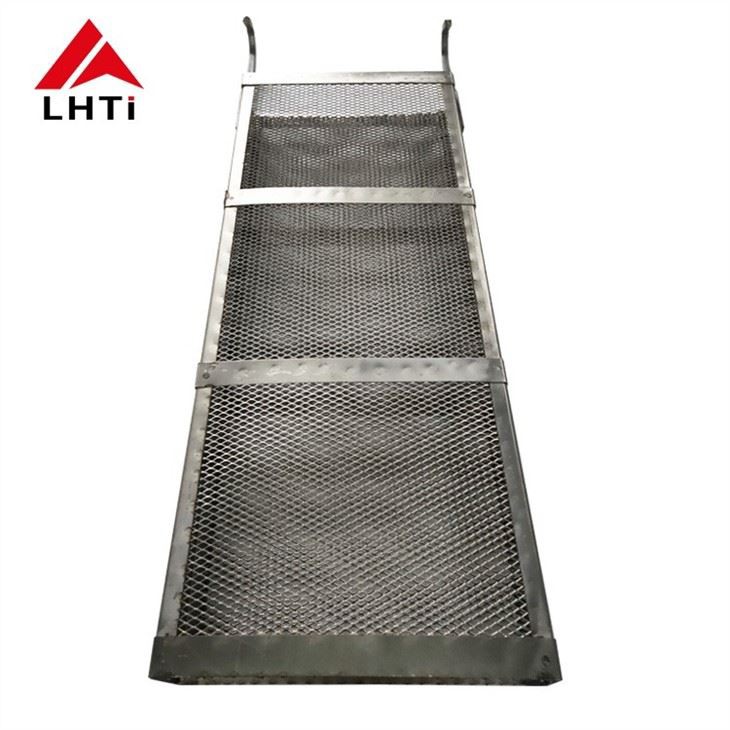

Product Images

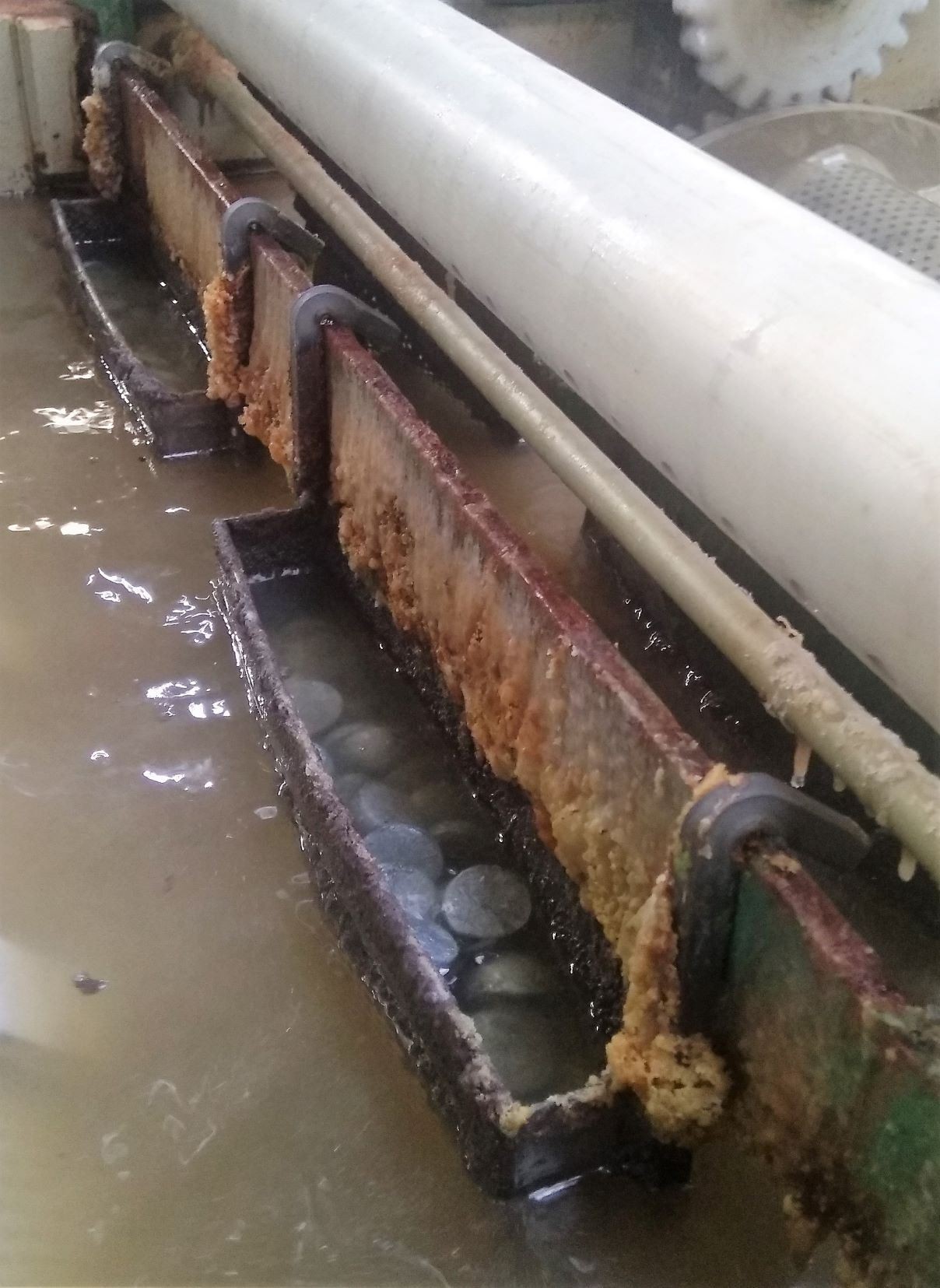

Application

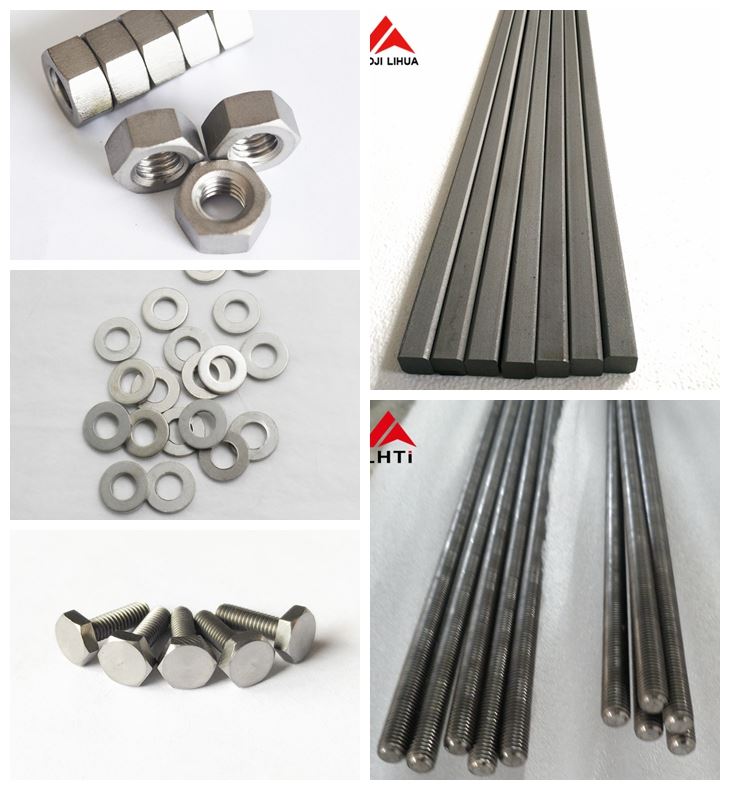

Related Products

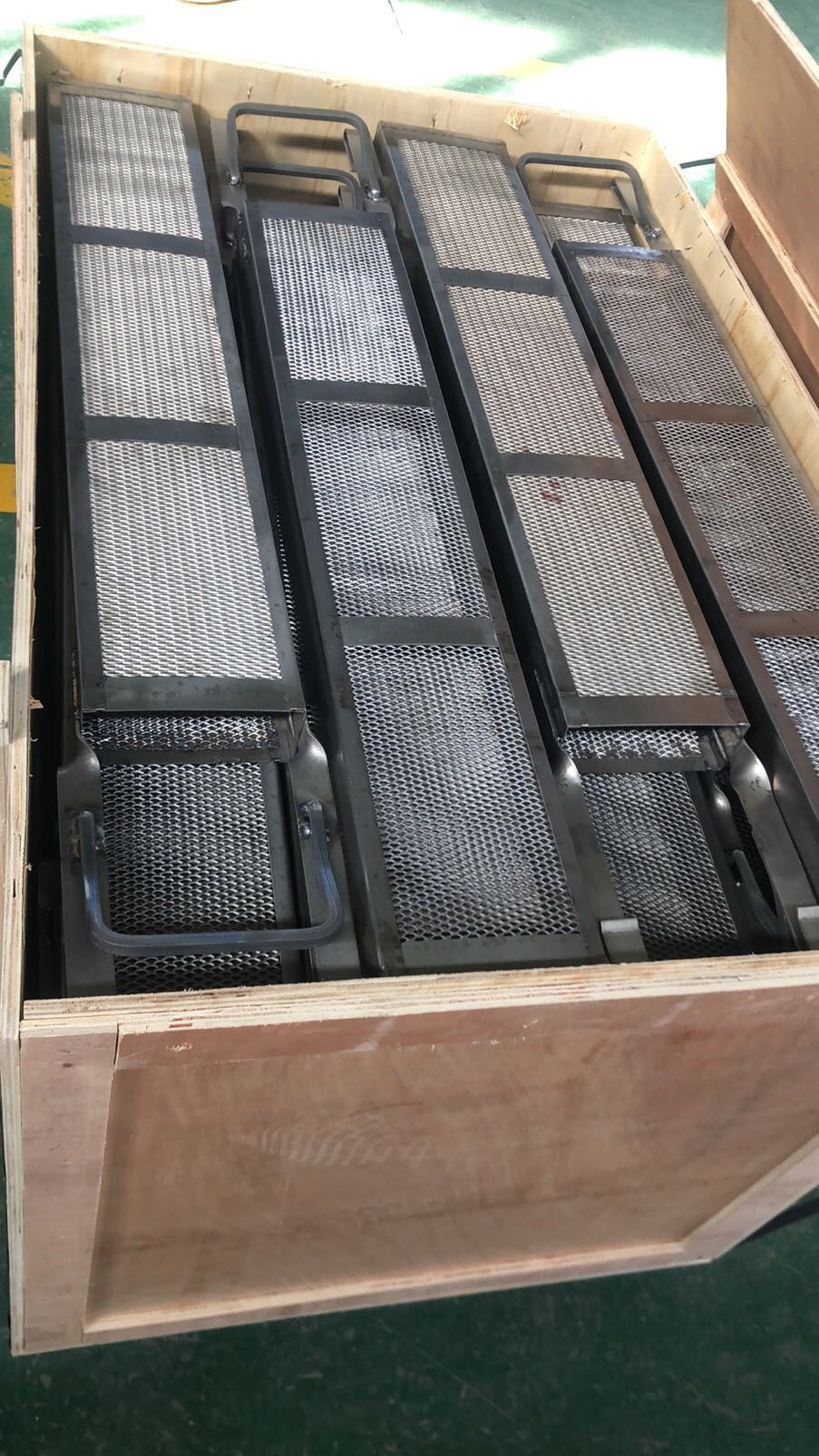

Package

Our Services

(1) Strict control from raw materials till products finished, so the quality is guaranteed.

(2) Customized sizes are offered as well as specified sizes and multiple sizes.

(3) Competitive prices will be provided for sure.
