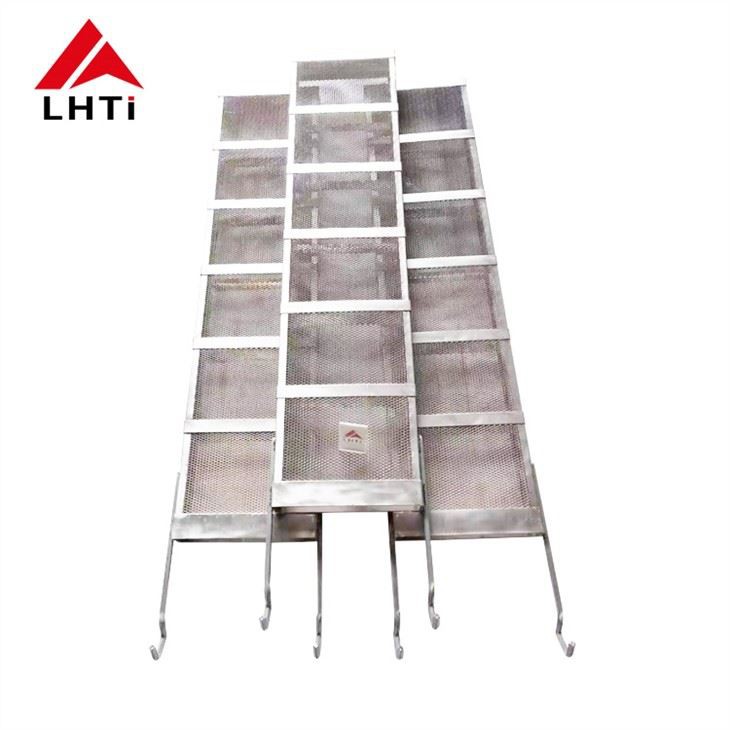

Titanium Basket For Anodizing

Product Information of Titanium Basket For Anodizing

Material:

Gr1 (Grade 1) and Gr2 (Grade 2) titanium are commonly used grades for these baskets due to their excellent corrosion resistance and suitability for various industrial processes.

Size:

Customized sizes indicate that these baskets can be tailored to fit specific dimensions required by the parts or components being processed. This customization ensures efficient use of tank space and optimal handling of parts.

Application:

Electroplating: Titanium baskets are used to hold parts during the electroplating process, ensuring uniform coating.

Anodizing: They suspend parts in anodizing baths for controlled oxidation and surface treatment.

Plating: Used similarly in plating processes to electroplate various metals onto components.

Surface:

Sand Blasting, Acid Washing, and Brush Coating are surface treatments that can be applied to titanium baskets:

Sand Blasting: Provides a textured surface finish for improved grip and aesthetics.

Acid Washing: Cleans the surface and removes contaminants, preparing it for further treatment or use.

Brush Coating: Likely refers to applying a coating using a brush, possibly for additional protection or aesthetic reasons.

Shape:

Rectangular, round, and spiral shapes accommodate different types of parts and optimize the use of tank space. Each shape offers unique benefits:

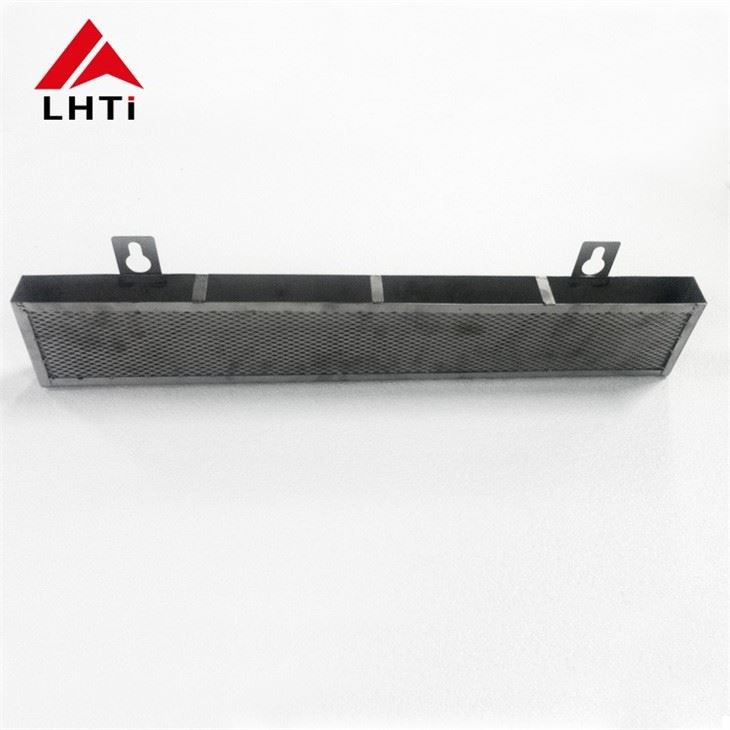

Rectangular: Efficient for holding flat or angular parts.

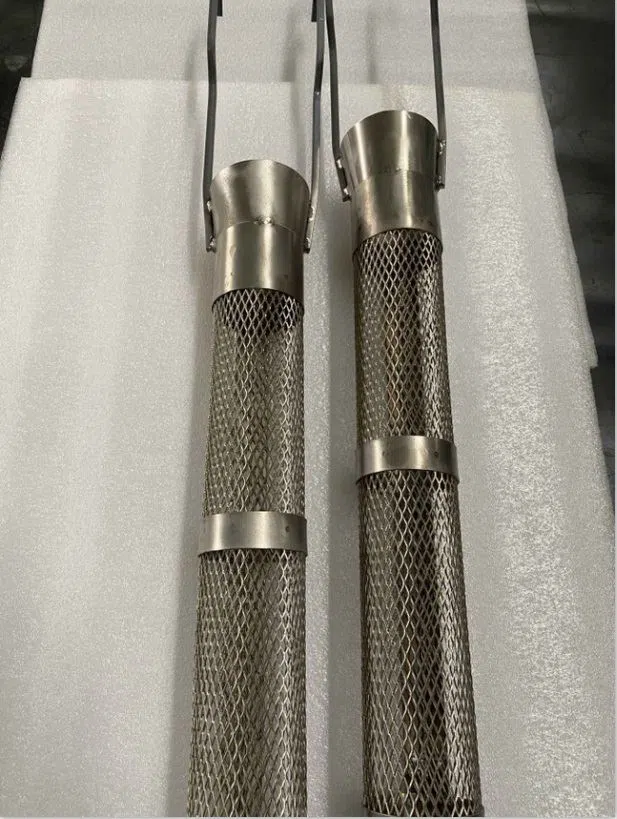

Round: Suitable for cylindrical components.

Spiral: Often used for maximizing surface area exposure in plating or anodizing processes.

Advantages of Titanium Basket:

1. It can effectively control the ratio of anode to anode area

2. Good anode solubility, less anode mud

3. It is convenient to load or supplement anode materials. Anode maintenance is also relatively simple

4. The anode material is fully used and the leftover material can be used, which saves energy consumption and reduces costs

5. It can prevent the uneven current distribution caused by the dissolution of the lower part when using the anode plate or anode strip

6. Improve anode load capacity, increase soluble anode area, and reduce anode passivation

7. Continuous deposition, balanced circulation distribution, high anode efficiency, small voltage loss and low consumption

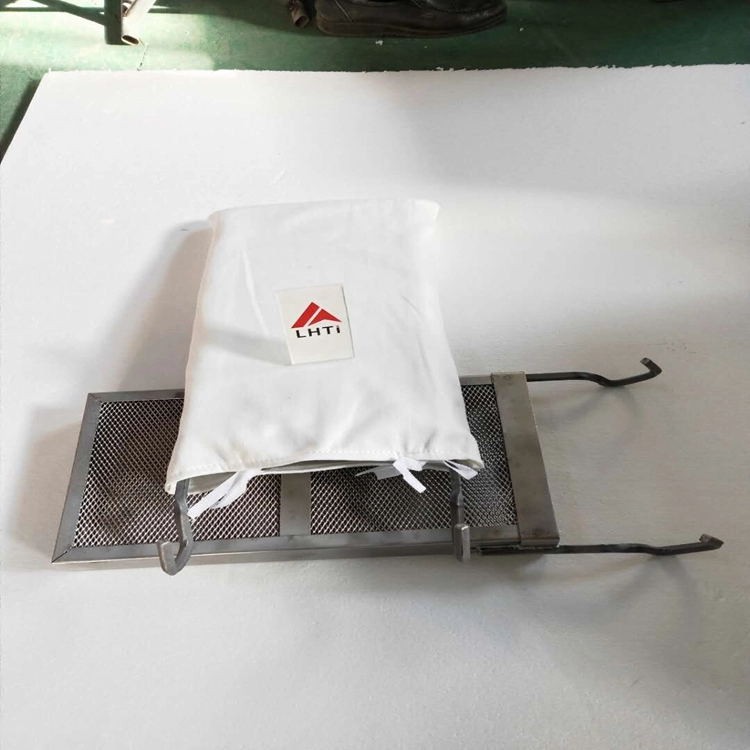

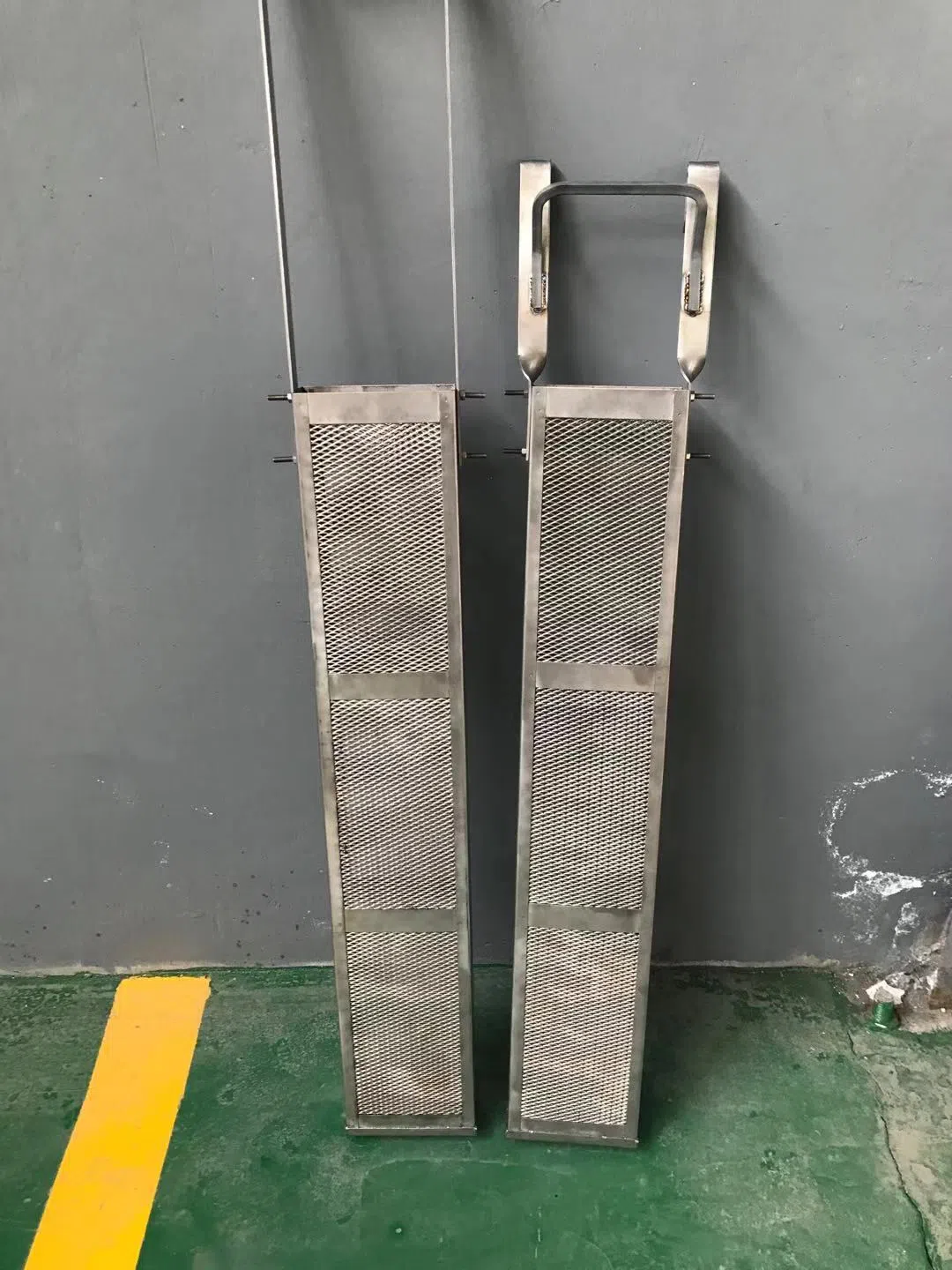

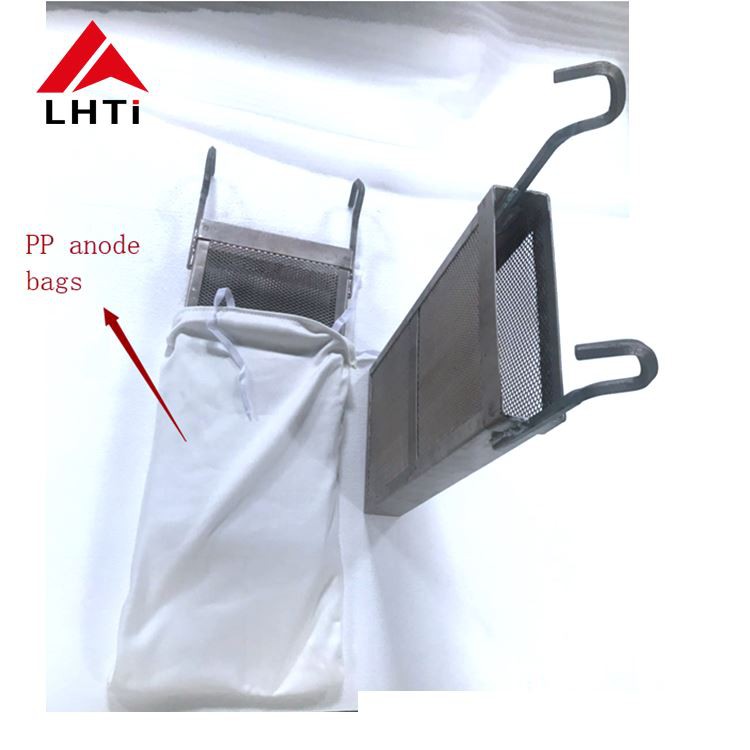

Detailed Images:

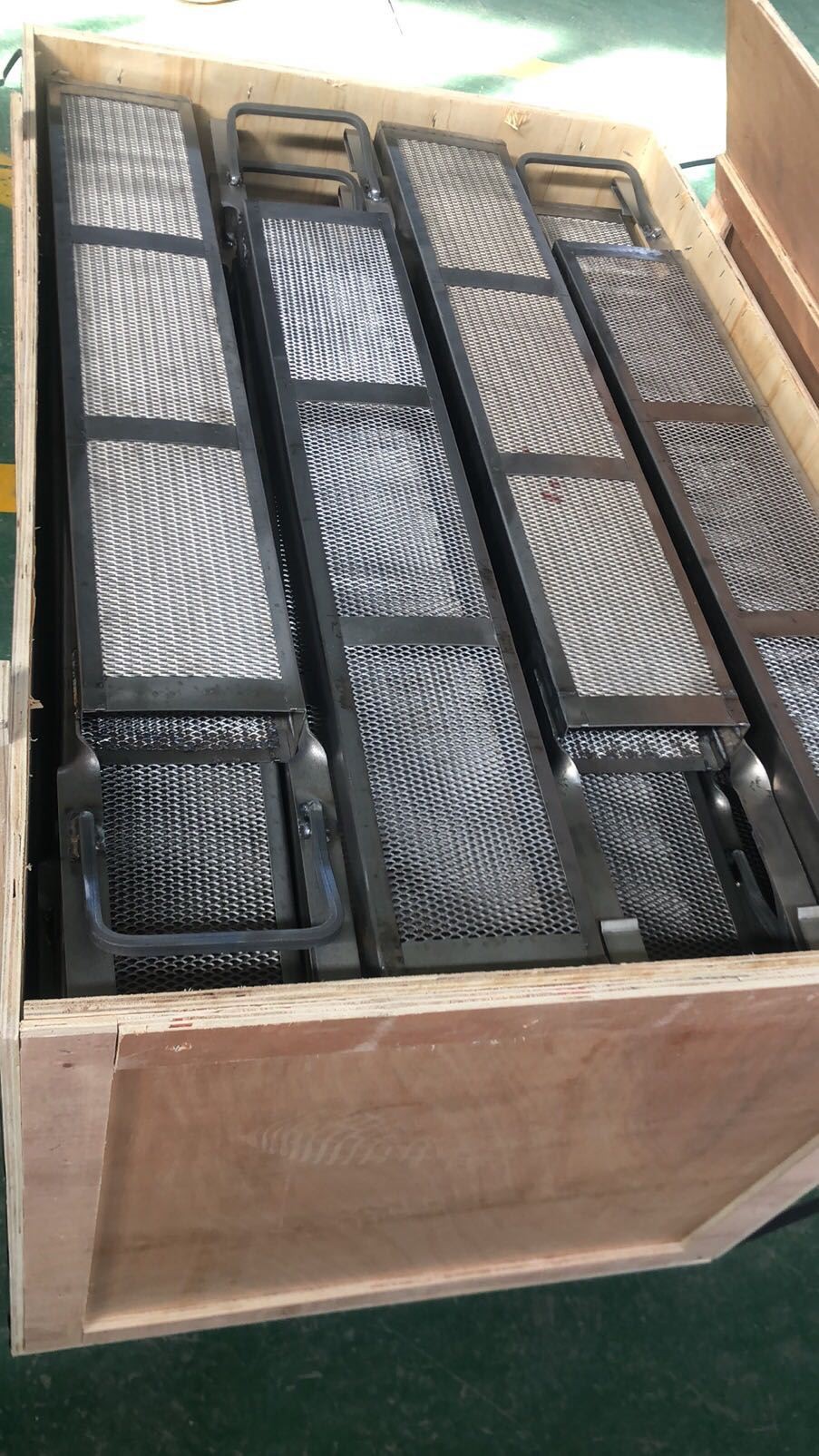

Package

Design and Construction:

Material: Typically made from Titanium Grade 2 or Grade 5 (Ti-6Al-4V) due to their balance of strength, corrosion resistance, and cost-effectiveness.

Basket Design:

Mesh Structure: Often designed with a mesh pattern or perforations to allow proper fluid circulation and drainage, crucial for effective cleaning and processing.

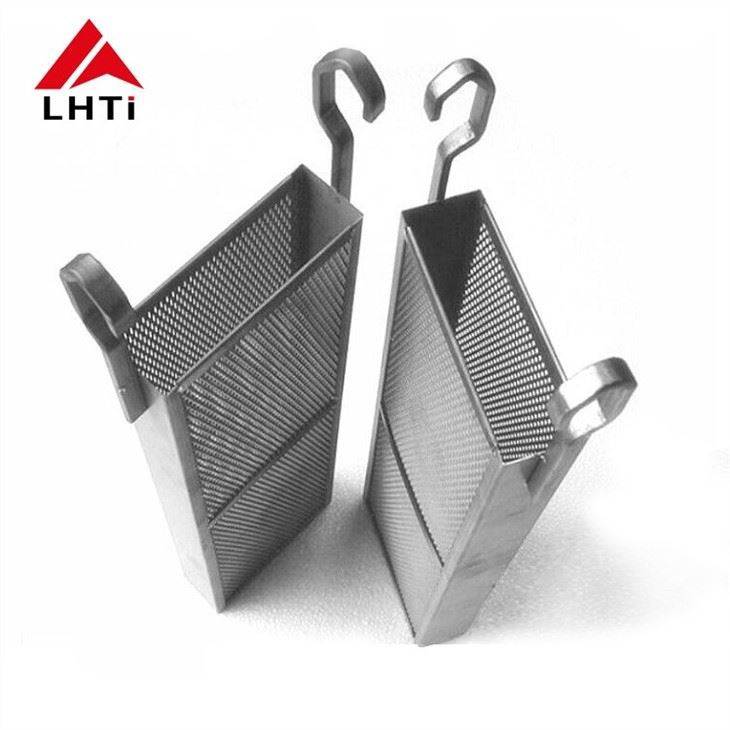

Handles or Hooks: Equipped with handles, hooks, or other means for easy handling and suspension within process tanks.

Customization: Can be customized in size and shape to accommodate specific parts or components being processed.

Surface Finish: Smooth finish to prevent contamination and ensure easy cleaning between uses.

Applications:

Electroplating: Used to hold items during the electroplating process, ensuring even coating and minimizing contact between parts to prevent uneven plating.

Anodizing: Similar to electroplating, titanium baskets are used to suspend parts during the anodizing process, allowing for controlled oxidation and coloration of metal surfaces.

Heat Treatment: Used in heat treatment processes where parts need to be exposed to controlled temperatures in an inert atmosphere or specific gas environment.

Medical and Pharmaceutical: Sterilization and handling of medical implants, instruments, and pharmaceutical products due to titanium's inertness and biocompatibility.
