Titanium Anode Baskets

Features

Introducing Our Advanced Titanium Anode Baskets

Our Titanium Anode Baskets are designed to deliver exceptional performance across a range of demanding applications. Engineered with a focus on durability and efficiency, these baskets offer numerous benefits:

Key Advantages

Toughness and Light Weight: Titanium's inherent toughness ensures that the baskets can withstand rigorous use while remaining lightweight, making them easy to handle and install.

Stable Dimensions: Our baskets maintain consistent dimensions, ensuring precise fit and function in various applications.

Lower Electricity Consumption: The high catalytic properties of titanium lead to reduced energy consumption during operation, improving overall efficiency.

Strong Corrosion Resistance: Titanium's excellent resistance to corrosion ensures a longer working life, even in harsh environments.

Acid and Alkali Resistance: The baskets exhibit superior resistance to both acids and alkalis, making them versatile for various chemical processes.

Temperature Tolerance: They can endure both high and low temperatures, adapting to a wide range of operating conditions.

Product Specifications

Composition: Made from a combination of titanium plate and titanium mesh, with a thickness ranging from 0.5 mm to 2 mm.

Mesh Sizes: Common mesh sizes include 6 mm x 3 mm, 10 mm x 3 mm, and 10 mm x 5 mm. For broader applications, we offer larger meshes such as 16 mm x 8 mm and 25 mm x 15 mm.

Applications

Our titanium anode baskets are versatile and suitable for various industries, including:

Sewage Treatment

Electroplating Industry

Cathodic Protection

Noble Metal Plating (Silver, Gold)

Electrolytic Water Treatment

Sea Water Antifouling

Electrolytic Synthesis of Organics

Testing Electrodes

Electrodialysis

These baskets are meticulously crafted to meet the demands of specialized processes, providing reliable performance and durability across diverse applications.

Detailed Images:

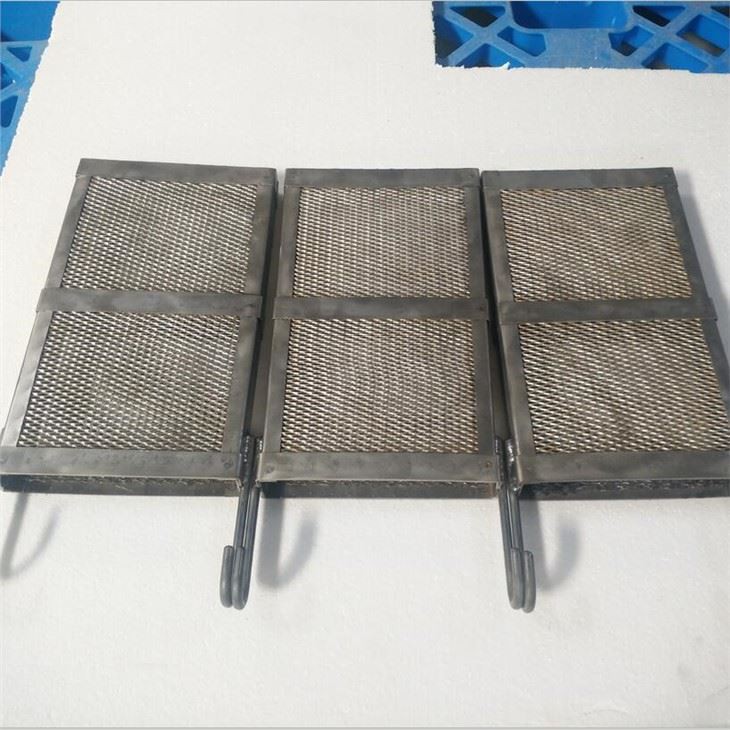

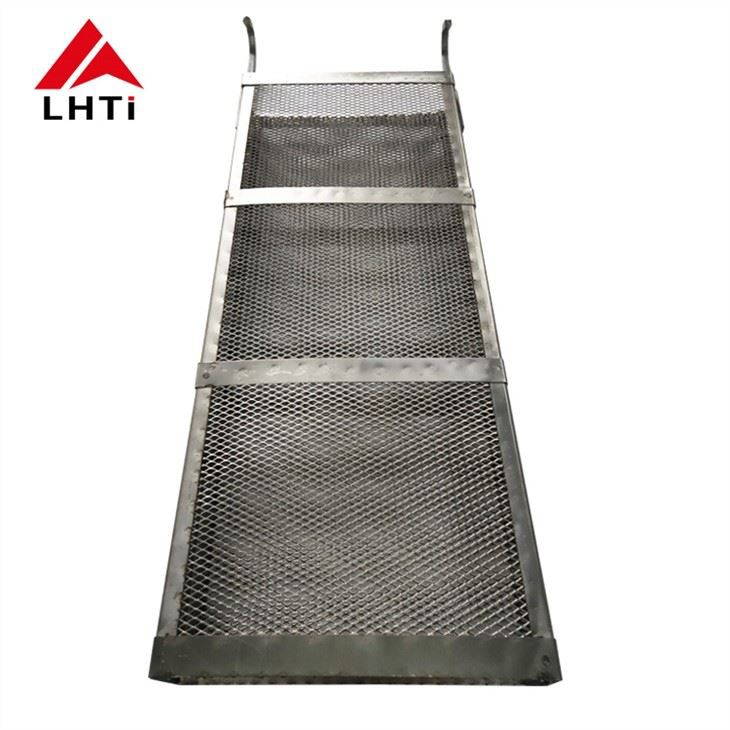

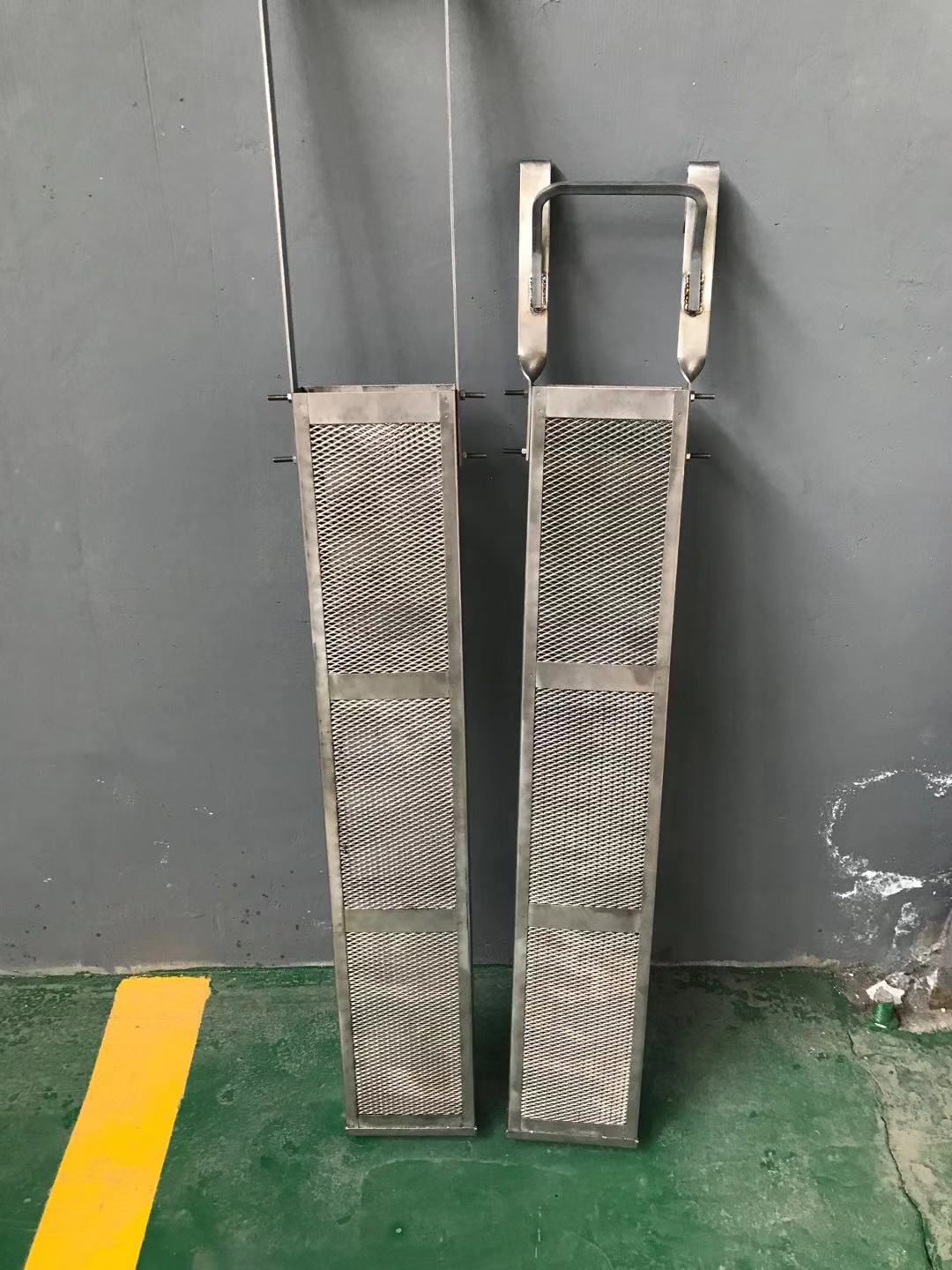

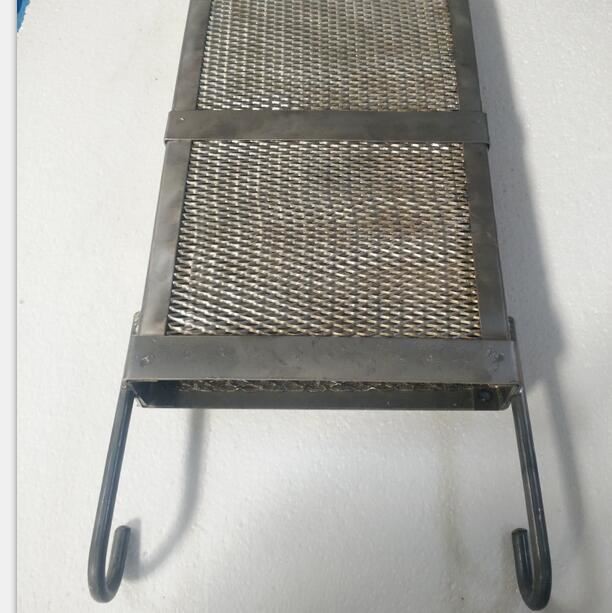

The titanium basket boasts high strength, lightweight properties, and excellent corrosion resistance, featuring a protective oxide film on its surface. Under typical electroplating conditions, this film prevents current from flowing through the basket itself, directing it instead to the anode material inside.

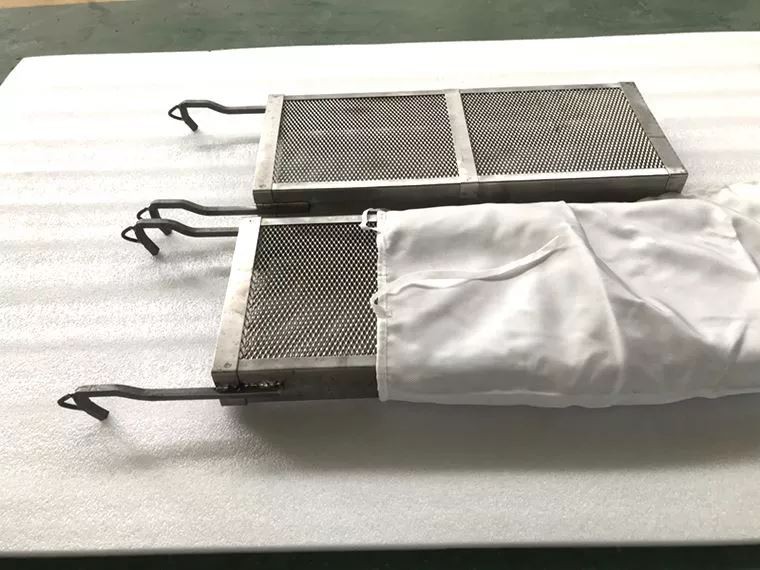

Titanium baskets come in various shapes, including round, rectangular, and dish-shaped, with custom designs available to meet specific requirements. They are often used with anode bags, which are typically made from acid and alkali-resistant polyester or polypropylene fibers. These bags are placed around the titanium basket to keep anode sludge and debris out of the tank. For enhanced protection against anode mud and coating burrs, double-layer anode bags may be used, with the inner bag tighter and the outer bag looser. Anode bags are selected for their corrosion resistance, wear resistance, and elasticity.
