Titanium Basket For Electroplating

Titanium Basket For Electroplating

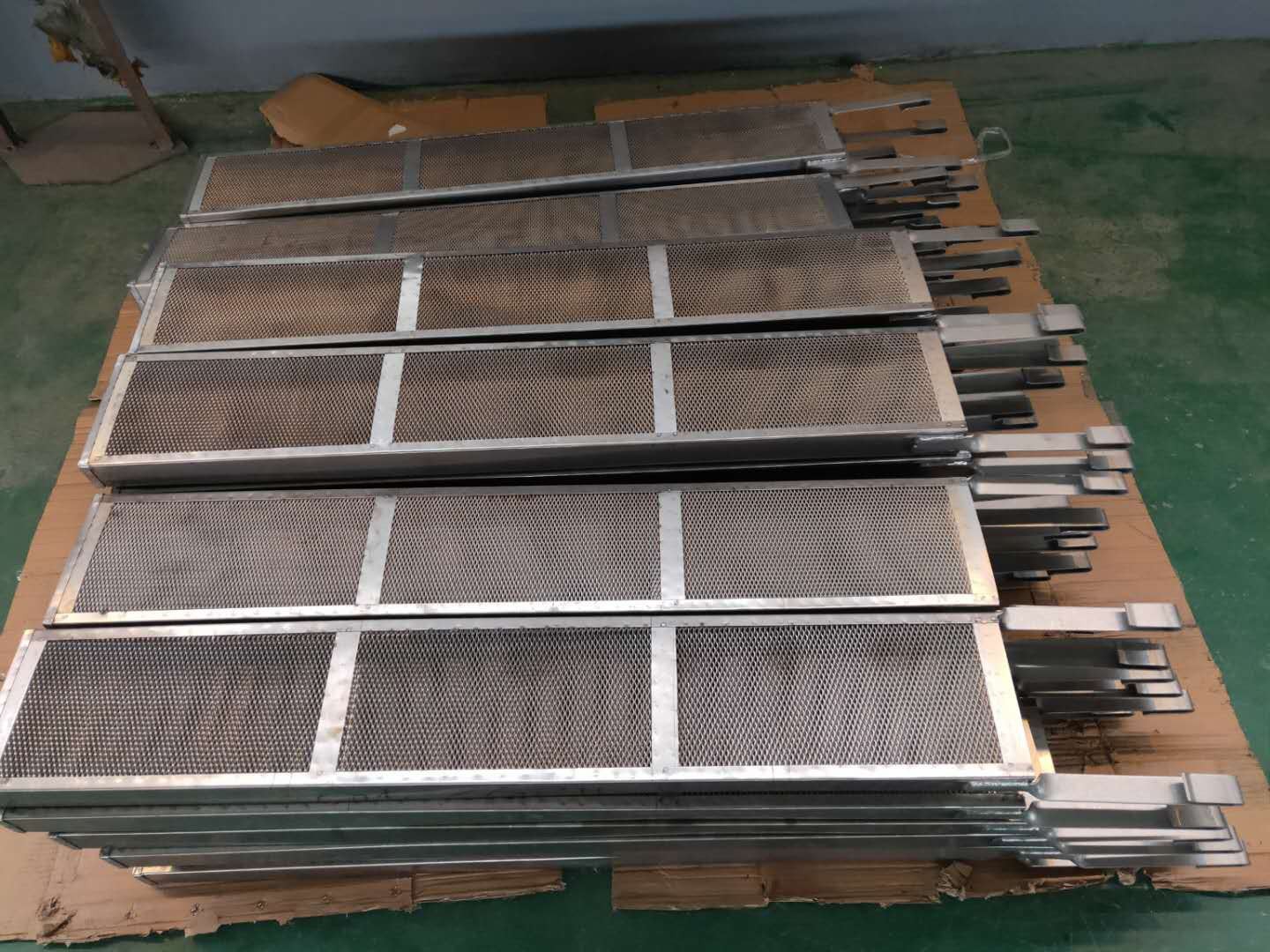

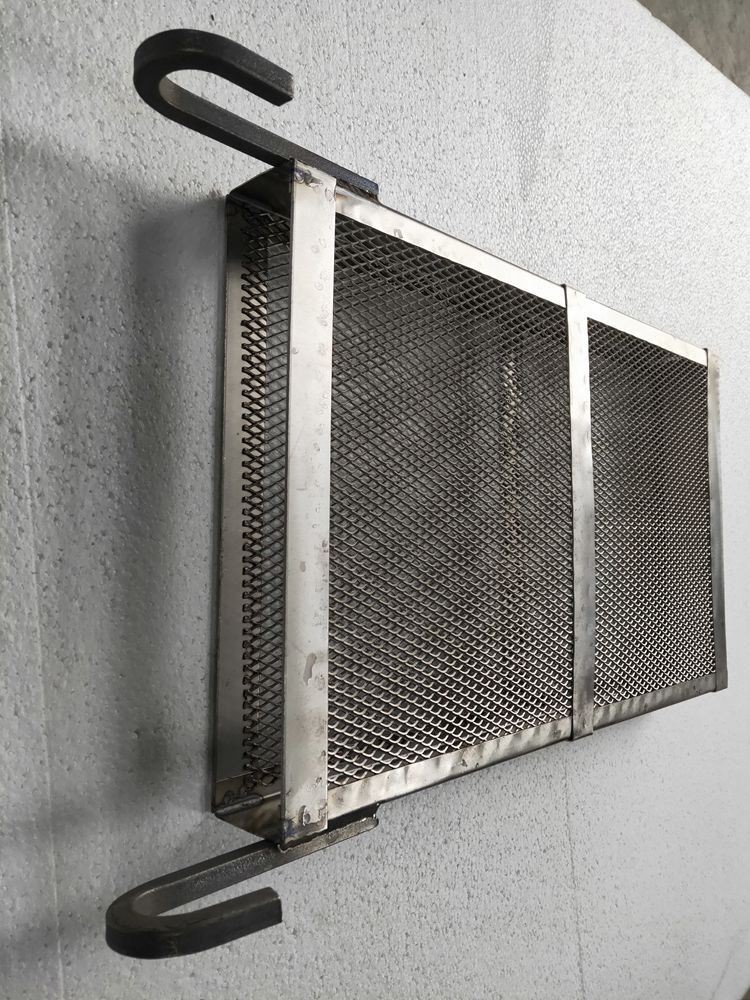

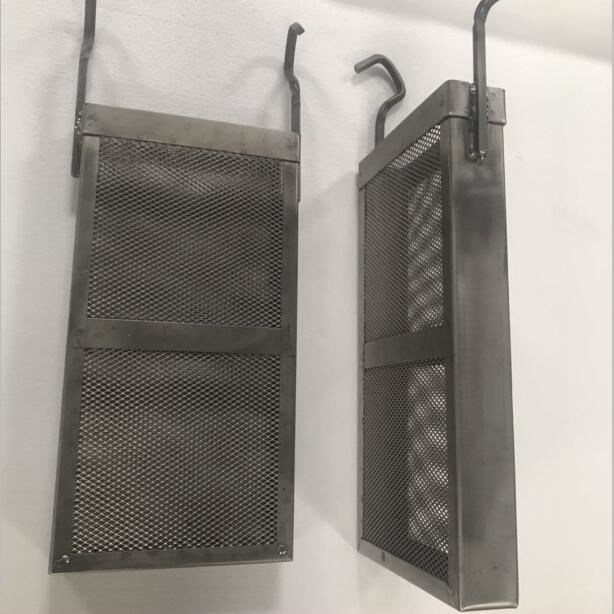

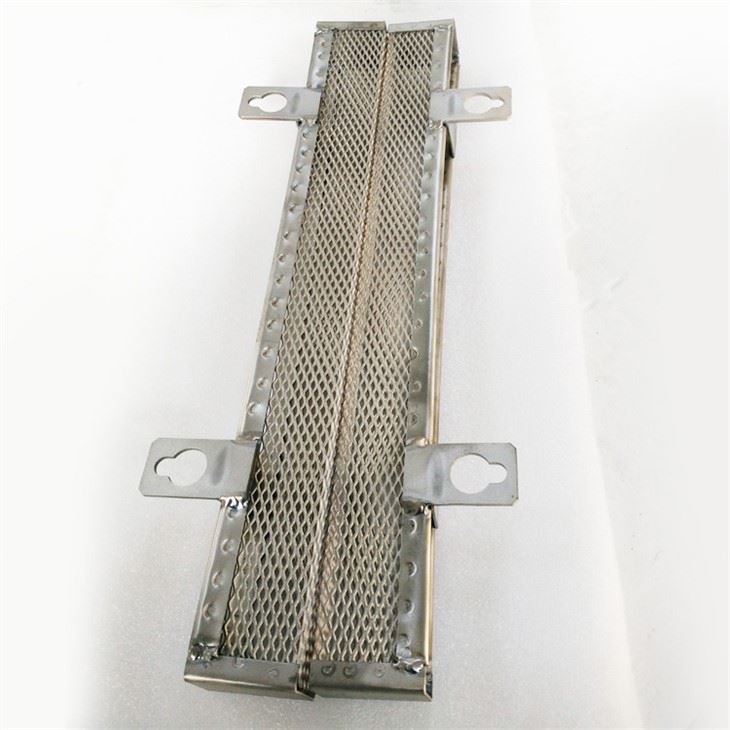

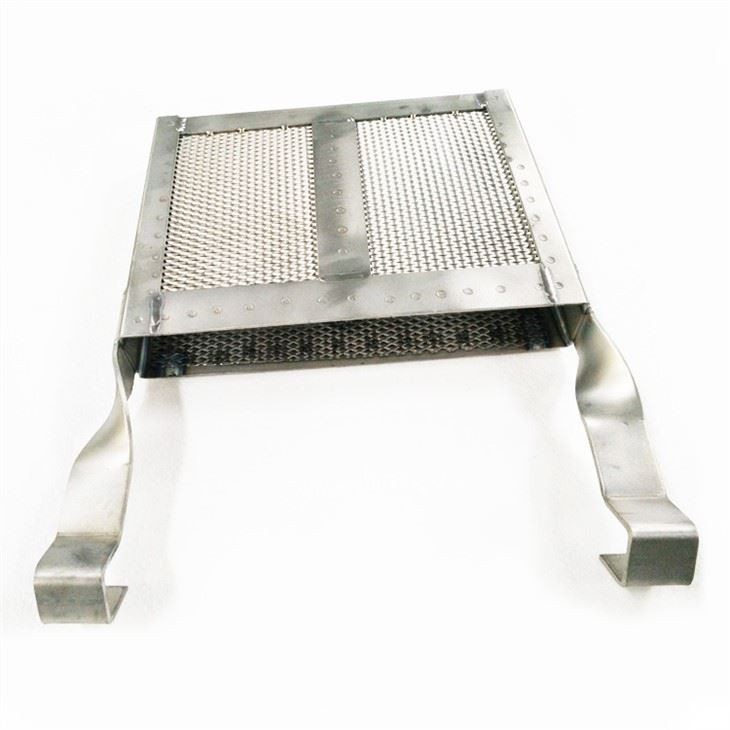

Product Name: Titanium Anode Basket
Material: Gr1, Gr2
Size: Customized

Send Inquiry

Chat Now

Product Introduction

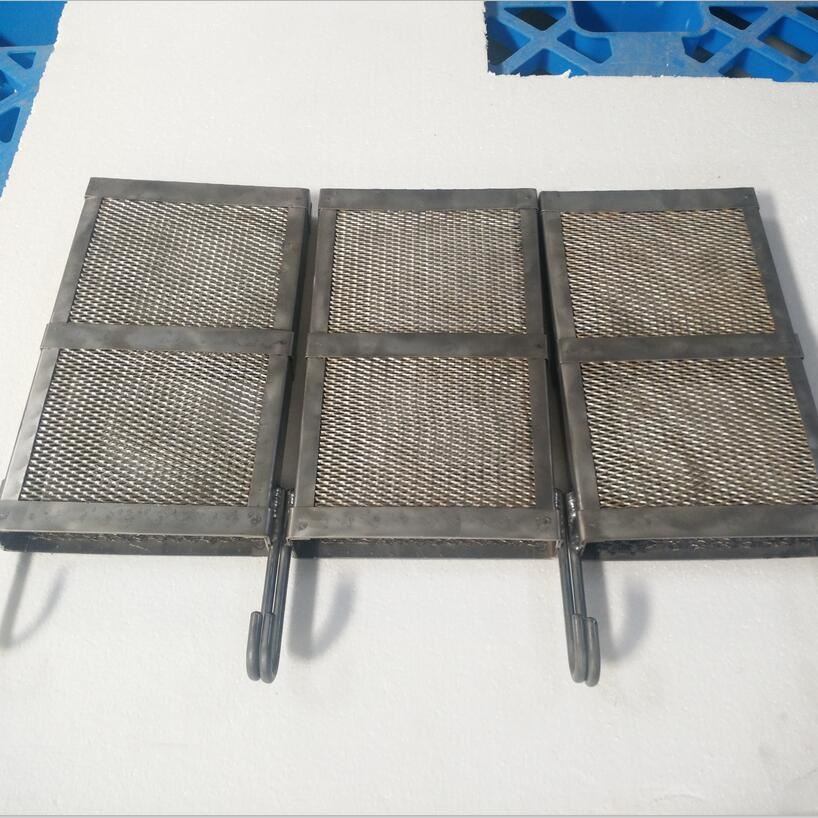

Titanium Basket for Electroplating

Berief Introduction of Electroplating

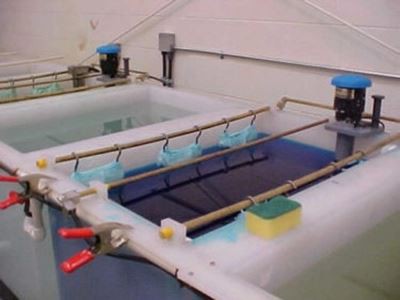

(1)Electroplating is a process whereby a coating is deposited onto a substrate by passing a DC current between the anode and the cathode. (2)The metal that is to be plated is dissolved in the electrolyte (carefully chosen to ensure anode passivation does not occur).

(3)The anode is anodically polarised and the cathode (the component to be electroplated) is cathodically polarised. This forms a closed cell.

Product Information of Titanium Basket for Electroplating

Material: Gr1, Gr2

Size: Customized

Surface: Sand Blasting, Acid Washing, Brush Coating etc.

Parameter: Current density≤2000A/M2

Temperature<60°C

PH 0.1~14

Max content of Fluoride ion is 200PPM

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	30
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25
