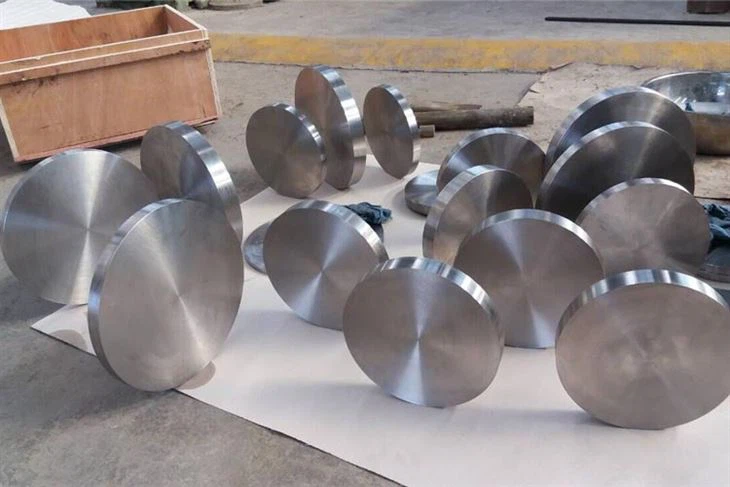

ASME SB381 Titanium Disc

ASME SB381 Titanium Disc

Product name: Titanium disc
OD:100-1300mm
Height:50-300mm
Standard: ASTM / ASME B381
Material Grade: Gr1,Gr2,Gr5, Gr7 ,Gr9,Gr12
Technique: Forged, CNC machined
Type: Round disc
Quality test: Appearance, Chemical composition, Physical properties,Ultrasonic Testing
Application:
1. Electroplating;
2. Chemical engineering & Petrochemical technology;
3.Use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium forging manufacturer

Send Inquiry

Chat Now

Product Introduction

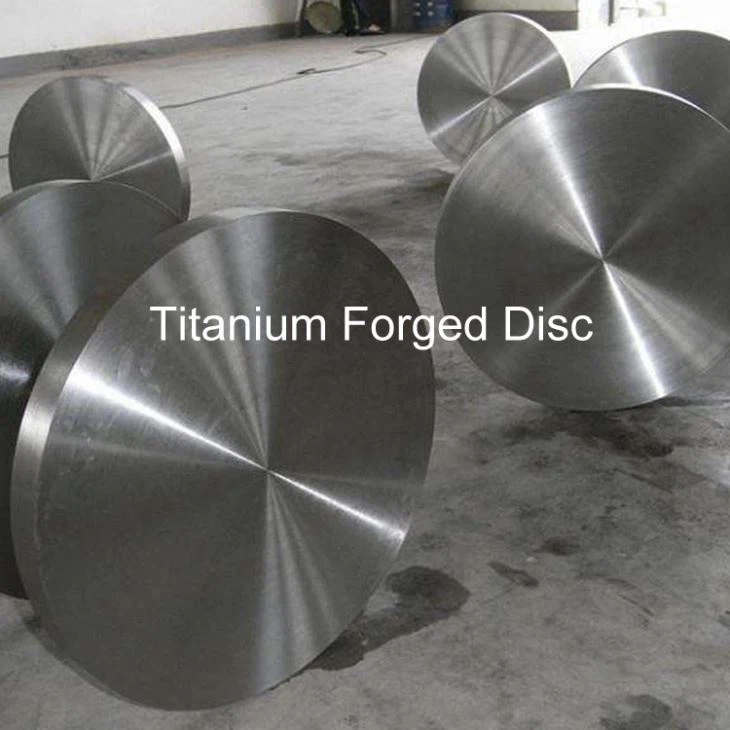

1.Titanium Forged Disc:

Product name	Industry use Titanium disc disk ring titanium forging ring
Dimension	OD(Max 1300 mm) ×H (max length 300mm)
Grade	Gr1 Gr2 Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni) etc.
Standard	ASTM B381, ASME SB381
Density	4.51g/cm3
Certification	ISO 9001:2015 & Gold suppier on ALIBABA, Material Mill Test Report
Technique	Die forging or flat-die forging +CNC machining
Shape	Disc/disk , ring
Type	Titanium forging
Application	Electroplating ;Chemical engineering & Petrochemical technology,oil drilling equipments,Aircraft Frame etc.

2.Physical Properties:

Grade	Tensile strength(min)	Yeild strength(min)	Elongation (%)
ksi	MPa	ksi	MPa
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	438	15
GR12	70	438	50	345	18

3.Tolerance of titanium forging ring as per ASTM B381:

Grade Gr1 Gr2 Gr5 Gr7 Gr9 Gr12	OD(mm)	Tolerance(mm)	Height	Tolerance(mm)
	100-300	-1/+3	<50	-0/+2
	300-600	-2/+3	50-200	-1/+3
	600-1000	-3/+5	200-300	-2/+4

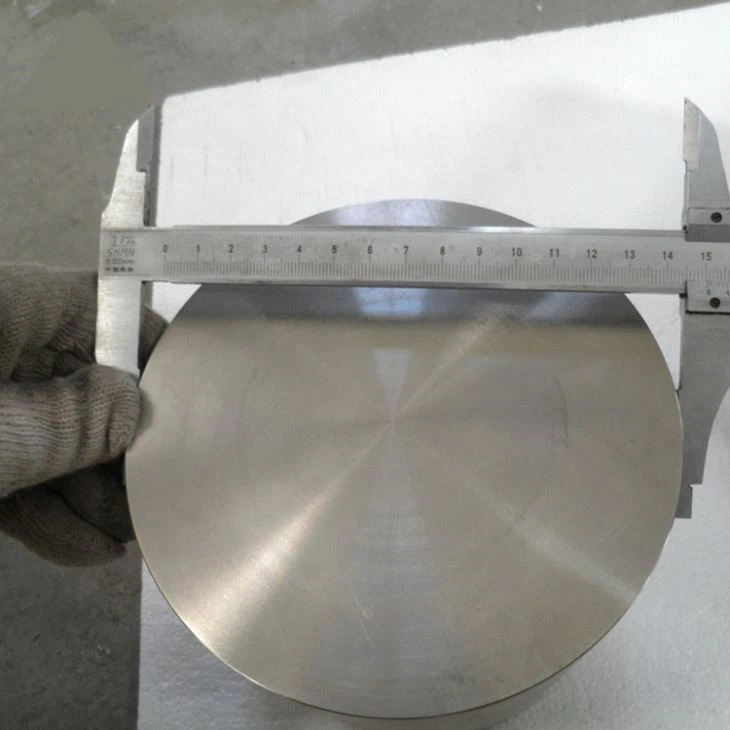

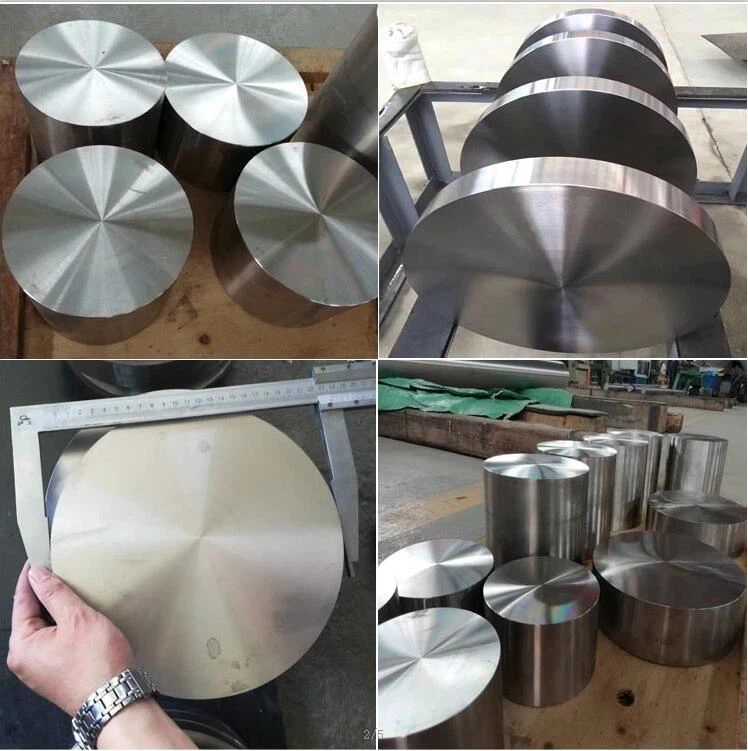

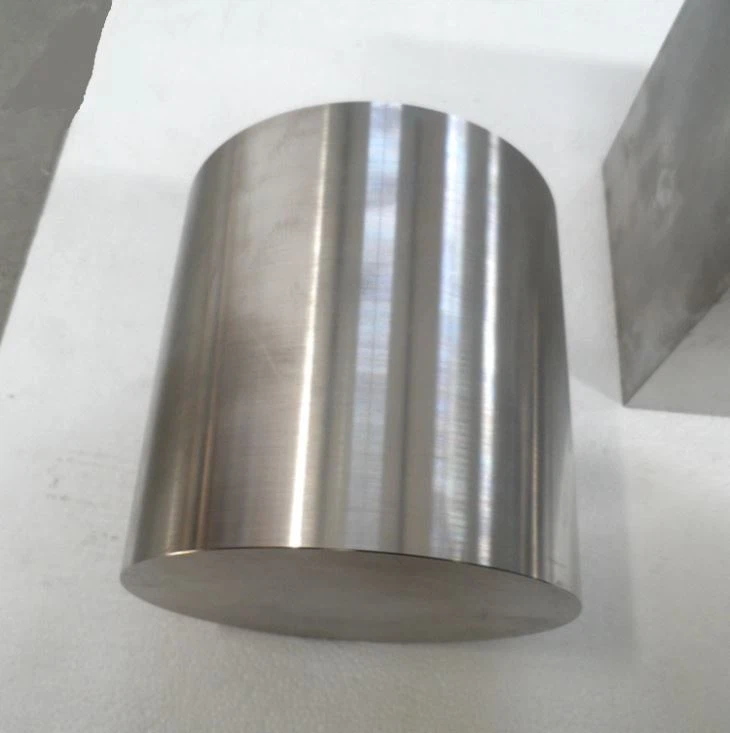

Detailed pictures of titanium disc:

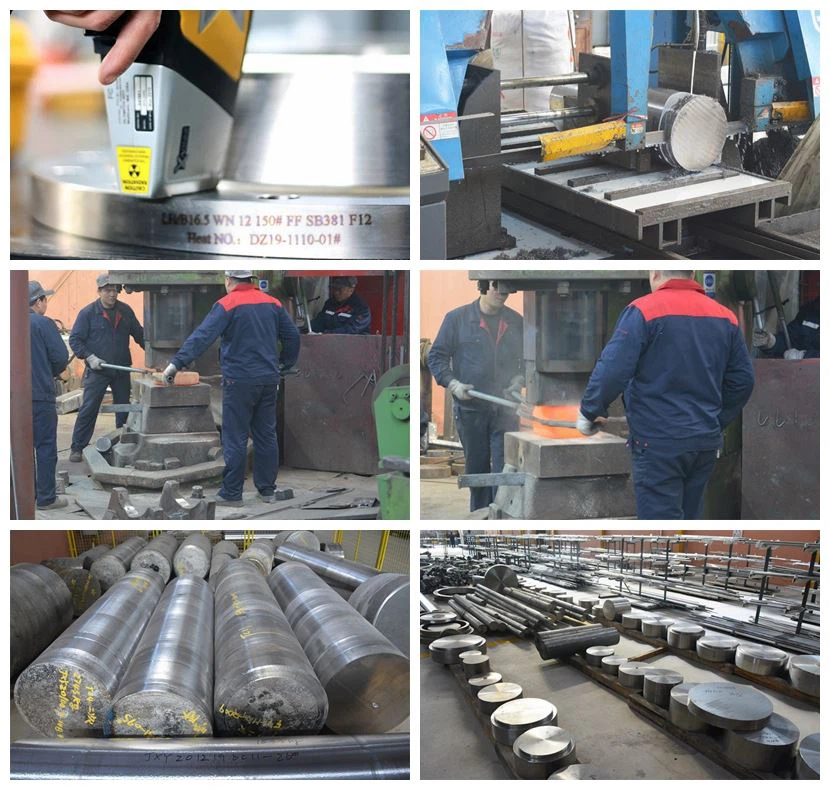

Quality control:

1.The forging disc surface of titanium alloy is smooth and smooth, with CNC machine adding cotton. The surface is free of any pollution, scratch, scratch, grinding, dent or any other defects.

2.100% UT test before delivery

3.Provide En10204/3.1 quality certificate with chemical composition and physical properties before delivery

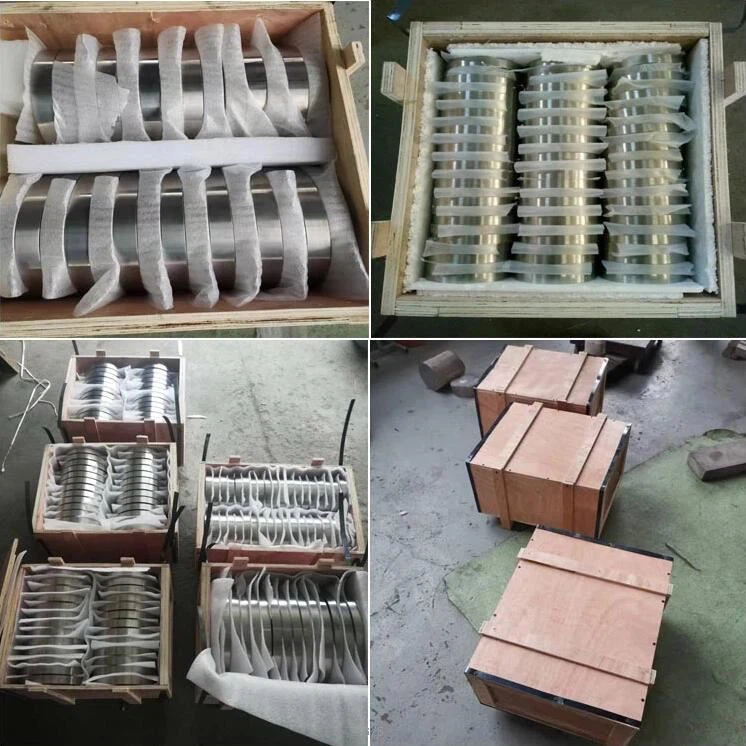

Packaging and shipping:

Standard export packaging, any damage is not allowed to the goods, to ensure that the goods received by customers are perfect and clean. Choose the best transportation plan for customers.

About our company:

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road, Baoji city---

It is famous for manufacturing Titanium, called “China Titanium Valley”.We are specialized in manufacturing titanium products.Our advantagous products is titanium forgings(titanium disc,titanium ring, titanium flange) .With more than 14 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.

All products we produced are based on the standard: Amecian standard,German standard ,

Aerospace standard, European standard, etc. Including ASTM/ASME.JIS,DIN etc.Lihua is certified by ISO9001:2008 . Our company's mantains long-term cooperations with SGS,BV,

LR'S ,TUV and other international inspection agency .Third party test is available.

Our advantages:

1.Equipment advantages:There are trimming machines, milling machines, annealing furnaces, shearing machines, bending machines, straightening machines,sandblasting machines,punching machines and forging hammers.

2.Product advantages:There are many material in stock, can provide samples,which can be processed and customized according to drawings.

3.Price advantages:Factory shipments, no middlemen, low ex-factory prices.

4.Quality assurance: Our company have been certificated by ISO 9001:2015.Provide products bill of materials and third test report.

5.Service advantage:Professional export team provides you with services, and you can return for free if you encounter product quality problems.
