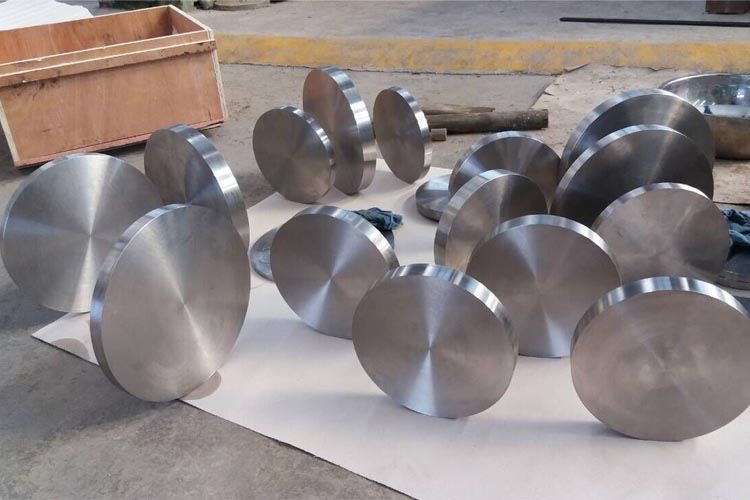

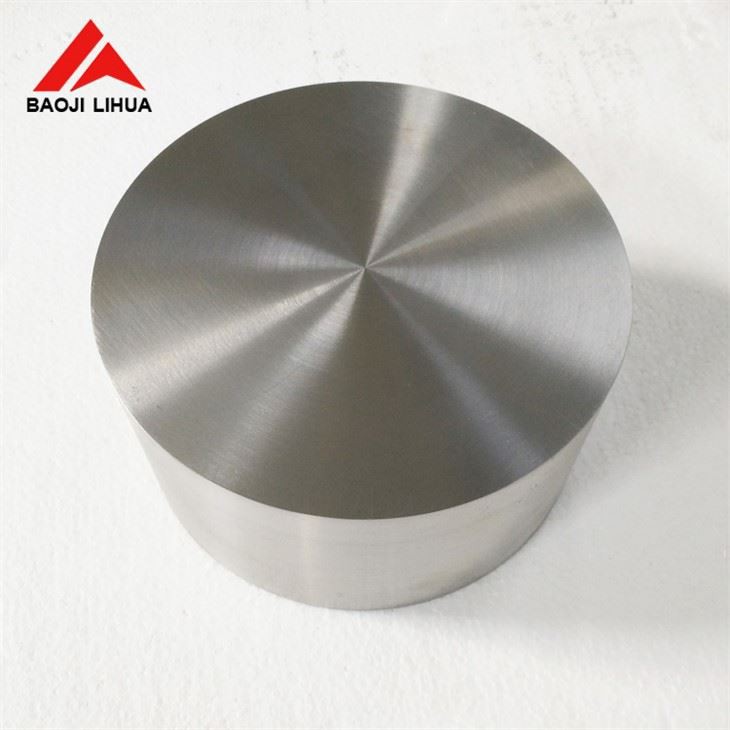

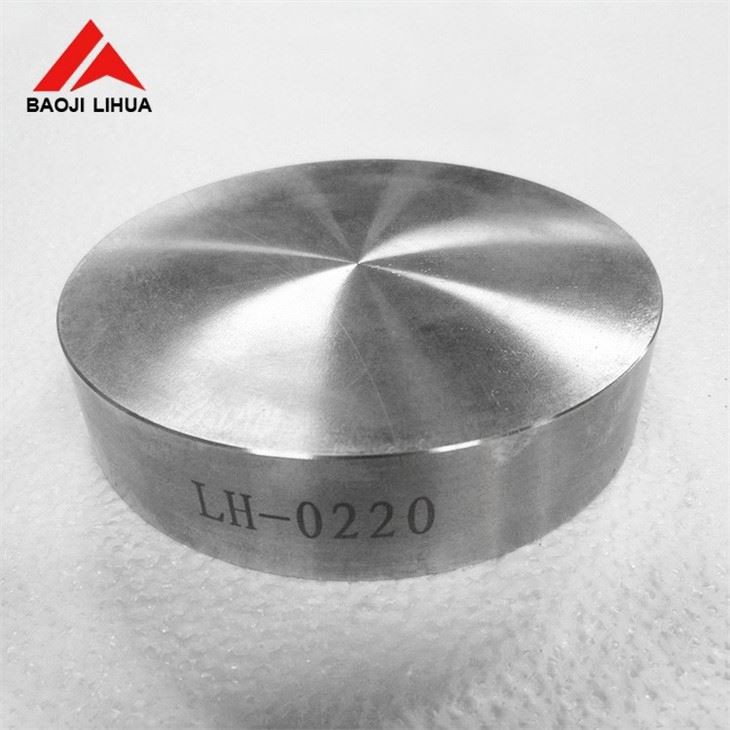

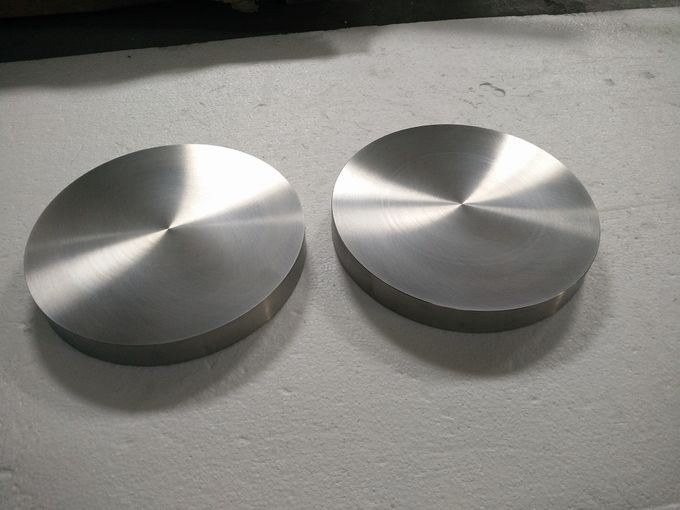

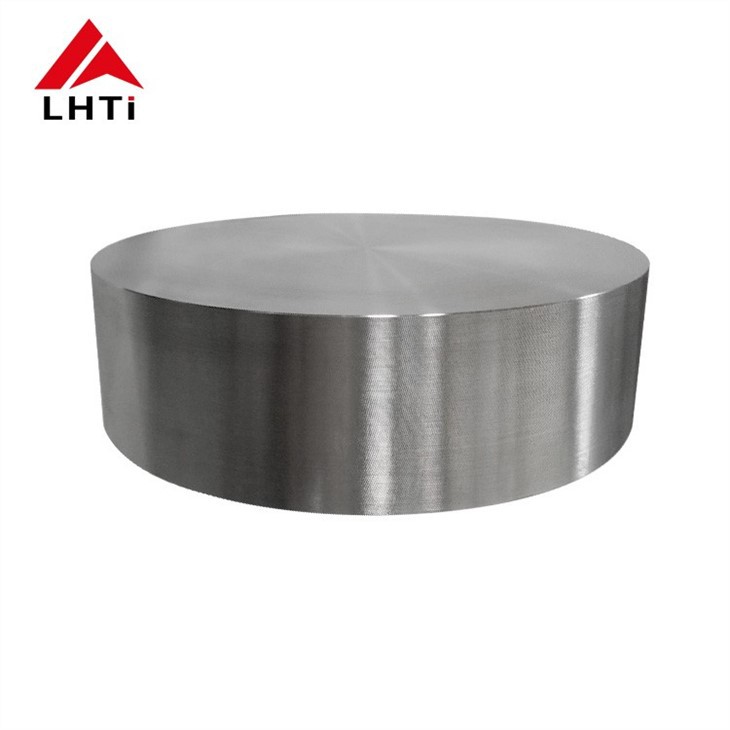

Titanium Disc Forged

Titanium Disc Forged

Standard: ASTM / ASME SB381
Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Shape: Round or according to your requirements
Technique: Forged, CNC Machined

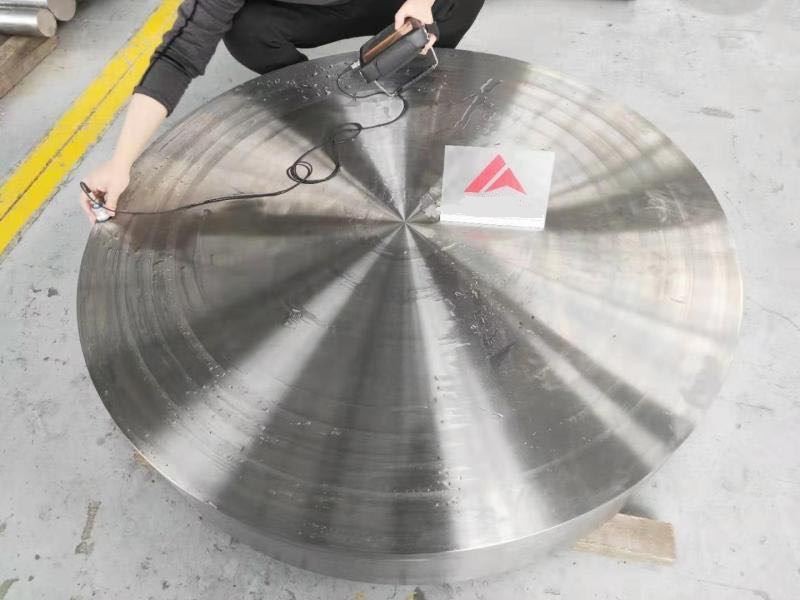

Quality Control: Ultrasonic Testing
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Disc Manufacturer

Send Inquiry

Chat Now

Product Introduction

Titanium Disc Forged

Product Information

Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12

Standard: ASTM / ASME SB381

Shape: Round or according to your requirements

Technique: Forged, CNC Machined

Available Sizes:

Diameter:50-200mm*Height 2-140mm

Diameter:200-400mm*Height 25-150mm

Diameter:400-600*Height 30-110mm

Tolerance

Diameter or Thickness	Allowable Deviation(mm)
Hot forged disc	Titanium disc is forged, as the standard of ASTM B381
>7~15	——
>15~25	——
>25~40	0, +0.5
>40~60	0, +0.5
>60~90	0, +0.5
>90~120	0, +0.8
>120~160	0, +1.0
>160~200	0, +1.2
>200~230	0, +1.5
Deviation of length(mm): L<500, +1max; L>500, +2max
