Product name:Titanium Pressure Vessel Hemispherical Tank Head
Standard: ASME VIII-I, DIN28013
Material: GR1, GR2, GR7, GR12 etc.
Size: Customized
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium heat exchanger manufacturer

Send Inquiry

Chat Now

Product Introduction

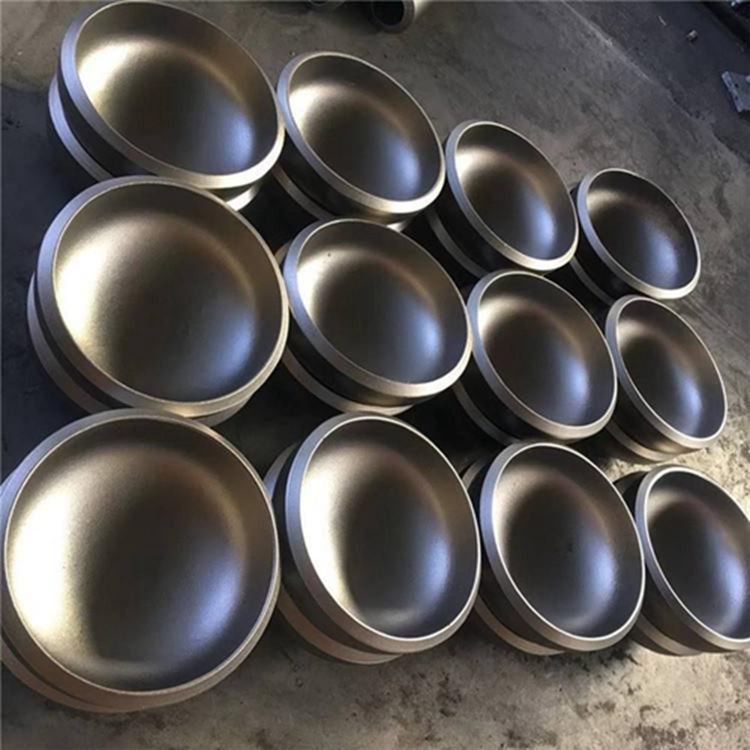

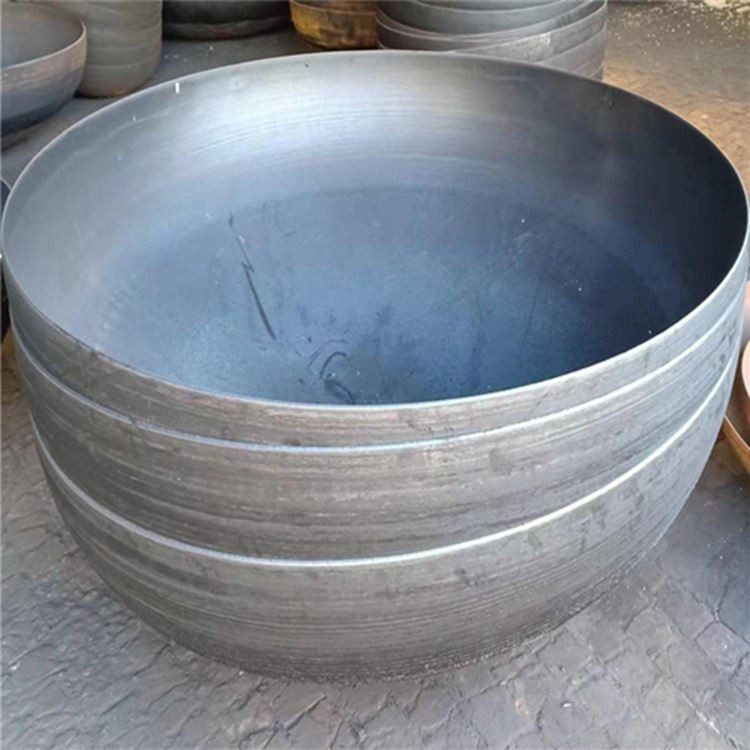

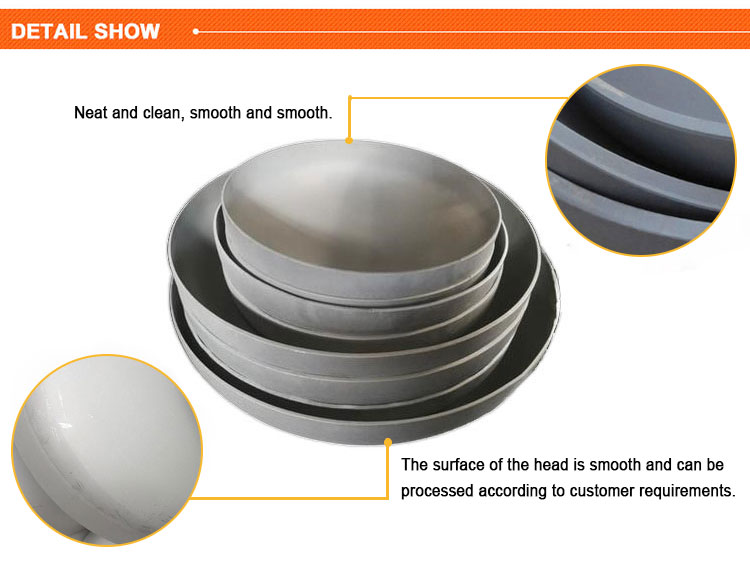

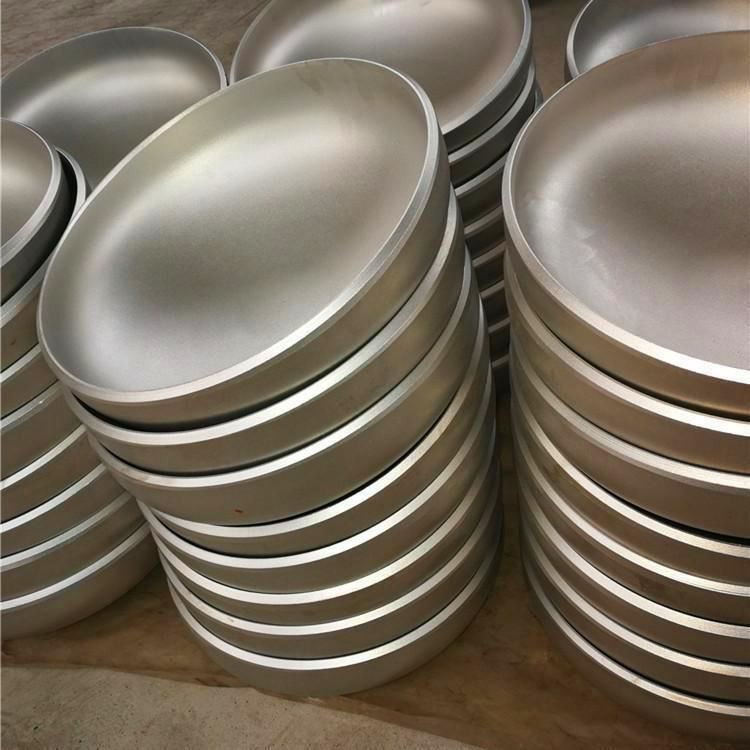

Titanium Pressure Vessel Hemispherical Tank Head

The Hemispherical Tank Head head refers to the element used to close the end of the container to isolate the internal and external media, also known as the end cover. The head of cylinder descriptors is generally a rotating shell. According to the shape of the head surface, it can be divided into convex shape, conical shape, flat shape and combined shape. Convex head refers to the head whose outer surface is convex, such as semi spherical, elliptical, dished and non folded spherical head. Some gas cylinders adopt the combined bottom head with convex face inward, which can not only ensure the strength, but also meet the needs of use.

Matterial: titanium GR1, GR2, GR7, GR12 etc.

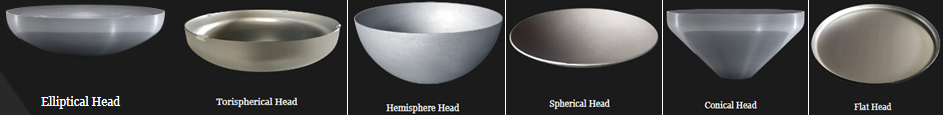

Type: select suitable head types according to the requirements and effectiveness of industrial equipment, such as elliptic, butterfly, cone, ball, etc

Size: generally, the height width ratio of the head is manufactured according to international standards, or can be customized according to customer requirements

Scope of application: the head is widely used in petroleum, electronics, chemical industry, medicine, textile, food, machinery, construction, nuclear power, aerospace, industry and other industries.

ASTM B265	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	170-310	240
Grade 2	0.3	0.25	0.03	0.1	0.015						20	275-450	345-480
Grade 3	0.25	0.3	0.05	0.1	0.015						18	360-480	480-700
Grade 4	0.5	0.4	0.05	0.1	0.015						15	500-530	600-680
Grade 5	0.4	0.2	0.05	0.1	0.015		5.5-6.7				10	800-1100	890-1400
Grade 6				0.1							16	780-820	820-860
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	275-450**	345
Grade 9	0.25	0.15	0.02	0.05	0.015		2,5-3,05				15	550	650
Grade 11	0.2	0.18	0.03	0.1	0.015	0.12-0.25					24	170-310**	240
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	25	414-460	499-600
Grade 13										0.5
Grade 14										0.5
Grade 15										0.5
Grade 16						0.04-0.08					27	345	485
Grade 17		0.18				0.04-0.08					35	206	345
