Gr2 Titanium Hemispherical Head

 Gr2 Titanium Hemispherical Head

Hemispherical Head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy, food and pharmaceutical industries.

Diameter: 250mm-3000mm

Thickness: 2mm-20mm

Height: 30mm --- 50mm

Standard: ASME VIII-I, DIN28013

Material: GR1, GR2, GR7, GR12

Generally, molding and spinning are used for processing. The bottom flatness of molded flat bottom head is high, the blanking size is large and the cost is high, which is suitable for equipment with high requirements; With the spinning process, the flat bottom of the produced flat bottom head is slightly worse, the blanking size is smaller, and the cost is lower, but it does not affect the use of general equipment. The characteristics of spinning head are: a large workpiece can be formed with a small deformation force; The use of equipment is relatively simple, small and medium-sized sheet metal parts can be spun by ordinary lathe; The mold is simple, only one core mold is needed, and the material requirements are low.

Chemical composition (Wt%)

Physical Properties (Min)

Chemical composition (Wt%)

Physical Properties (Min)

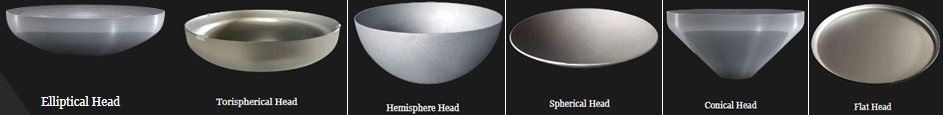

(Titanium dish head )DIN28013:

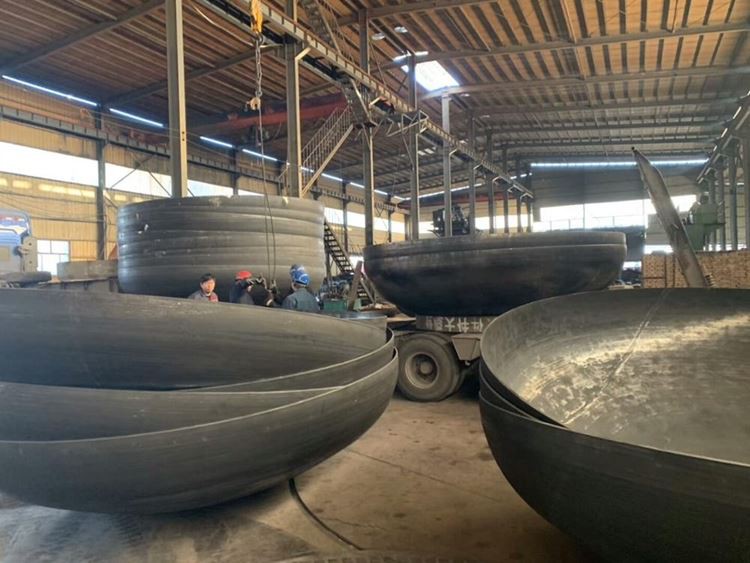

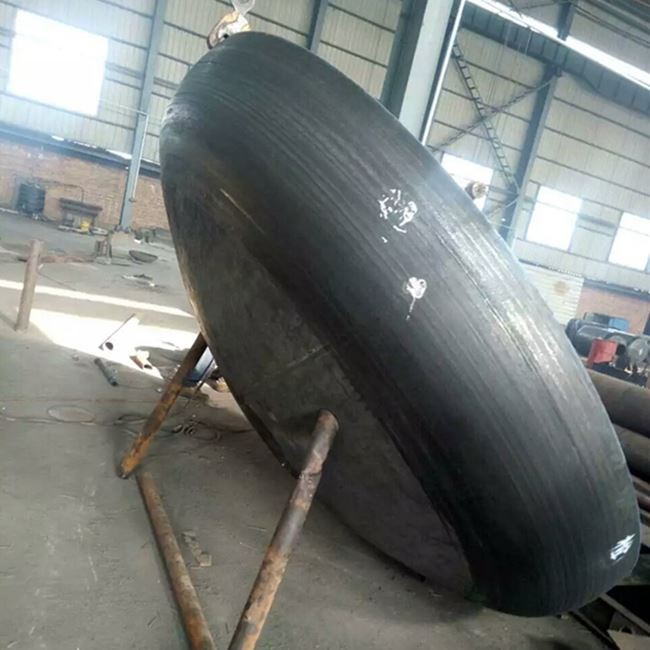

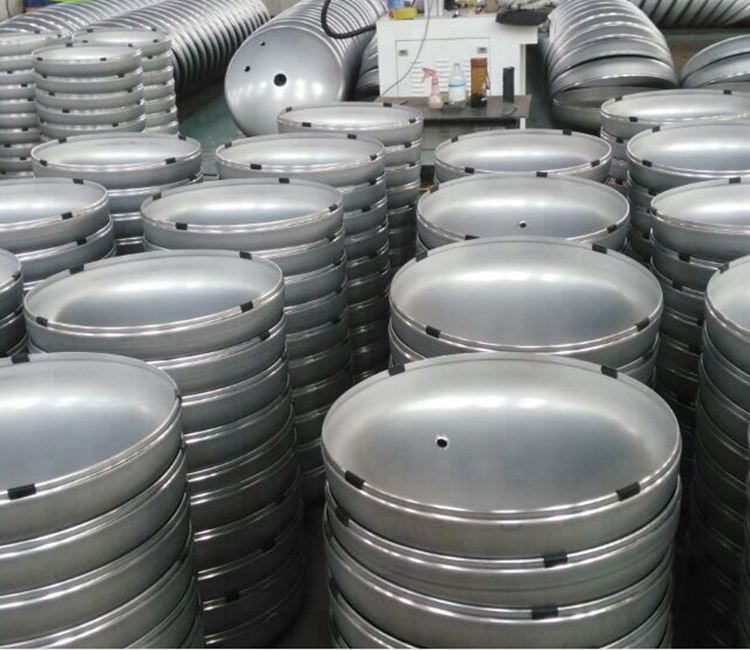

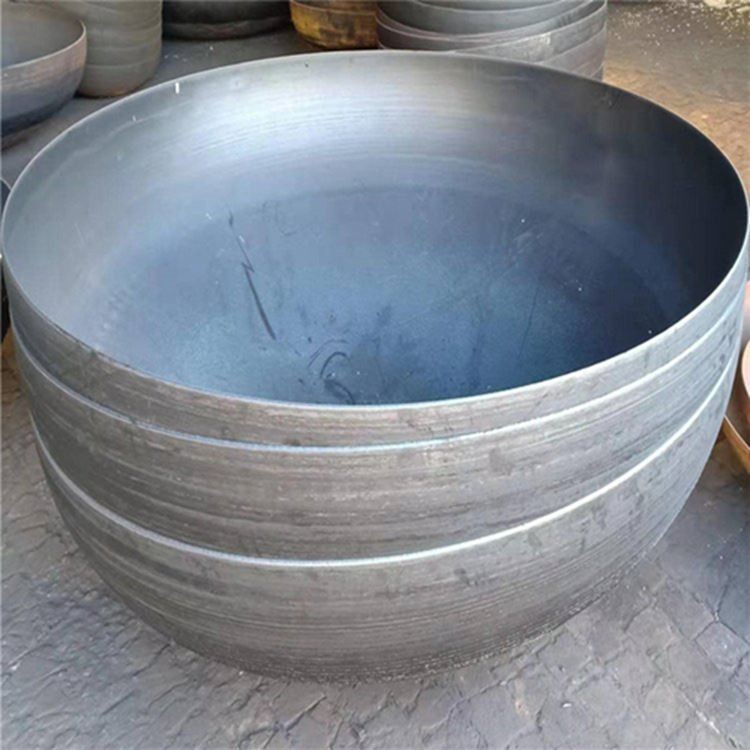

Detailed Images:

Applications of titanium Elliptical Heads:

The materials of Elliptical Heads:  The dish head can be made of various materials according to the material of the equipment body. For example, carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV 45CrMo), non-ferrous metals (aluminum, titanium, copper, nickel and nickel alloy, etc.). The material must be the same as that of the device.

We are specialized in titanium hemispherical Heads.

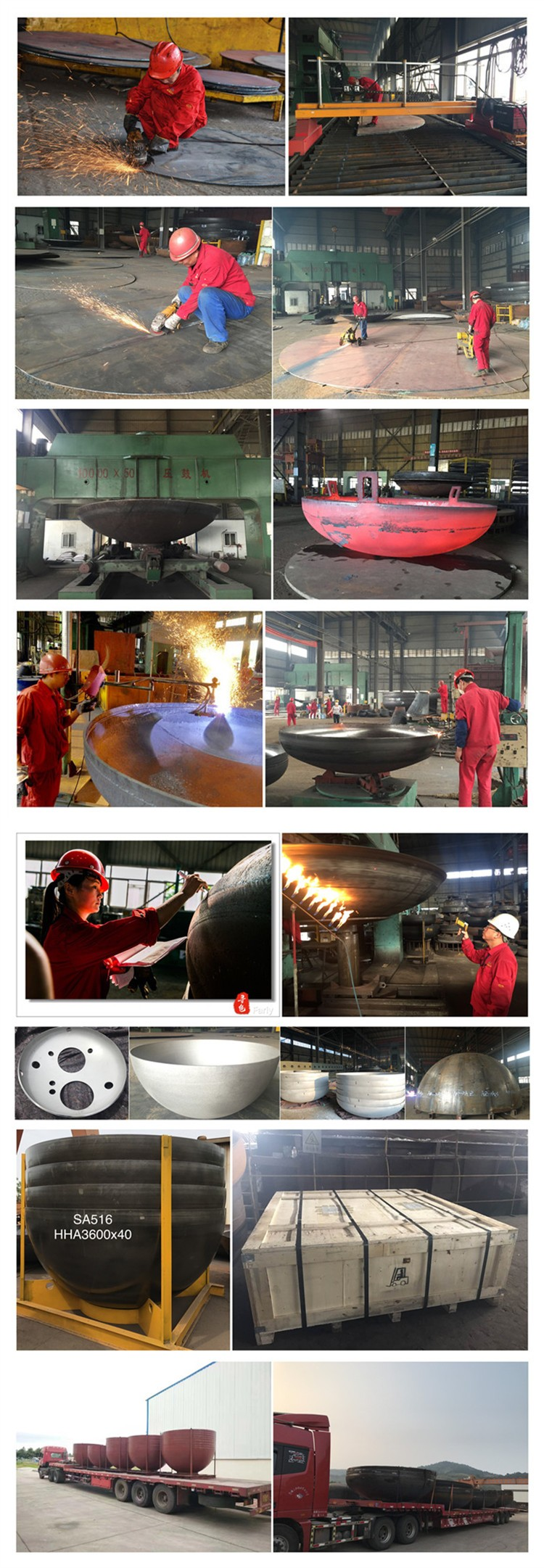

Product processing:

Our factory display:

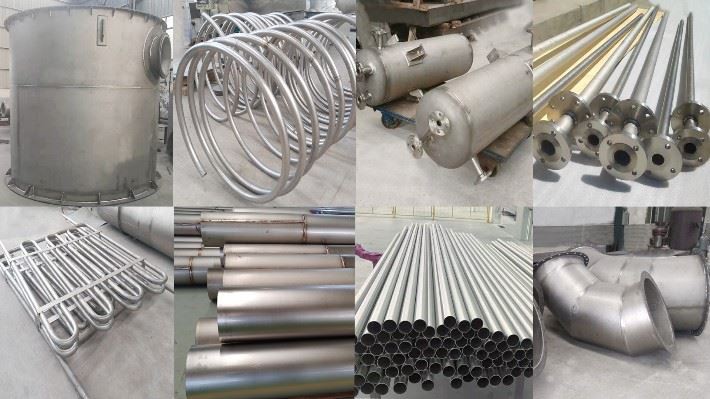

Related titanium products:

Welcome to contact and visit us in any time!
