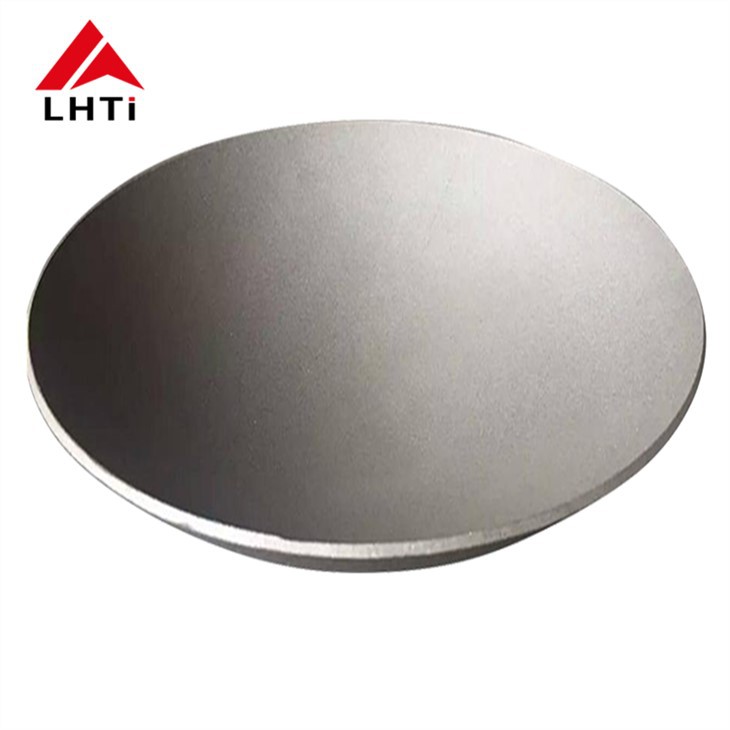

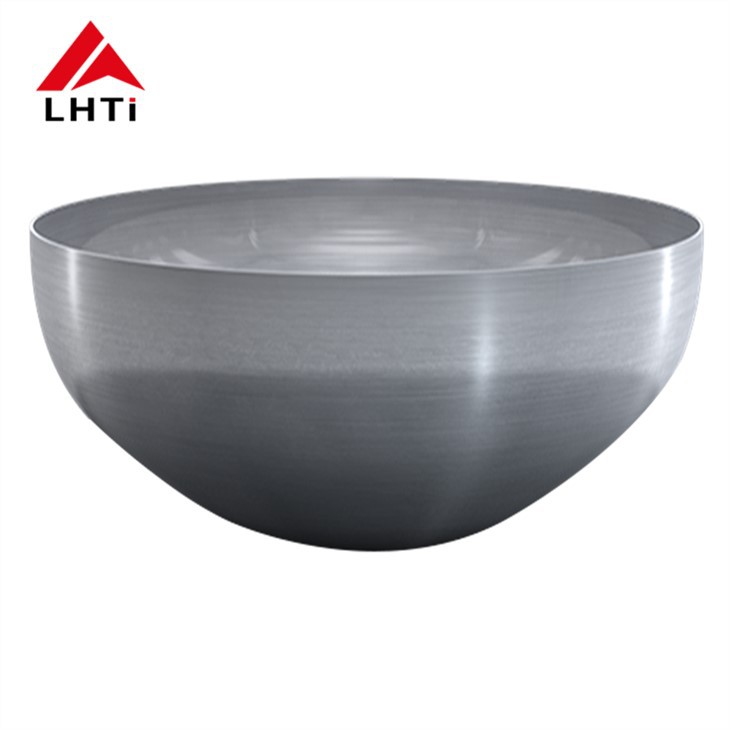

Titanium EndCaps

Introduction of Titanium End Caps:

The EndCaps/dish head/dishends is the end cover on the pressure vessel and is a main pressure bearing component of the pressure vessel. The function is sealing. First, the upper and lower bottoms of the tank shaped pressure vessel are made. Second, when the pipe ends and is not ready to extend forward, a head is used to seal the pipe in the form of welding. Similar to the function of the head, there are blind plates and pipe caps, but those two products can be disassembled. The head can not be disassembled after welding. The supporting pipe fittings include pressure vessel, pipeline, flange, elbow, tee, cross and other products. The quality of head is directly related to the long-term safe and reliable operation of pressure vessel.

(Titanium dish head )DIN28013:

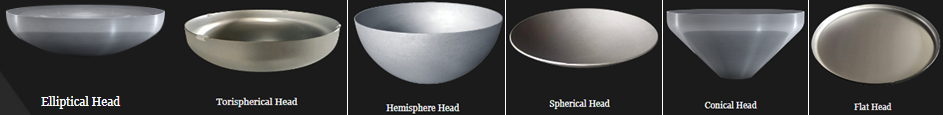

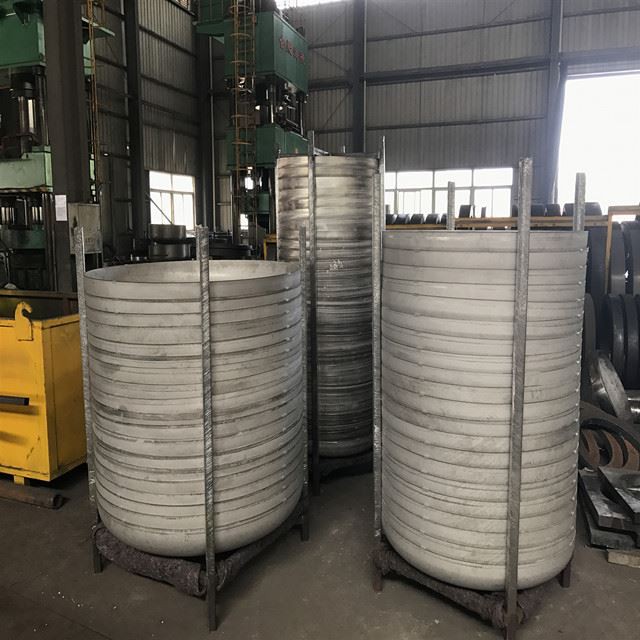

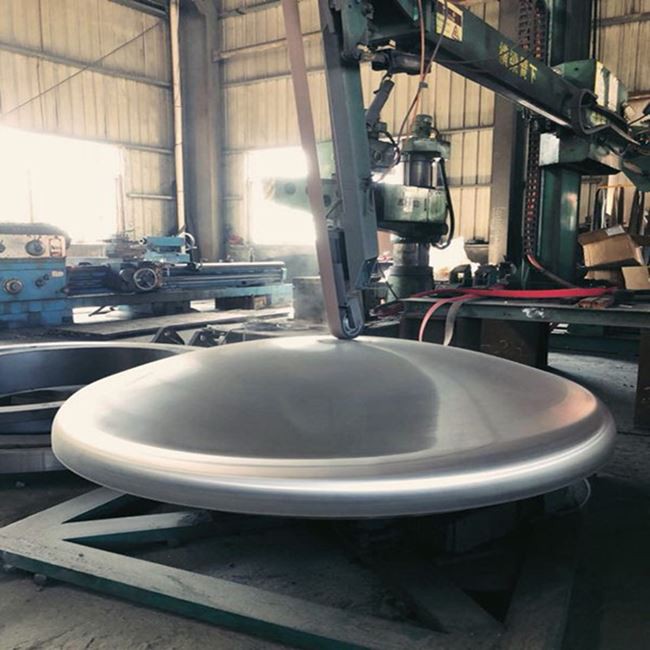

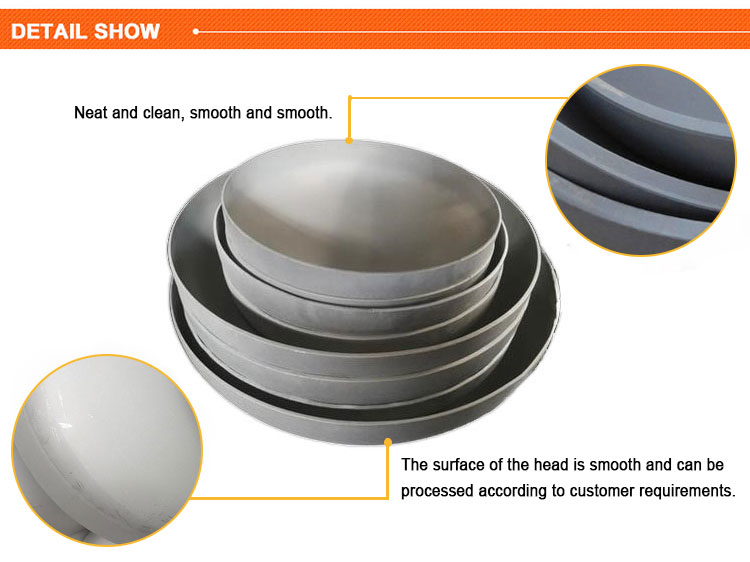

Detailed Images:

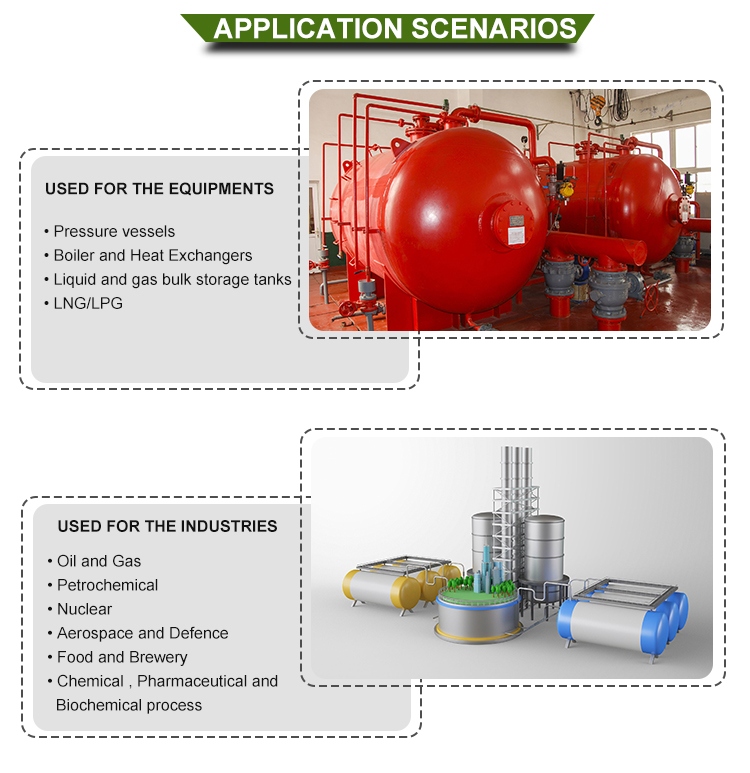

Applications of titanium Elliptical Heads:

The materials of Elliptical Heads:  The dish head can be made of various materials according to the material of the equipment body. For example, carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV 45CrMo), non-ferrous metals (aluminum, titanium, copper, nickel and nickel alloy, etc.). The material must be the same as that of the device.

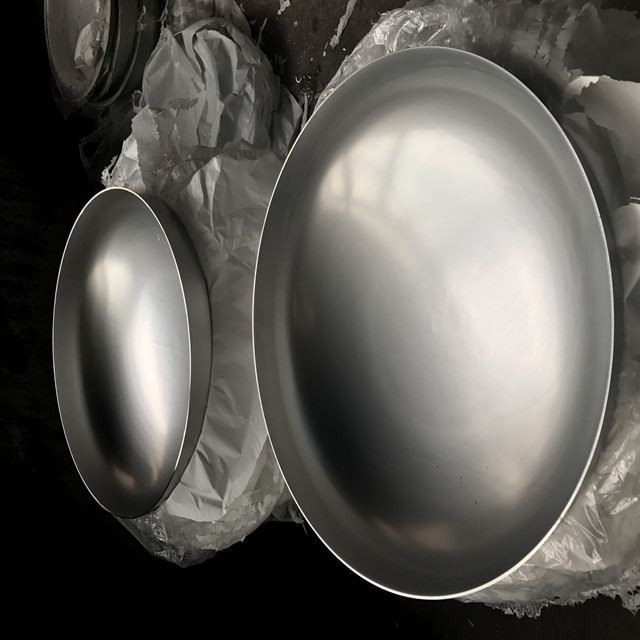

We are specialized in titanium hemispherical Heads.

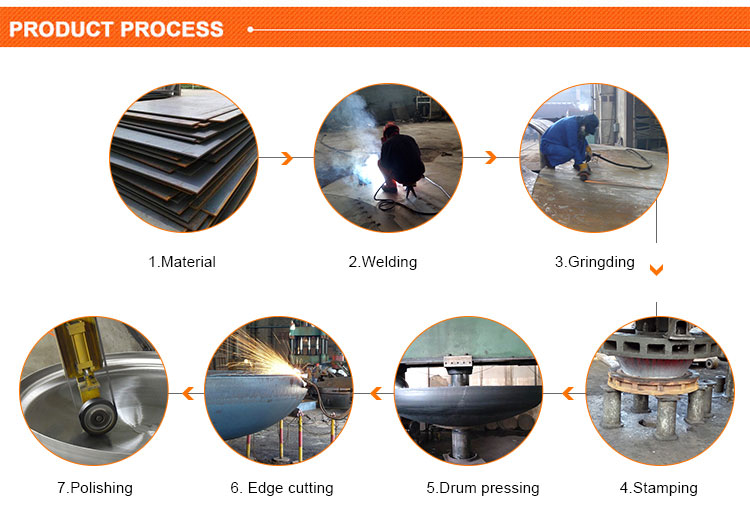

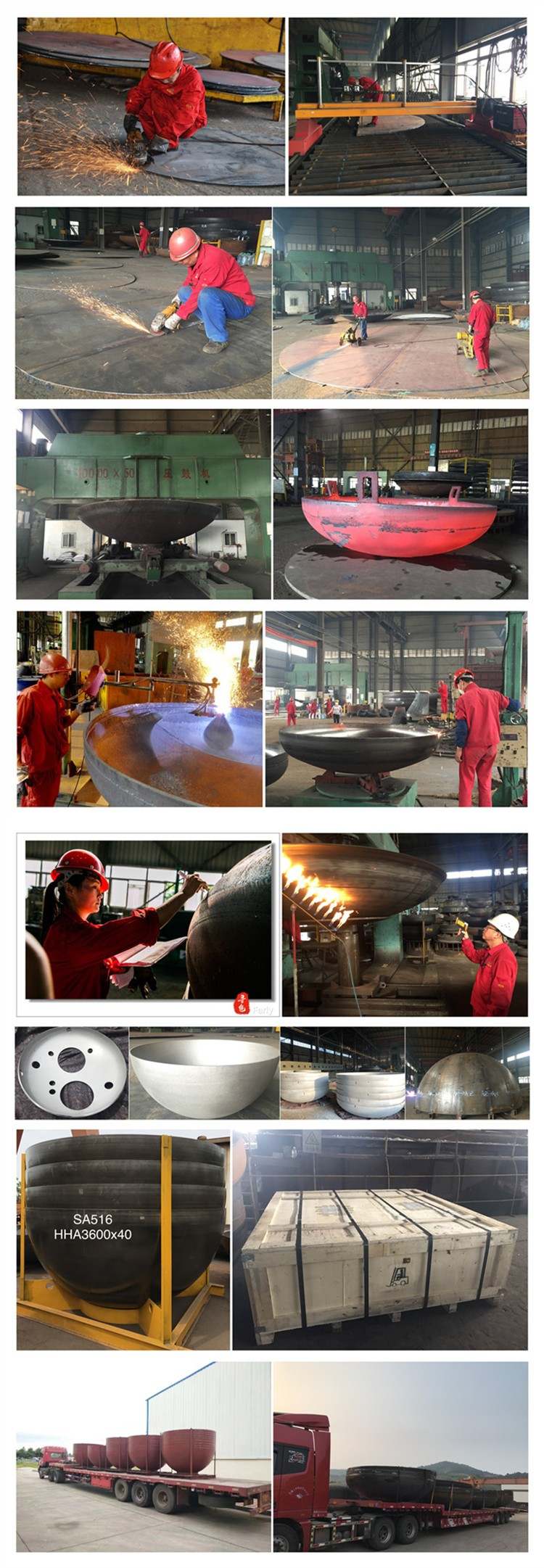

Product processing:

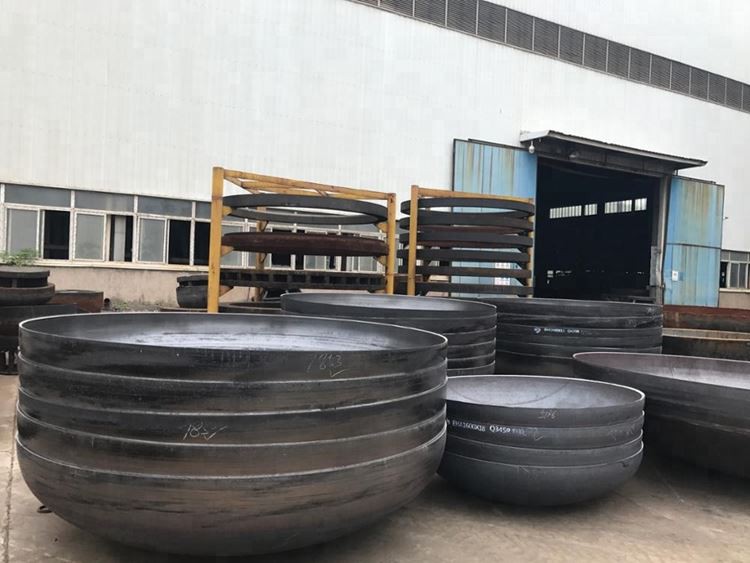

Our factory display:

Exhibitions and customer visits:

Characteristics:

Material: Titanium end caps are typically made from Titanium Grade 2 (or Grade 1 for some applications) due to its excellent corrosion resistance, high strength, and lightweight nature.

Corrosion Resistance: Titanium is highly resistant to corrosion, making it ideal for use in environments where exposure to chemicals or harsh conditions is common.

Strength: Titanium offers a high strength-to-weight ratio, providing durability and reliability in structural applications.

Temperature Resistance: It can withstand high temperatures without deformation, which is crucial in applications involving heat treatment or exposure to elevated temperatures.

Biocompatibility: Titanium is biocompatible, making titanium end caps suitable for use in medical implants and devices where compatibility with human tissue is essential.

Applications:

Industrial Equipment: Used as closures or caps in various industrial equipment where corrosion resistance and durability are required. For example, in chemical processing equipment, oil and gas refineries, and marine applications.

Medical Devices: Titanium end caps are used in medical devices and implants due to their biocompatibility and resistance to bodily fluids and environments.

Aerospace: In aerospace applications, titanium end caps are used in components that require lightweight materials with high strength and resistance to corrosion.

Electronics: They are utilized in electronics manufacturing where protection from environmental factors and durability are necessary.

Design and Customization:

Size and Shape: Can be customized to fit specific dimensions and shapes required by the application.

Surface Finish: Typically treated to ensure smoothness or specific surface properties depending on the application requirements.

Precision: Machined to tight tolerances to ensure proper fit and function within the equipment or device.
