Gr2 Titanium Dome Dish Heads

 Gr2 titanium dome dish heads

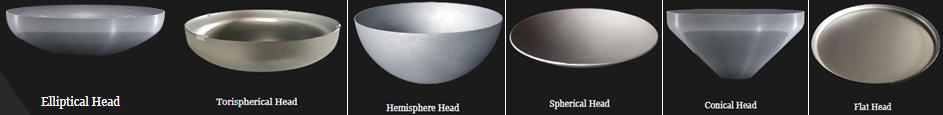

A dish head is a part of a container that is welded to the cylinder. According to the different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, vertebral shell and cap. The sphere, the ellipse,disc head is also referred to as convex head. In the welding way is divided into butt welding head, socket welding head, used for all kinds of container equipment, such as storage tanks, heat exchanger, tower, reactor, boiler and separation equipment. Materials are carbon steel, stainless steel, alloy steel, aluminum, titanium, copper, nickel and nickel alloy etc

Dish head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy and food and pharmaceutical industries.

Standard: ASME VIII-I, DIN28013

Thickness:5-100mm

Size: Customized

Material: GR1, GR2, GR7, GR12

High temperature resistant:100-1000°℃

Resistance to high pressure:0.25-100kg

Application:Pressure vessel equipment

(Titanium dish head )DIN28013:

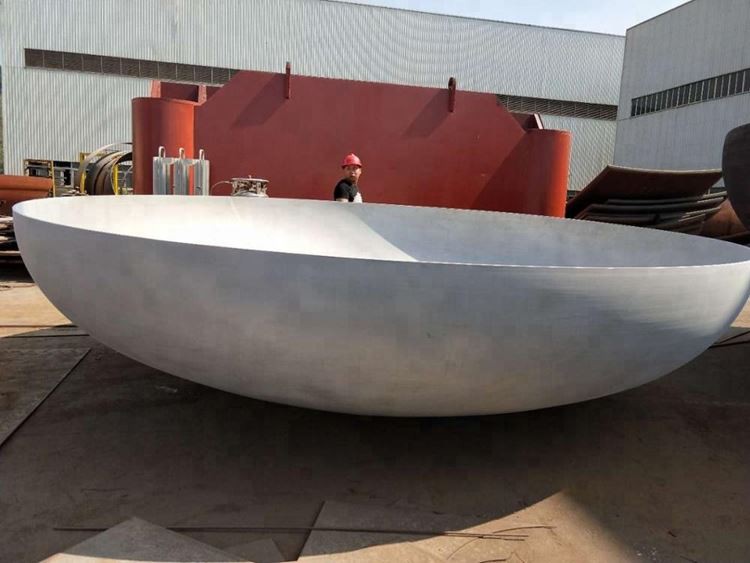

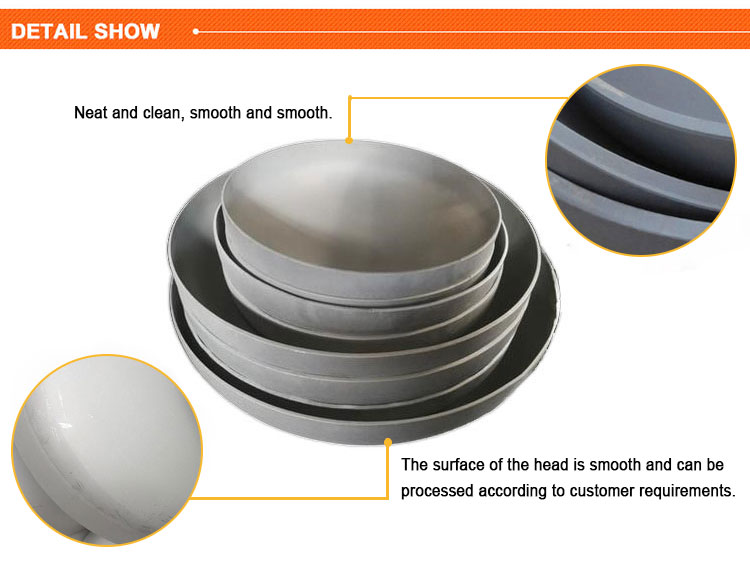

Detailed Images:

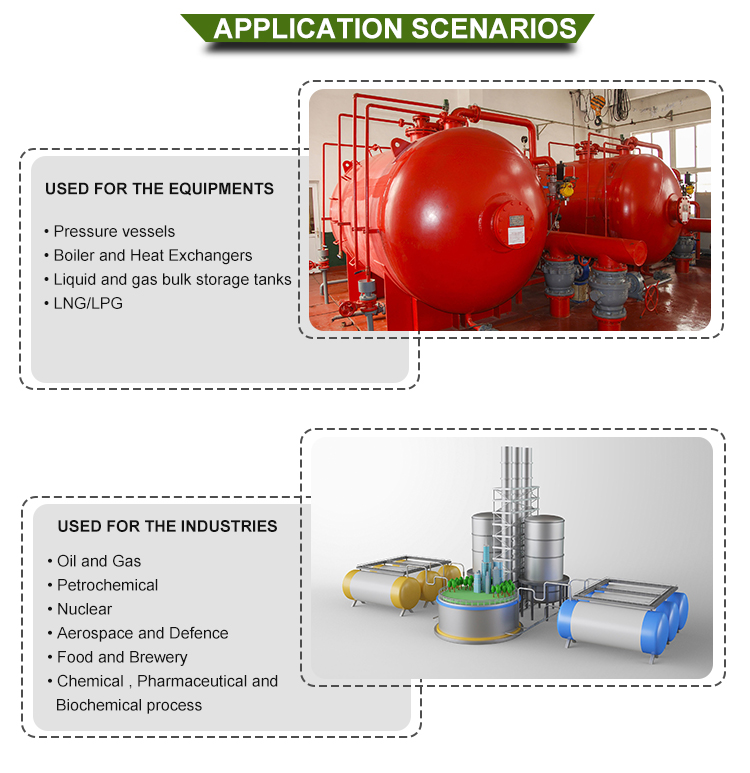

Applications of titanium Elliptical Heads:

The materials of Elliptical Heads:  The dish head can be made of various materials according to the material of the equipment body. For example, carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV 45CrMo), non-ferrous metals (aluminum, titanium, copper, nickel and nickel alloy, etc.). The material must be the same as that of the device.

We are specialized in titanium hemispherical Heads.

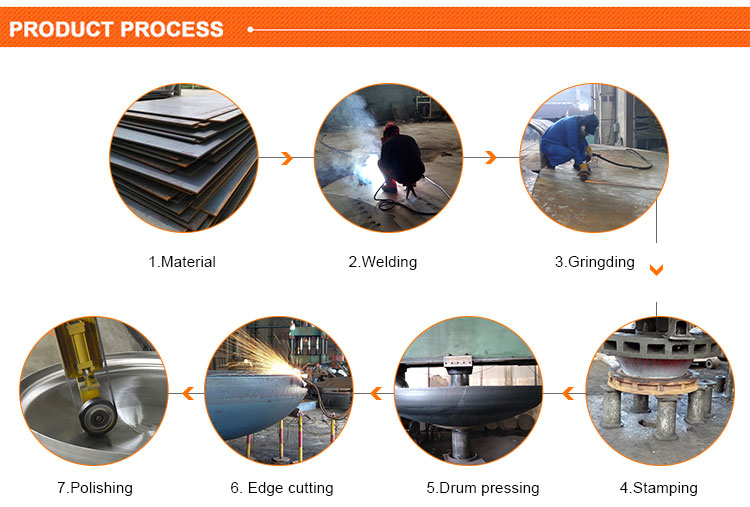

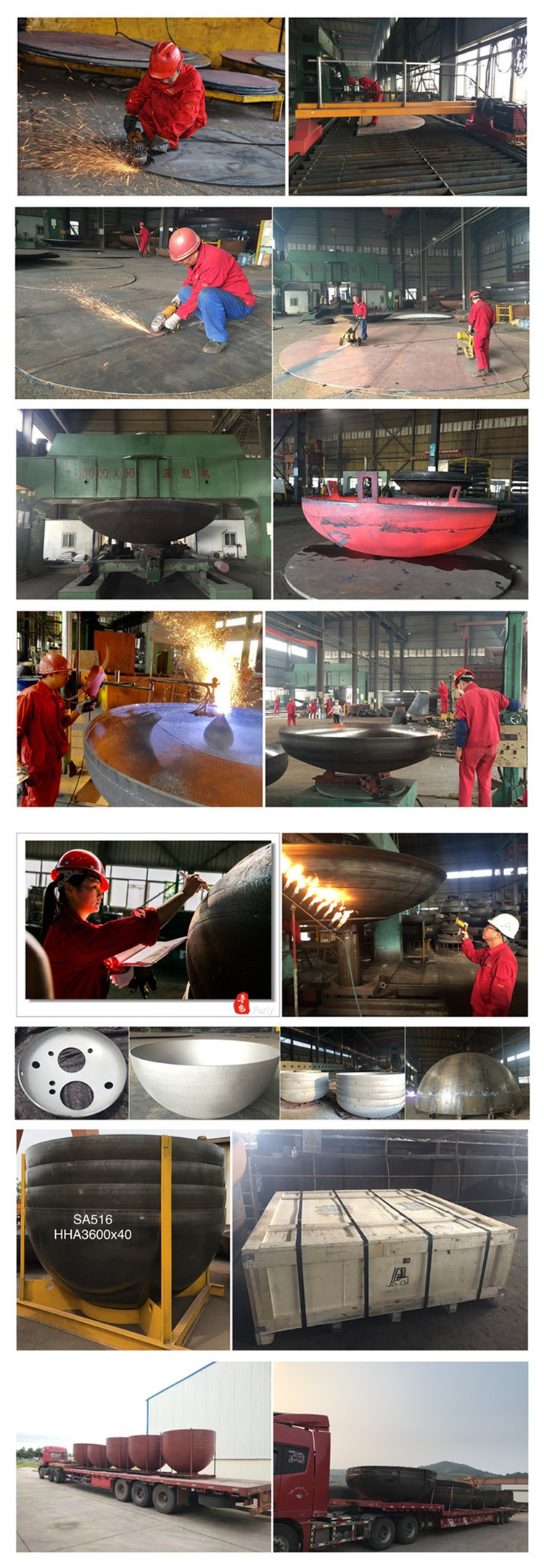

Product processing:

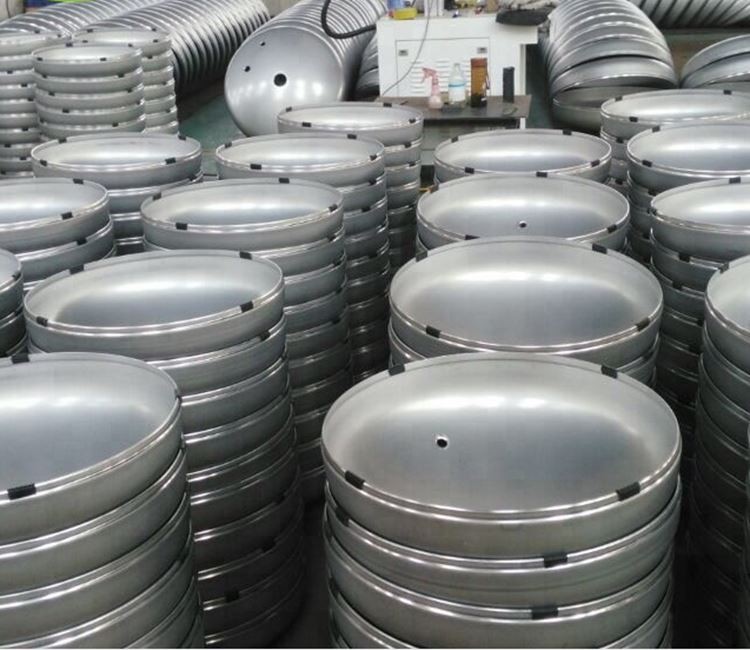

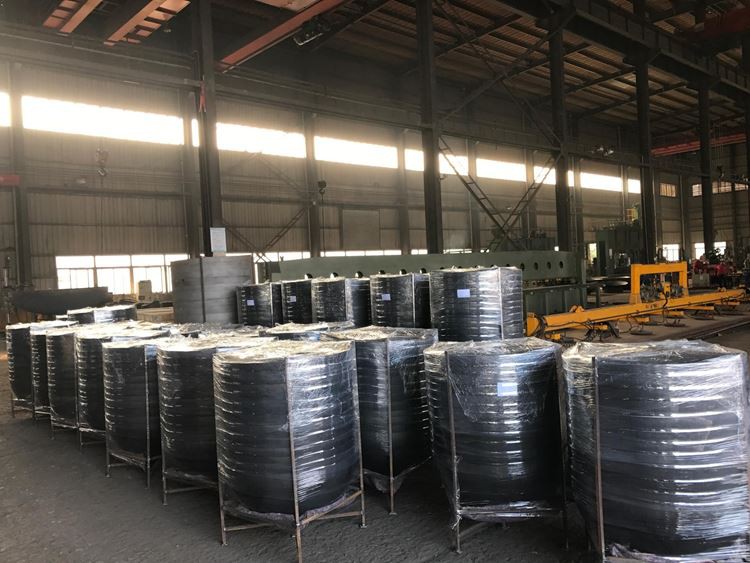

Our factory display:

Exhibitions and customer visits:

Welcome to contact and visit us in any time!
