Gr1 Titanium Dish Head
Material: GR1, GR2, GR5, GR7, GR12
Size: Customized
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium dish head manufacturer
Gr1 Titanium Dish Head
Product Information
Gr1 Titanium Dish Head is the end cap on the pressure vessel and is a main pressure-bearing part of the pressure vessel. The role played is the sealing effect. A titanium dish head is used to seal the pipe in the form of welding. The quality of titanium dish head is directly related to the long-term safe and reliable operation of the pressure vessel.
Gr1 Titanium Dish Head (or Torispherical head), These heads have a dish with a fixed radius (r1), the size of which depends on the type of torispherical head. The transition between the cylinder and the dish is called the knuckle. The knuckle has a toroidal shape. These heads have a dish with a fixed radius, the size of which depends on the type of torispherical head.
Chemical Composition (Wt%)
ASTMNo. | Femax | O max | Nmax | Cmax | Hmax | Pd | Al | Bal |
Grade1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties(Min)
ASTMGrade | AlloyComposition | TensileStrength | YieldStrength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 1 | UnalloyedTi("Pure")35A-CP1 | 35 | 240 | 20 | 138 | 24 |

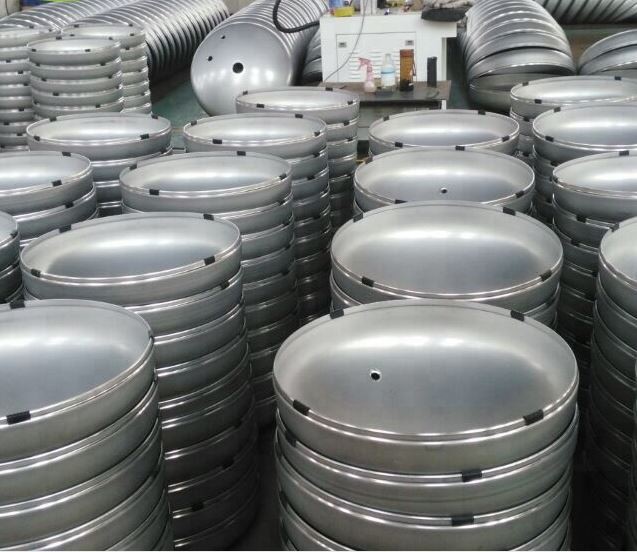

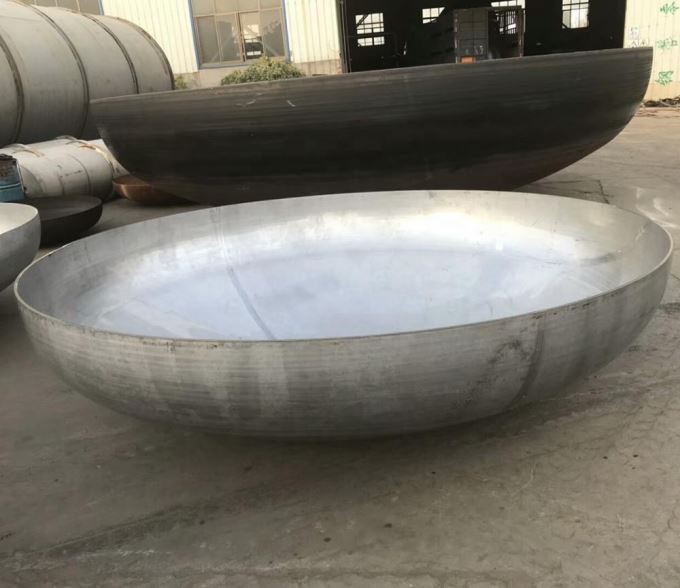

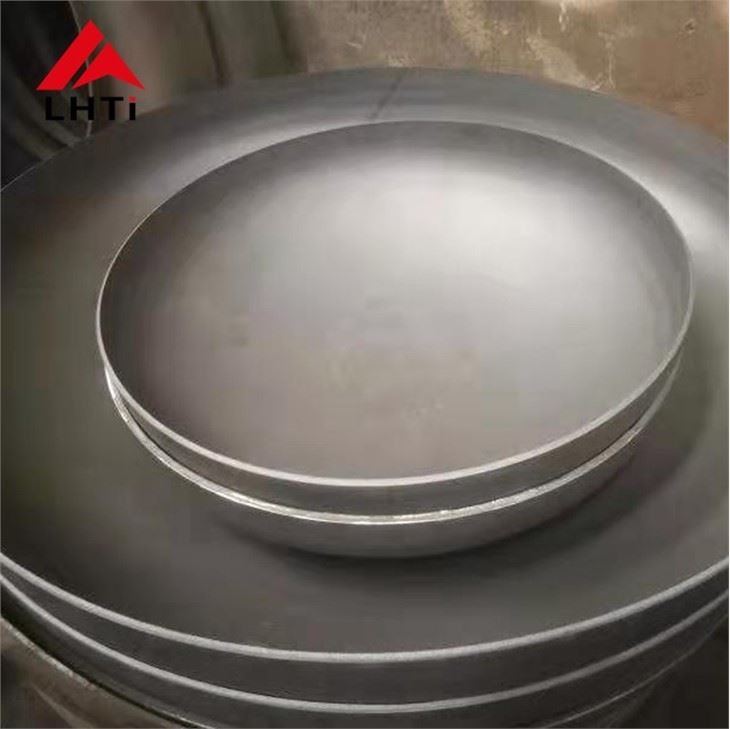

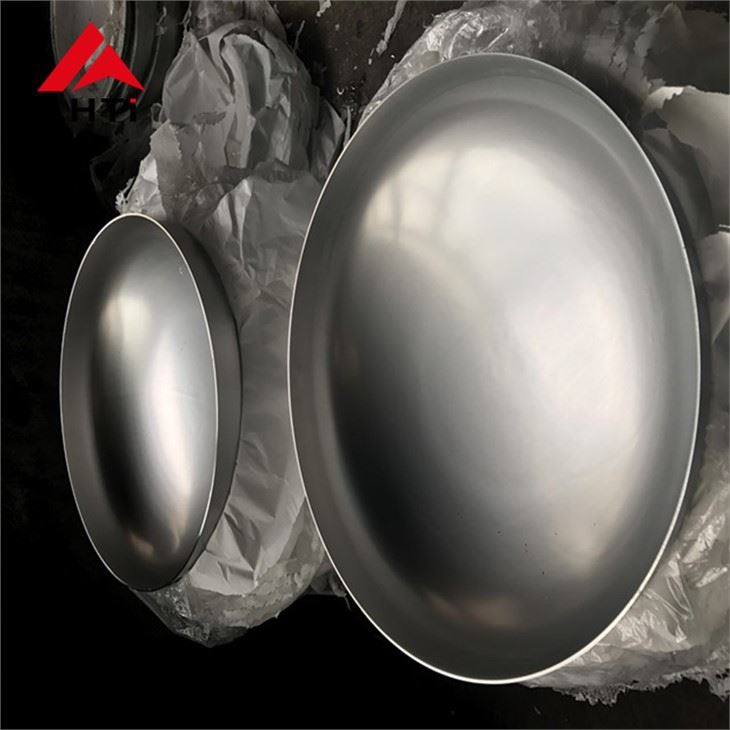

Product Images

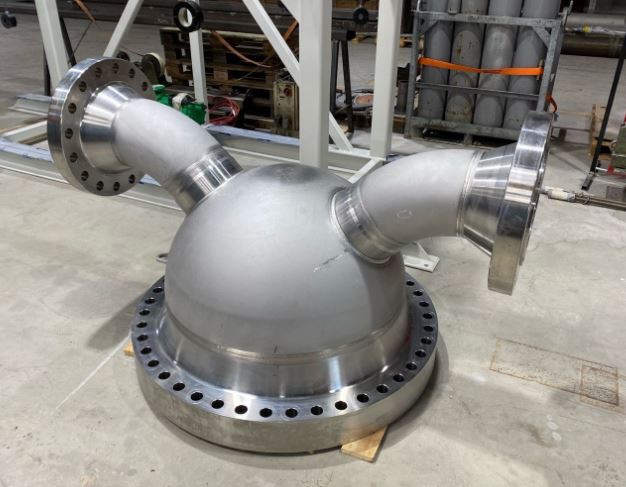

Application

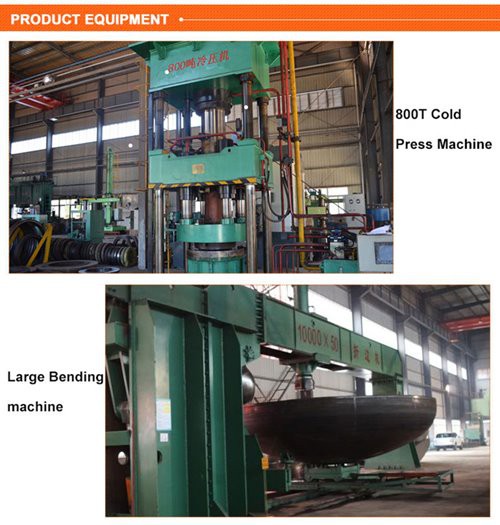

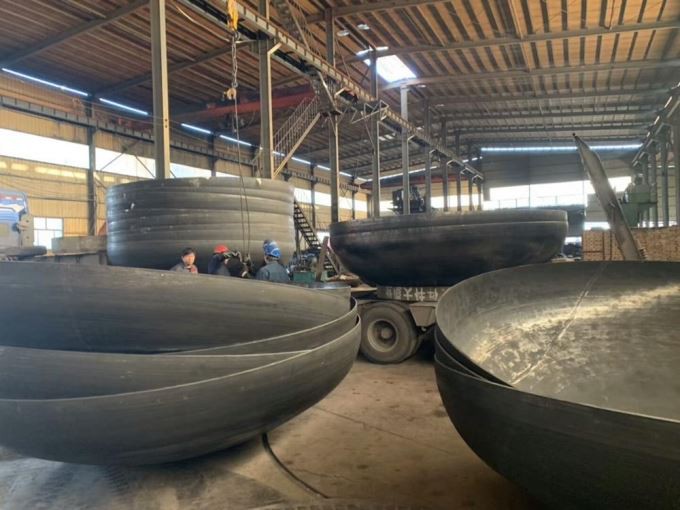

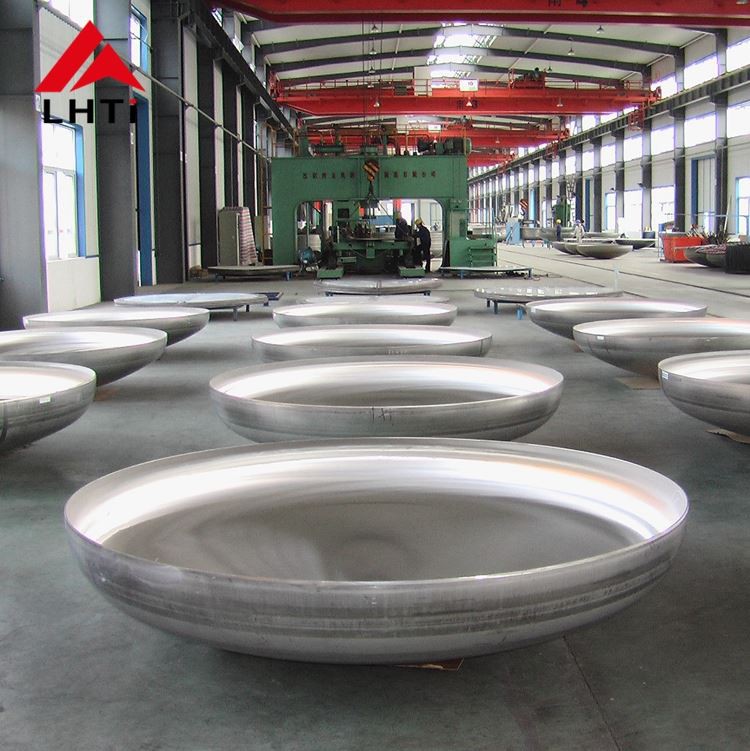

Our Factory
Our Advantges
1. Use high-quality materials
2. Ensure the thickness of the design requirements
3. Meet the design requirements of the shape
4. Process control

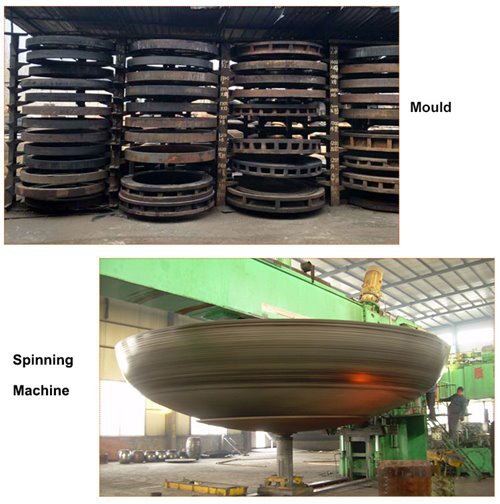

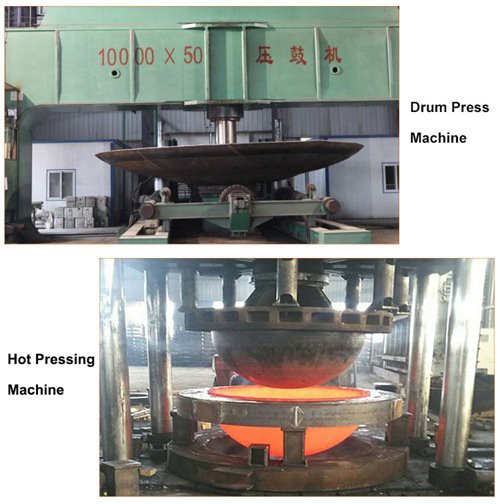

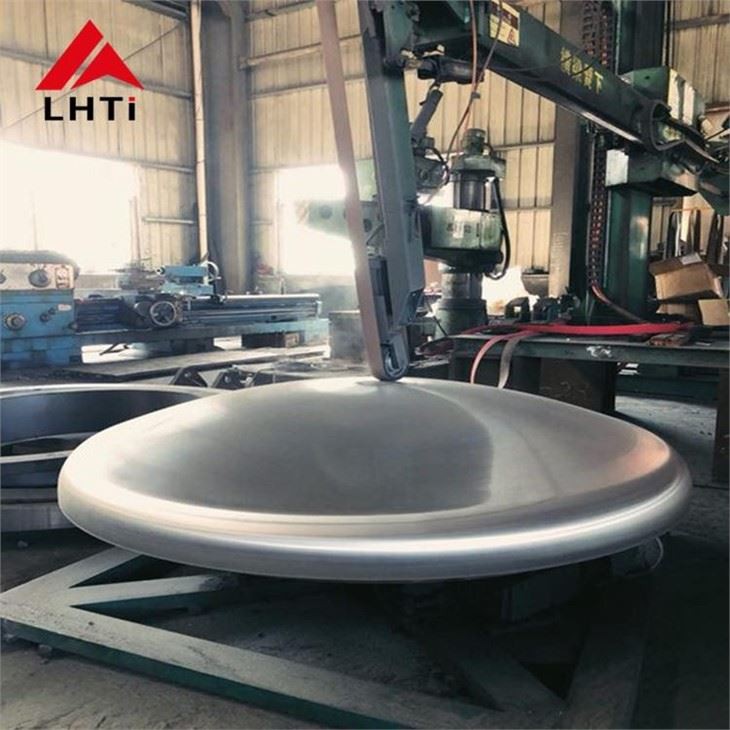

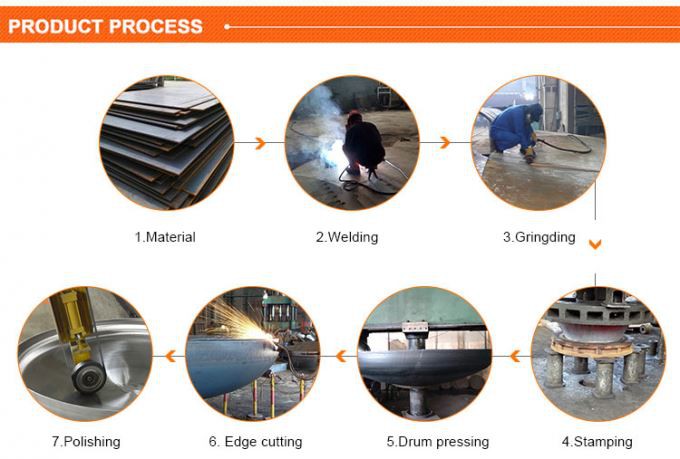

Production Process
