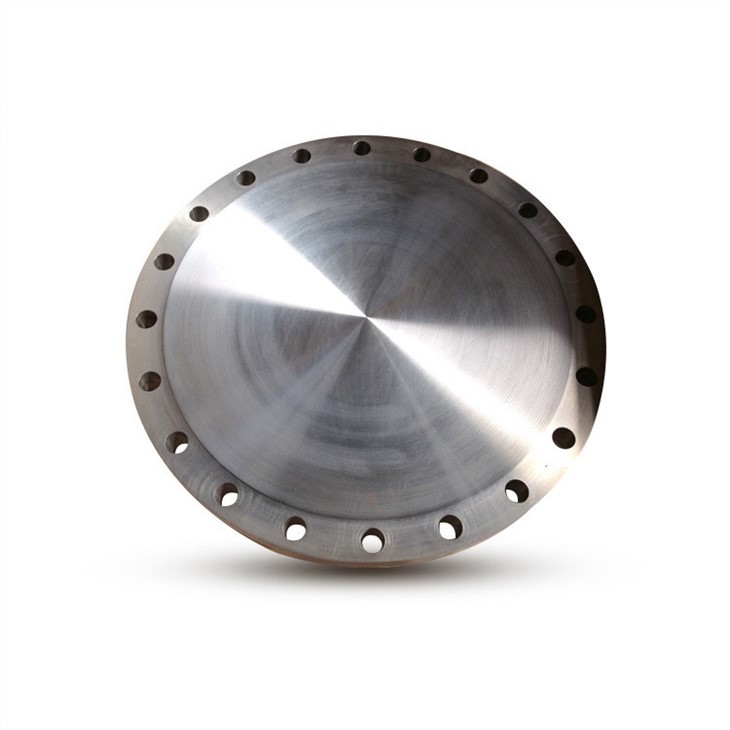

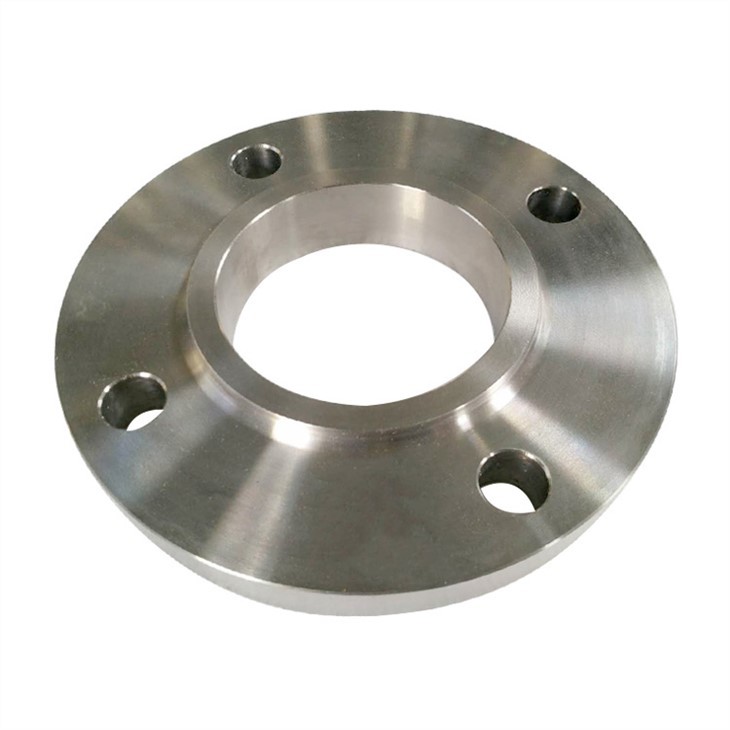

Titanium Alloy Flange
Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc
Material:Gr1 Gr2 Gr5 Gr7 Gr12 Titanium
Type:BL WN SO TH etc.
Connection type:RF
Size:1/2"-60"(DN15-DN1200)
Class / Pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
MOQ: 1 piece
Price term: EXW factory, FOB, C&F and CIF
Payment term: T/T, L/C, West Union, Money Gram and etc
Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc
Material:Gr1 Gr2 Gr5 Gr7 Gr12 Titanium
Type:BL WN SO TH etc.
Size:1/2"-60"(DN15-DN1200)
Class / Pressure:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Connection type:RF
Standard:ANSI, ASME, DIN, BS, JIS, GB, ISO etc
Technique:Forged , CNC Machined
| Flange type | Specifications | ||||
| ASME /ANSI B16.5 | ASME B16.47 Series A (or MSS SP-44) | ASME B16.47 Series A (or API 605) | BS 4504 (ISO 7005-1) | BS3293 | |
| Nominal Pipe sizes | |||||
| >=NPS 26 | >=NPS 26 | DN10 to DN4000 | >=NPS 26 | ||
| Nominal Pressure (Class) | |||||
| Class (lb) | Class (lb) | Class (lb) | Class (lb) | Class (lb) | |
| Weld neck | 150-2500 | 150-900 | 75-900 | 2.5-40 | 150-600 |
| Slip on | 150-1500 | - | - | 2.5-40 | 150-600 |
| Blind | 150-2500 | 300-900 | 300-900 | 2.5-40 | - |
| Lap joint | 150-2500 | - | - | 6-40 | - |
| Socket weld | 150-1500 | - | - | N/A | - |
| Threaded | 150-2500 | - | - | 6-40 | - |
| Flat/Raised facings | As above | As above | As above | As above | As above |
| Ring joint facings | 150-2500 | 300-900 | 300-900 | 2.5-40 | 300-600 |
| Other facings | 150-2500 | - | - | 2.5-40 | - |

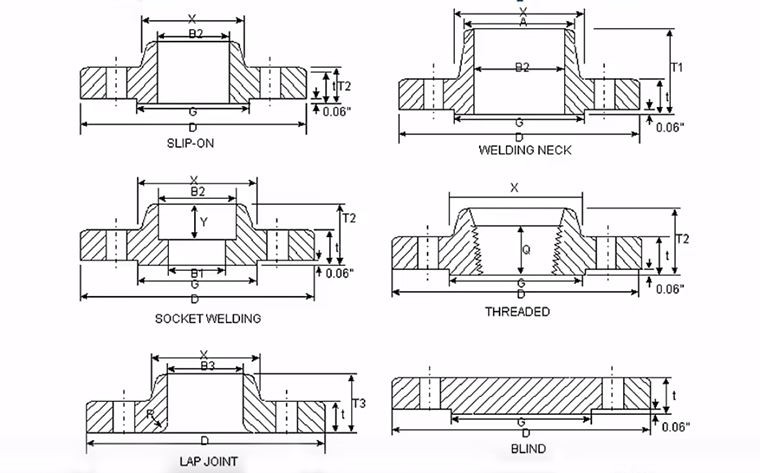

The drawins of different type flanges:

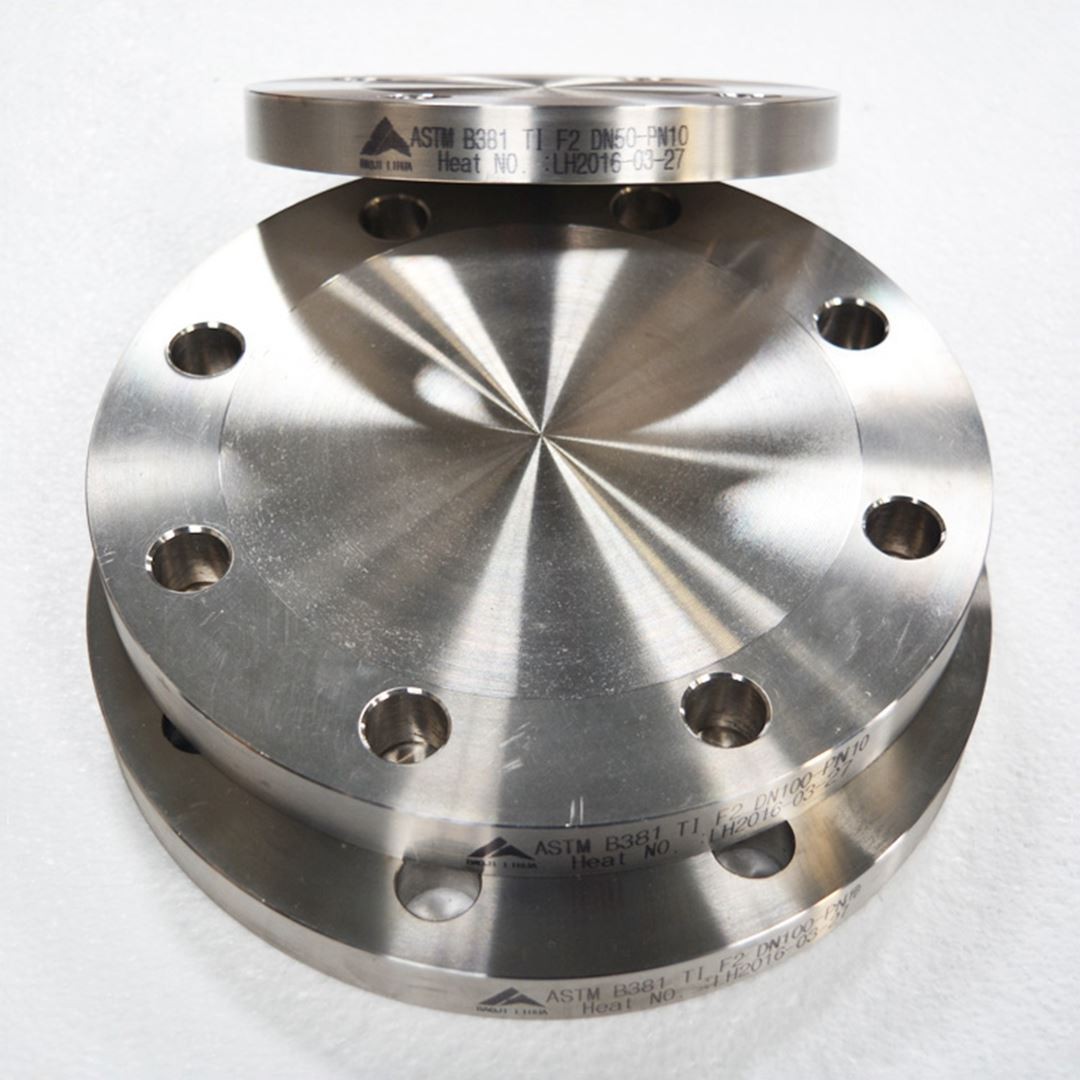

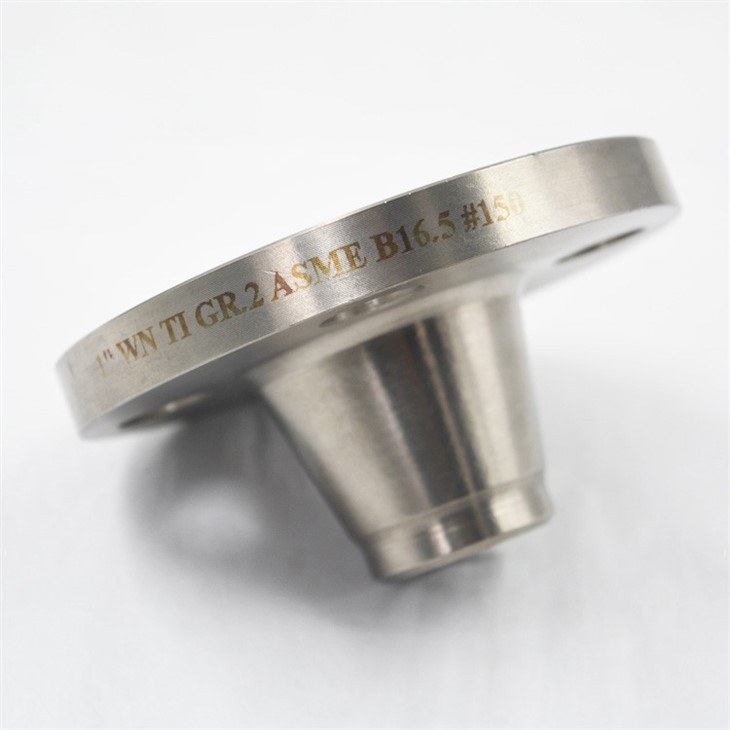

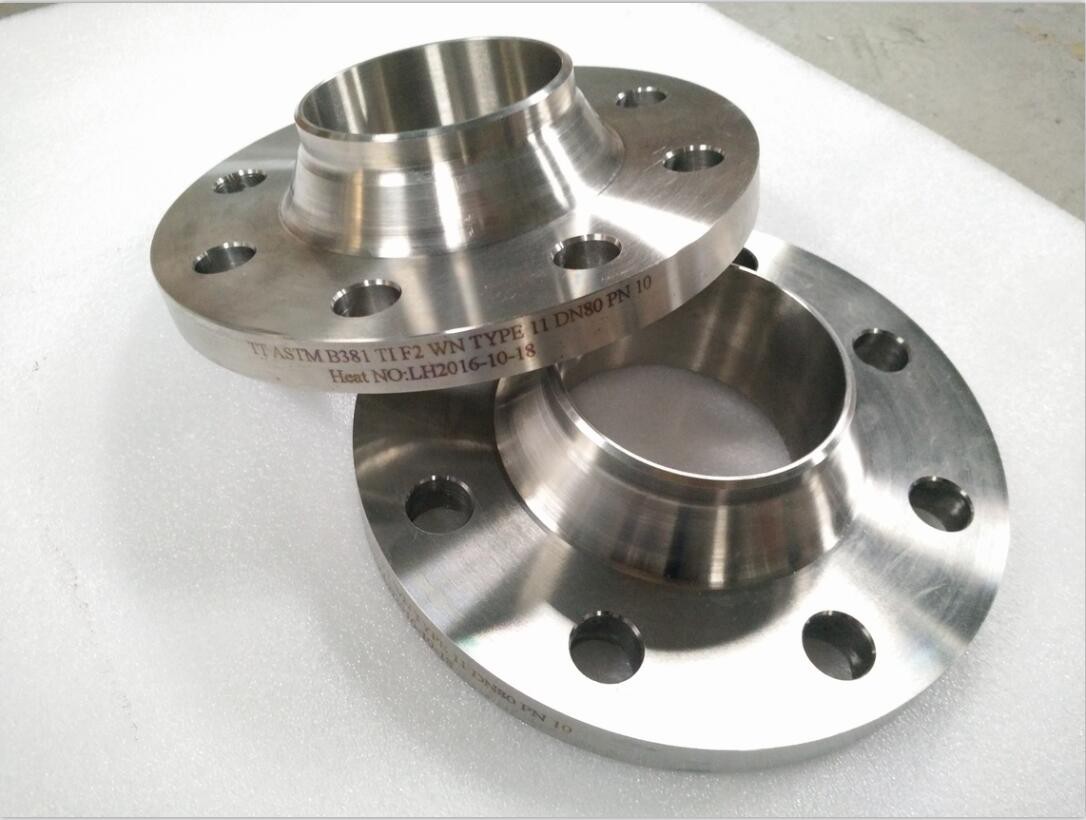

Detailed images:

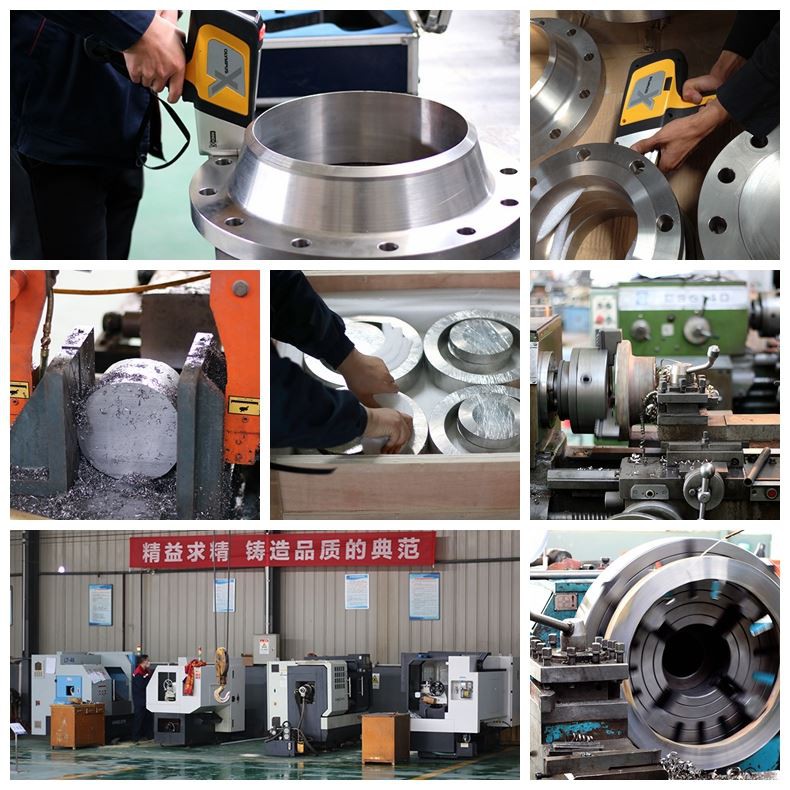

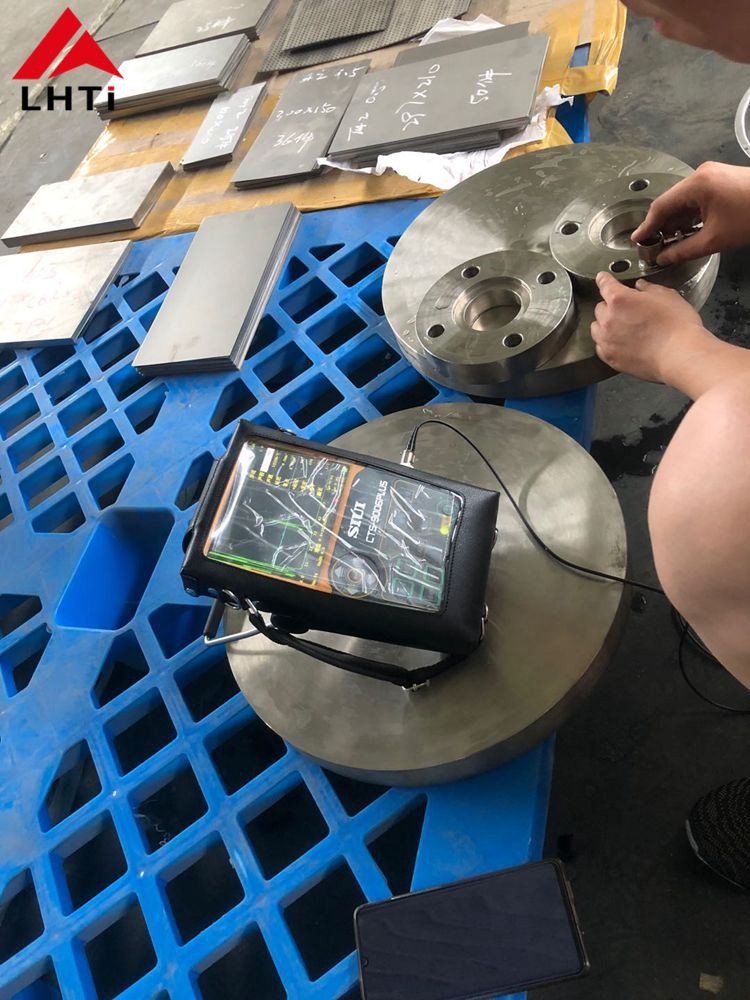

Quality inspection:
Our quality control department consists of experienced technicians. These personal strictly control the whole production procedure, from introduction of raw materials to finish products. They ensure high quality products for our customers.
Packaging & Delivery Detail:

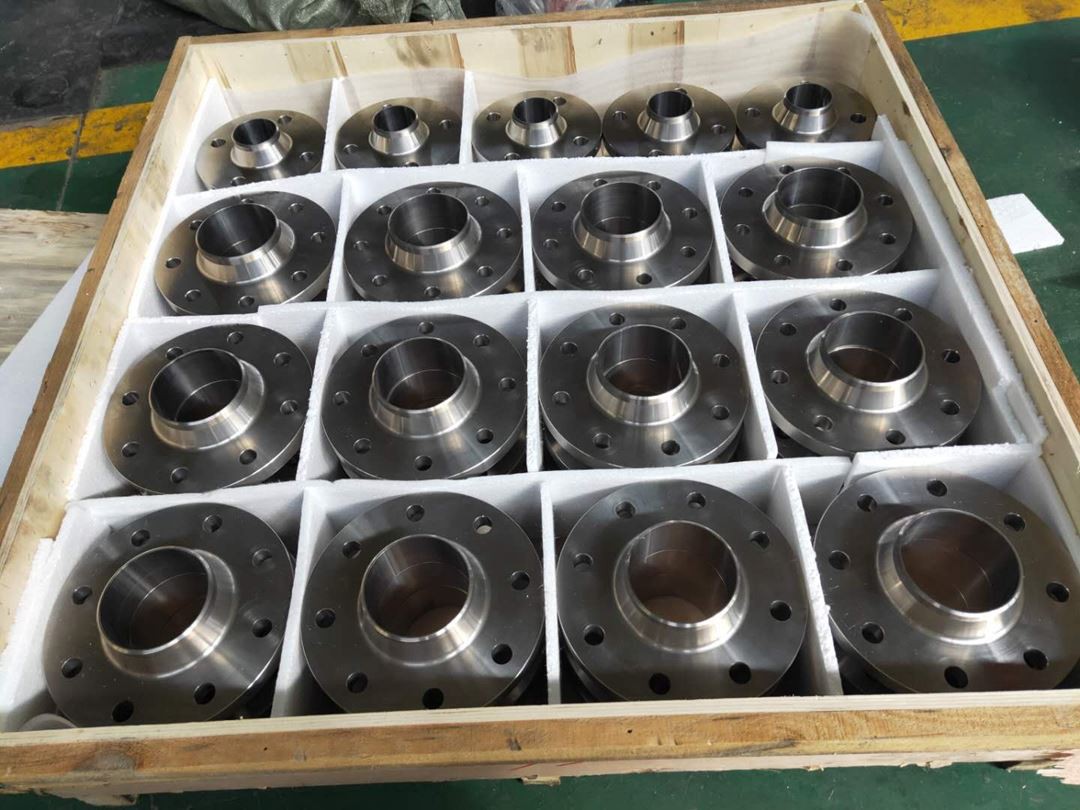

In plywood cases, plywood pallets or as per customers special requirement
Delivery Detail: 7~20 Day
Your inquiry will be highly appreciated! Please contact me without any hesitation if you are interested in our products! We will offer warm-hearted service to you!
