Titanium Weld Neck Flange Class 150
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: NPS 1/2 - NPS 24(DN 10 - 2000)
Pressure: Class 150
Technique: Forged and CNC Machined
Certificate: ISO9001, TUV etc.
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium flange manufacturer

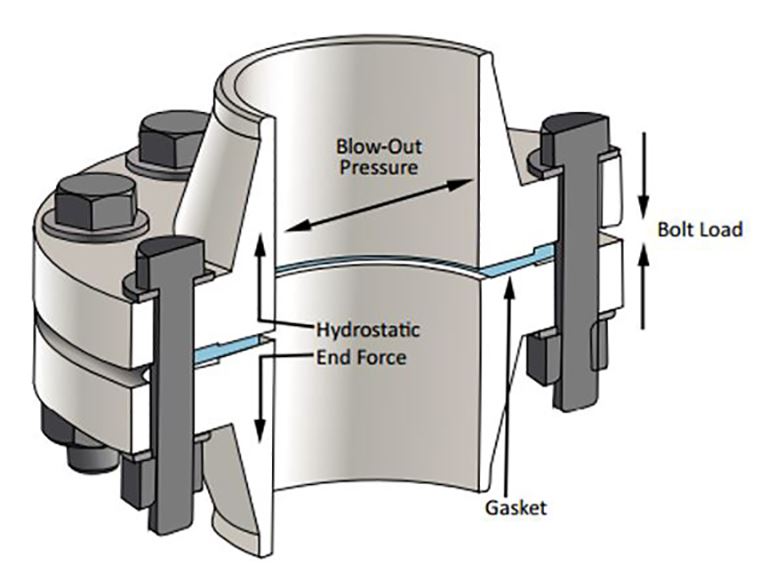

Titanium Weld Neck Flange
Titanium weld neck flanges are suitable for pipelines with large fluctuations in pressure or temperature or pipelines with high temperature, high pressure and low temperature, and are also used for pipelines that transport expensive, flammable and explosive media. Titanium weld neck flange is not easy to be deformed, well sealed, and widely used.
Material: Gr1, Gr2, Gr5, Gr7, Gr12
Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628
Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .
Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.
Sealing Surface: RF, FF, TG, RJ etc.
Technique: Froged and CNC Machined
| Titanium Weld Neck Flange Class 150 | ||||||||||
| Nom. Pipe Size | Flange Dia. | Flange Thick | Hub Dia. At Base | Raised Face Dia. | Hub Dia. at Weld Point | No. of Holes | Dia. of Bolts | Dia. Of Bolt Circle | Bore Dia. | Length Thru Hub |
| 1/2 | 3-1/2 | 7/16 | 1-3/16 | 1-3/8 | 0.84 | 4 | 1/2 | 2-3/8 | 0.62 | 1-7/8 |
| 3/4 | 3-7/8 | 1/2 | 1-1/2 | 1-11/16 | 1.05 | 4 | 1/2 | 2-3/4 | 0.82 | 2-1/16 |
| 1 | 4-1/4 | 9/16 | 1-15/16 | 2 | 1.32 | 4 | 1/2 | 3-1/8 | 1.05 | 2-3/16 |
| 1-1/4 | 4-5/8 | 5/8 | 2-5/16 | 2-1/2 | 1.66 | 4 | 1/2 | 3-1/2 | 1.38 | 2-1/4 |
| 1-1/2 | 5 | 11/16 | 2-9/16 | 2-7/8 | 1.90 | 4 | 1/2 | 3-7/8 | 1.61 | 2-7/16 |
| 2 | 6 | 3/4 | 3-1/16 | 3-5/8 | 2.38 | 4 | 5/8 | 4-3/4 | 2.07 | 2-1/2 |
| 2-1/2 | 7 | 7/8 | 3-9/16 | 4-1/8 | 2.88 | 4 | 5/8 | 5-1/2 | 2.47 | 2-3/4 |
| 3 | 7-1/2 | 15/16 | 4-1/4 | 5 | 3.50 | 4 | 5/8 | 6 | 3.07 | 2-3/4 |
| 3-1/2 | 8-1/2 | 15/16 | 4-13/16 | 5-1/2 | 4.00 | 8 | 5/8 | 7 | 3.55 | 2-13/16 |
| 4 | 9 | 15/16 | 5-5/16 | 6-3/16 | 4.50 | 8 | 5/8 | 7-1/2 | 4.03 | 3 |
| 5 | 10 | 15/16 | 6-7/16 | 7-5/16 | 5.56 | 8 | 3/4 | 8-1/2 | 5.05 | 3-1/2 |
| 6 | 11 | 1 | 7-9/16 | 8-1/2 | 6.63 | 8 | 3/4 | 9-1/2 | 6.07 | 3-1/2 |
| 8 | 13-1/2 | 1-1/8 | 9-11/16 | 10-5/8 | 8.63 | 8 | 3/4 | 11-3/4 | 7.98 | 4 |
| 10 | 16 | 1-3/16 | 12 | 12-3/4 | 10.75 | 12 | 7/8 | 14-1/4 | 10.02 | 4 |
| 12 | 19 | 1-1/4 | 14-3/8 | 15 | 12.75 | 12 | 7/8 | 17 | 12.00 | 4-1/2 |
| 14 | 21 | 1-3/8 | 15-3/4 | 16-1/4 | 14.00 | 12 | 1 | 18-3/4 | 13.25 | 5 |
| 16 | 23-1/2 | 1-7/16 | 18 | 18-1/2 | 16.00 | 16 | 1 | 21-1/4 | 15.25 | 5 |
| 18 | 25 | 1-9/16 | 19-7/8 | 21 | 18.00 | 16 | 1-1/8 | 22-3/4 | 17.25 | 5-1/2 |
| 20 | 27-1/2 | 1-11/16 | 22 | 23 | 20.00 | 20 | 1-1/8 | 25 | 19.25 | 5-11/16 |
| 24 | 32 | 1-7/8 | 26-1/8 | 27-1/4 | 24.00 | 20 | 1-1/4 | 29-1/2 | 23.25 | 6 |

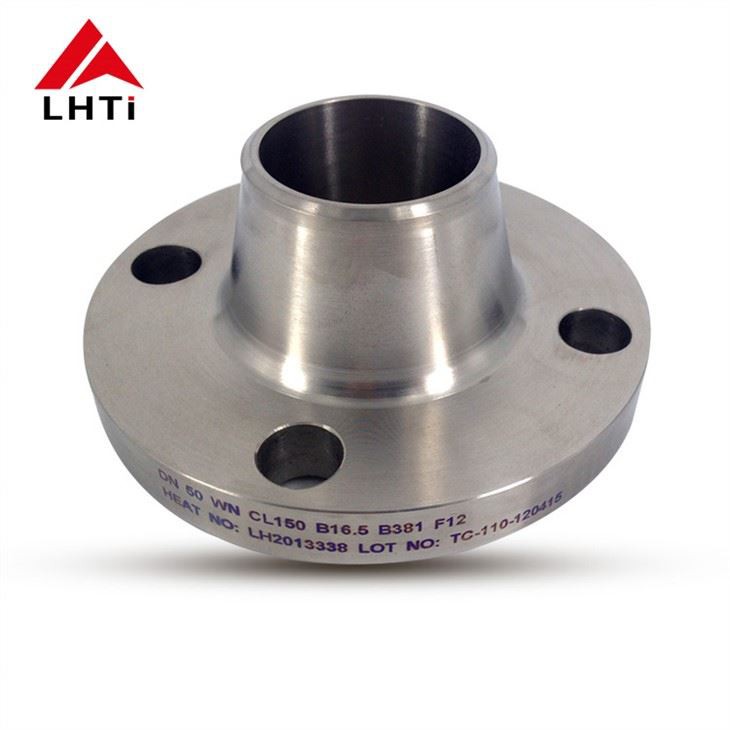

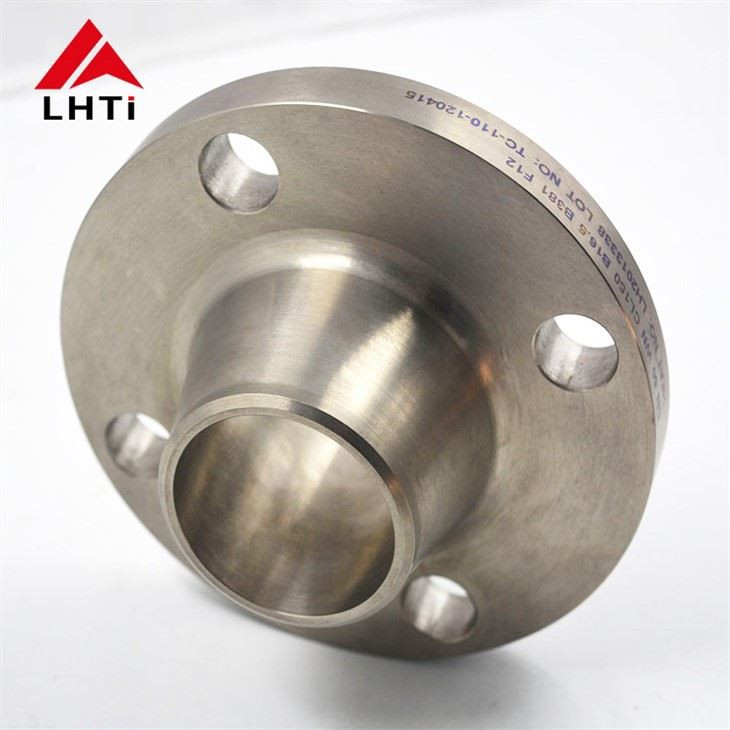

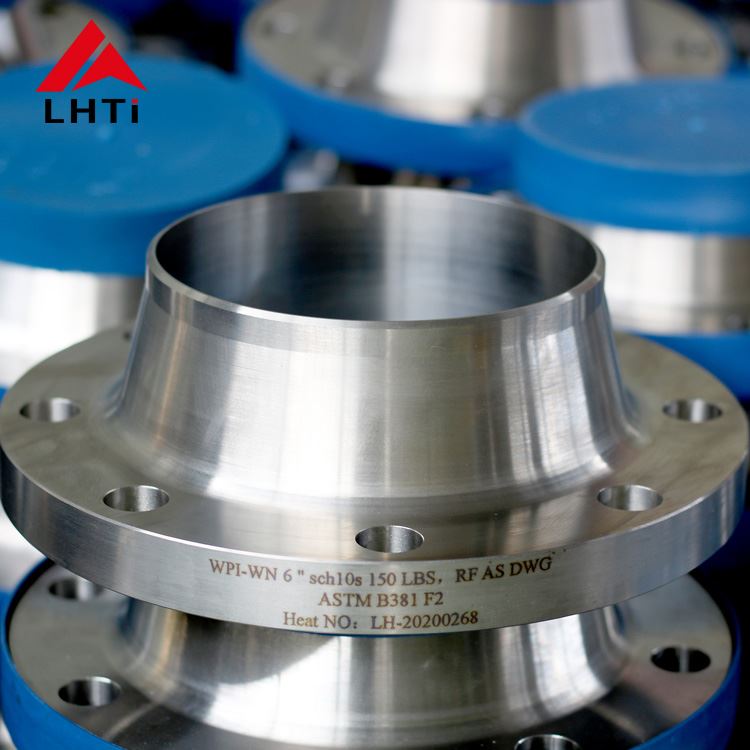

Detailed Images

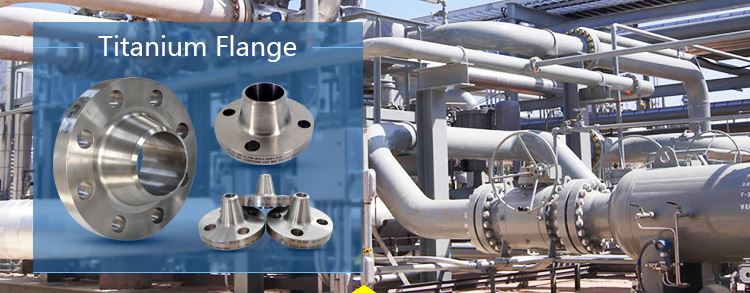

Applications

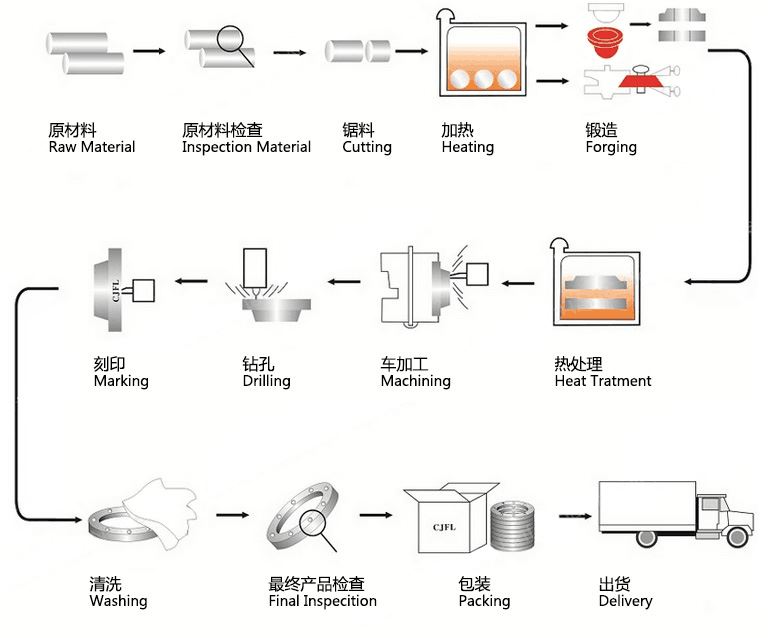

Production Process

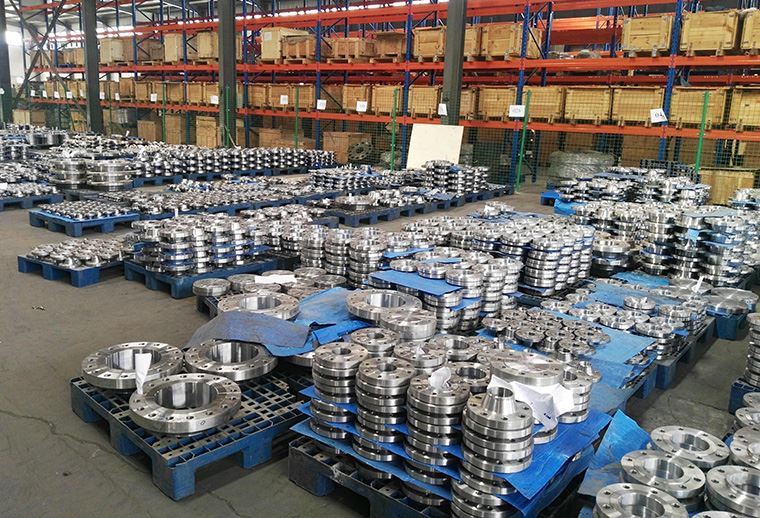

Our Factory

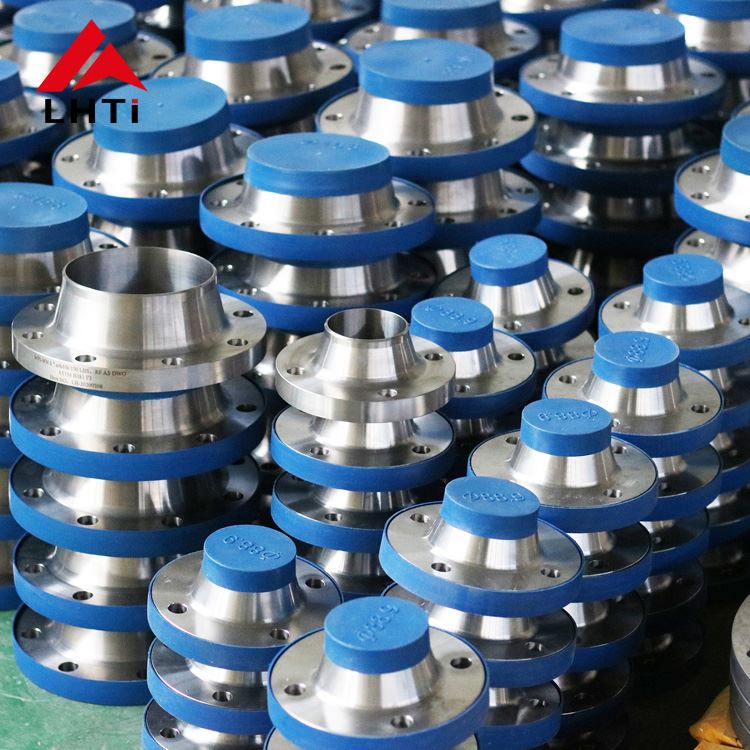

Stock
All tests
Visual testing (VT)
Ultrasonic Testing (UT)
Radiographic Testing (RT)
Magnetic particle testing (MT)
Penetrant Testing/Dye penetrate (PT)
Eddy Current testing (ET)
Acoustic Emission(AE)
Quality Inspection
Packaging
