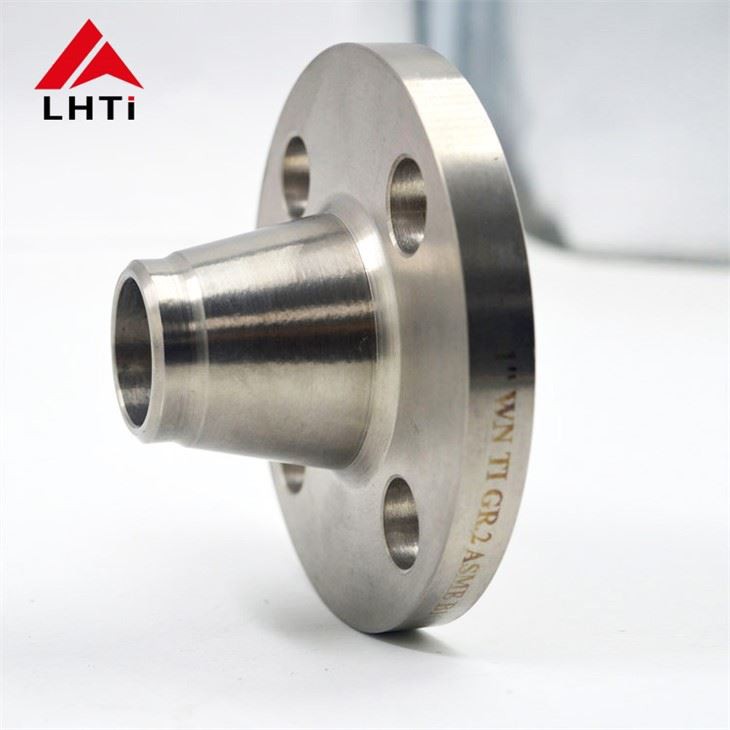

ASME B16.5 Titanium Weld Neck Flange

Baoji Lihuia carries a wide range of Grade 2 Titanium blind flanges, Titanium weld neck flanges, and Titanium slip-on flanges that range from 1/2” (1.26 lbs) to 24” (461 lbs). Titanium Industries carries a wide selection of Titanium Pipe Fittings.Titanium weld neck flange has the highest sales volume in our company.

Estimated Titanium flange weights are based on a density of 4.51g/cm³

All of Titanium Flanges are supplied with a serrated spiral finish per ASME B16.5 Other gasket surface finishes can be supplied on special order. Titanium flanges are permanently marked by electro-chemical etching in accordance with ASME B16.5.

Dimensional tolerances conform to ASME B16.5. Flange bore diameters agree with standard ASME B36.9M Sch-40S wall pipe. Other bore diameters can be supplied on special order.

ASME B16.5 Titanium Weld Neck Flange

Product Information

Material: Gr1, Gr2, Gr5, Gr7, Gr12

Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628

Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Sealing Surface: RF, FF, TG, RJ etc.

Technique: Froged and CNC Machined

Advantages:

• Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

• Corrosion-resistant

• Excellent strength to weight ratio

• High temperature resistance

• Low temperature resistance

• Great malleability and weldability

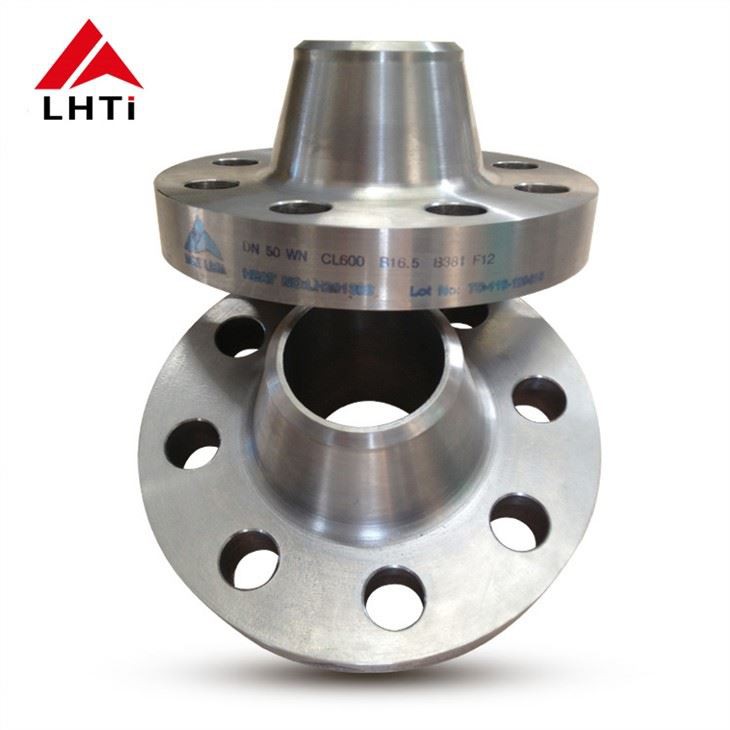

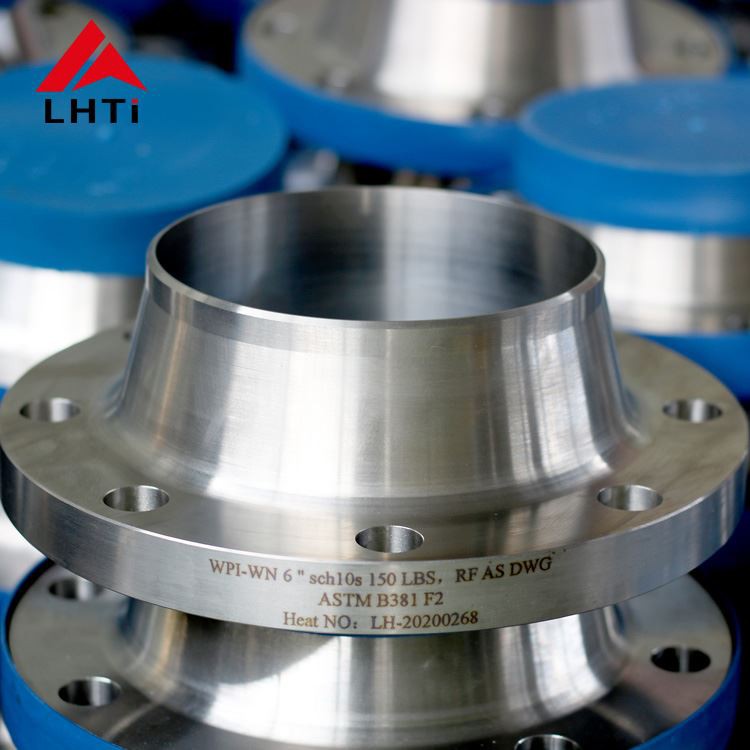

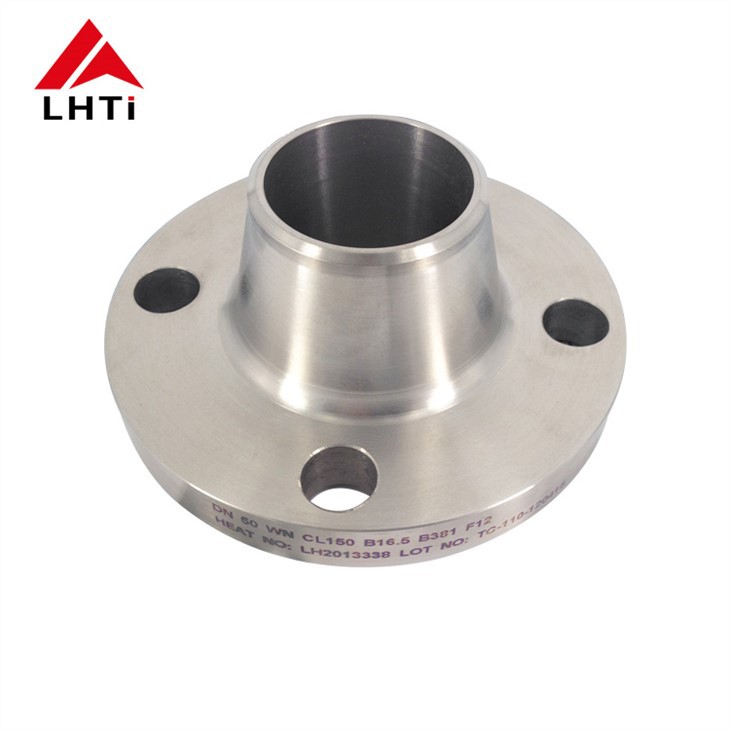

Detailed Images

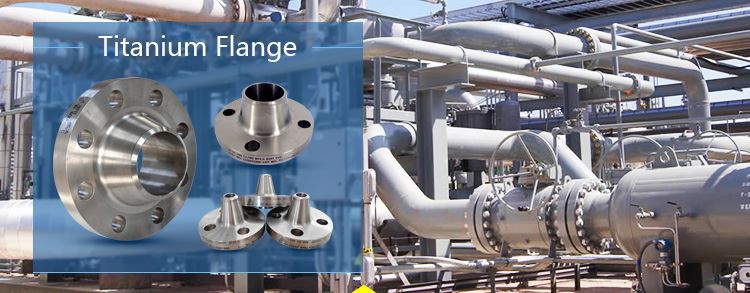

Applications

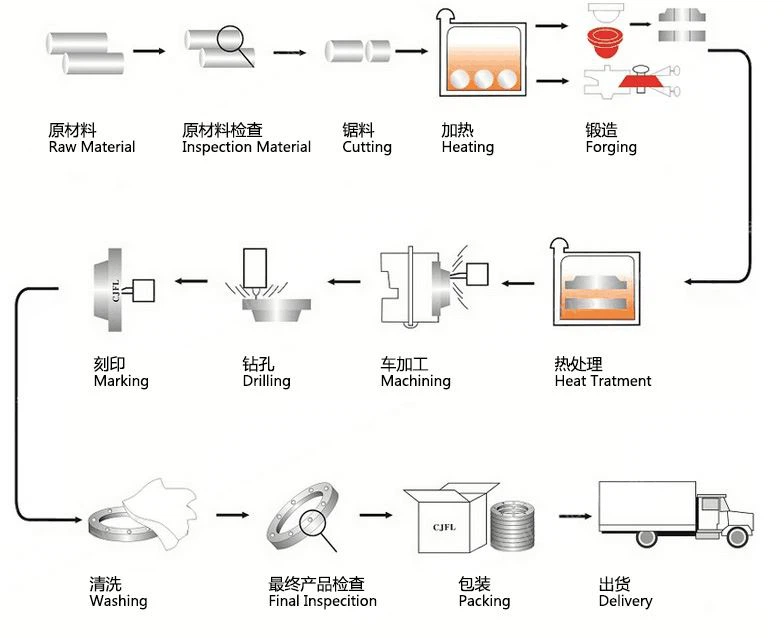

Production Process

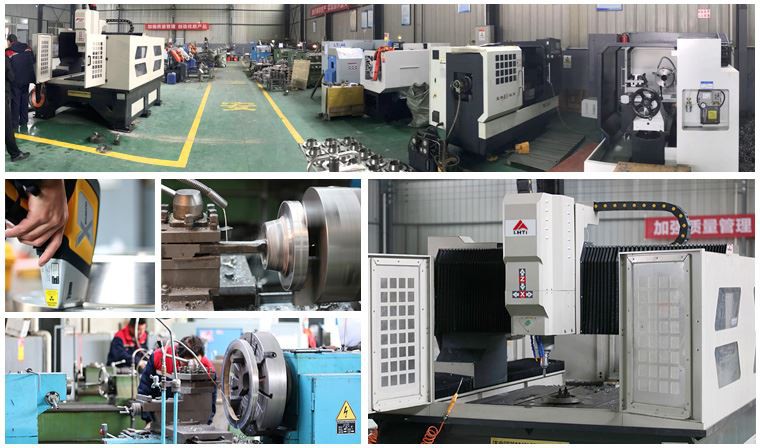

Our Factory

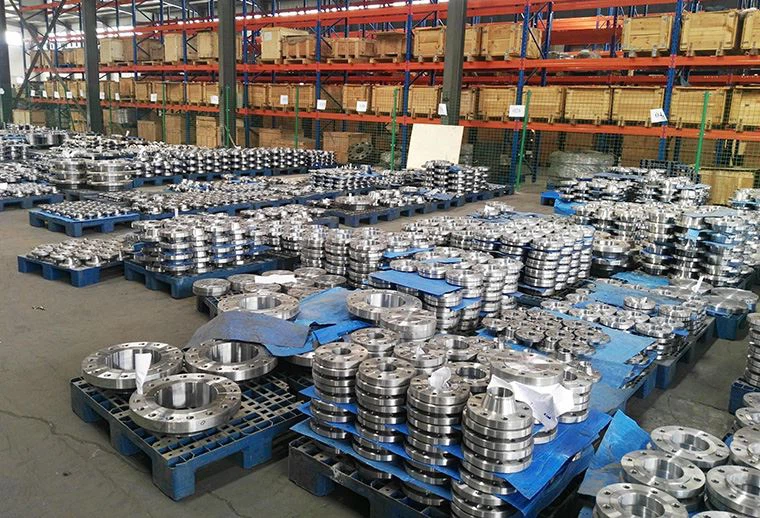

Stock

Related Products

• Titanium Elbow

• Titanium Tee

• Titanium Reducer

• Titanium Stub End

• Titanium Sockolet

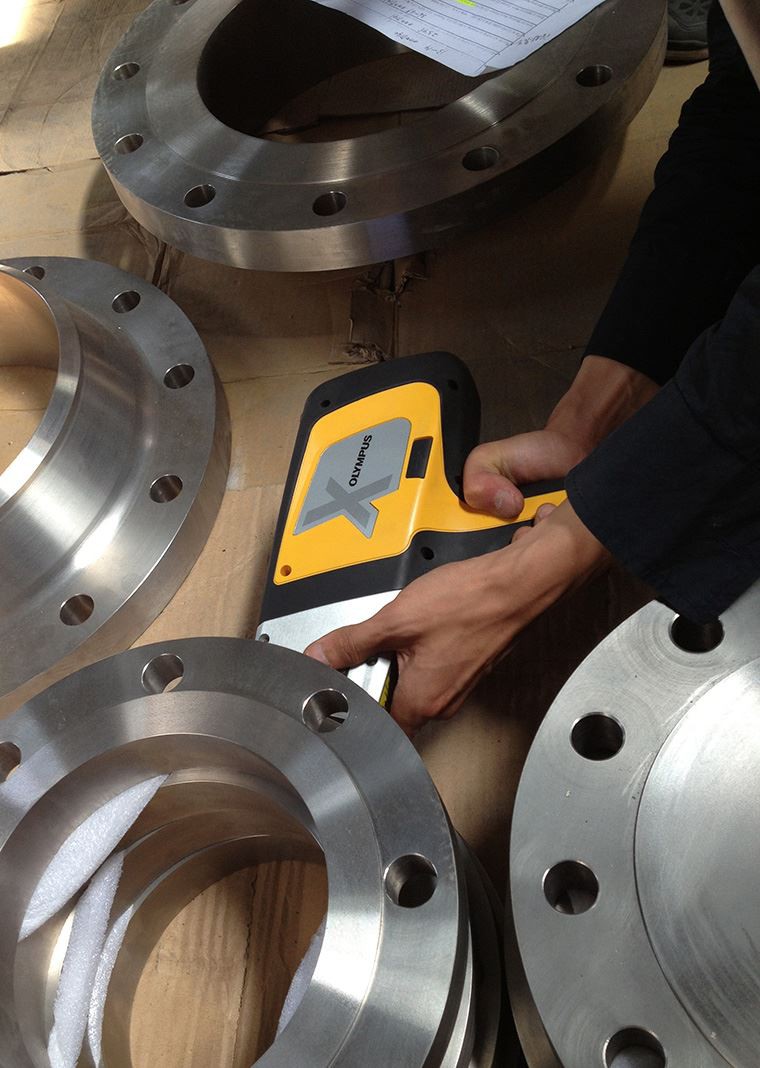

Quality Inspection

Packaging

\
