ASME B16.47 Titanium Flange

Flange is widely used in water conservancy, electric power, power station, pipe fittings, industry, pressure vessel, etc. Titanium flange is a kind of flange processed by forging process， made of titanium material, which is generally used in machinery and chemical industry.Besides titanium flanges, we can also manufacture nickel flange, zirconium flange etc.

ASME B16.47 titanium flange

Material:Titanium GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12)

Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange,

Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange,etc

Connection type: Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc

Size: 1'' and 1/2'' ~ 120'' (DN40-DN3000)

MOQ: 1 piece

Price term:EXW factory, FOB, C&F and CIF

Payment term: T/T, L/C, West Union, Money Gram and etc

Package: Standard exporT plywood case or as you requested

Application: Usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc.

Export to USA,Canada,Australia,Singapore,Indonesia,Hongkong,Oman,Vietnam etc

Physical Properties

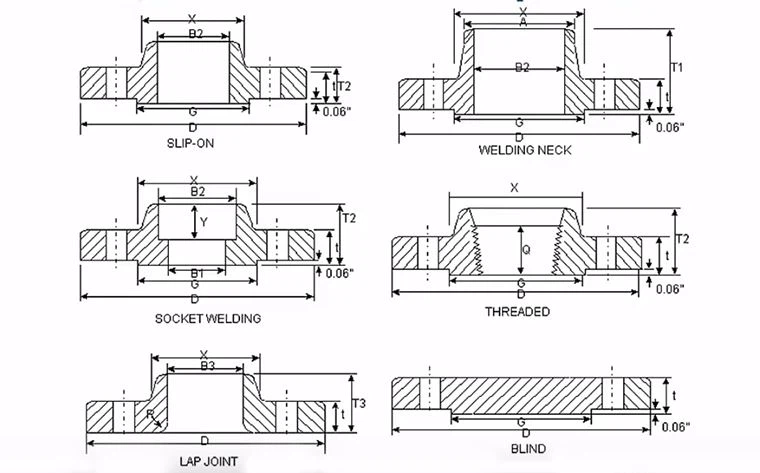

We can manufacture different type titanium flanges:

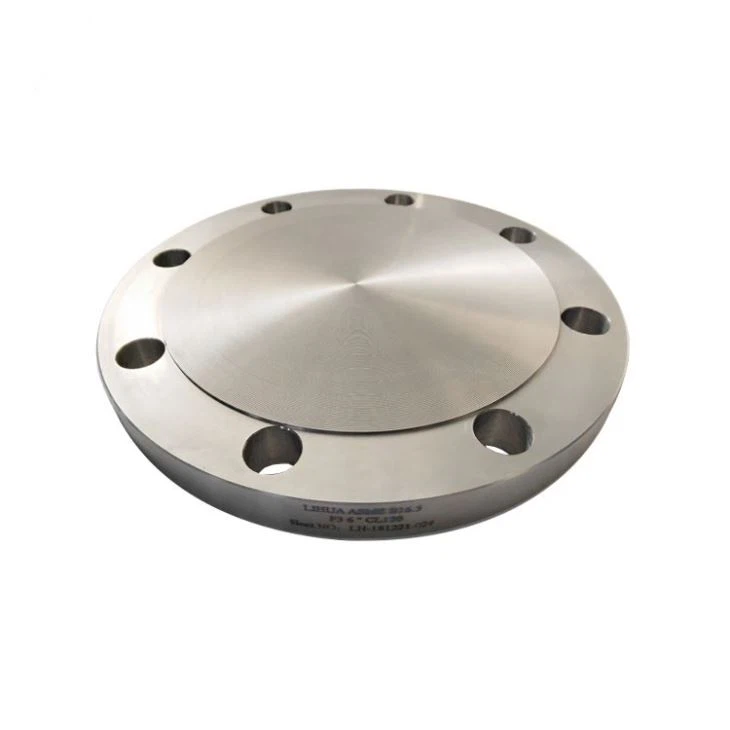

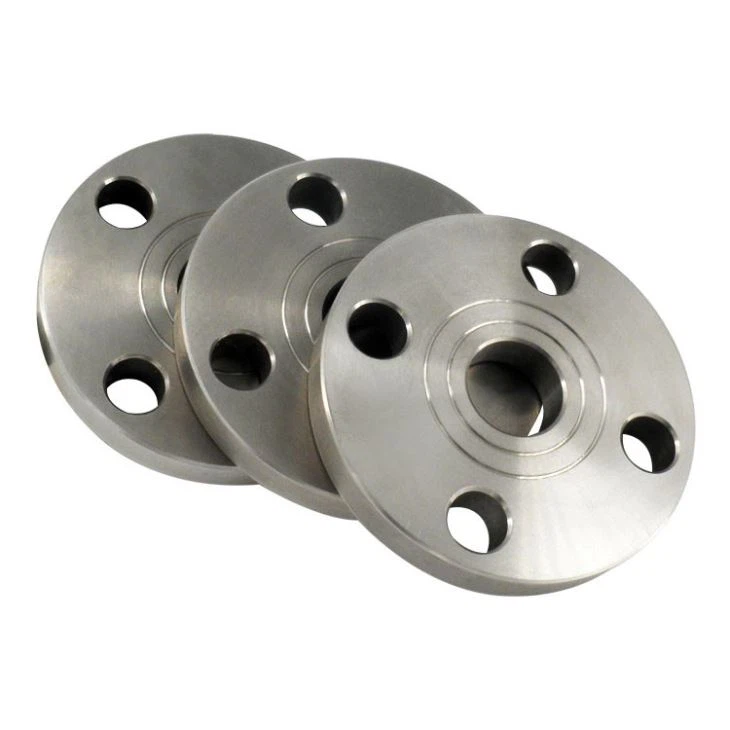

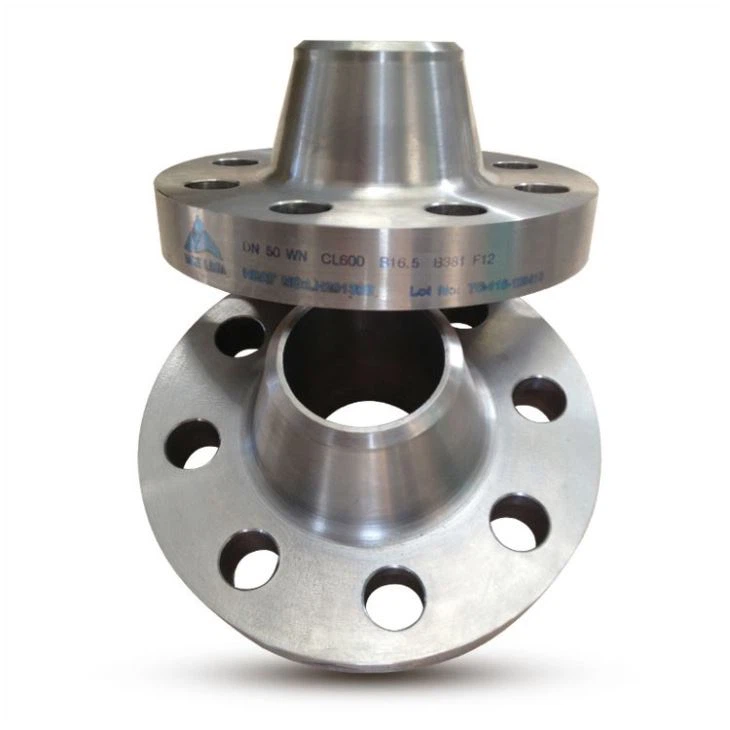

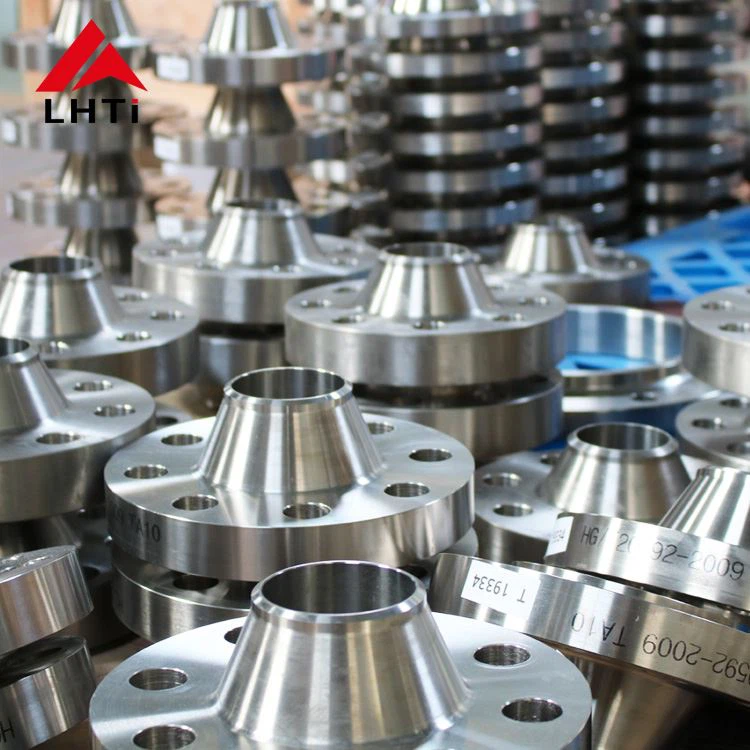

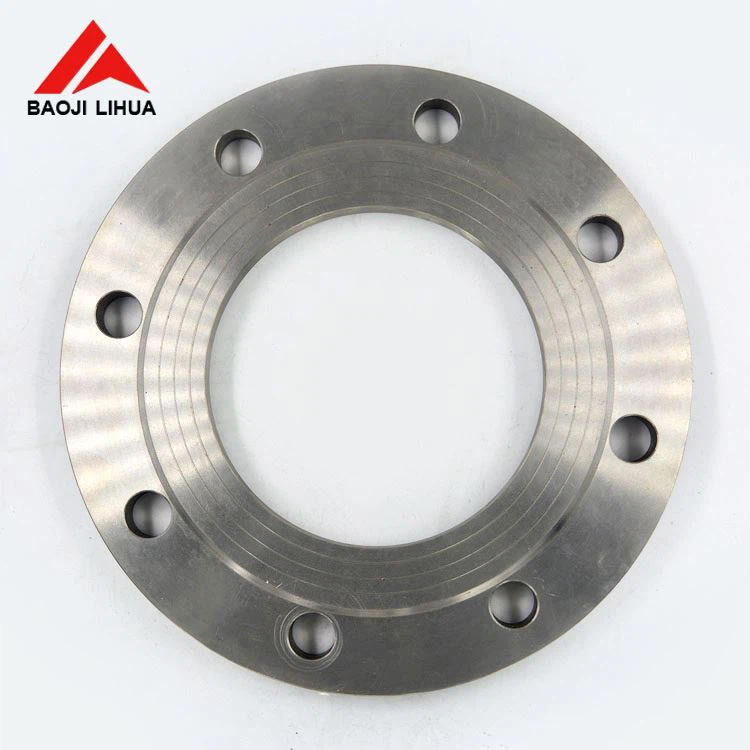

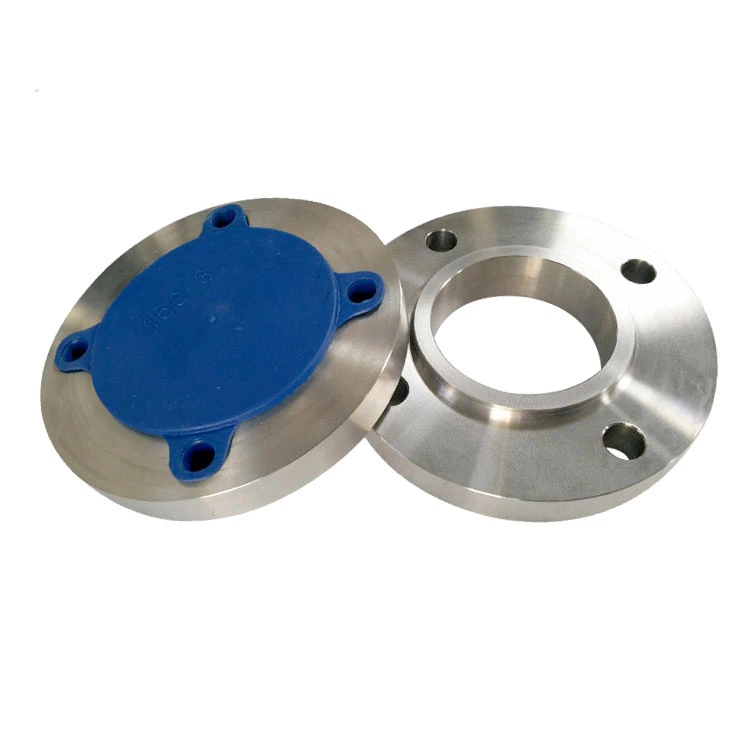

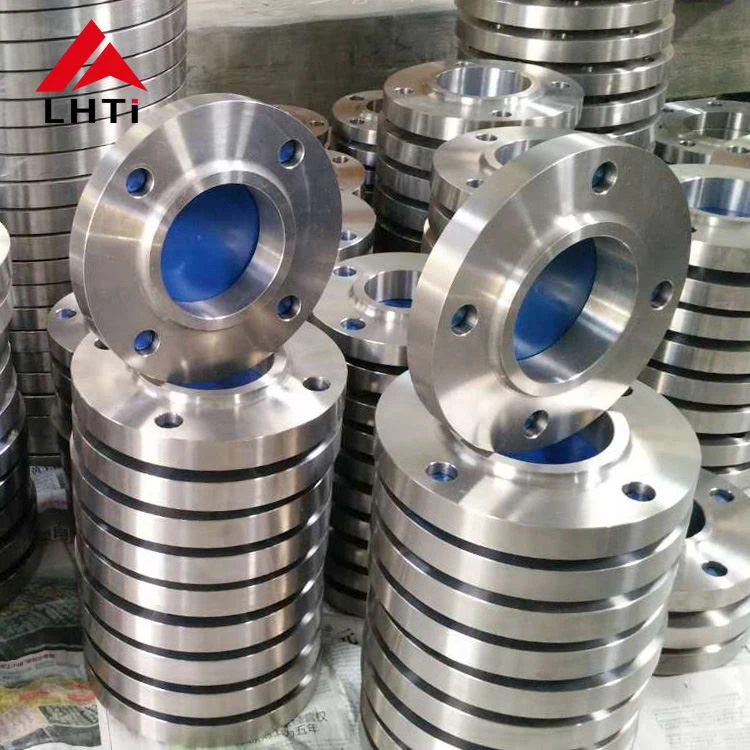

Detailed images:

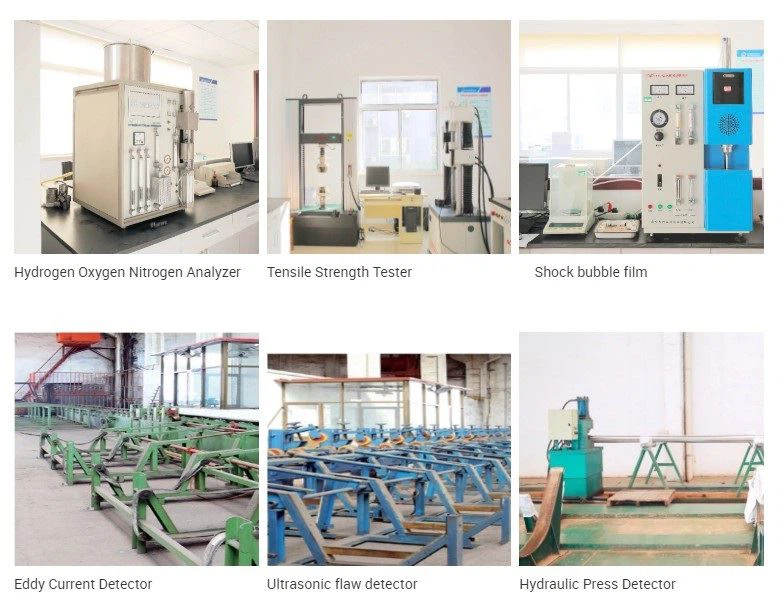

Quality inspections:

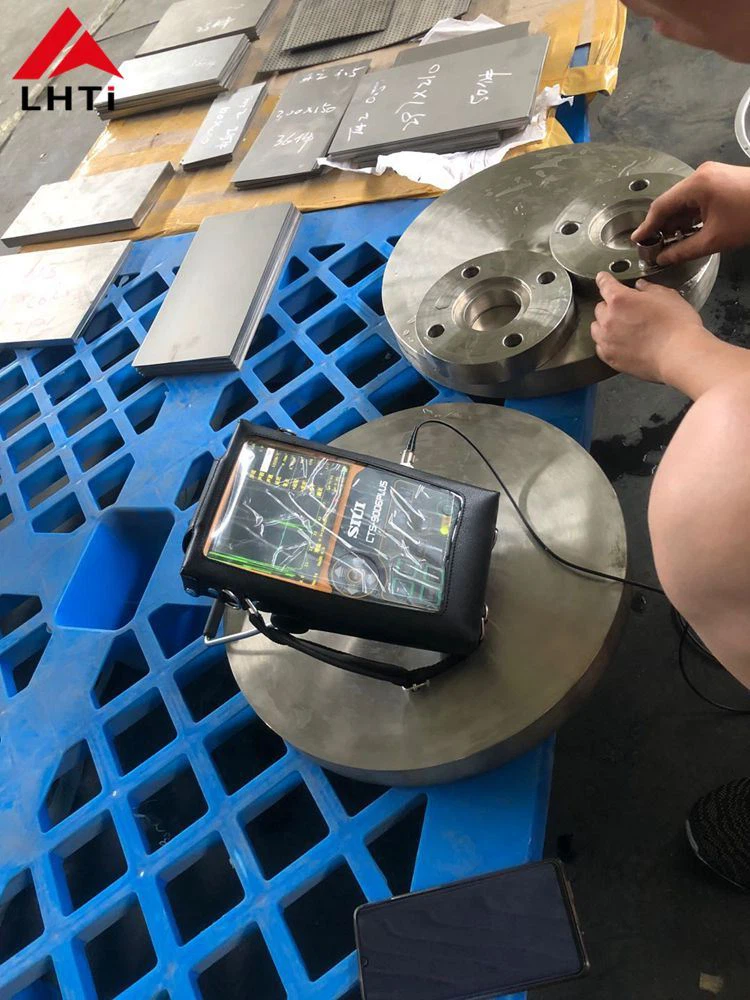

For titanium flange, we generally do these quality tests: chemical composition analysis, physical performance test, UT, etc

Baoji Lihua Non-ferrous Metals Co., Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing various non-ferrous metals, called“China Titanium Valley”.We are specialized in manufacturing,researching and marketing non-ferrous metals, mainly for titanium, nickel& nickel alloy, tantalum mill products and equipment. With 10 years export Experience, our products was sold to Asia, Europe, North America in large quantity.In addition to provide preferential price for customers, we pay much attention to quality, and have a good after-sales service.All products we produced are based on the standard: German standard ,Aerospace standard, European standard, etc. Including ANSI /ASTM/ASME/JIS/DIN etc. Lihua is certified by ISO9001:2008,TUV and IQNET. Our company's products have passed SGS,BV, LR'S ,TUV and other international inspection agency inspection.

Based on international and domestic industrial standards and customer requirements, we set up higher internal quality assurance standards to implement comprehensive and full quality management.Our factory always arrange PMI and physical properties inspection for all incoming materials.We strictly performance the ultrasonic testing for each titanium flange according to the worldwide standards and customer requirements.Additional test such as radiographic testing, hardness testing ect can be arranged upon request.We will never allow any defective products leave from the factory.

Advantages of our factory:

1. Used grade 1 titanium sponge as raw material to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.

2. Forged valve body and disc to control the leakage and visual.

3. Superior facilities and good experiences for fabrication.

4. In ability to improve and develop new design.

5. Fast delivery is possible to meet your needs well in time.

6. Low cost from bulk production will reduce your budget and improve your business.

7.Professional export team and long-term after-sales service

Welcome to send inquiry !
