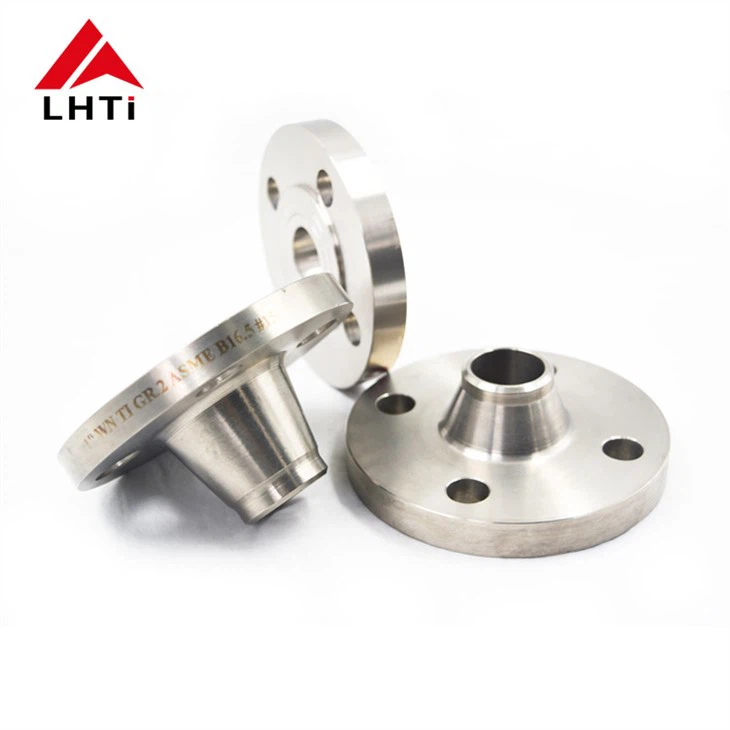

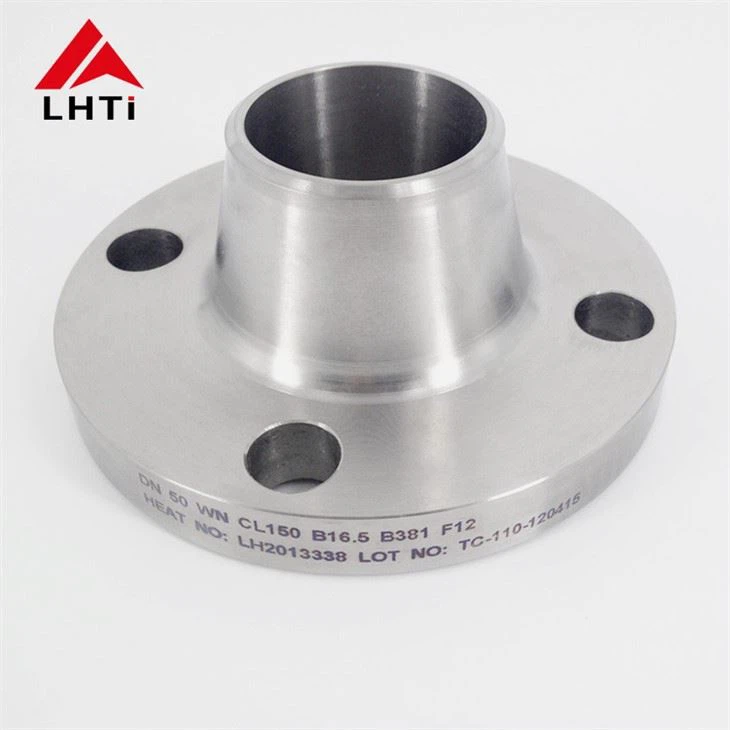

Welding Neck Flanges

Welding Neck Flanges

Titanium flanges have numerous advantages over other types of flanges. Firstly, they are extremely corrosion resistant and can withstand exposure to harsh chemicals and ocean environments. This makes them ideal for use in industries such as petrochemical, offshore and marine.

Secondly, titanium flanges have a high strength-to-weight ratio, meaning they are lighter and stronger than many other materials. This makes them easier to handle and install, and reduces the risk of structural failures.

In addition, titanium flanges have a low thermal expansion coefficient, which means they are less likely to deform under high temperature conditions. This stability makes them suitable for use in high temperature applications, such as heat exchangers.

Product Information

Material: Gr1, Gr2, Gr5, Gr7, Gr12

Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628

Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Sealing Surface: RF, FF, TG, RJ etc.

Technique: Froged and CNC Machined

Functions

1. Flange, gasket and bolts are connected to each other as a detachable connection of a combined sealing structures.

2. Flange connection is an important connection method for pipeline construction.

3. The flange connection is easy to use and can withstand large pressures.

Different Titanium Grade

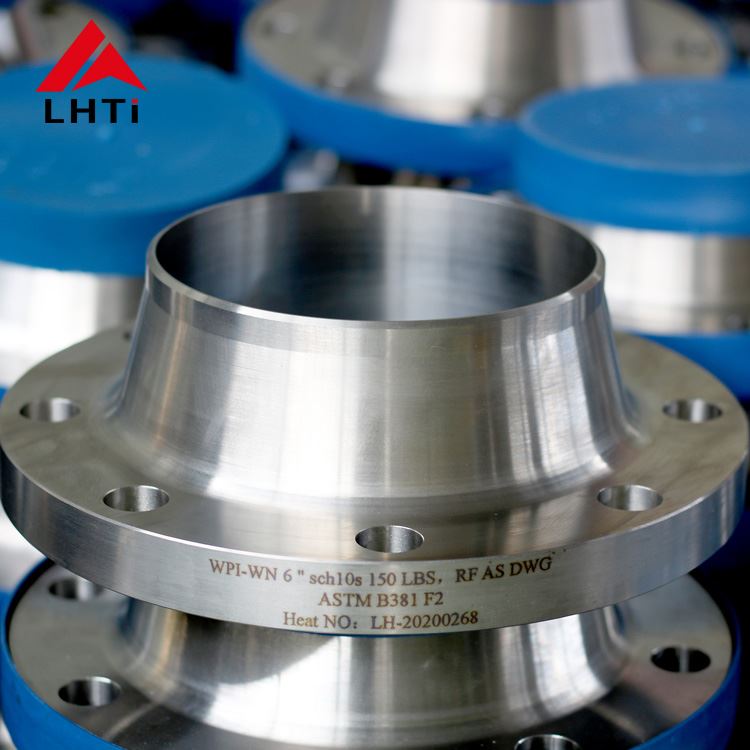

Detailed Images

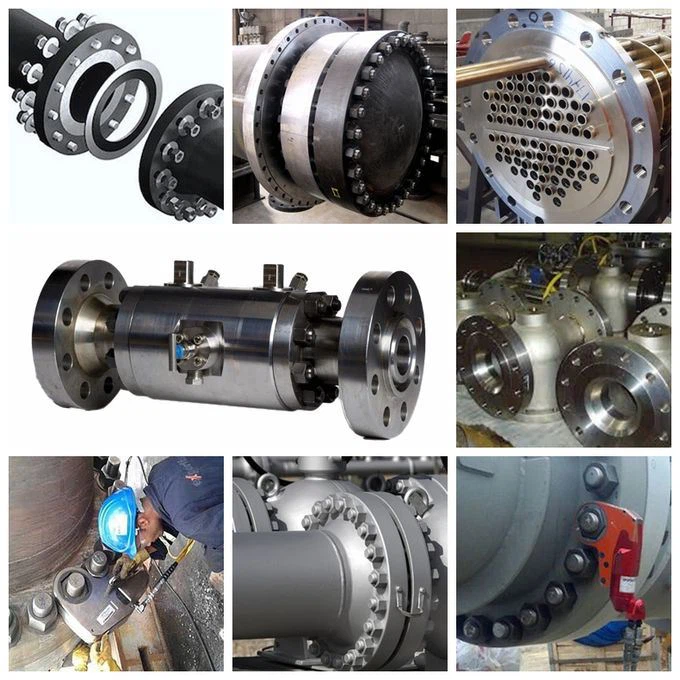

Applications

Production Process

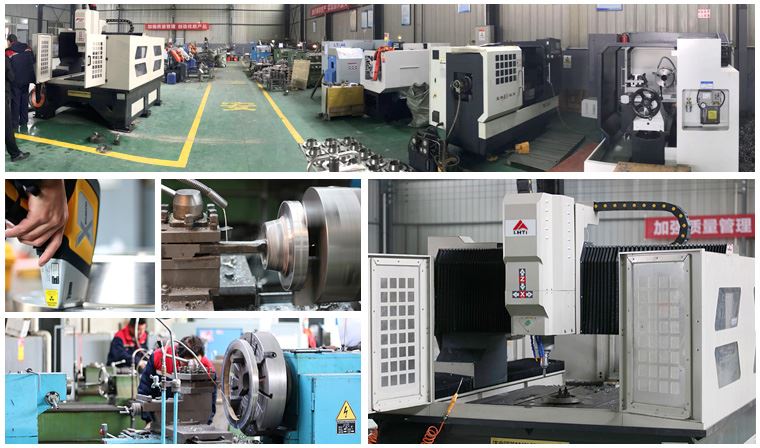

Our Factory

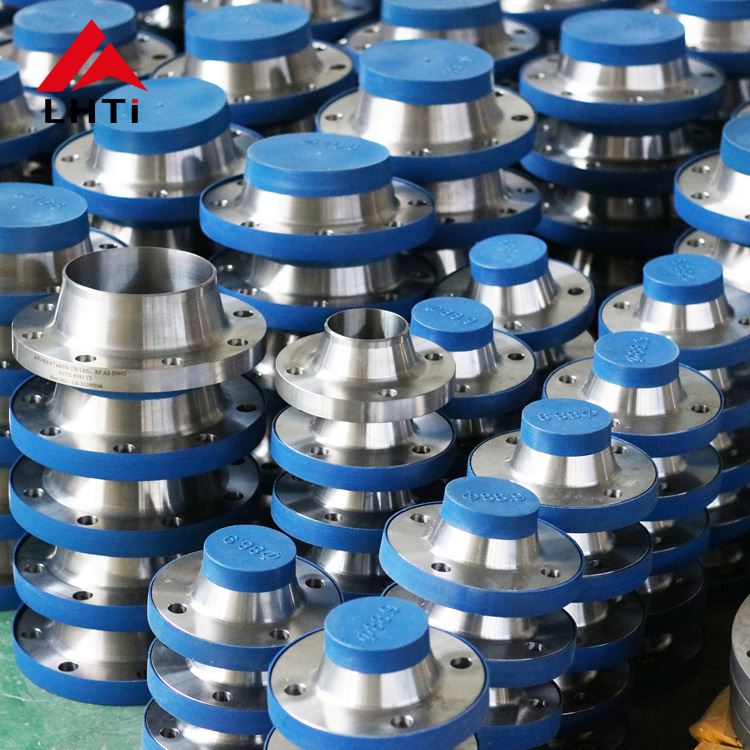

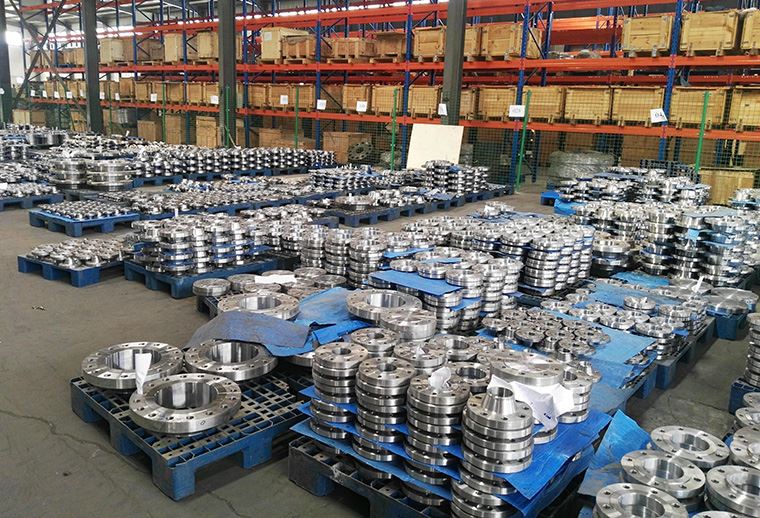

Stock

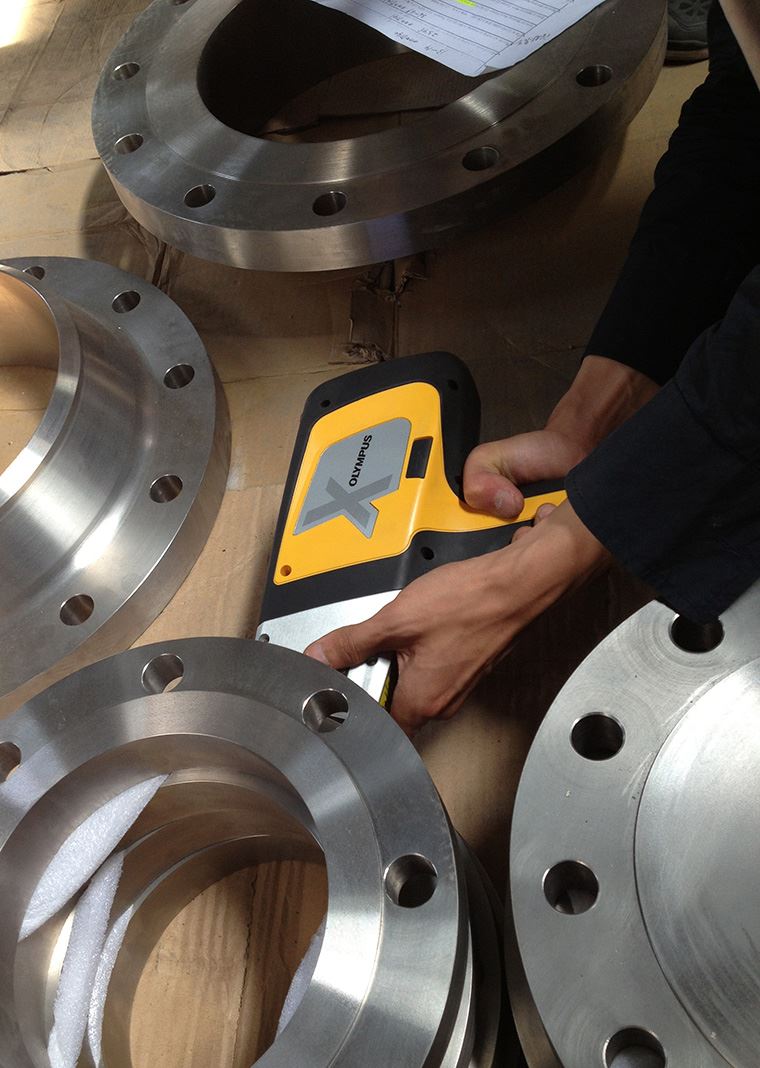

Quality Inspection

Packaging
