99.6% Gr2 Forged Pure Titanium Ring
Product name: Grade 5 Titanium Ring
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Send Inquiry
Chat Now
Product Introduction
99.6% Gr2 Pure Titanium Ring
| Item name | Titanium Forged Ring ASTMB381 | ||
| Standard | ASTM B381/ASME SB381 | ||
| MOQ | 10 pcs | ||
| Surface | Machined surface | ||
| OEM/ODM | Accepted | ||
| Delivery | Air freight, Sea freight and Expressby DHL,FEDEX,UPS,TNT | ||
| Processing | Forged+Machined | ||
| Application | Heat exchangers/ pressure vessels for Petrochemical,Pharmeceutical and Food industry | ||
| Nearest Port | Shanghai sea port, Xi'an airport | ||
| Certificate | ISO9001-2015 | ||
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

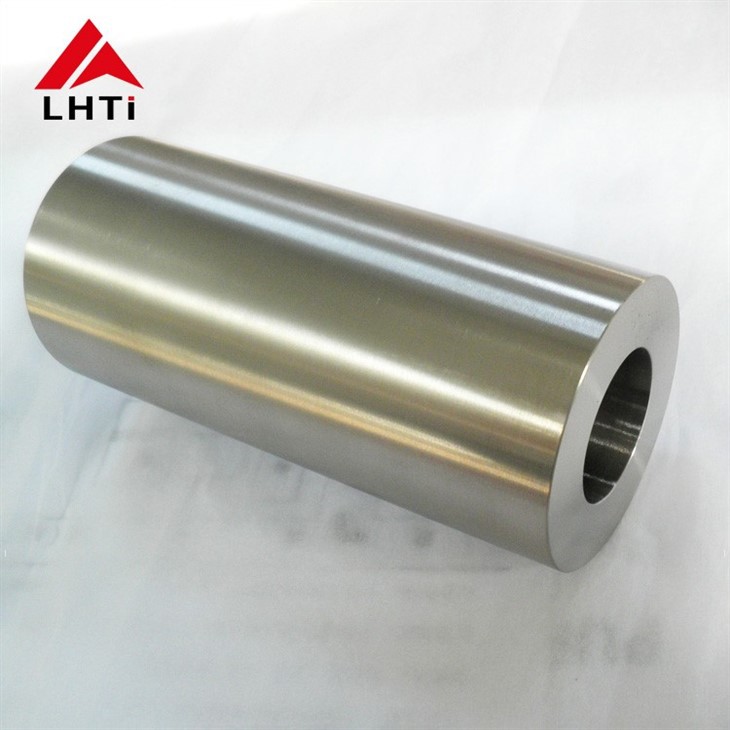

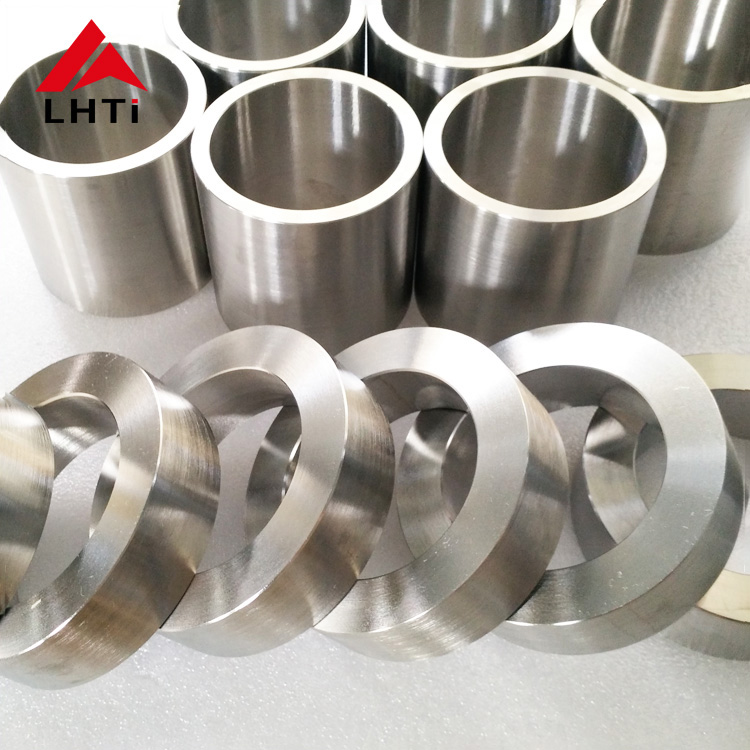

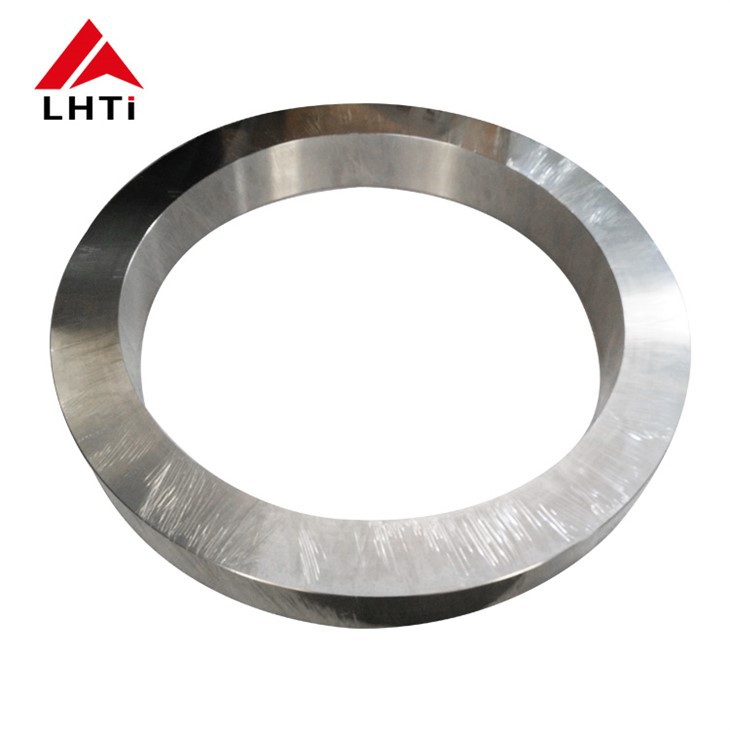

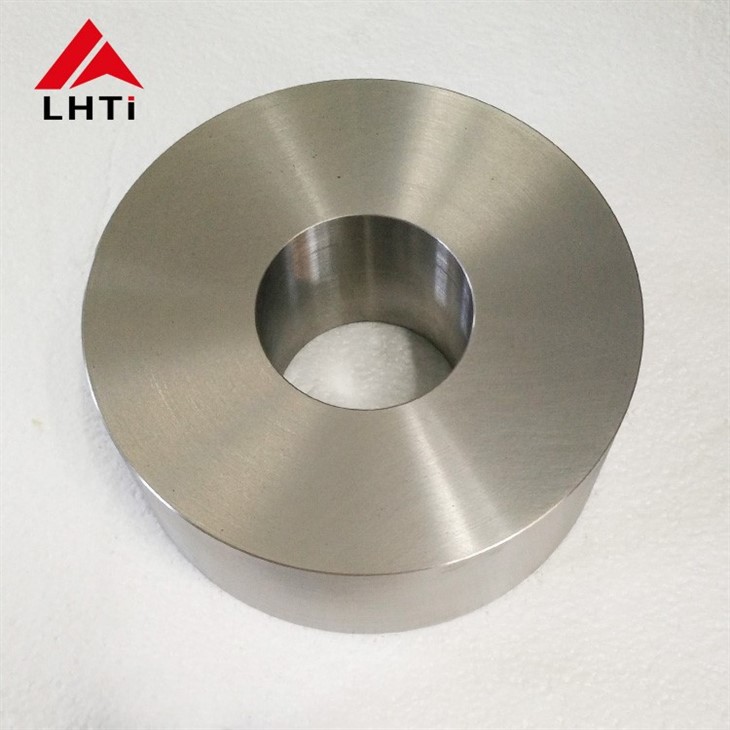

Product picture:
