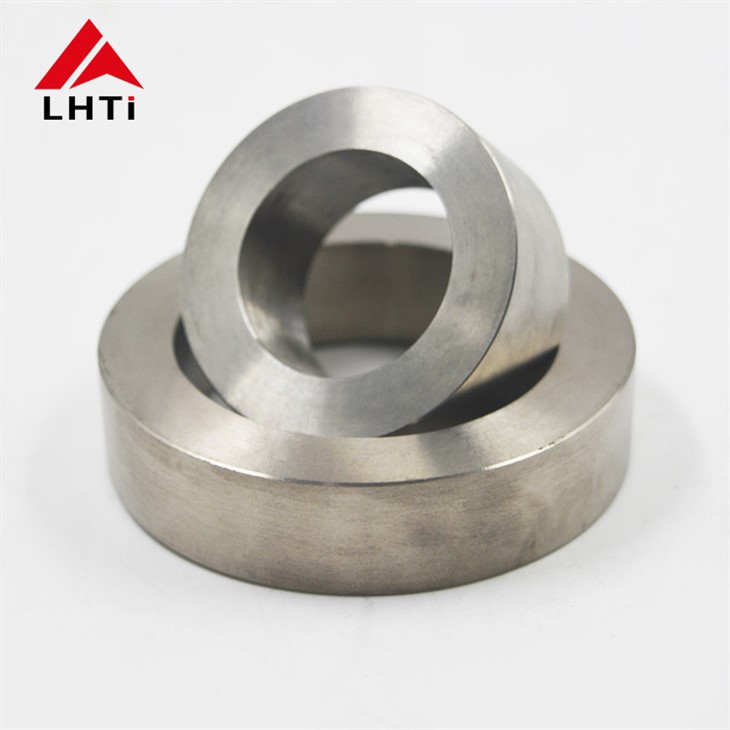

Titanium Alloy Forged Ring Bright Surface

Titanium Alloy Forged Ring Bright Surface

Titanium Alloy Forged Ring Bright Surface

Product name: Grade 5 Titanium Ring
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.

Send Inquiry

Chat Now

Product Introduction

GR2 GR5 Titanium And Titanium Alloy Forged Ring

Titanium Alloy Forged Rings have high strength and is not easily deformed and rusted. Titanium alloy refers to a variety of titanium and other metals made of alloy metal, and its main characteristics are high strength, good corrosion resistance, high heat resistance, can be widely used in various fields, and it also has good plasticity, toughness, formability, weldability, and biocompatibility. Also, we have a full range of product specifications, affordable prices, reliable quality and fast delivery.

Grade	Status	Tensile Strength		Yield Strength		Elongation	Area of Reducation
		Ksi	Mpa	Ksi	Mpa	%
		≥
GR1	Annealed	35	240	25	170	24	30
GR2		50	345	40	275	20	30
GR3		65	450	55	380	18	30
GR4		80	550	70	483	15	25
GR5		130	895	120	828	10	25
TI-6AL-4VELI		125	860	115	795	10	25
GR6		120	828	115	483	15	25
GR7		50	345	40	275	20	30
GR9		90	620	70	483	15	25
GR11		35	240	25	170	24	30
GR12		70	483	50	345	18	25

Tensile requirements
Grade	Tensile srength(min)		Yeild strength(mm)		Elongation(%)
	KSI	MPa	Ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	70	438	50	345	18

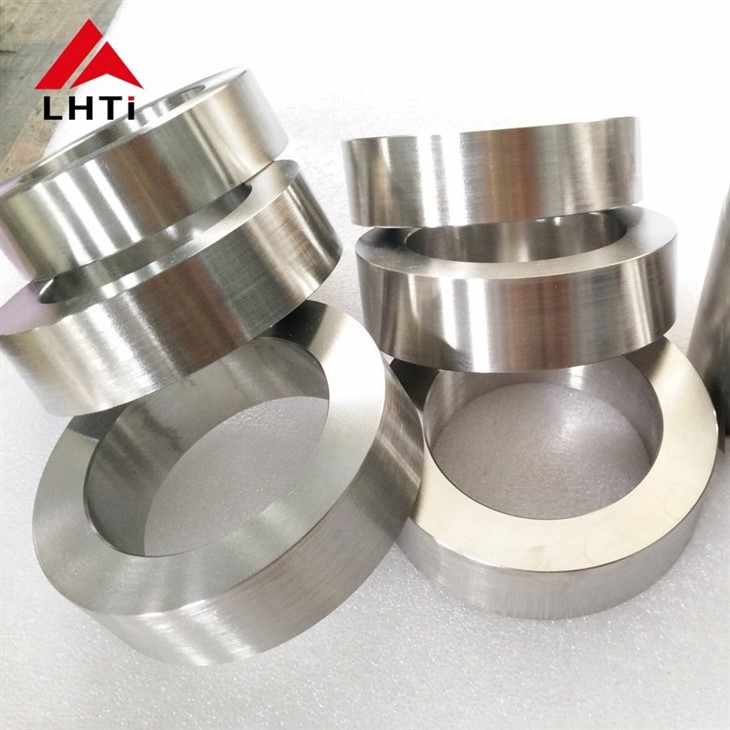

Product picture:

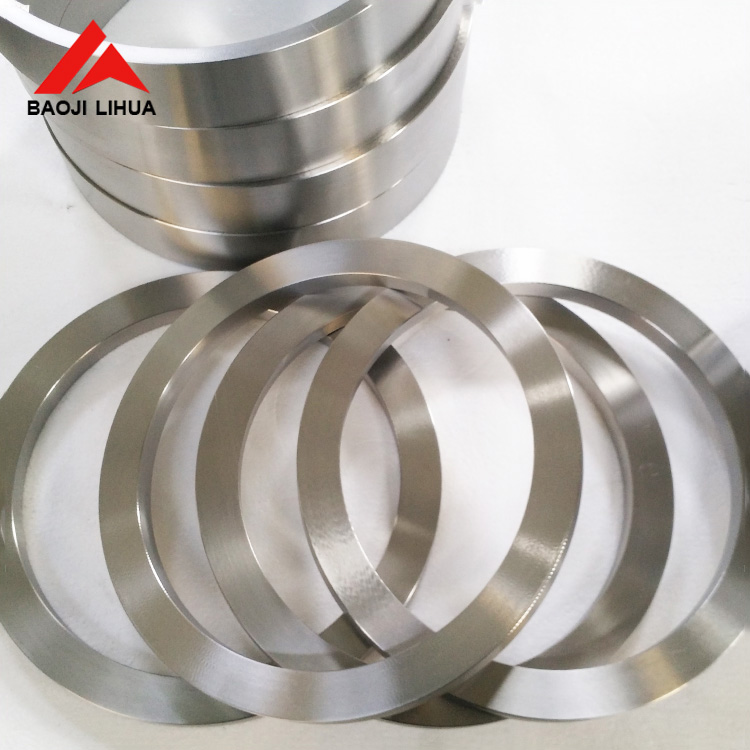

product-1-1
