99.6% Gr2 Forged Pure Titanium Ring
Product name: Grade 5 Titanium Ring
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Grade: Titanium GR5
Standard: ASME SB381 / ASTM B381,AMS 4928
Size: OD200-1500mm * ID100-1200mm *Height20*600mm
Application:Electroplating,Chemical engineering & Petrochemical technology etc.
Send Inquiry
Chat Now
Product Introduction
Forged titanium has anti-corrosive properties and hence it can be used in marine, saltwater environments and off-shore requirements. Titanium forging is heavily used in applications that are required in aerospace, industrial units, naval etc. This is because it is capable of withstanding any kind of intense conditions or harsh environments. It has the highest strength to density ratio within the metallic elements range.
| Item name | Titanium Forged Ring ASTMB381 | ||
| Standard | ASTM B381/ASME SB381 | ||
| MOQ | 10 pcs | ||
| Surface | Machined surface | ||
| OEM/ODM | Accepted | ||
| Delivery | Air freight, Sea freight and Expressby DHL,FEDEX,UPS,TNT | ||
| Processing | Forged+Machined | ||
| Application | Heat exchangers/ pressure vessels for Petrochemical,Pharmeceutical and Food industry | ||
| Nearest Port | Shanghai sea port, Xi'an airport | ||
| Certificate | ISO9001-2015 | ||
| Tensile requirements | |||||
| Grade | Tensile srength(min) | Yeild strength(mm) | Elongation(%) | ||
| KSI | MPa | Ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |

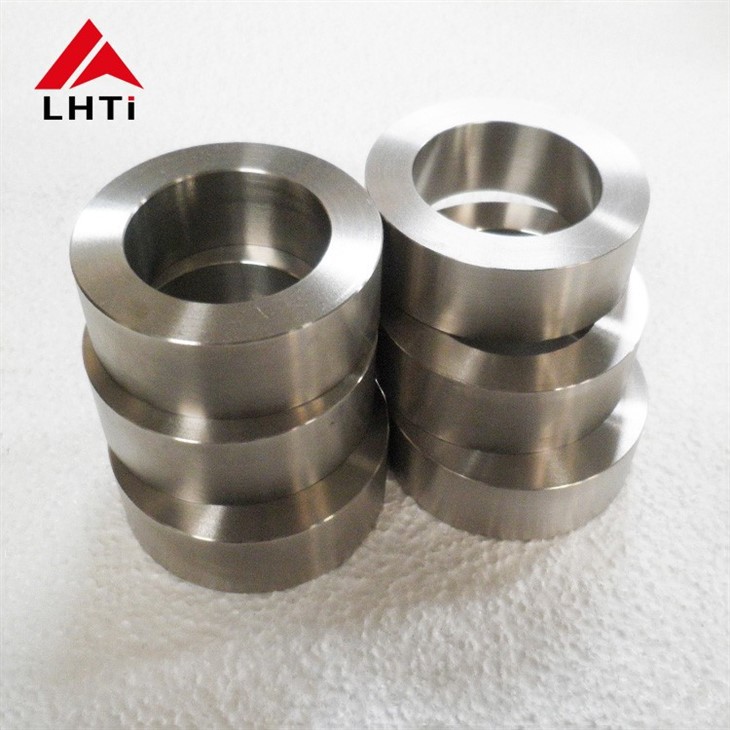

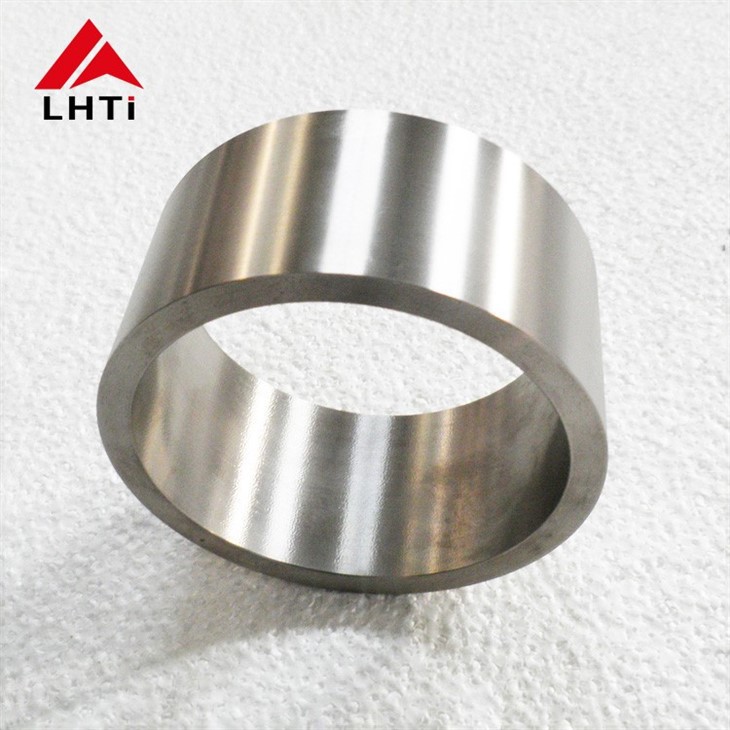

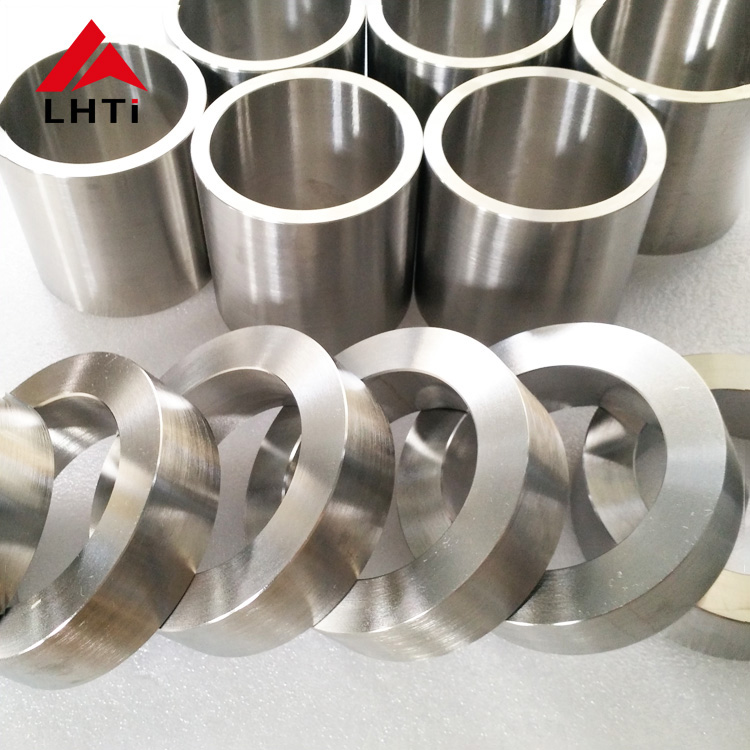

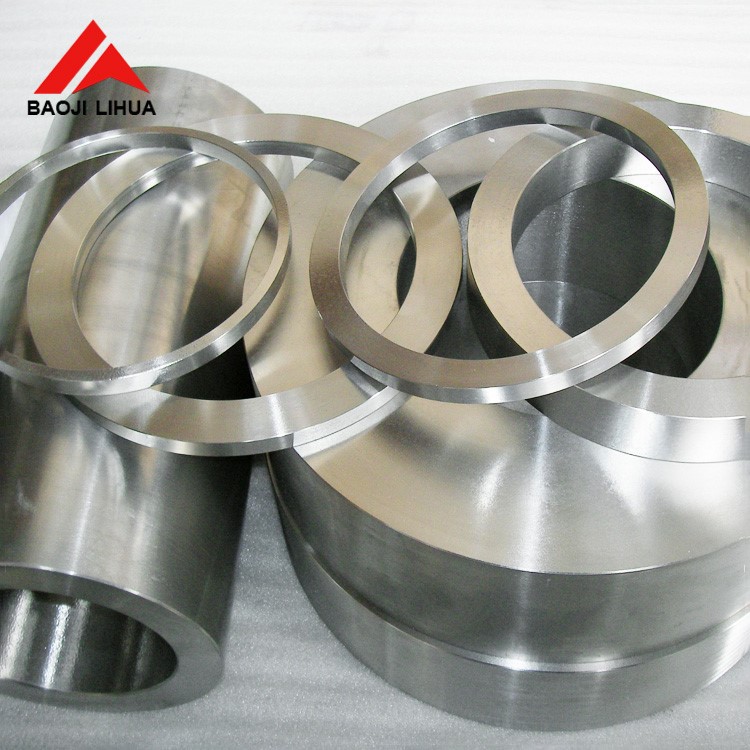

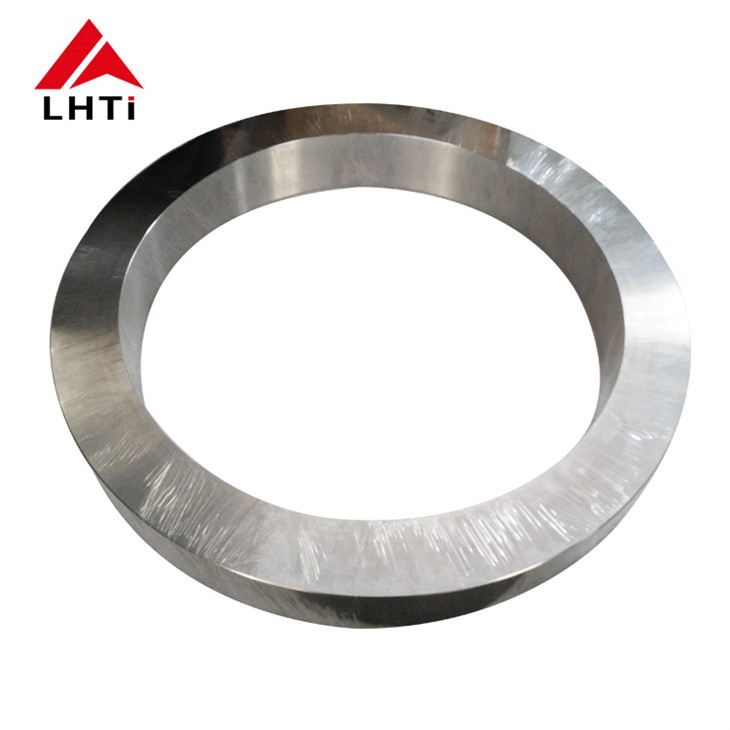

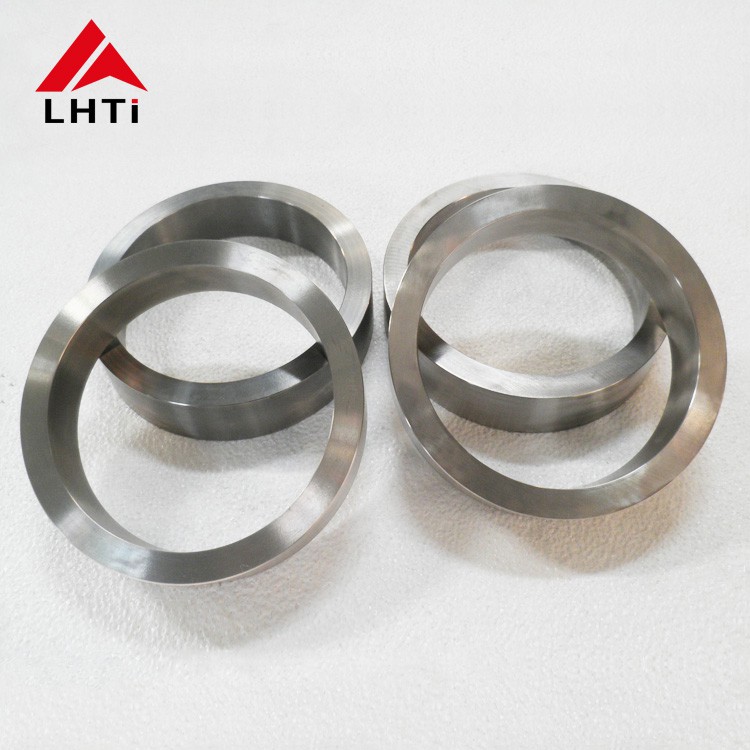

Product picture:
