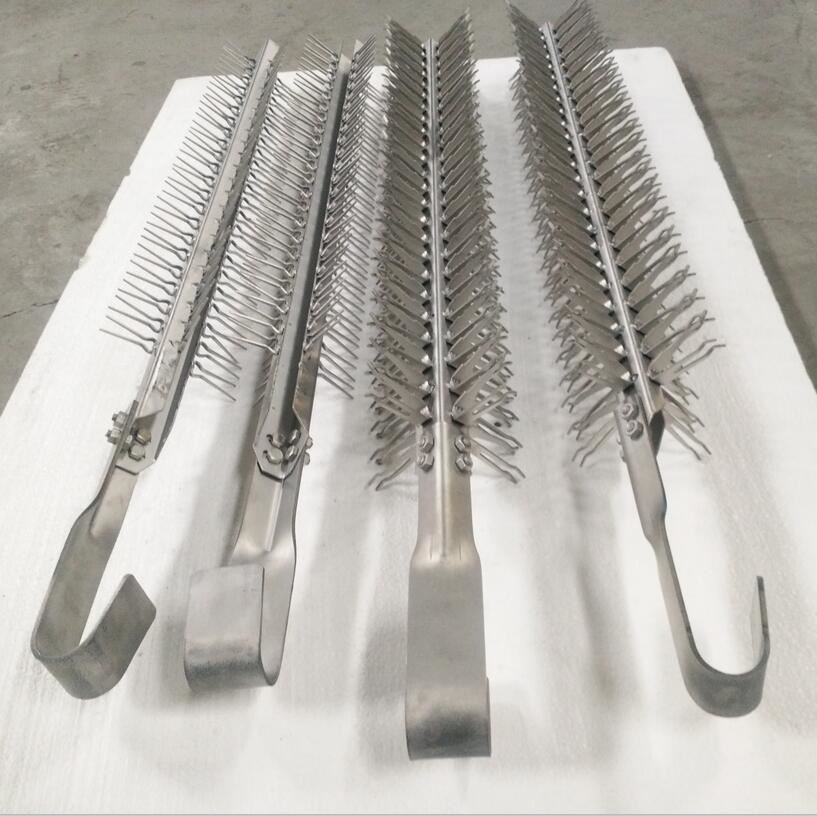

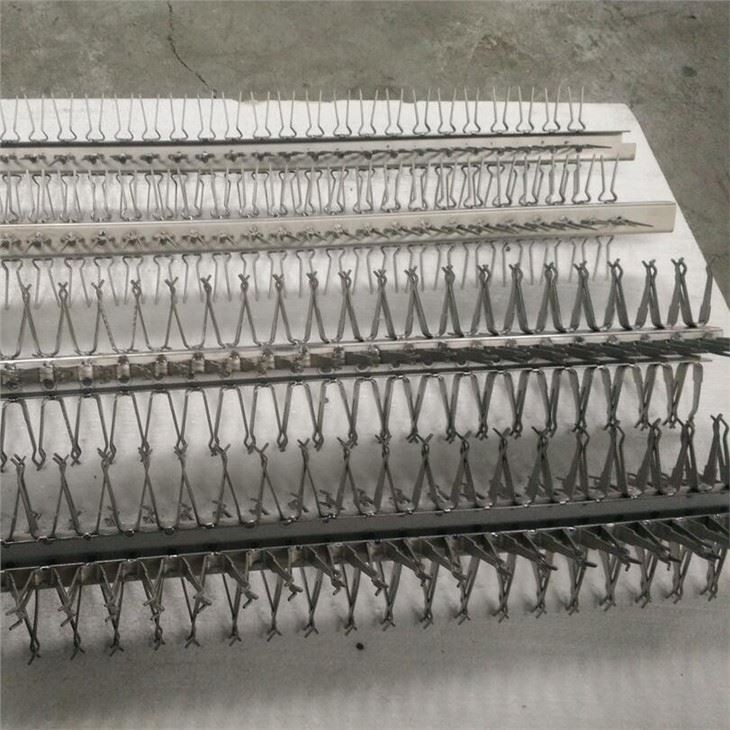

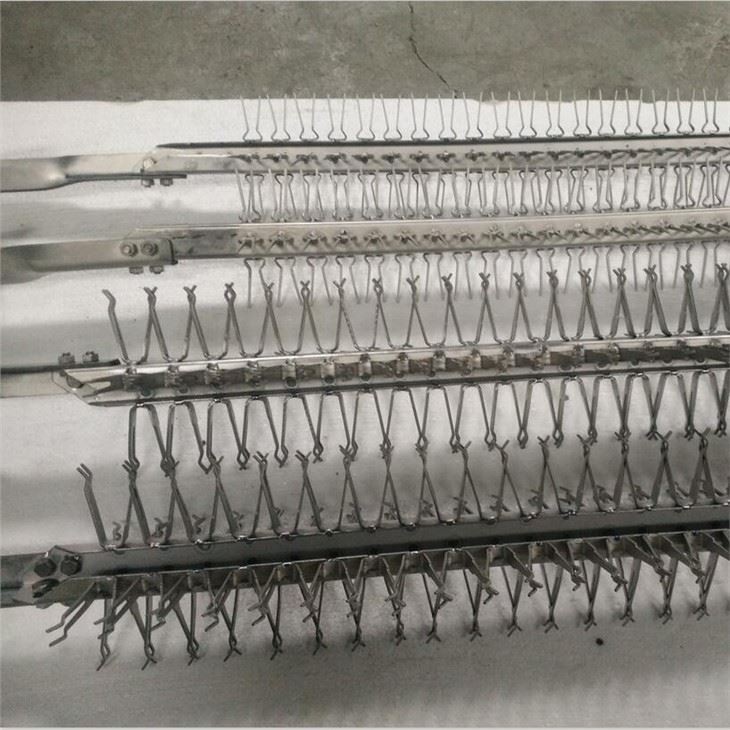

Titanium Racks

Product Name: Titanium racks

Material: Gr1, Gr2

Application: Electroplating, anodizing etc.

Size: Customized

Surface: Polished

 Titanium step clip racks

• For racking in I.D.’s from .140″ to 3/8″

• Fingers made from .050″ thick grade 4 titanium

• Available in various spring thickness and finger spacing

• Fingers on 1″ centers at 90° vertical

• Specify suffix “A” for fingers angled up 30°

2 Way Racks

No. SC250
2-way, 50 stations, 25″ solution depth

No. SC272
2-way, 72 stations, 36″ solution depth

4 Way Racks

No. SC4100
4-way, 100 stations, 25″ solution depth

No. SC4144
4-way, 144 stations, 36 ” solution depth

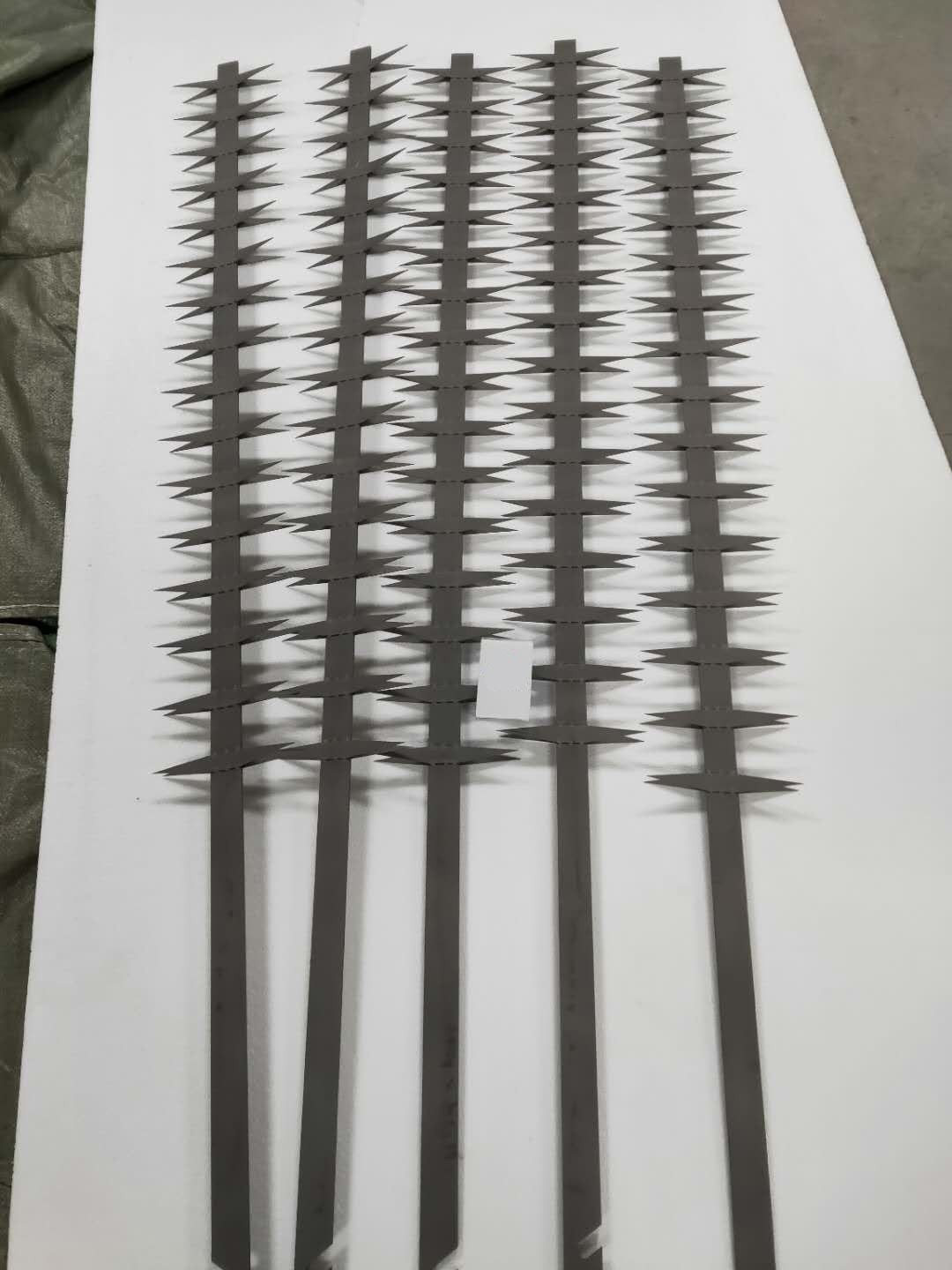

 Titanium fishbone racks

• Tapered fingers are ideal for small holes

• .040″ fingers taper down from 1/2″ to 1/16″ at tip (rounded to prevent scratching)

• Clips on 1″ centers at 90° to vertical

• Specify suffix “A” for fingers angled up 30°

2 Way Racks

No. 2W50
2-way, 50 stations, 25″ solution depth

No. 2W72
2-way, 72 stations, 36″ solution depth

4 Way Racks

No. 4W100
4-way, 100 stations, 25″ solution depth

No. 4W144
4-way, 144 stations, 36 ” solution depth

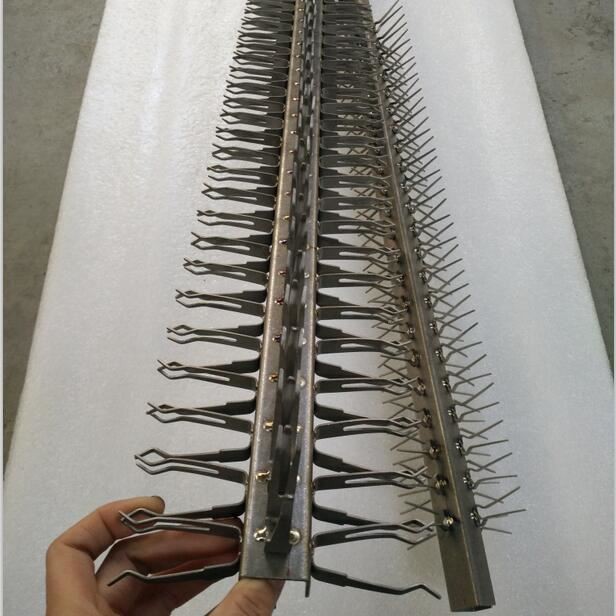

Titanium Slit finger racks

 Slip finger design allows all 4 contacts to act as springs

• Ensures 4 points of contact

• Formed tips apply pressure in the correct direction to hold parts of many shapes and sizes

• Clips are .050″ thick and 1/2″ wide

• Clips on 1-1/2″ vertical centers

2 Way Racks

No. SF234
2-way, 34 stations, 25″ solution depth

No. SF248
2-way, 48 stations, 36″ solution depth

4 Way Racks

No. SF466
4-way, 66 stations, 25″ solution depth

No. SF496
4-way, 96 stations, 36 ” solution depth

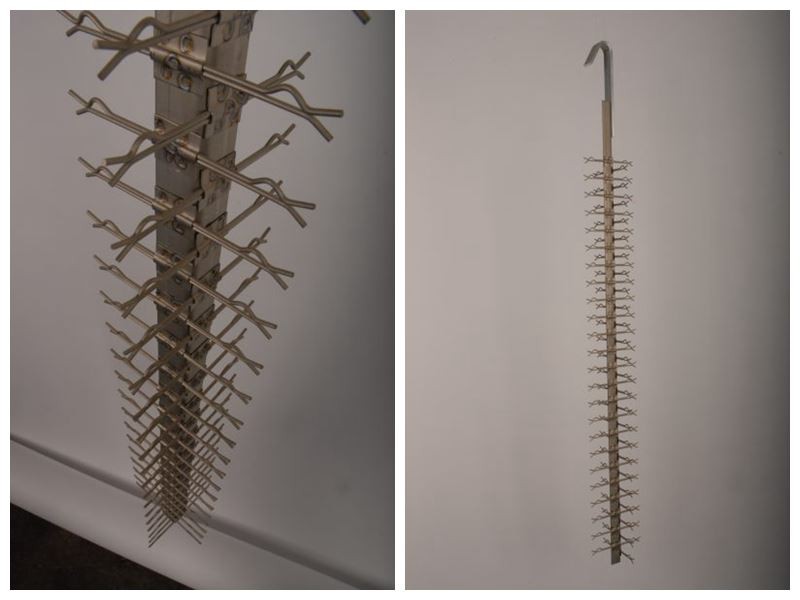

WIRE CLIP Titanium racks

• For racking small parts on O.D.

• Especially suited for O-ring grooves

• .090″ diameter wire (also available in .06″ diameter)

• Clips on 1-1/2″ centers

No. WCR234

2-way, 34 station, 25″ solution depth

No. WCR248

2-way, 48 stations, 36″ solution depth

No. WCR466

4-way, 66 stations, 25″ solution depth

No. WCR496

4-way, 96 stations, 36″ solution depth
