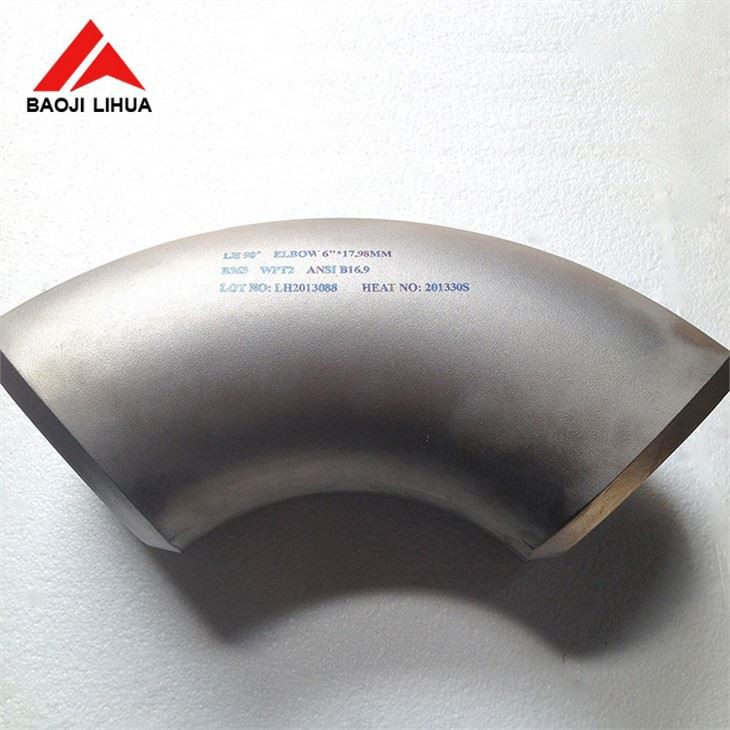

Gr7 Titanium Elbow 90 Degree

Gr7 Titanium Elbow 90 Degree

Product name: Gr7 Titanium Elbow 90 degree
Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363
Material grade: Grade 7
OD: 1/2"-36"
Wall thickness: 1.0-18mm
Type: Seamless ,welded
Surface: Pickled, polished,sand-blasting
Application: Pipe fittings

Send Inquiry

Chat Now

Product Introduction

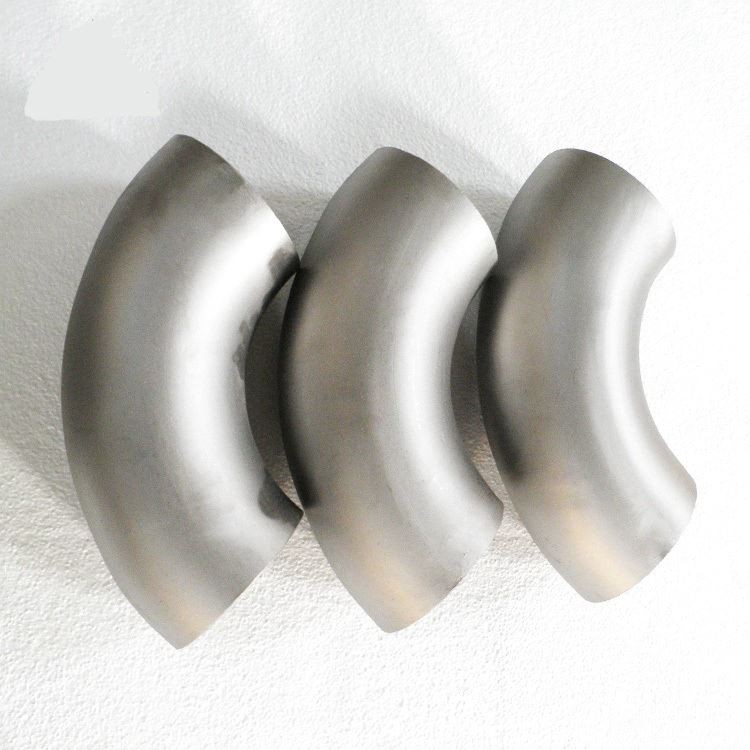

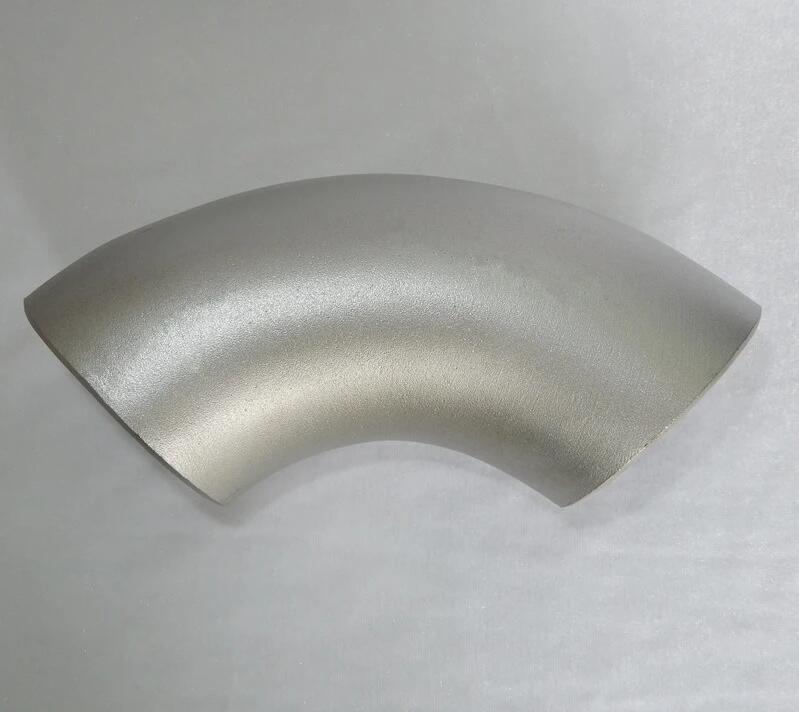

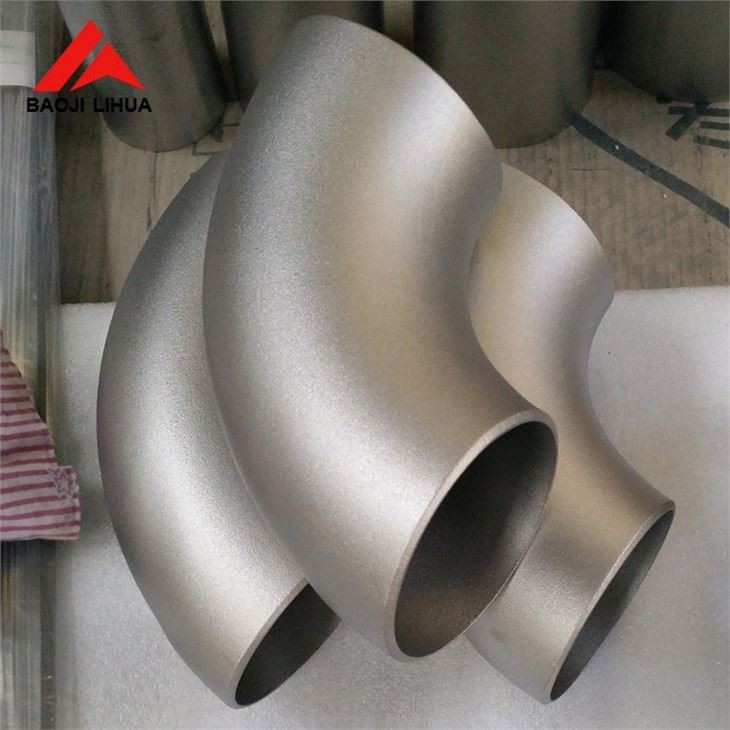

Gr7 Titanium Elbow 90 degree

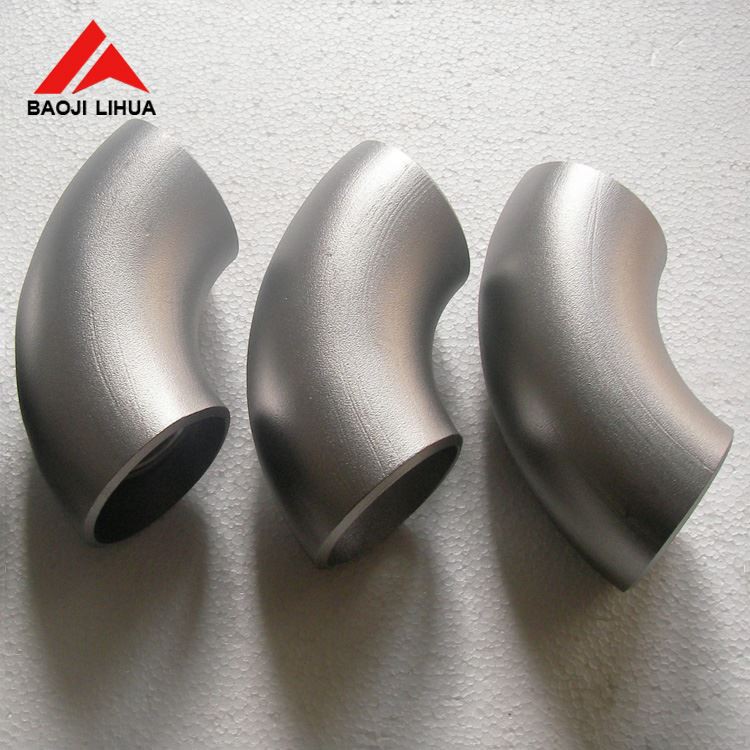

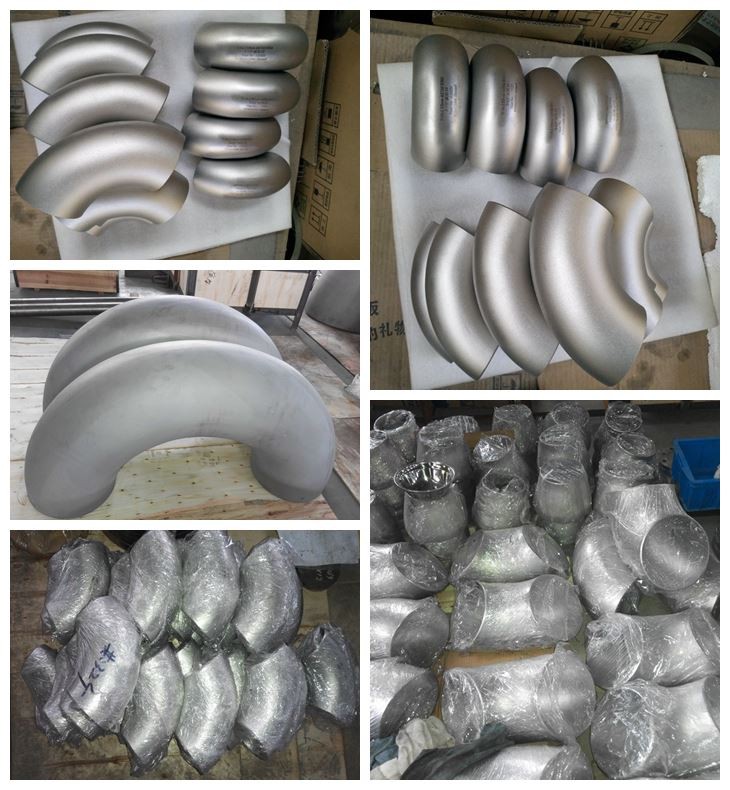

Titanium elbow in pipeline, elbow is a pipe fitting that changes the direction of pipeline. According to the angle, there are three commonly used angles: 45 ° and 90 ° 180 °. In addition, according to the needs of the project, it also includes 60 ° and other abnormal angle elbows. The materials of elbows include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics.

The connection methods with pipes include: direct welding (more commonly used) flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc.

Product	Titanium elbow
Application	pipe connection
Material	Gr7 titanium alloy
Standard	ANSI B16.5,JIS B2220,DIN2627-2628,ASME
OD	1/2"-36"
Wall Thickness	Sch 5s - Sch 160
Certificate	TUV, ISO9001
Materials	Titanium Grade 7
Quality control	PMI,100% ULTRASONIC TEST etc

Grade 7 (Ti-0.2Pd) titanium
Chemical compositions(weight%,<=)
Pd	Al	V	Fe	C
0.12-0.25	----	----	0.30	0.08
N	H	O	Other(total)	Ti
0.05	0.015	0.2	0.4	Remainder
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
370	250	20	25
