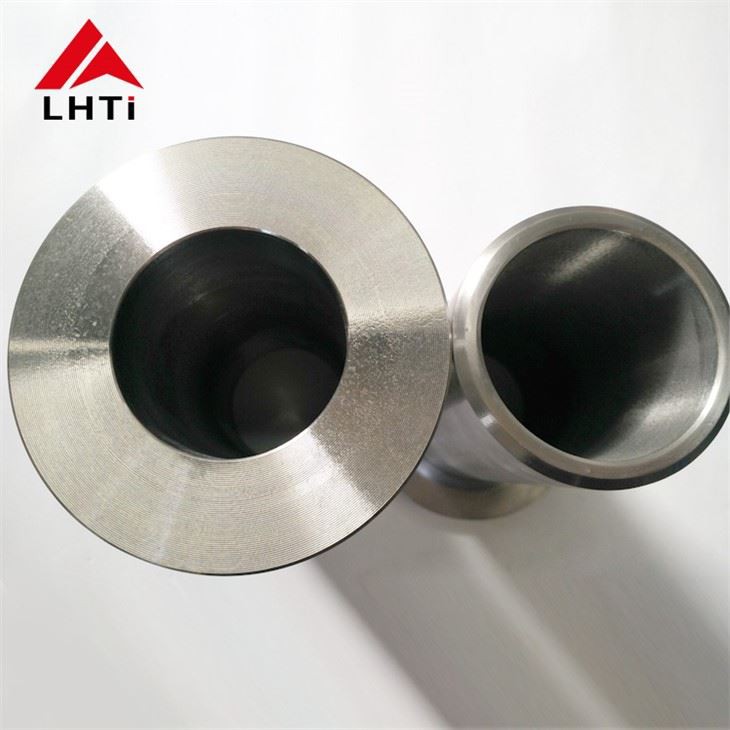

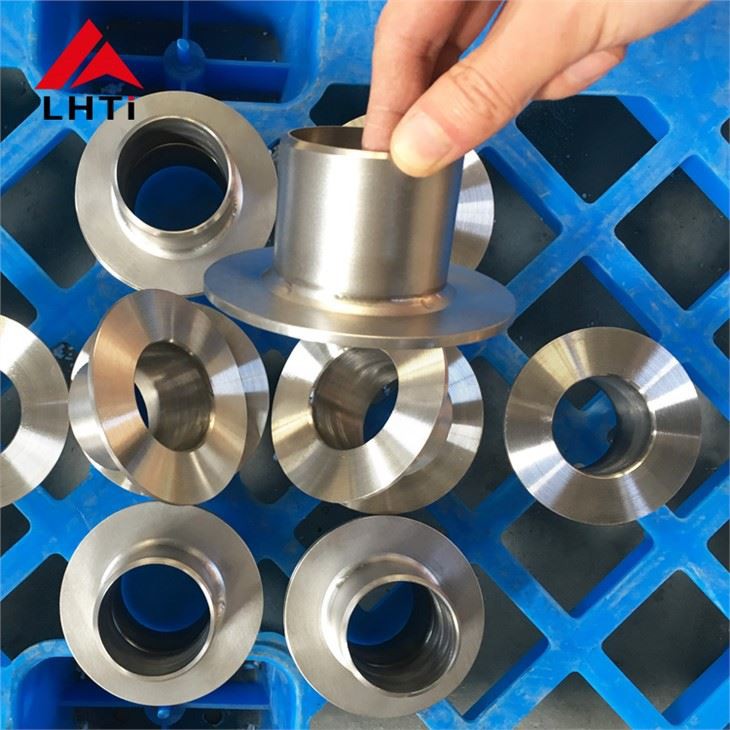

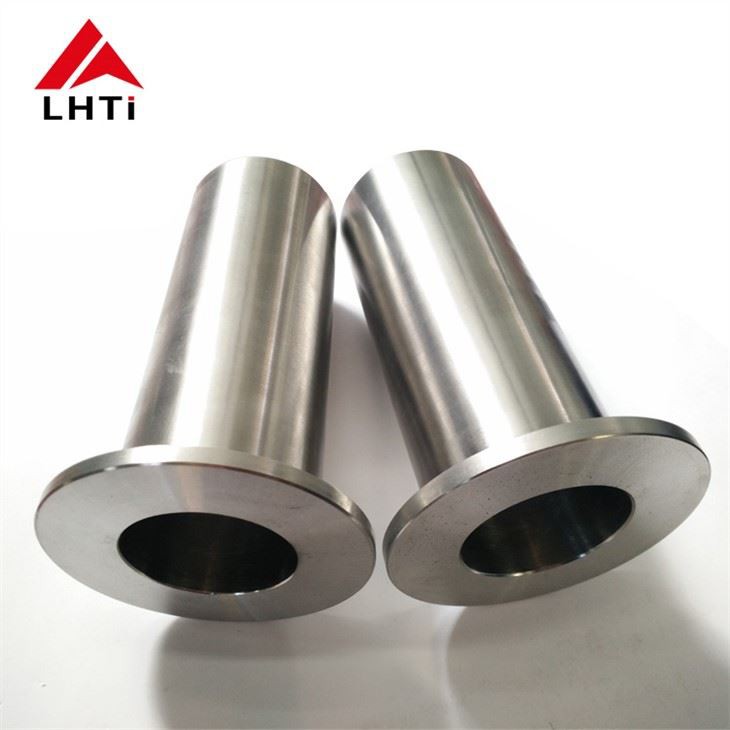

Titanium Stub Ends

Titanium Stub Ends

Standard: ASME B16.9
Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12
Size: NPS1/2″-48″ (DN15-1200)
Wall Thickness: Sch10s—Sch80s or bigger to Sch160s
Technique: Seamless/Welded
Type: Short pattern, Long pattern
MOQ:1pc
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Pipe Fitting Manufacturer

Send Inquiry

Chat Now

Product Introduction

Stub End, essentially a short length pipe, has one end that is flared outwards and the other end prepared to be welded to pipe of the same Nominal Pipe Size (NPS), material and of a similar wall thickness. Often used in conjunction with standard lap joint flanges, titanium stub ends provide seamless connections, limiting corrosion in piping systems.

Product Information

Product name	Titanium stub ends
NPS	Grade	Pattern	Thickness	Type	Standard	Available Tests
1/2"~ 4" (DN 15-100)	Gr1,Gr2, Gr5,Gr7, Gr9,Gr12	SP, LP	sch 5s-sch 80	SMLS	ANSI/ASME B16.9 MSS SP-43, GB/T-27684 EN 10253,EN1092, DIN 2616	PMI, Tensile test, Hydrostatic test, DPI/RT/X-ray, Hardness
5"~ 8" (DN 125-200)			sch 10s-sch 80	WELDED
10"~ 48" (DN 250-1200)			sch 10s-28mm	WELDED

Physical Properties

Grade	Tensile strength(min)		Yeild strength(min)		Elongation (%)
Grade	ksi	MPa	ksi	MPa	Elongation (%)
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	438	15
GR12	70	438	50	345	18

Detailed Images

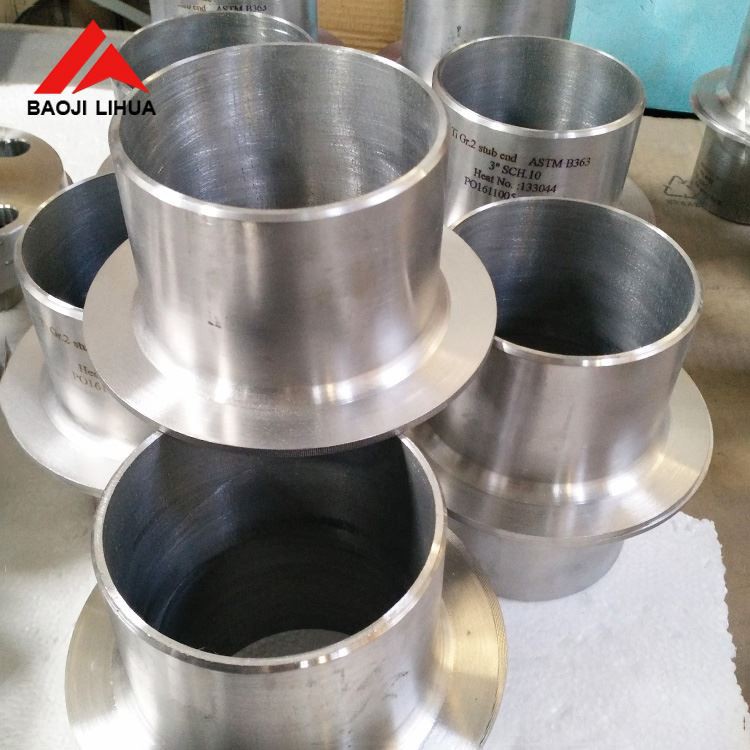

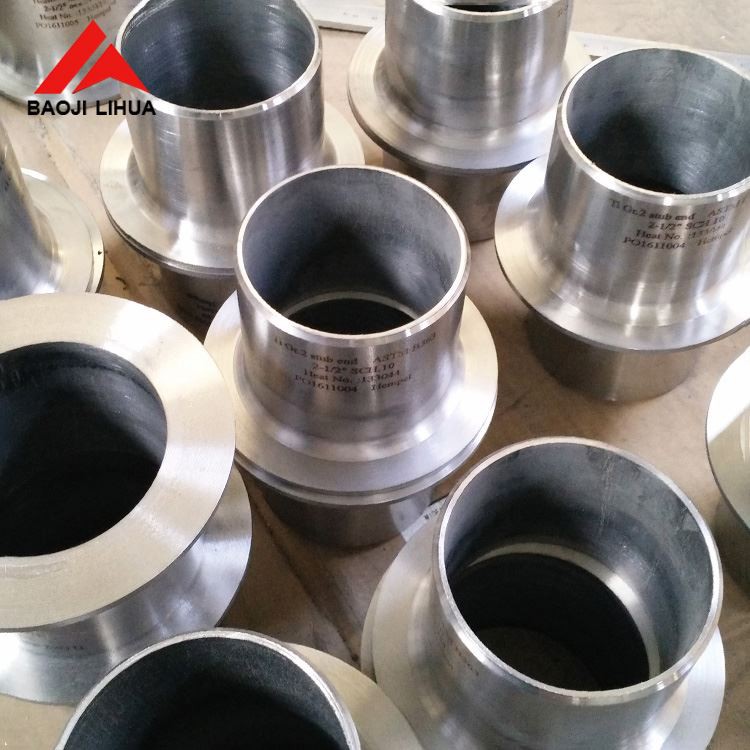

titanium stub end titanium stub ends

Baoji Lihua provides different types of titanium pipe fittings, titanium straight pipes, titanium elbows, titanium flanges, titanium tees, titanium valves, titanium flanges, etc. The titanium pipe fittings we manufacture with good performance, bright surface, and the quality is recognized by customers at home and abroad. We can also customize titanium pipe fittings according to customer requirements or drawings. Please feel free to contact.

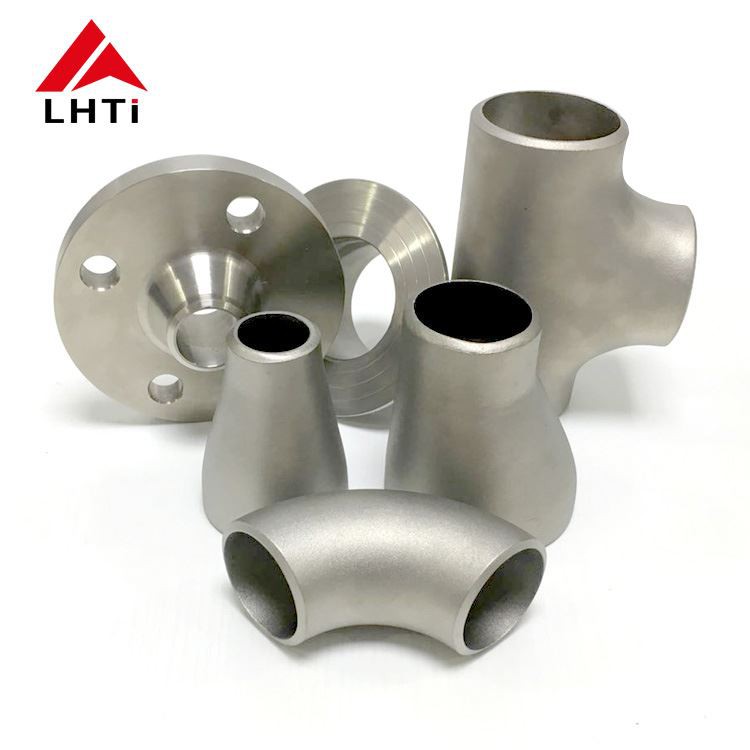

titanium pipe fitting

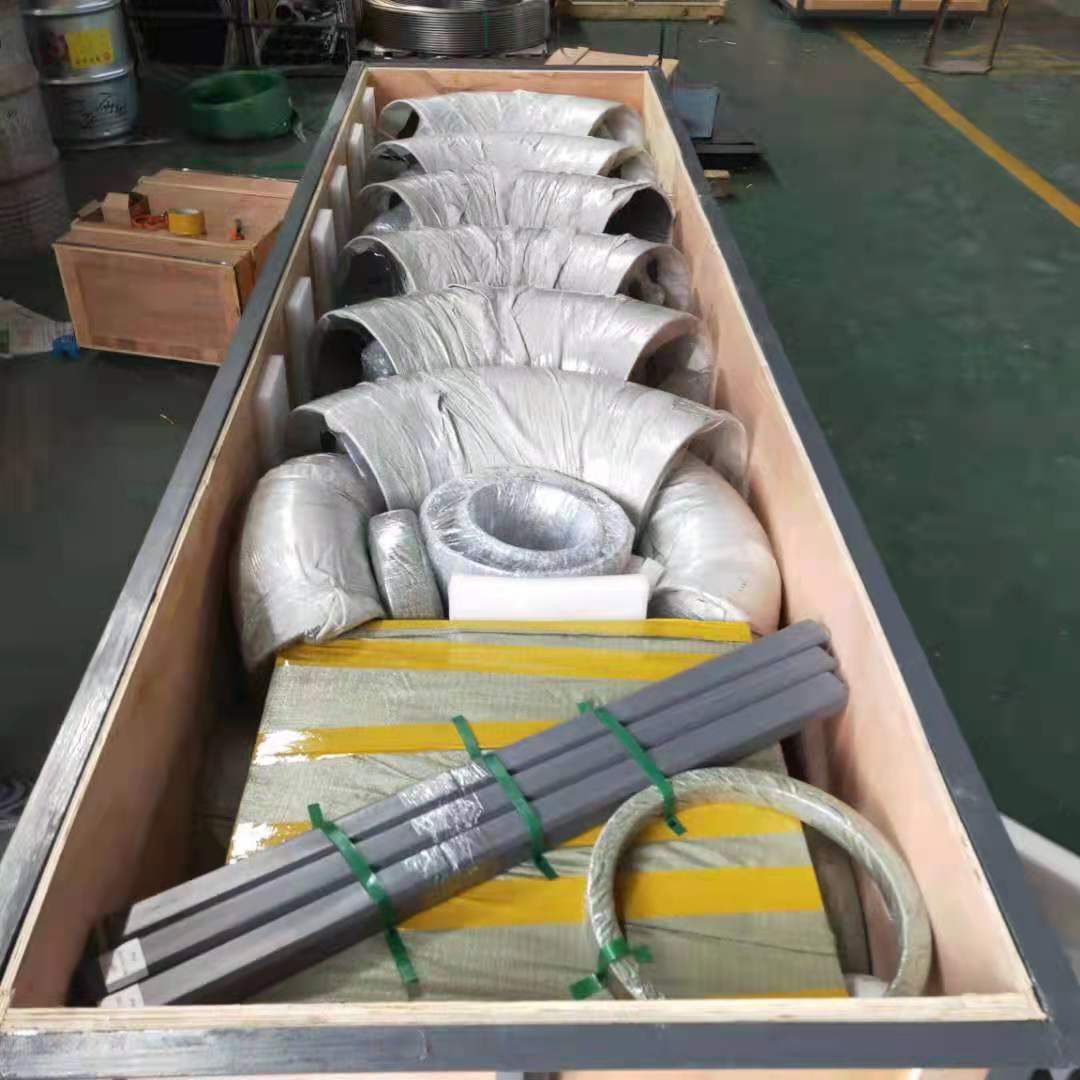

Packaging
