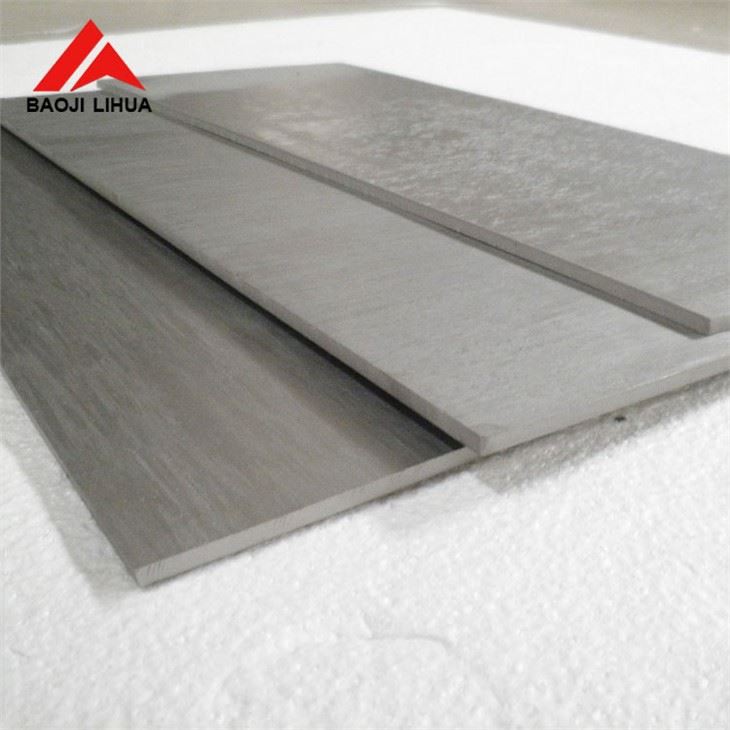

10mm Titanium Sheet Grade 5

10mm Titanium Sheet Grade 5

Product Introduction:

Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy.

Product name:Titanium Sheet ,grade 5 titanium sheet ,titanium alloy sheet,10mm titanium sheet,5mm titanium sheet,gr5 titanium sheet,6Al4V sheet, Ti6Al4V titanium sheet,Titanium sheet plate price per kg

Material: Titanium Grade 5 (Ti6al4v)

Standard: ASTM/ASME B265, AMS 4911, ASTM F136

Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size);

Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc

Technique : Rolled

Status: Annealed(M)

MTC: EN10204.3.1 certificate

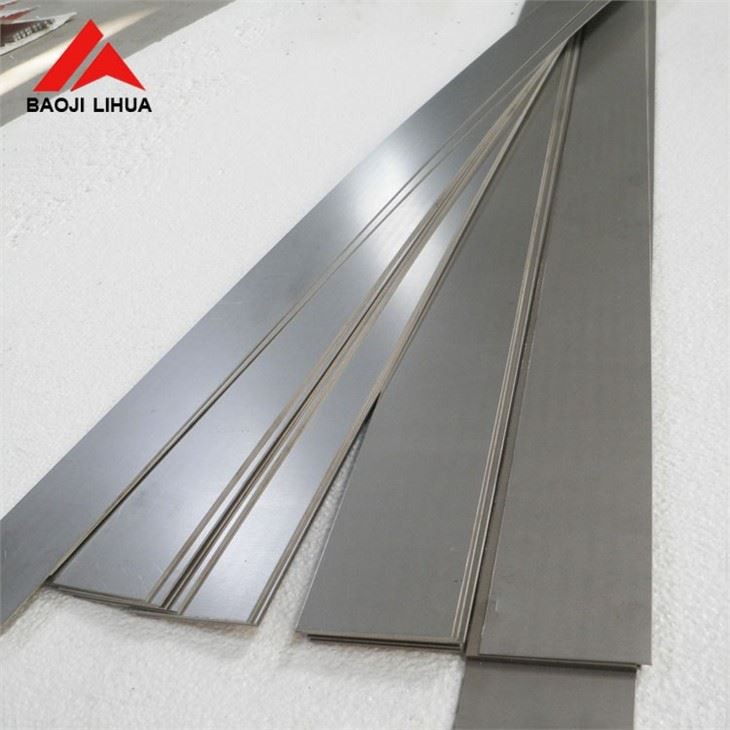

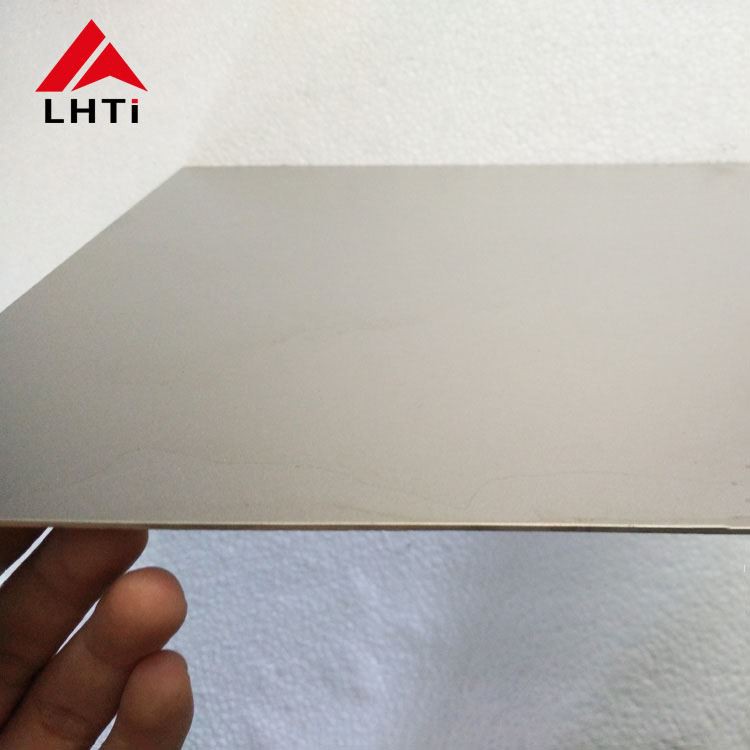

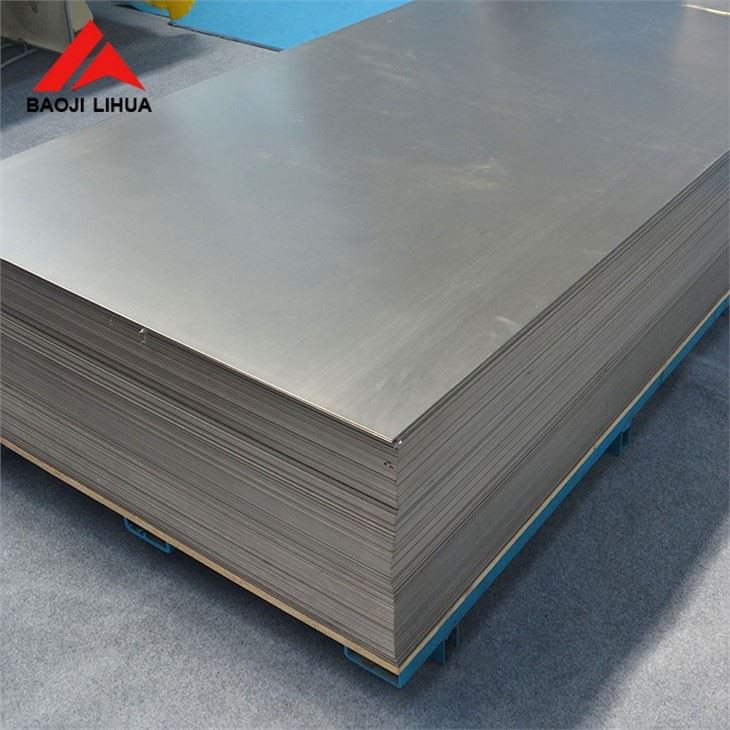

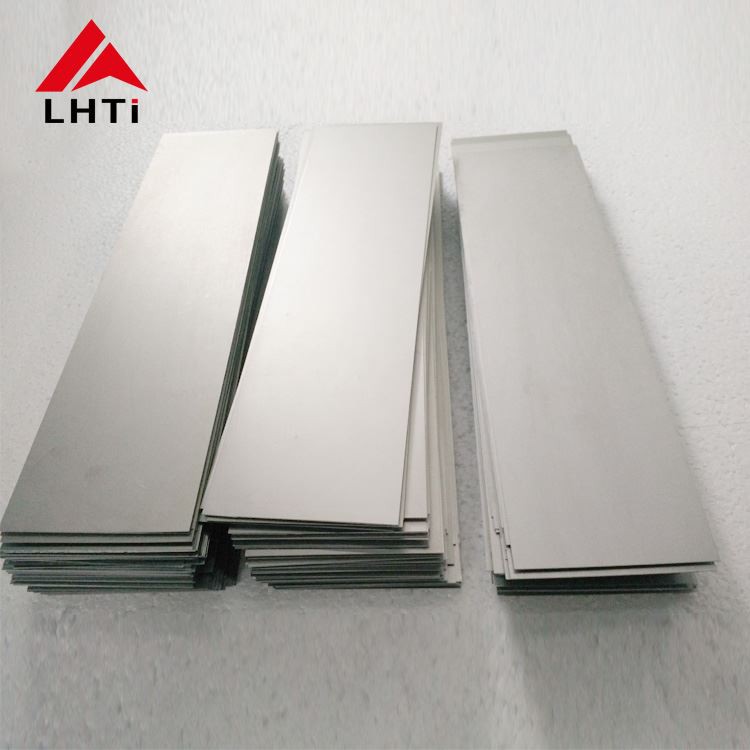

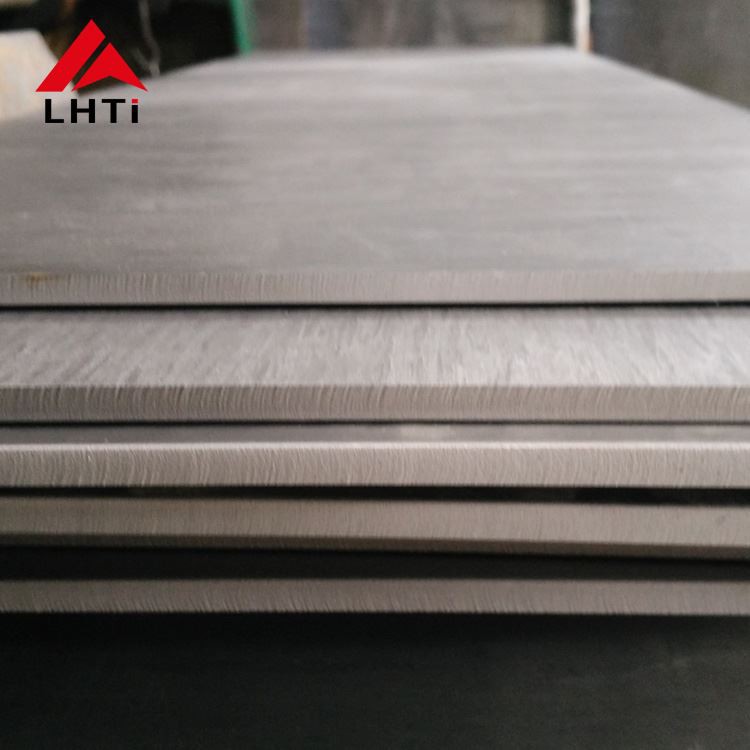

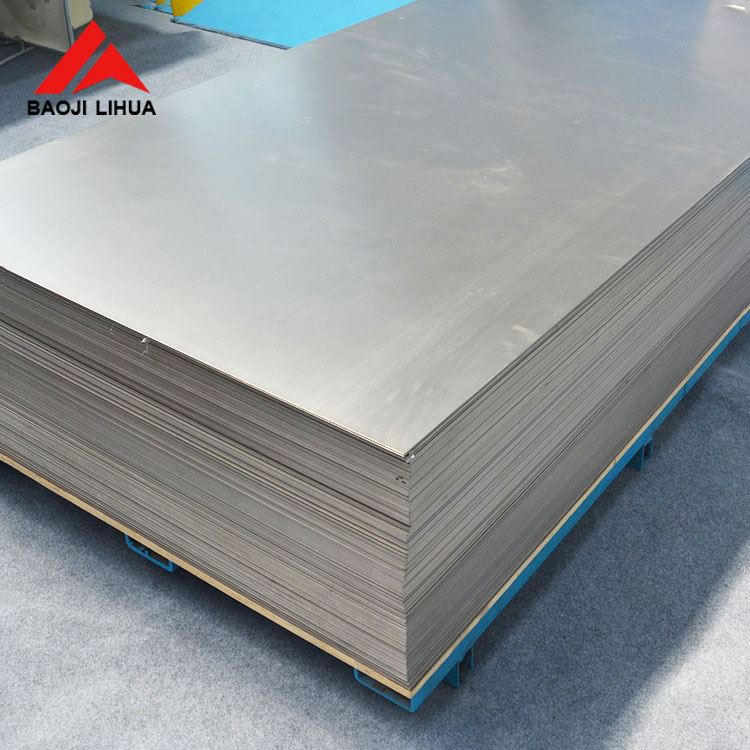

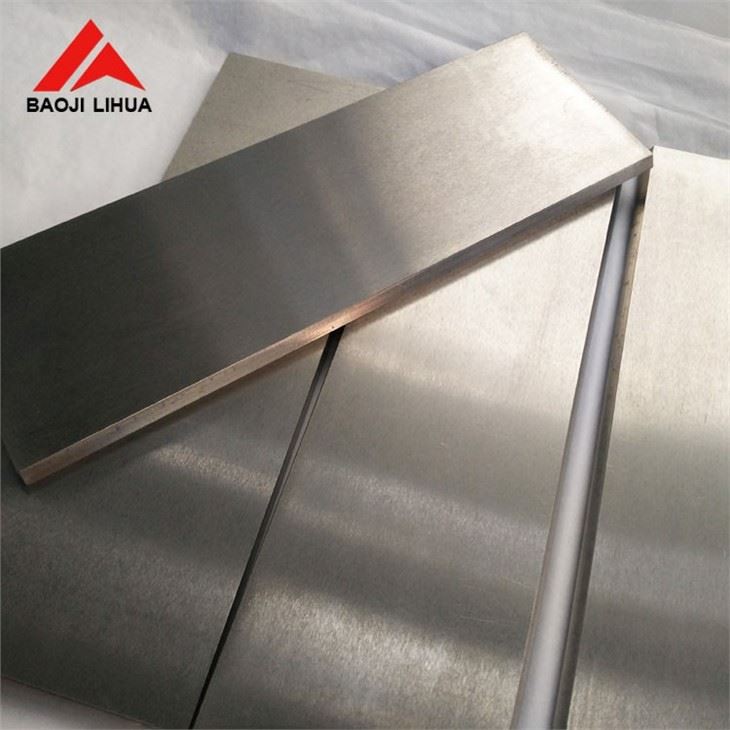

Detailed images:

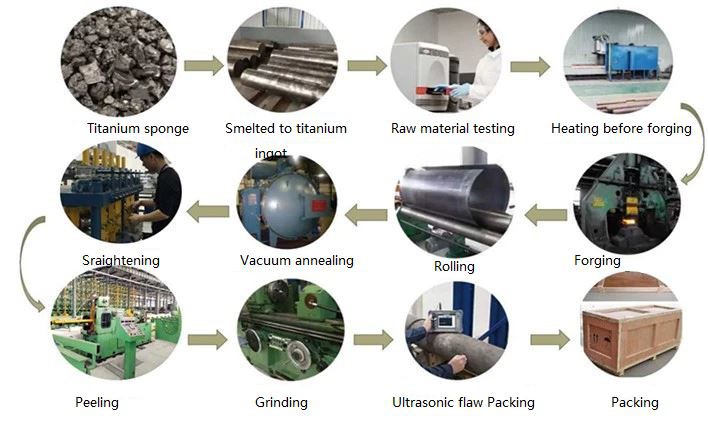

The production process of titanium plates/sheets:

Titanium Grade 5 (Ti-6Al-4V):

Titanium Grade 5, also known as Ti-6Al-4V, is an alloy composed primarily of titanium, aluminum, and vanadium. It is one of the most commonly used titanium alloys due to its excellent combination of properties:

Strength: Ti-6Al-4V offers high strength comparable to many steels but at approximately half the weight of steel.

Corrosion Resistance: It exhibits excellent corrosion resistance, especially in environments typical of aerospace, marine, and chemical processing applications.

Temperature Resistance: Good resistance to elevated temperatures, making it suitable for applications where thermal stability is required.

Biocompatibility: Titanium Grade 5 is biocompatible and often used in medical implants and surgical instruments.

Applications of 10mm Titanium Grade 5 Sheet:

Aerospace: Used in aircraft structural components, engine parts, and airframe skins where strength-to-weight ratio and corrosion resistance are critical.

Marine: Due to its corrosion resistance, Grade 5 titanium sheets are used in marine components such as hulls, propeller shafts, and underwater fastenings.

Industrial: Applications include chemical processing equipment, heat exchangers, and desalination plants due to its resistance to corrosive environments.

Medical: In biomedical applications, Grade 5 titanium sheets are used for implants, prosthetics, and surgical instruments due to its biocompatibility and resistance to bodily fluids.

Sports Equipment: Titanium Grade 5 sheets are used in sporting goods such as bicycle frames, tennis rackets, and golf club heads due to its lightweight and durable properties.

Fabrication and Machining:

Machinability: Grade 5 titanium is more difficult to machine compared to softer metals like aluminum or mild steel. Specialized equipment and techniques are often required.
