Titanium 6al4v Plate

Introduction of Titanium 6al4v plate:

Standard: ASTM B265, AMS 4911, ASTM F136

ASTM B265: Standard specification for titanium and titanium alloy strip, sheet, and plate.

AMS 4911: Aerospace Material Specification for titanium alloy, sheet, strip, and plate, 6Al-4V, annealed.

ASTM F136: Standard specification for wrought titanium-6 aluminum-4 vanadium ELI (Extra Low Interstitial) alloy for surgical implant applications.

Material: Grade 5 Titanium Alloy (Ti-6Al-4V)

Titanium alloy containing 6% aluminum and 4% vanadium, commonly referred to as Ti-6Al-4V. It is one of the most widely used titanium alloys due to its excellent combination of strength, toughness, and corrosion resistance.

Thickness: 0.3-100mm

The plate can be manufactured in thicknesses ranging from 0.3mm to 100mm, catering to various structural and application requirements.

Length: 500-6000mm (or as required)

Length options typically range from 500mm to 6000mm, though custom lengths can be accommodated based on customer specifications.

Width: 500-3000mm (or as required)

Width options typically range from 500mm to 3000mm, with flexibility to meet specific project needs.

Surface Finishes:

Pickling: A chemical treatment to remove impurities and scales from the surface, enhancing its cleanliness.

Polishing: Mechanical or chemical processes to achieve a smooth, reflective surface finish.

Sand Blasting: A technique using abrasive materials to create a textured surface or to prepare the surface for further finishing or coating.

Technique: Rolled

The plate is manufactured using a rolling process, which involves passing the titanium alloy through sets of rollers to achieve the desired thickness and dimensions.

Applications: Widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, food, and used to complete vulcanization, nitration, hydrogenation, polymerization, condensation and other technical processes. Such as reverberator, reverberation kettle, differentiation pot, polymerization kettle.

Titanium 6al4v plates in stock:

Thickness: 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 20mm 25mm

Size: 1000*2000mm   3000*6000mm

The production process of titanium plate:

1. Hot forging:casting skills above the metal recrystallization temperature;

2. Hot rolling:the rolling process performed at a temperature higher than the recrystallization temperature;

3. Cold rolling:the rolling process where the plastic deformation temperature is lower than the recovery temperature;

4. Annealing: slowly heating the metal to a certain temperature, insisting on meeting the time, and then cooling at an appropriate speed a metal heat treatment technology;

5. Pickling: immersing the parts in an aqueous solution such as sulfuric acid to remove the oxide and other thin films on the metal surface. It is the pretreatment or process treatment of electroplating, enamel, rolling and other skills.

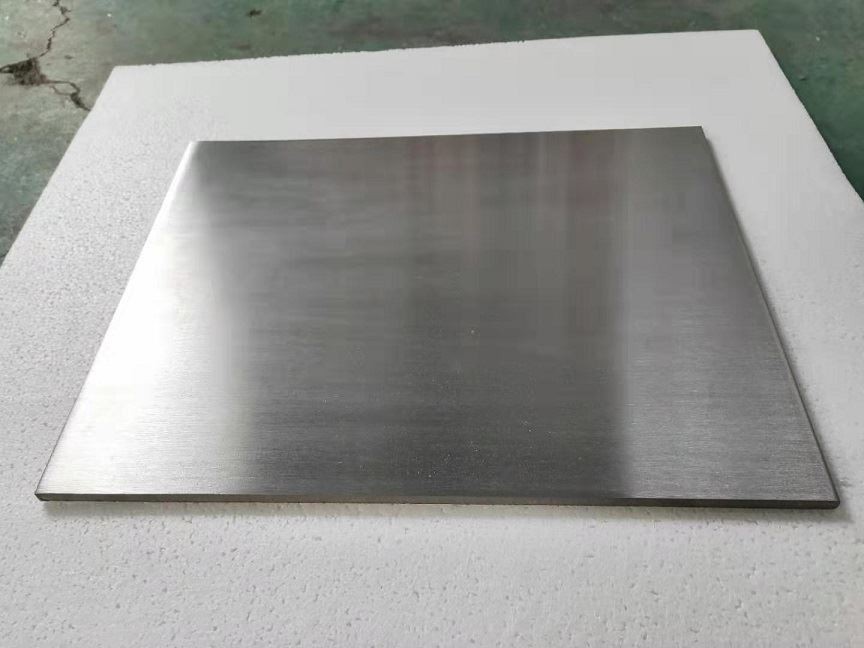

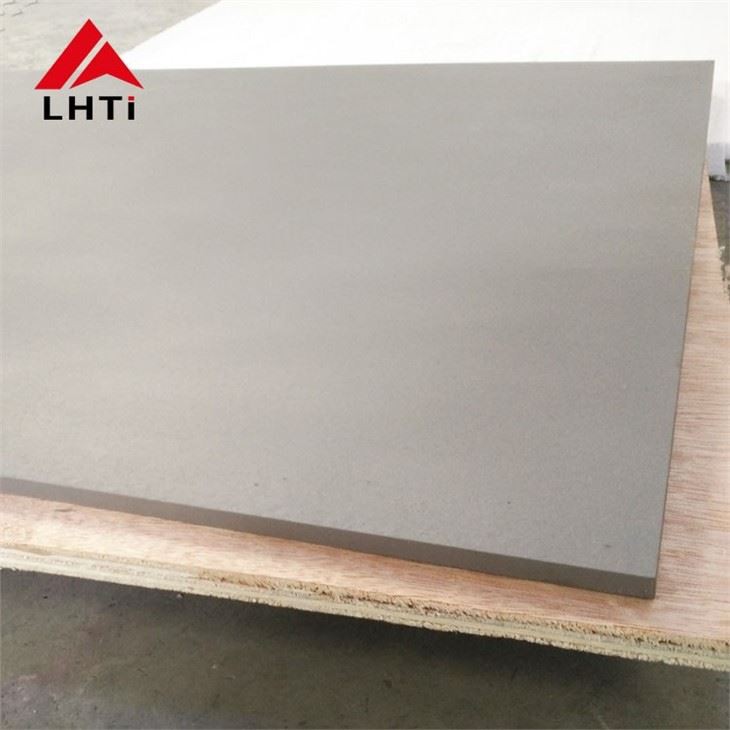

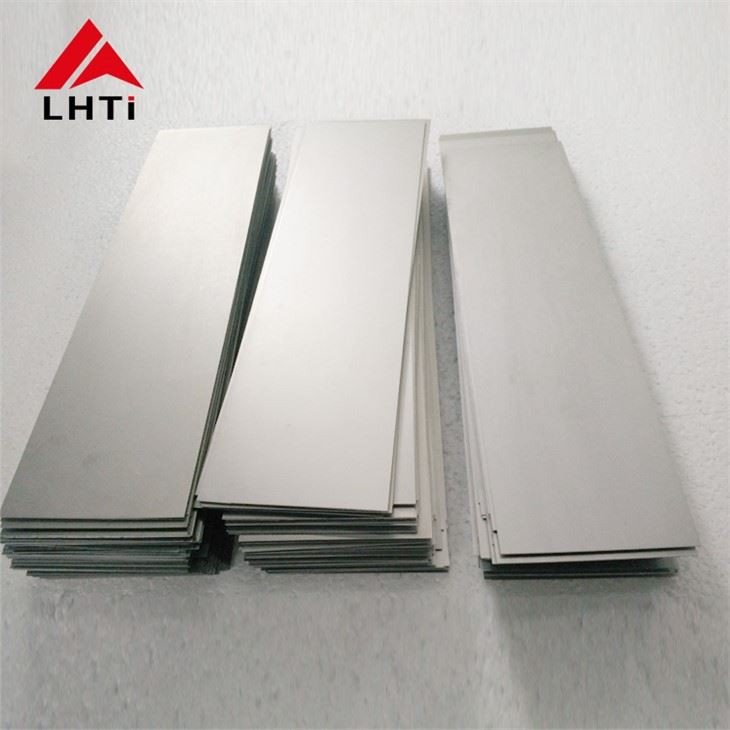

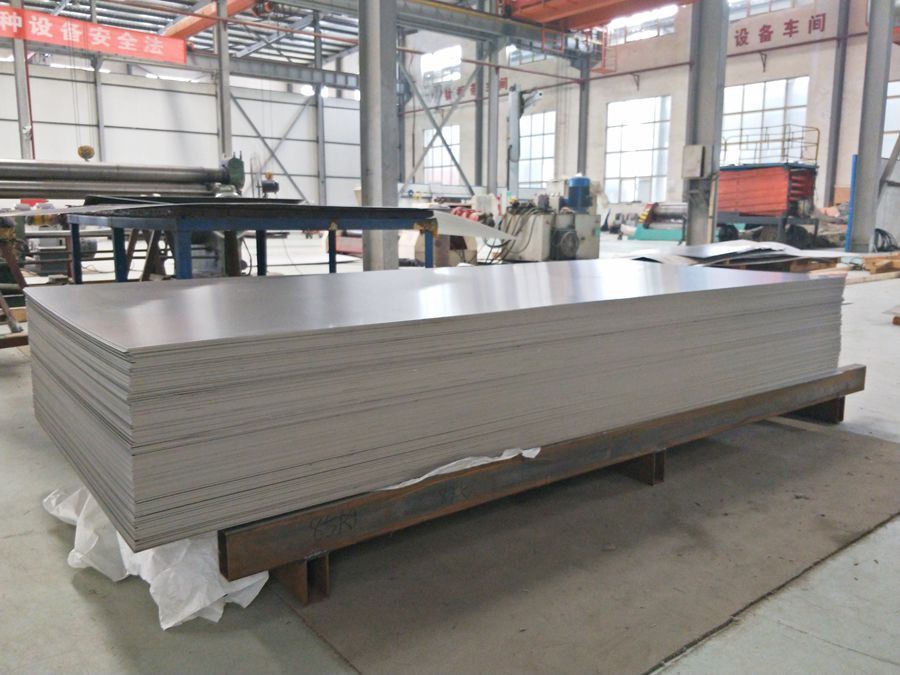

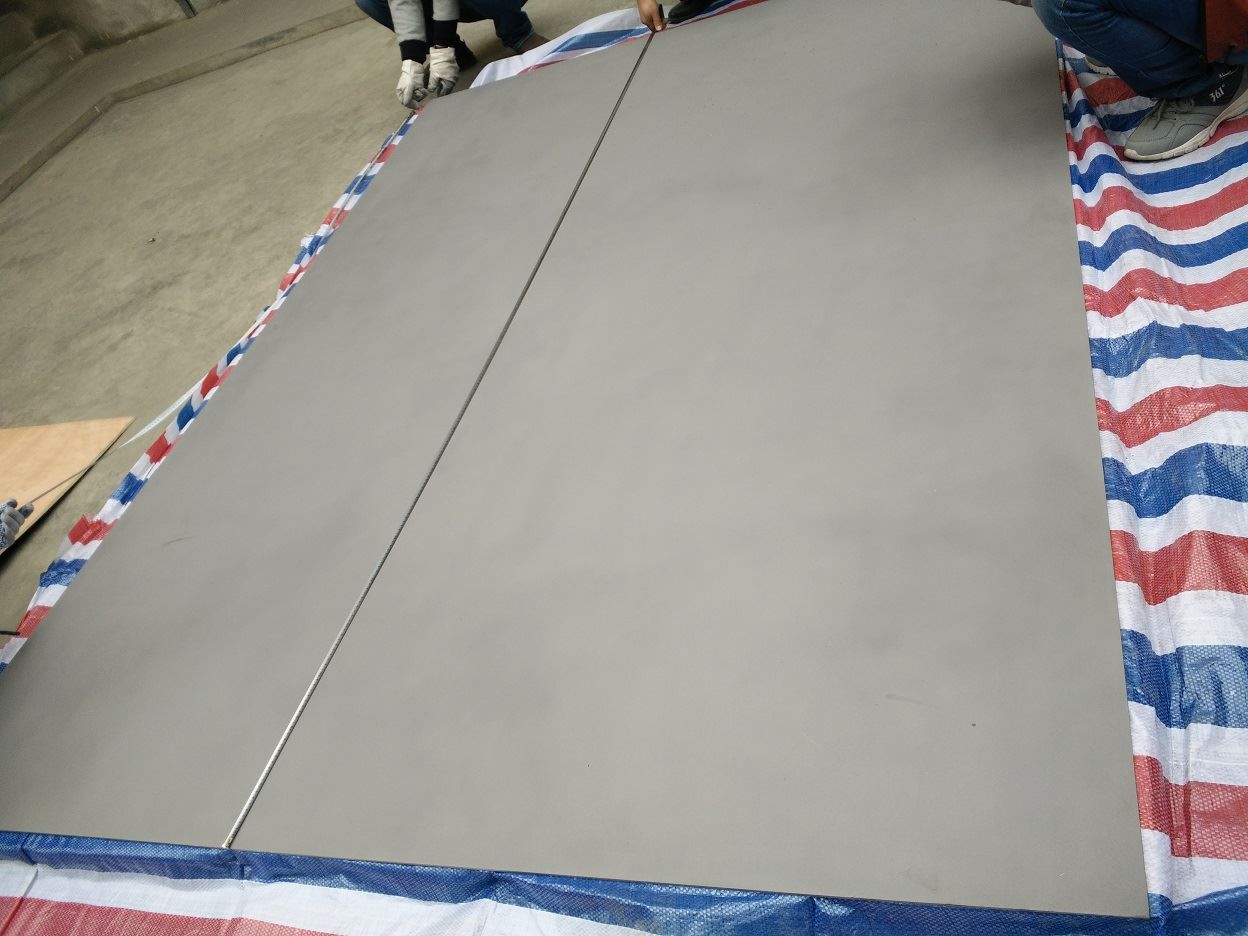

Detailed pictures:

The applications of titanium sheet / plate:

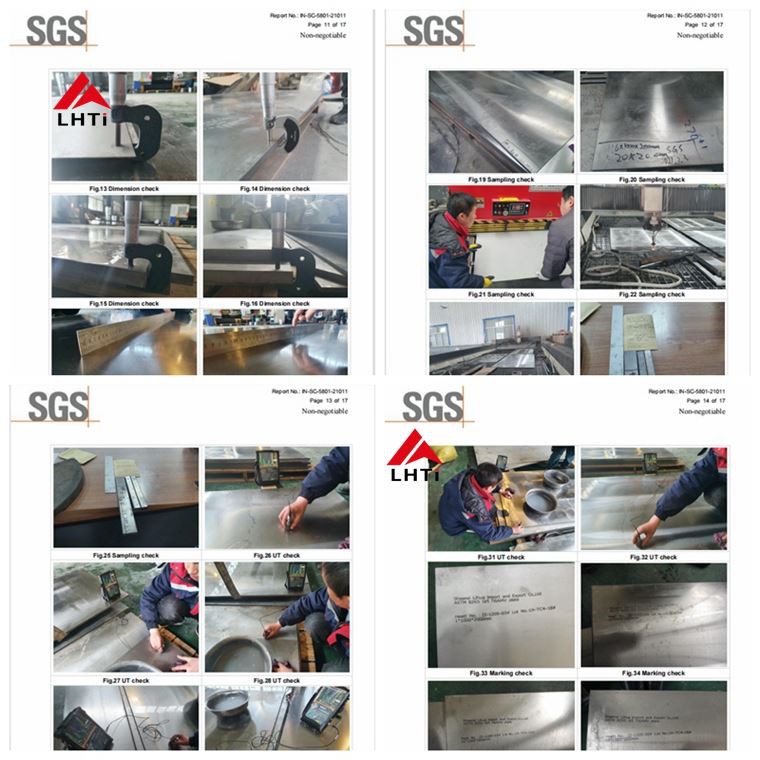

The third party inspections:

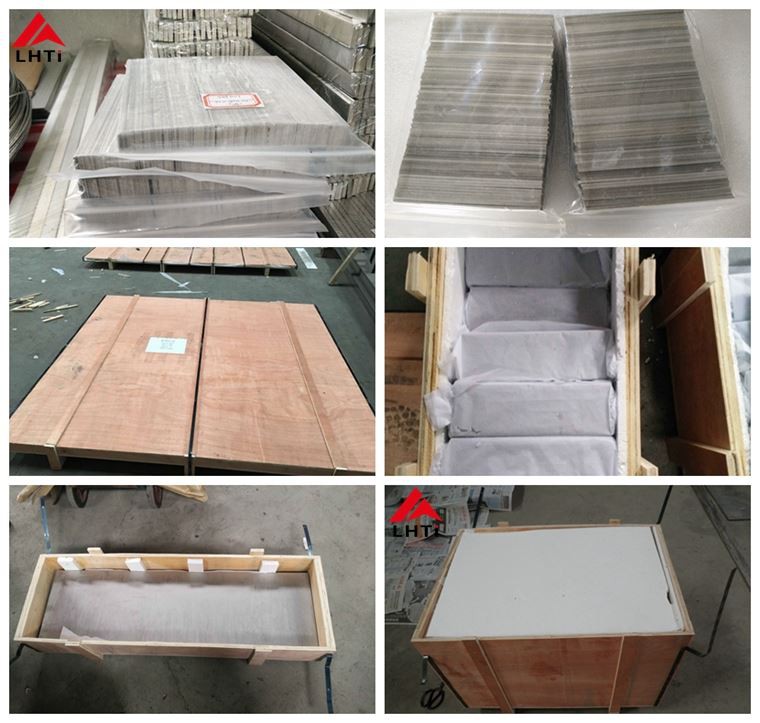

Packing and shipping:

Titanium 6Al-4V plates are utilized in various industries, including aerospace, medical, marine, and chemical processing, where high strength-to-weight ratio, corrosion resistance, and biocompatibility are critical requirements.
