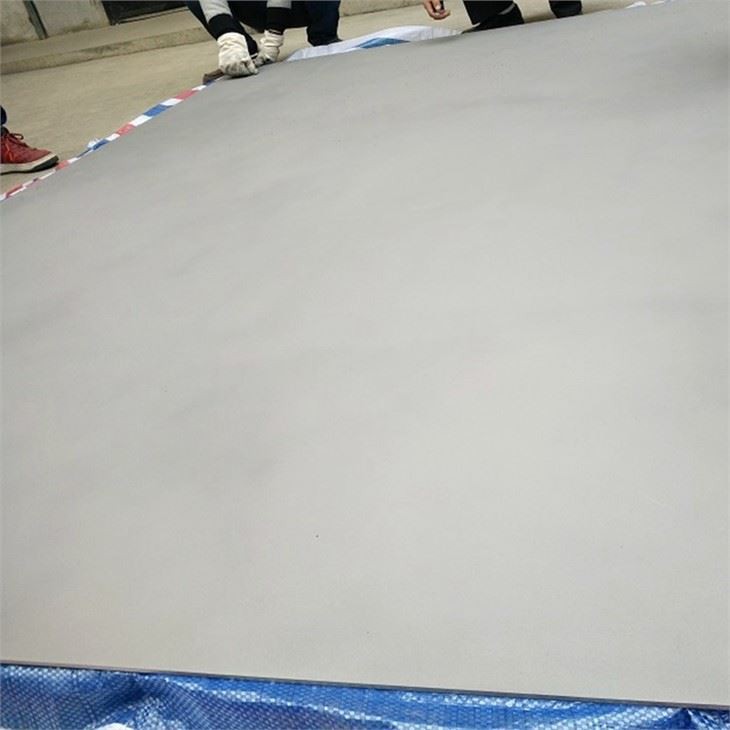

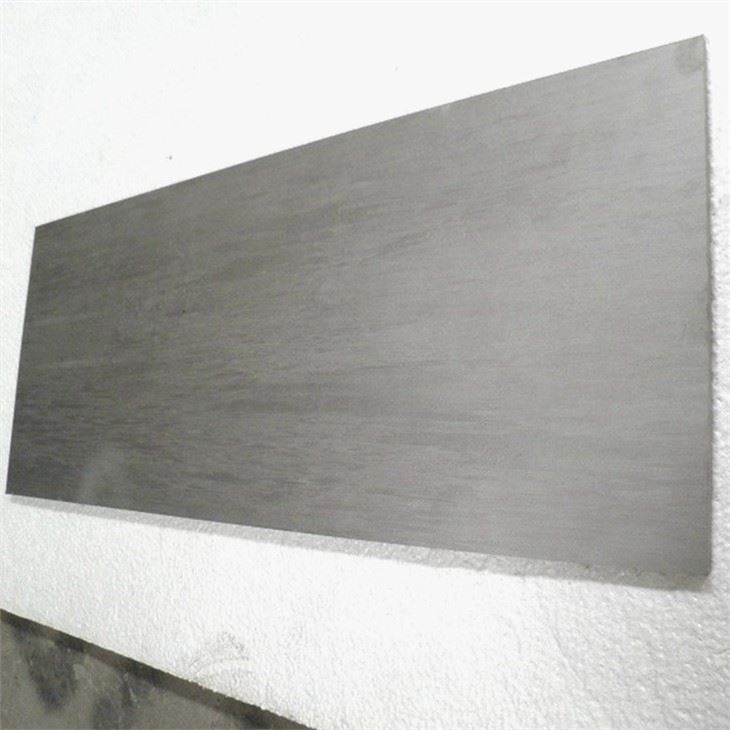

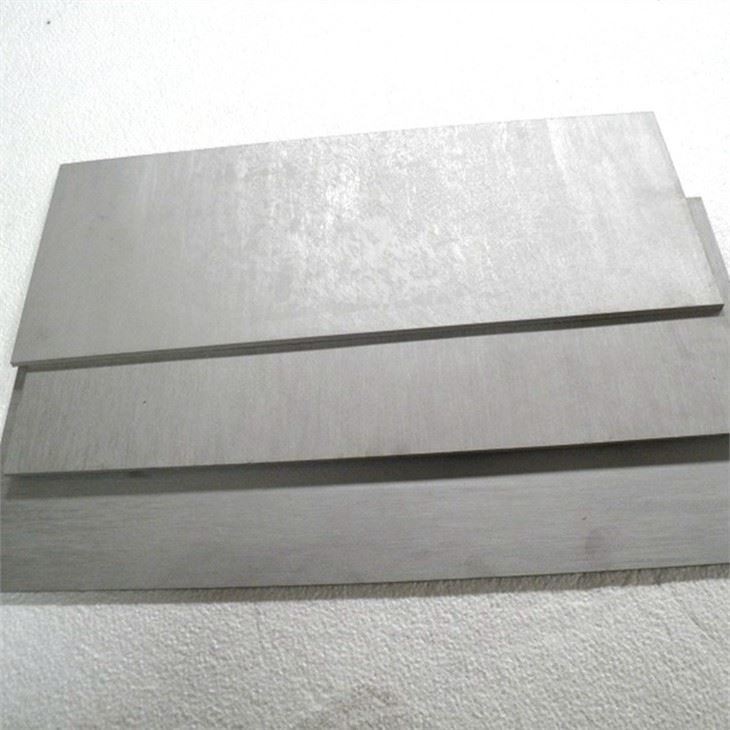

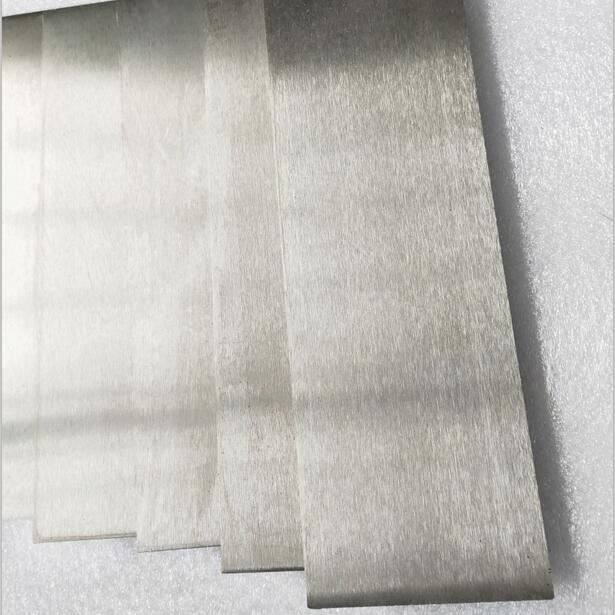

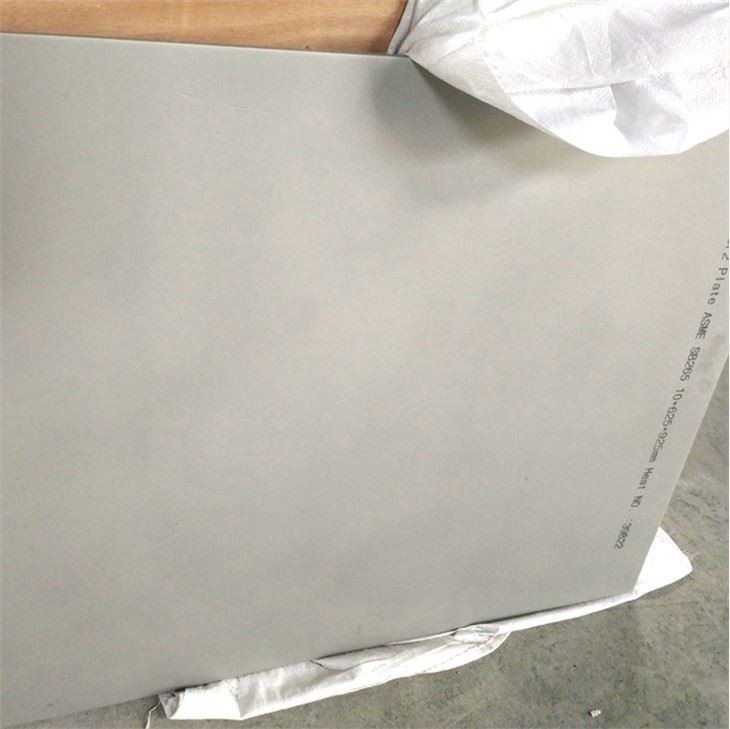

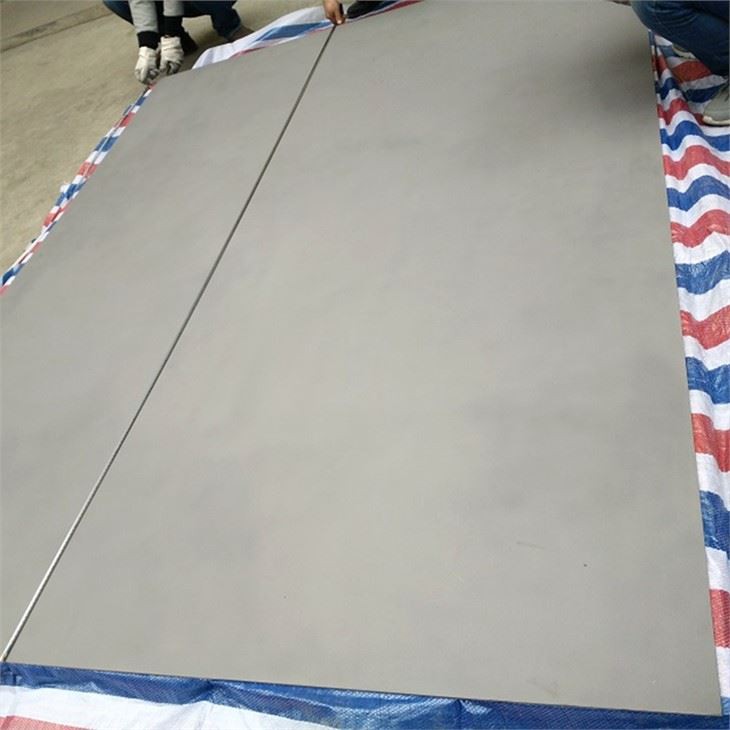

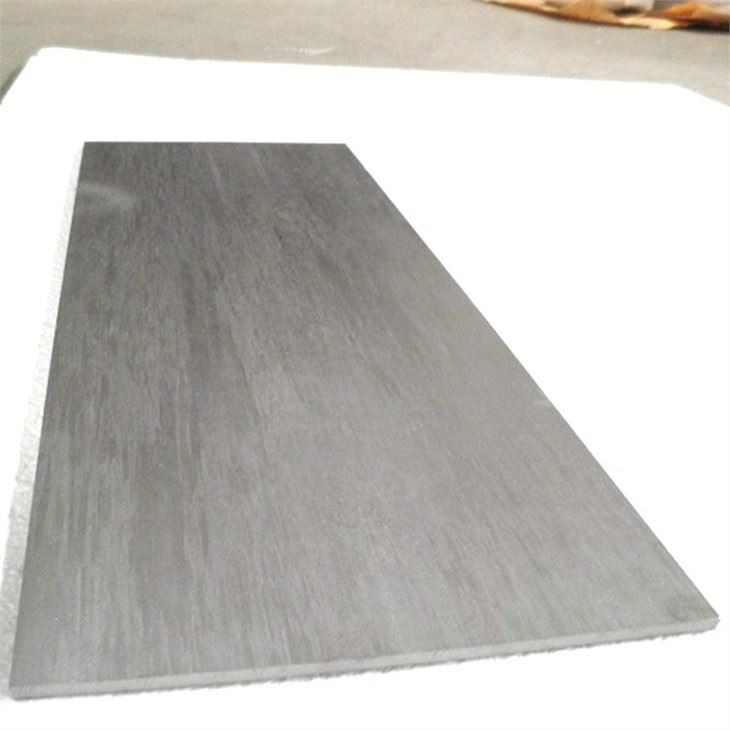

Grade 4 Titanium Plate
Material: Titanium gr4
Standard: ASTM/ASME B265
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size)
Unit price:$10.5-$22.5/kg
Product name:Grade 4 titanium plate
Standard: ASTM/ASME B265
Material: gr4 Titanium
Thickness: 1.0-100mm
Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size)
Technique: Cold Rolled, hot rolled
Surface: pickling, polishing, sand-blasting
Applications: Chemical, industry ect
| Grade 4 titanium plate | ||||
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Remainder | ------- | ------- | 0.50 | 0.08 |
| N | H | O | Other(each) | Other(total) |
| 0.05 | 0.015 | 0.40 | 0.10 | 0.40 |
| Physical properties(>=) | ||||
| Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) |
ψ Reduction of area (%) | |
| 580 | 485 | 20 | 25 | |

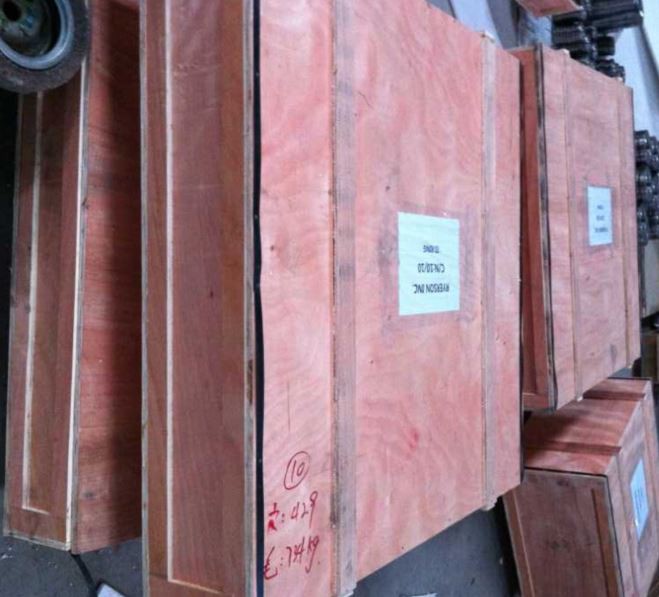

Shipping of titanium plates
Hamil metals Co.,Ltd. is one of the largest manufacturer and exporter of all kinds of titanium and titanium alloy products in China.
With more than 15 years’ experience, We are mainly engaged in melting, forging, rolling and machining manufacturing line in titanium and titanium alloy producing with an investment of USD 60 millions.
Main products:Titanium bars/rods, plates/sheets,foils,standard parts, non-standard parts.
