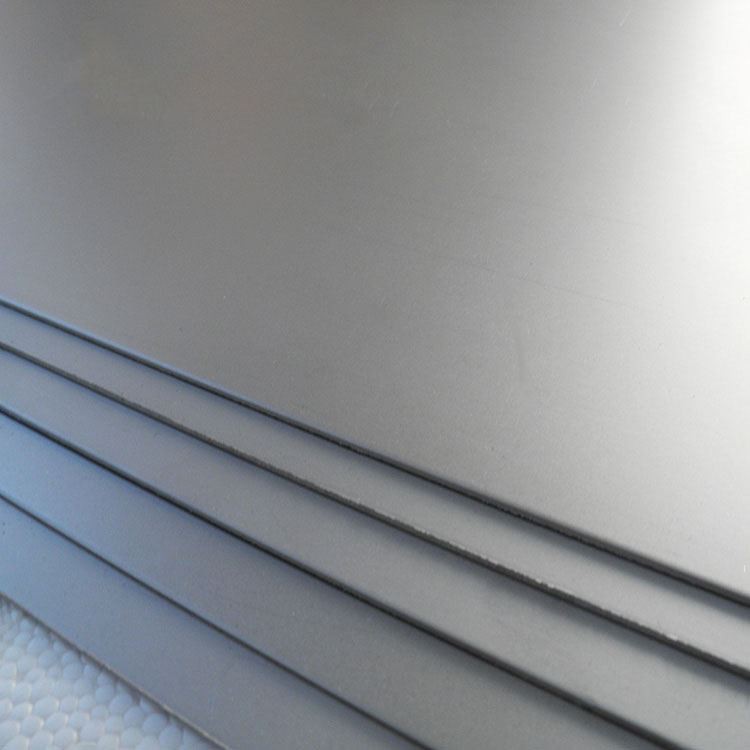

Titanium Gr2 Plate
Standard: ASTM B265
Material: Gr2
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
Product Information of Titanium Gr2 Plate
Material: GR2 (TA2)
Russia Grade: BT1-00,BT1-0,BT1-2
Standard: ASTM B265
Thickness: 0.5-100mm
The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require.
Surface: Pickling, Polishing, Sand blasting etc.
Type: Sheet, plate, foil; Straight & roll
State: R/Y/M
Chemical Composition of Titanium Gr2 Plate
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
Mechanical Properties of Titanium Gr2 Plate
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Detailed Images
Our Company
As a leading manufacturer and trader of titanium tubes for over 16 years, Baoji Lihua has successfully exported our products to numerous countries, including the US, India, and Korea. Our titanium tubes are renowned for their high quality and reliability.
We offer titanium tubes that meet the ASTM B338 standard or can be customized to your specifications. Third-party testing from reputable organizations such as BV, SGS, and TUV is also available.
We welcome custom orders and are well-versed in market trends to ensure our pricing helps you stay competitive.
With our expert technical team, we provide comprehensive services from start to finish, ensuring you receive top-notch support and quality.
