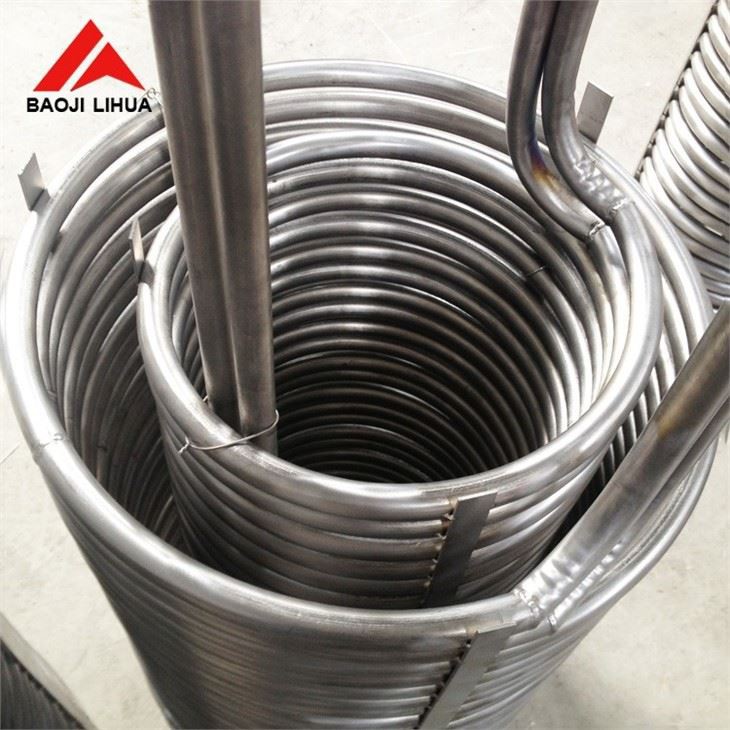

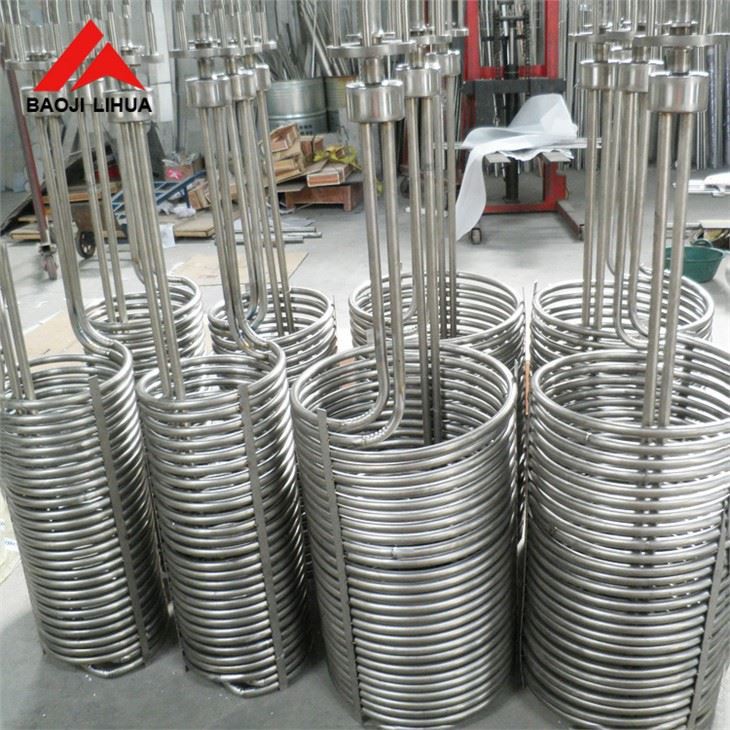

ASTM B338 Titanium Coil Pipes
Standards: ASTM B338
Grades: Gr1, Gr2
Dimention:OD 6-108mm*WT1-5mm*L
Technique:Rolled
ASTM B338 Titanium Coil pipes
The strength of titanium alloy titanium coil is higher than that of excellent steel. Titanium alloy has good heat resistance strength, low temperature toughness and fracture toughness. Titanium equipment is mostly used as aircraft and other components, rocket and missile structural parts and titanium equipment.
Titanium gold and silver are bright, light, firm and have good corrosion resistance. The metal made of titanium material will not deform and fade. It is easy to maintain. As long as you wipe it gently with cotton cloth, it will restore its luster, and the longer the operation time, the better the brightness.
Product name: ASTM B338 Titanium Coil pipes
Standards: ASTM B338
Grades: Gr1, Gr2
Dimention:OD 6-108mm*WT1-5mm*L
Technique:Rolled
Chemical composition (Wt%)
ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |

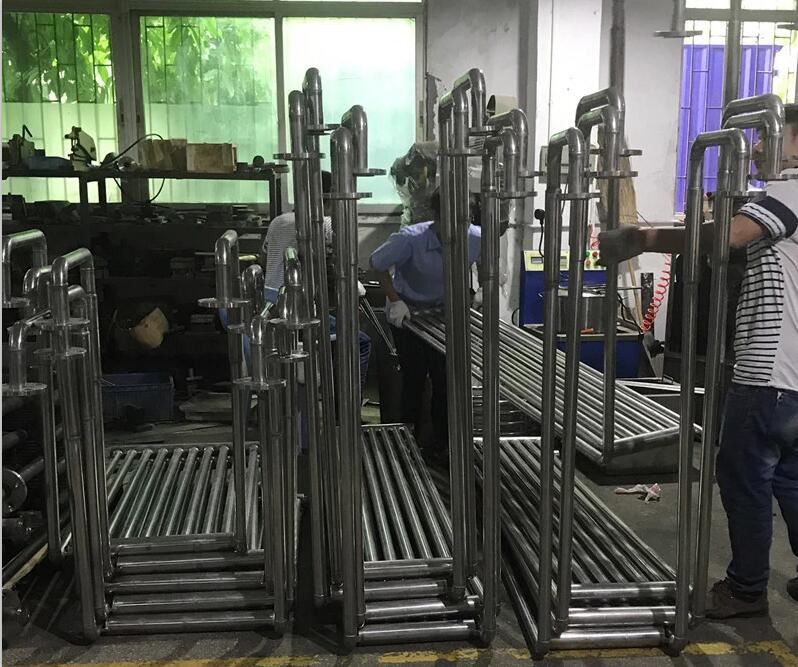

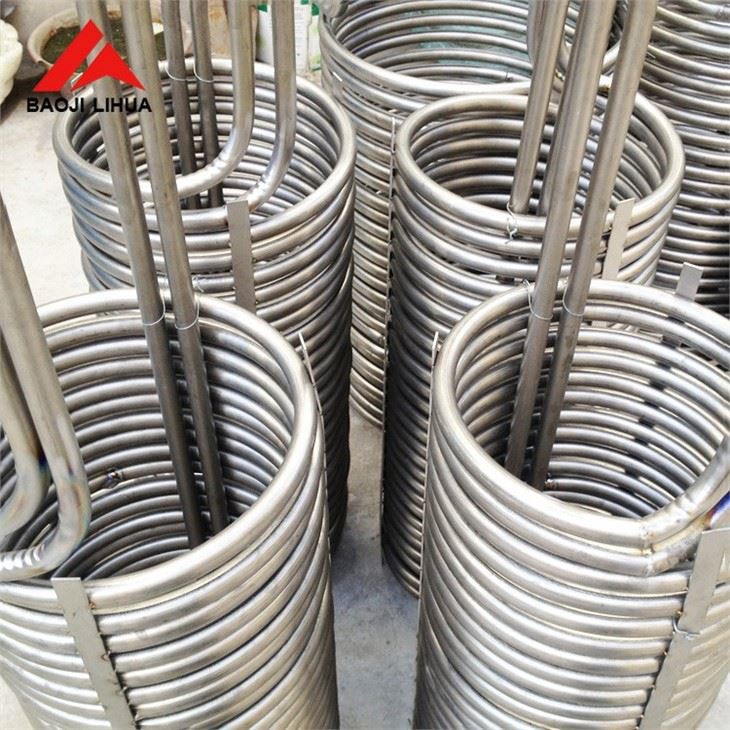

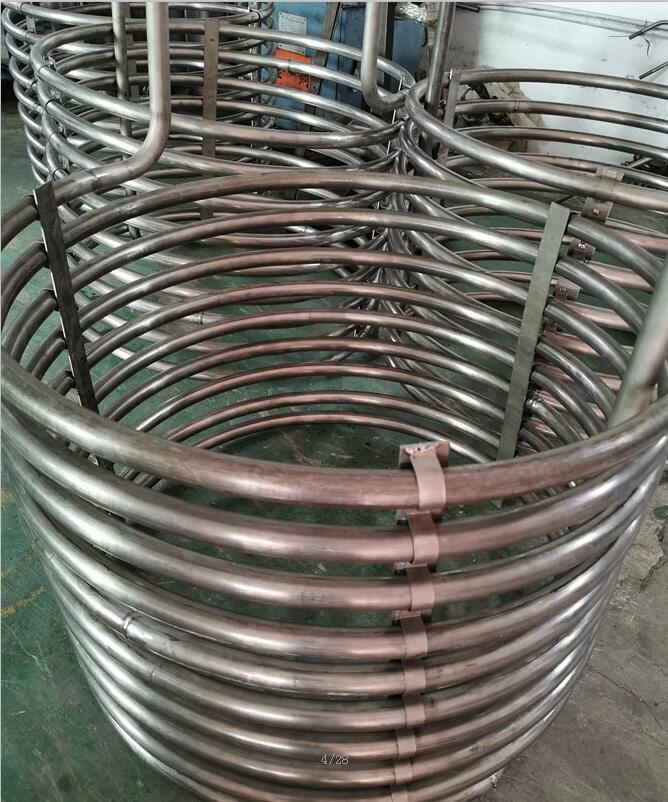

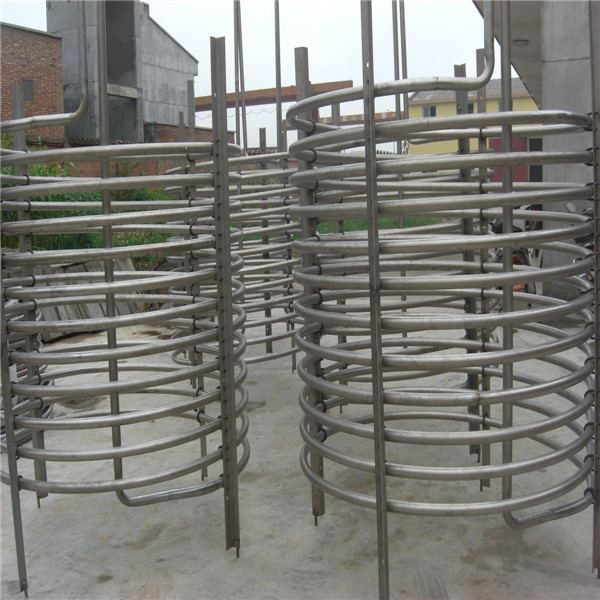

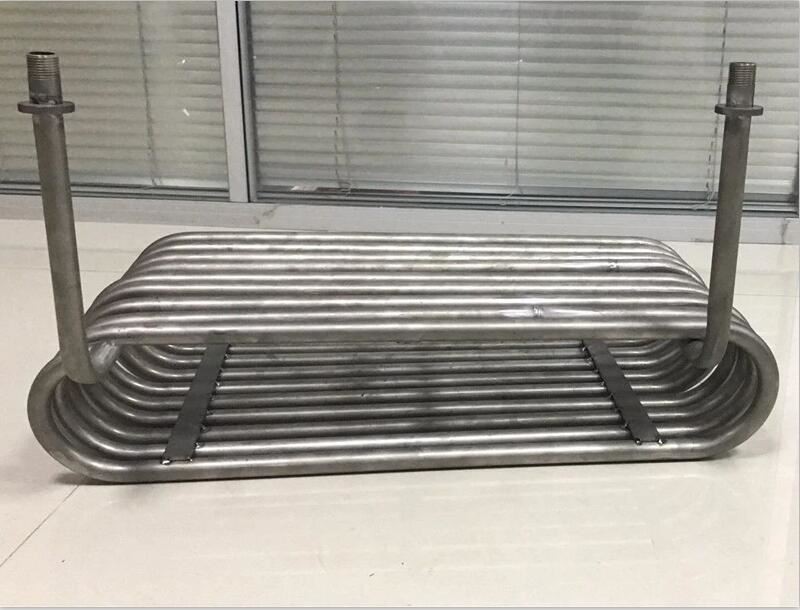

Detailed images:

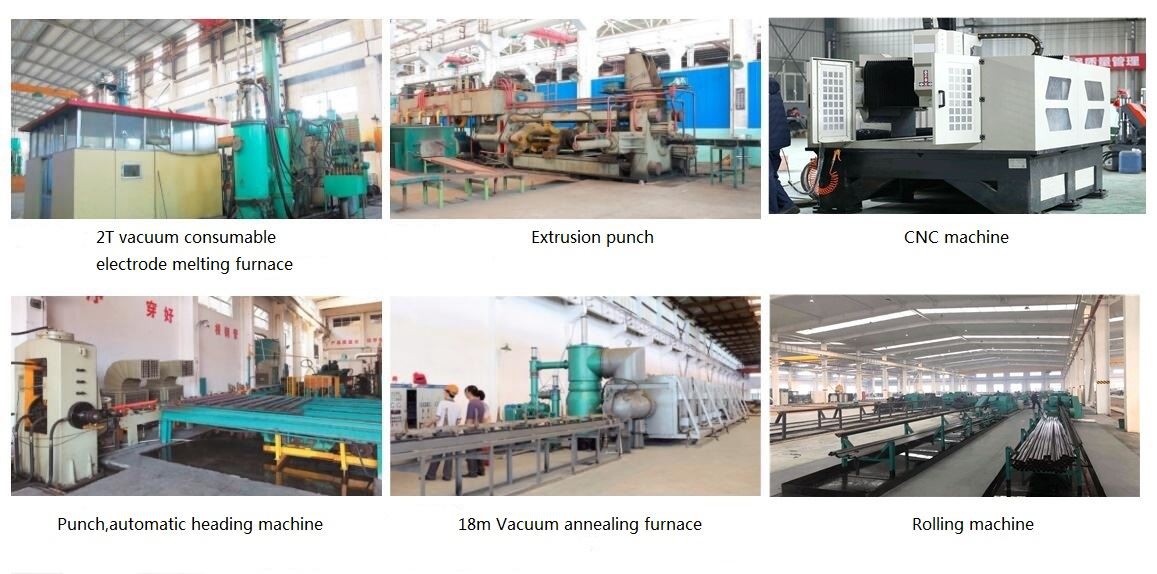

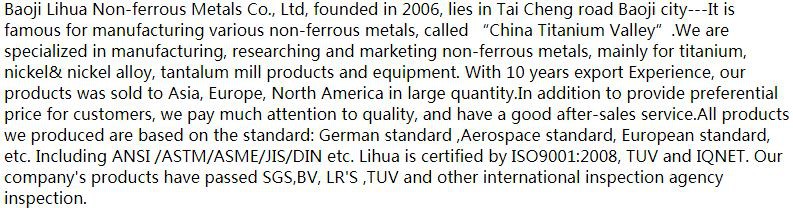

About our company:
