Product Name: Titanium Pipe Standard: ASTM B861, ASTM B862, ASTM B338 Material: Gr1, Gr2, Gr3, Gr7, Gr9, Gr12 Unit Price: $25usd/kg-$40usd/kg Type: Seamless/Welded Shape: Round
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium tubes manufacturer

Send Inquiry

Chat Now

Product Introduction

Introduction to Our Premium Titanium Pipes

Discover the excellence of our titanium pipes, designed to meet the highest standards of quality and performance. Available in compliance with ASTM B861, ASTM B862, and ASTM B338 standards, our titanium pipes are crafted to offer exceptional durability and versatility for a wide range of applications.

Material Grades

We provide titanium pipes in various grades to suit diverse needs:

Grade 1: Known for its excellent ductility and corrosion resistance.

Grade 2: The most commonly used grade, balancing strength and corrosion resistance.

Grade 3: Offers higher strength while maintaining good weldability.

Grade 7: Provides superior corrosion resistance in acidic environments.

Grade 9: Combines high strength with good fatigue resistance.

Grade 12: Features a mix of strength and superior resistance to various corrosive environments.

Product Specifications

Unit Price: Ranges from $16.5 USD/kg to $88.5 USD/kg, depending on the material grade and specifications.

Type: Available in both seamless and welded forms.

Shape: Round, ensuring easy integration into various systems.

Outer Diameter: Ranges from 3 mm to 114 mm, or customized to your specifications.

Wall Thickness: Available from 0.5 mm to 7 mm, with customization options to meet specific requirements.

Length: Can be supplied up to a maximum length of 12,000 mm.

Surface Finish: Bright, providing a smooth and polished appearance for aesthetic and functional purposes.

Our titanium pipes are engineered to deliver outstanding performance in demanding environments, including aerospace, automotive, marine, and industrial applications. Whether you need pipes for high-temperature systems or corrosive conditions, our range of titanium pipes is designed to meet your precise needs. Explore our offerings and experience the superior quality and reliability of our titanium products.

Mechanical Properties:

Grade	Tensile Strength(min)		Yield Strength(min)		Elongation(%)	Remark
Grade	ksi	MPa	ksi	MPa	Elongation(%)	Remark
Gr. 1	35	240	20	138	24
Gr. 2	50	345	40	275	20
Gr. 3	65	450	55	380	18
Gr. 7	50	345	40	275	20
Gr. 9	125	860	105	725	10	cold-worked stress-relieved
Gr. 9	90	620	70	483	15	annealed
Gr. 12	70	483	50	345	18

Dimensions of the Pipes:

NPS DESIG.	Outside Dia.		Nominal Wall Thickness
	Outside Dia.		Schedule 5S		Schedule 10S		Schedule 40S		Schedule 80S
	in	mm	in	mm	in	mm	in	mm	in	mm
1/8	0.405	10.29			0.490	1.24	0.068	1.73	0.095	2.41
1/4	0.540	13.72			0.065	1.65	0.088	2.24	0.119	3.02
3/8	0.675	17.15			0.065	1.65	0.091	2.31	0.126	3.20
1/2	0.840	21.34	0.065	1.65	0.083	2.11	0.109	2.77	0.147	3.73
3/4	1.050	26.67	0.065	1.65	0.083	2.11	0.113	2.87	0.154	3.91
1	1.315	33.40	0.065	1.65	0.109	2.77	0.133	3.38	0.179	4.55
1-1/4	1.660	42.16	0.065	1.65	0.109	2.77	0.140	3.56	0.191	4.85
1-1/2	1.900	48.26	0.065	1.65	0.109	2.77	0.145	3.68	0.200	5.08
2	2.375	60.32	0.065	1.65	0.109	2.77	0.154	3.91	0.218	5.54
2-1/2	2.875	73.02	0.083	2.11	0.120	3.05	0.203	5.16	0.276	7.01
3	3.500	88.90	0.083	2.11	0.120	3.05	0.216	5.49	0.300	7.62
3-1/2	4.000	101.60	0.083	2.11	0.120	3.05	0.226	5.74	0.318	8.08
4	4.500	114.30	0.083	2.11	0.120	3.05	0.237	6.02	0.337	8.56

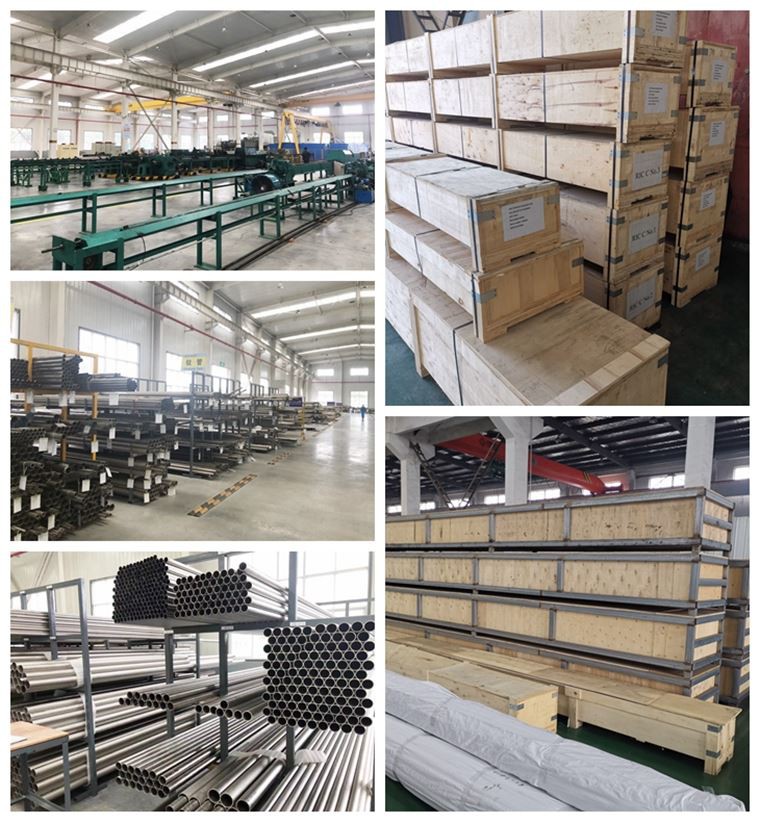

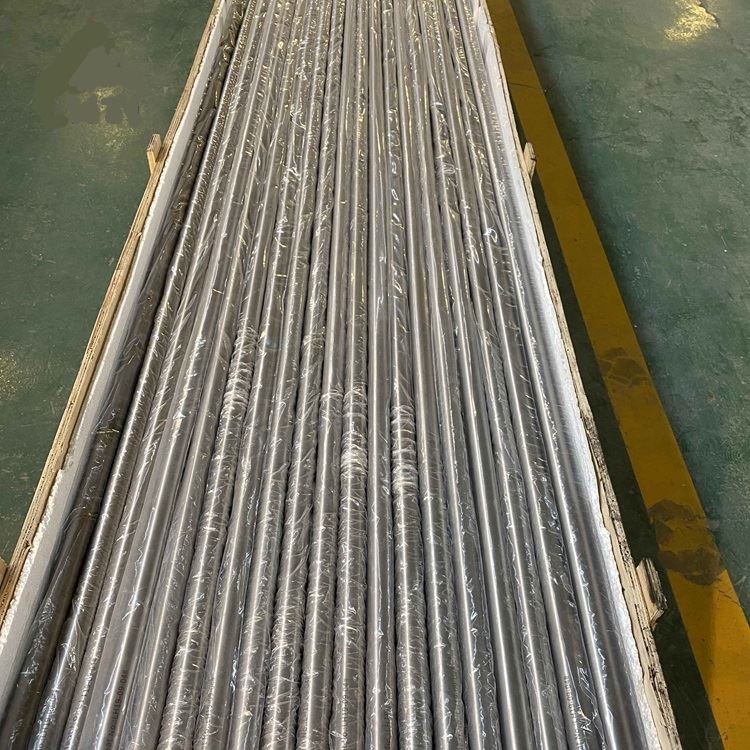

Production Capability: 40 Metric Tons/month Packing: Standard export plywood case Delivery Time: 5-35 days Shipping: By International Express(TNT, FEDEX, DHL, UPS, etc.), By Air, By Sea

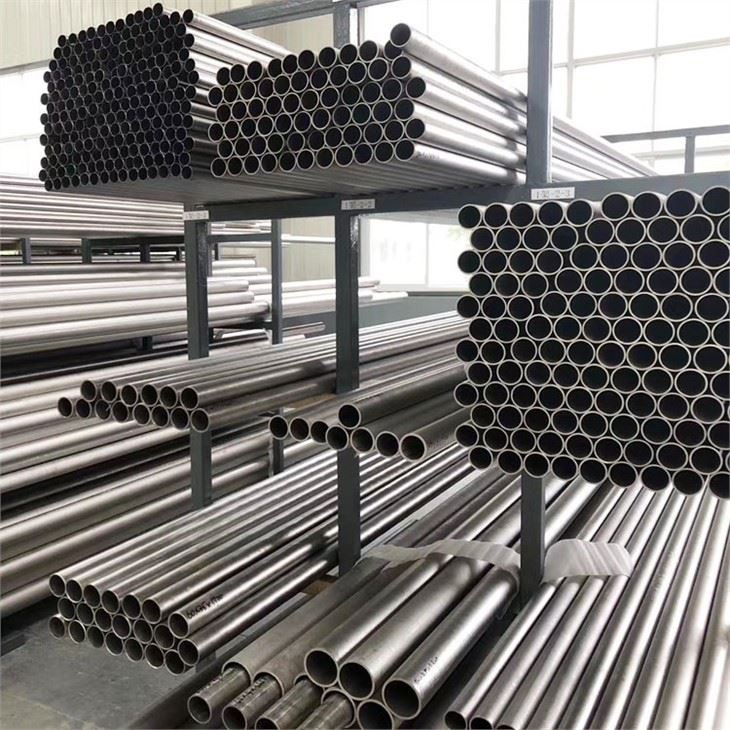

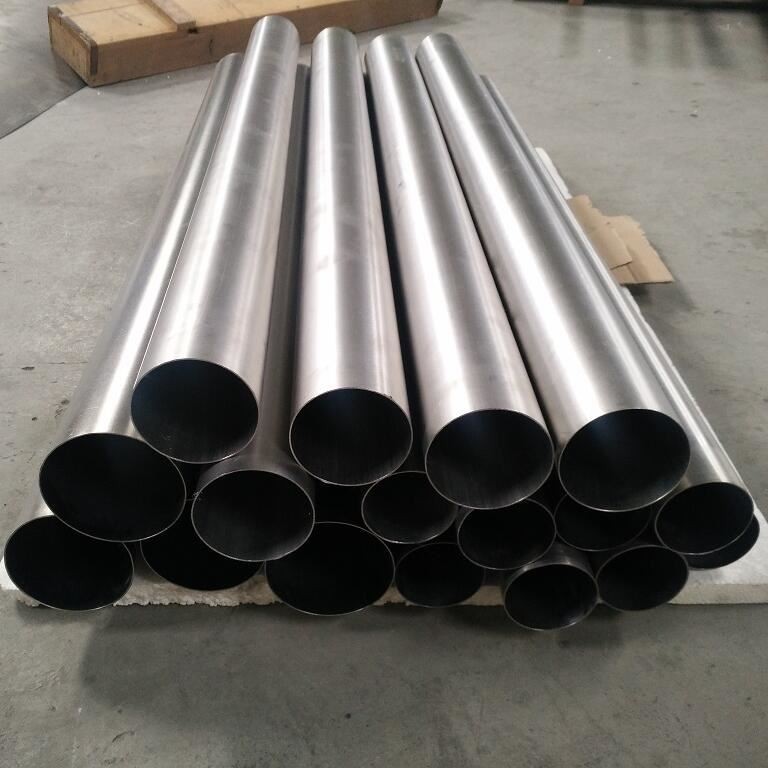

Detailed images:

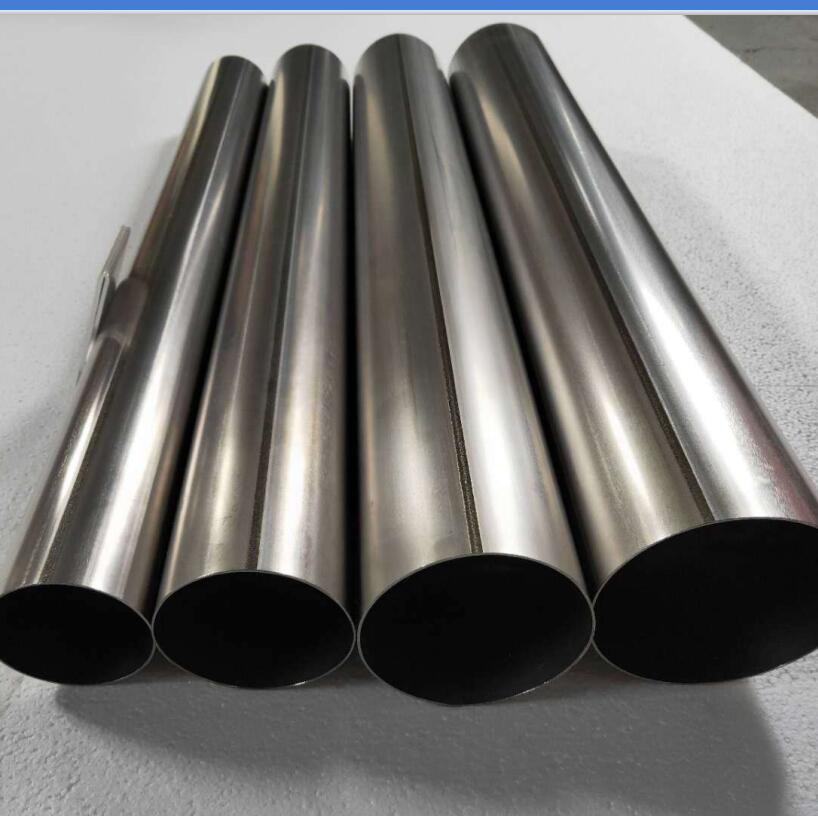

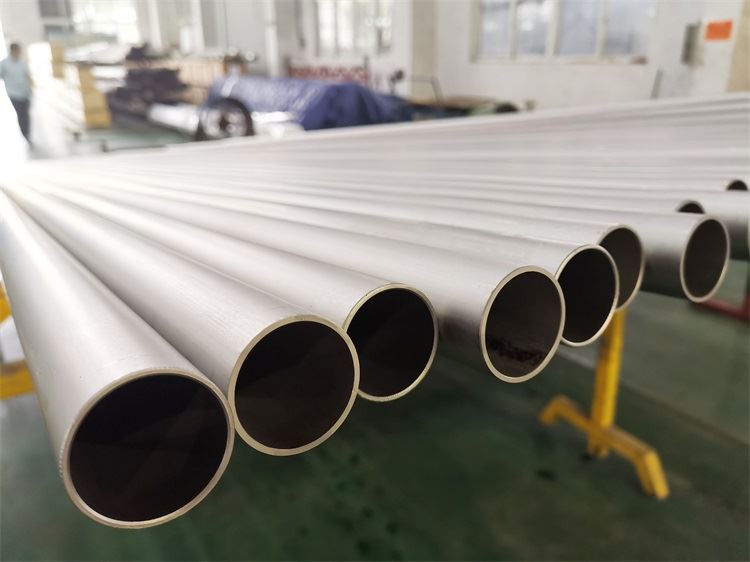

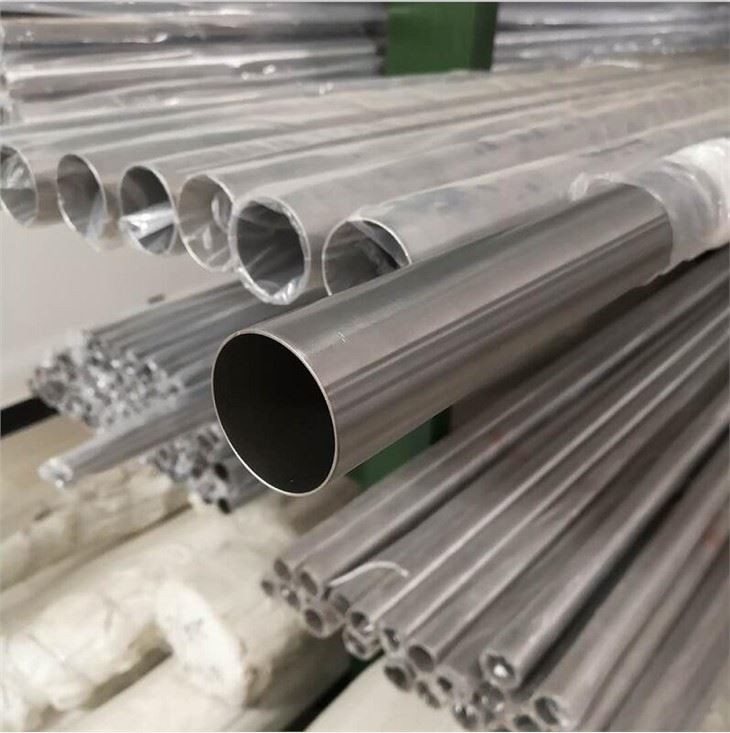

Titanium welded tubes:
