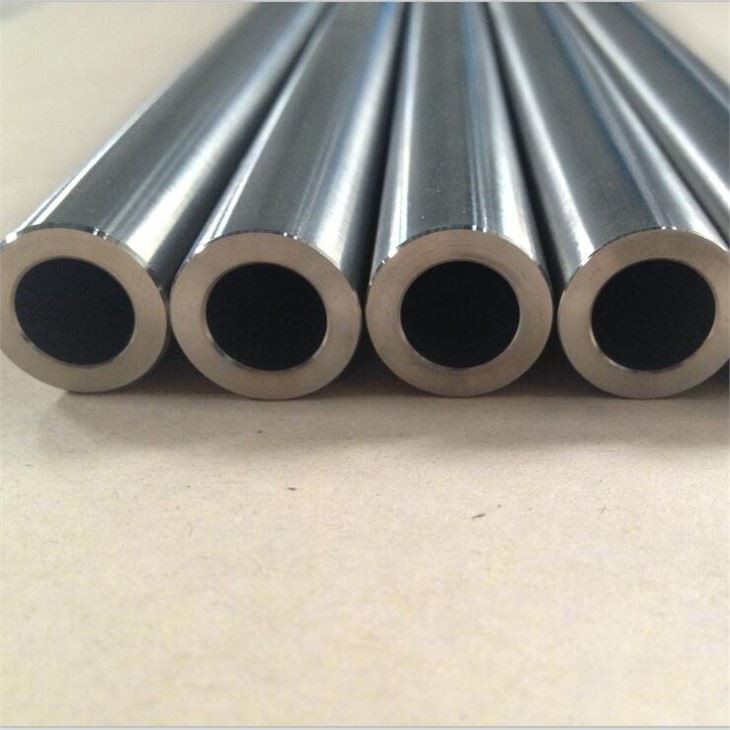

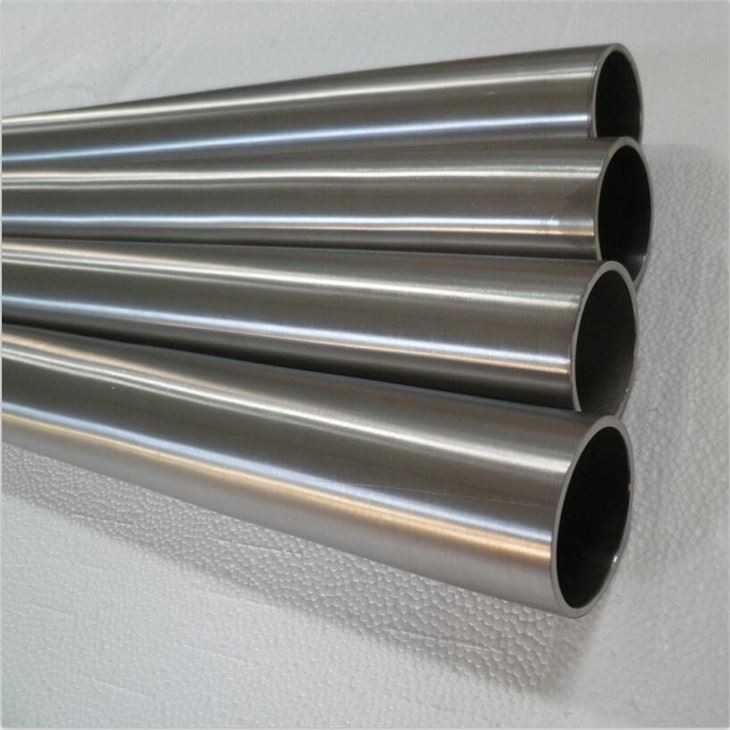

Titanium Alloy Pipe
Product Name: Titanium alloy pipe
Standard: ASTM B861, ASTM B862, ASTM B338
Material: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12
Unit Price: $15.5usd/kg-$88.5usd/kg
Type: Seamless/Welded
Shape: Round
Outer Diameter: 3-114mm or as customized
Wall Thickness: 0.5-7mm or as customized
Length: Max 12000mm
Surface: Bright
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium tube/pipe manufacturer
| Titanium alloy pipe |
| ASTM Pure Ti: Gr1, Gr2,Gr3,Gr4 Titanium Alloy: Gr5, Gr7, Gr9 ,Gr12 |
| Forging, Hot Rolling, Cold Rolling |
| ASTM B338/ASME SB338, ASTM B861/ASME SB861 & DIN17861 |
| Polished Surface |
| OD 1.5-219mm, WT 0.3-8.0mm, Length≤18000mm |
| Heat exchanger; Condenser; Coiling pipe; petroleum pipeline; Sea farming; electroplating equipment; Fluid Transportation Piping |
| Forging, Hot Rolling, Cold Rolling |
| Standard export package,suit for air and sea transport,by wooden box or as required |
| 10Kg |
Chemical composition | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
Grade 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal |
Grade 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | Bal |
Grade 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | / |
Grade 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
Grade 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
Grade 9 | 0.05 | 0.08 | 0.015 | 0.25 | 0.12 | 2.0-3.5 | 1.5-3.0 | / | / | / | Bal |
Grade 12 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |

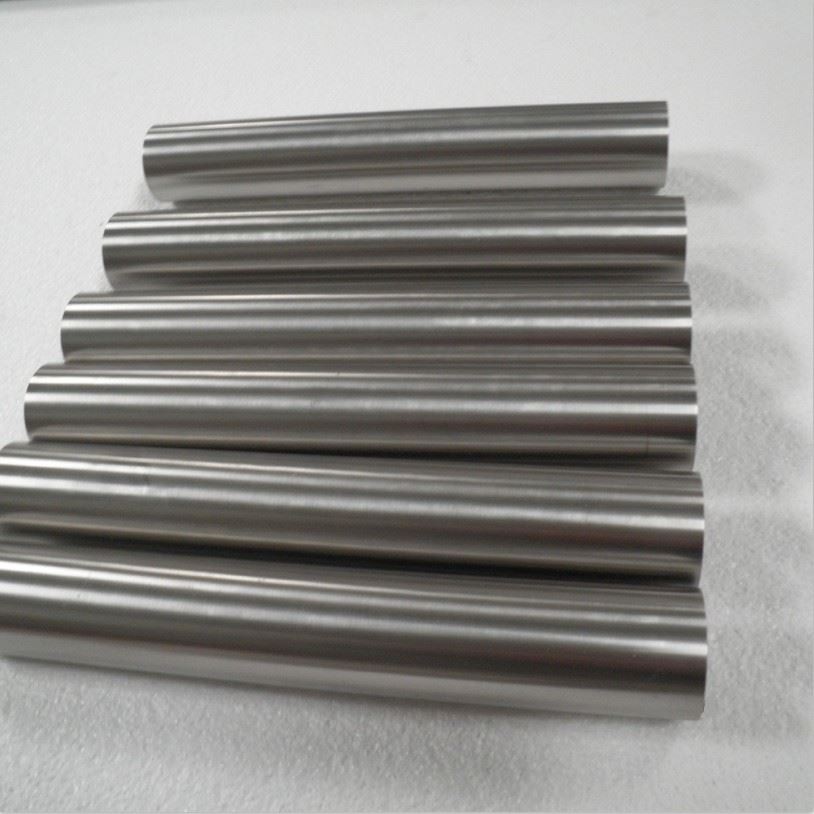

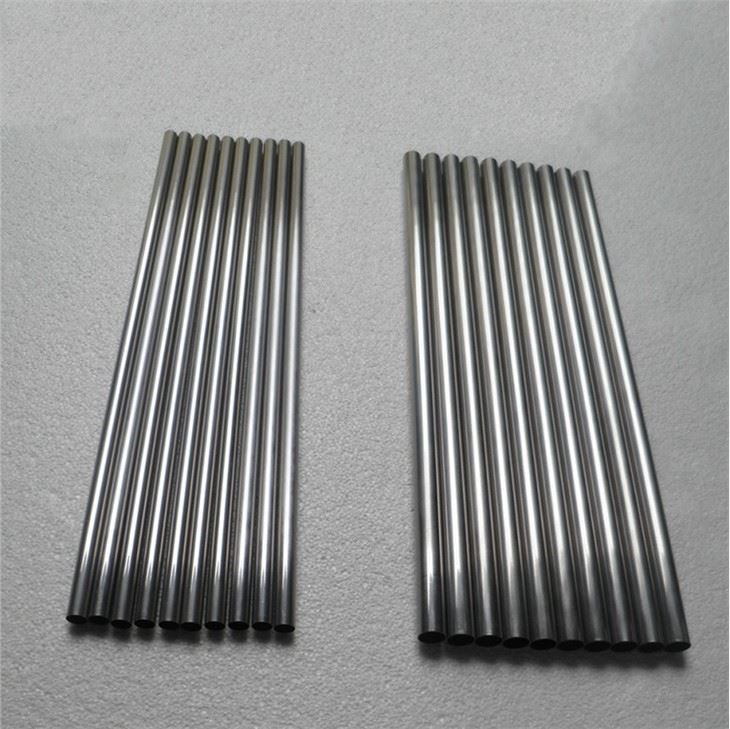

Detailed images:

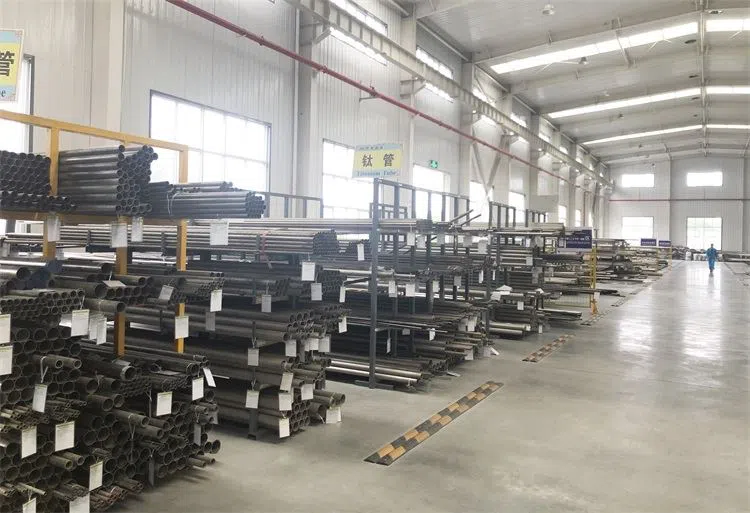

Stock

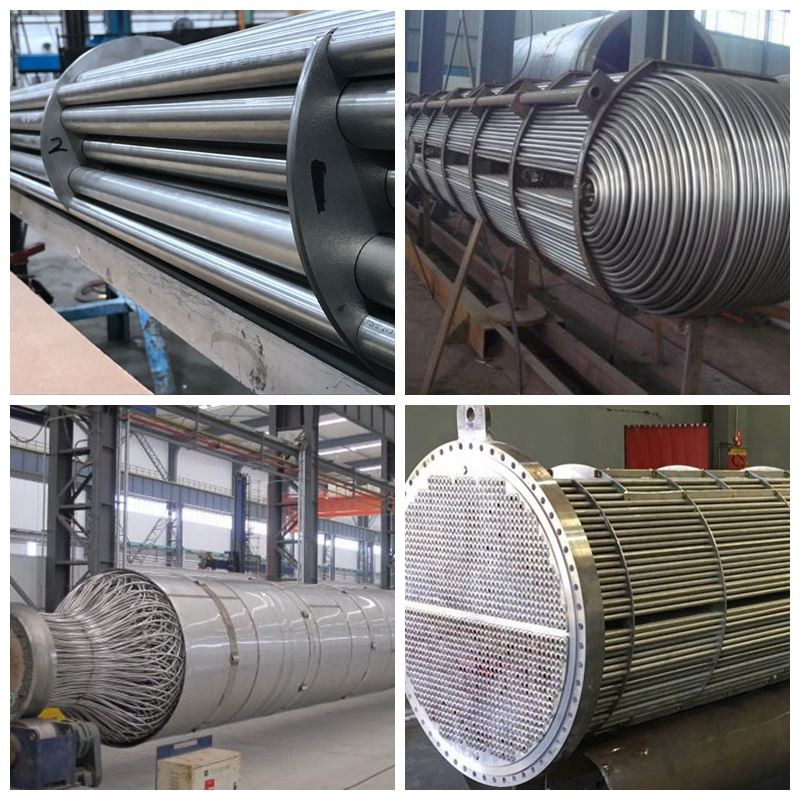

Gr2 Titanium pipes used in heat exchangers:
Features:
(1) Hot silicon.
(2) Nonmagnetic and Non-toxic.
(3) keep good toughness and plasticity at low temperature, is anideal material of cryogenic vessels.
(4) High corrosion resistance.

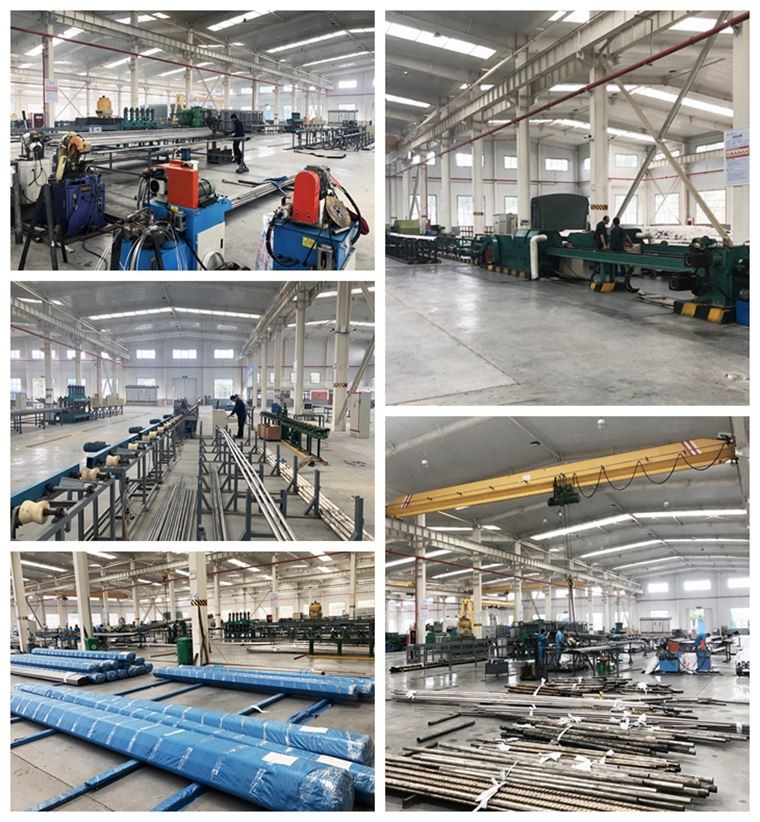

We are Full integrated titanium tube and pipe manufacturer from melting raw material, extruding hollow billets and rolling to finished tubes.
Packaging and shipping:

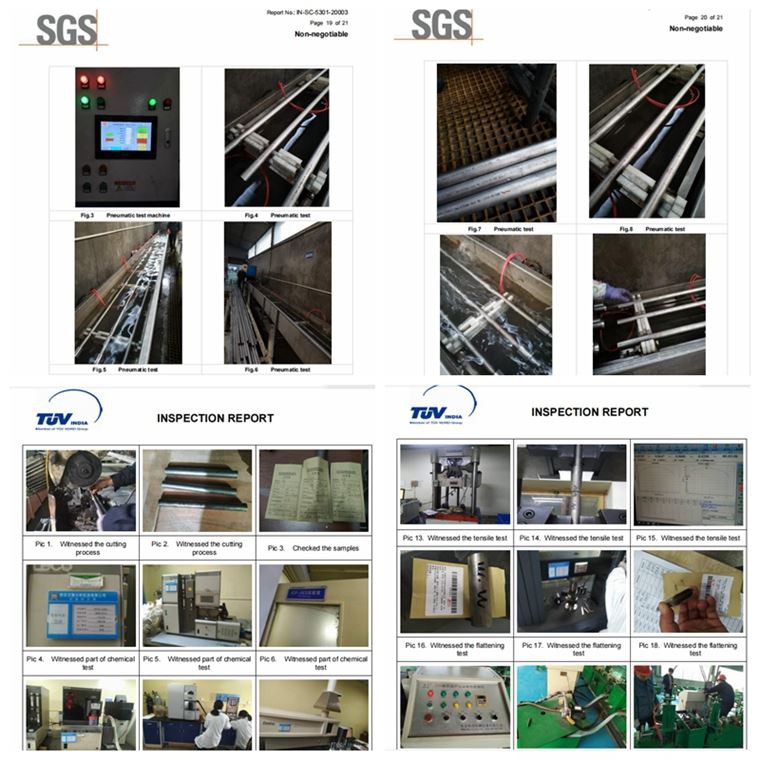

The third party quality inspections:
About our company:
Our Services
(1) Strict control from raw materials till products finished, so the quality is guaranteed.
(2) Customized sizes are offered as well as specified sizes and multiple sizes.
(3) Competitive prices will be provided for sure.
