Titanium Pipe Cp G2

Titanium Pipe Cp G2

Product Name: Titanium Pipe Cp G2 Standard: ASTM B338, ASTM B861, ASTM B862,NACE MR175-94 Material: Gr2 Unit Price: $16.5usd/kg-$35.5usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 3-114mm or as customized Wall Thickness: 0.5-7mm or as customized Length: Max 12000mm Surface: Bright

Send Inquiry

Chat Now

Product Introduction

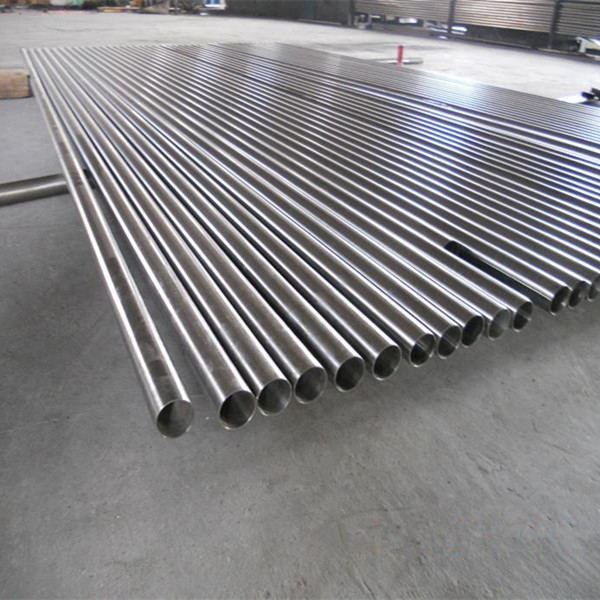

Titanium Pipe Cp G2

Grade 2 Titanium: A Versatile Material for Demanding Applications

Grade 2 titanium, often referred to as unalloyed titanium, is celebrated for its impressive combination of strength and ductility. Known for its exceptional toughness and ease of welding, Grade 2 titanium is highly resistant to corrosion, particularly in highly oxidizing and mildly reducing environments. This makes it an excellent choice for applications where stainless steels fall short, such as in heat exchanger tubes, exhaust systems, and oil pipelines.

Expanding Applications

The use of Grade 2 titanium pipes has grown significantly beyond their initial applications in the soda ash and caustic soda industries. Today, these pipes are widely used throughout the chemical industry, including in vacuum salt production, where they have greatly improved equipment longevity and reduced corrosion.

Product Specifications

Seamless Pipes: Available with an outside diameter ranging from 2.0 to 355.6 mm and wall thicknesses from 0.3 to 24 mm. These pipes can be supplied in straight lengths or as U-bend tubes.

Welded Pipes: Offered with an outside diameter of 19.05 to 1219 mm and wall thicknesses from 0.5 to 12.7 mm. Lengths and tolerances can be customized according to buyer specifications.

Thread End Titanium Pipes: We also supply titanium pipes with threaded ends for specific applications.

Complementary Products

In addition to pipes, we offer a range of titanium components for heat exchanger applications, including tubesheets, flanges, shells, heads, and tube couplings. These products complement our titanium pipes and meet the high standards required for demanding industrial environments.

Grade 2 titanium continues to prove its worth in various industries due to its robust properties and versatility, making it a preferred material for challenging applications.

Commodity	Titanium pipe cp g2
Process method	Cold rolled/ Cold drawn/Welded.
Materials Grades	Grades 2
Standards:	ASTM B338, ASME SB338, ASTM B861, ASTM B862, NACE MR175-94 or closer
Size	NPS:1/8 to 40" , Schedule: 5S to XXS. Length: 20m or as required.
Size	OD: 2 - 1016 mm, Wt: 0.3~ 30mm, Length:20m or as required.
Shape	In straight length or as U-bend
Surface Finished	Annealed/ Mechanical Polish or as required
Inspection Testing	100% Ultrasonic Test, 100%Eddy Current Test, 100%Hydraulic Test, 100% X-Ray Test to welded pipe or as required.
Inspection Testing	Mechanical Test, Bend Test, Inter-granular corrosion Test.
Certificate	EN 1024 3.1/ 3.1B/ 3.2, PED, DNV, TUV.
Packing	Wooden case/ Steel framed plywood case/ simple packing.
Delivery Time	By mutual agreement.

Product Images

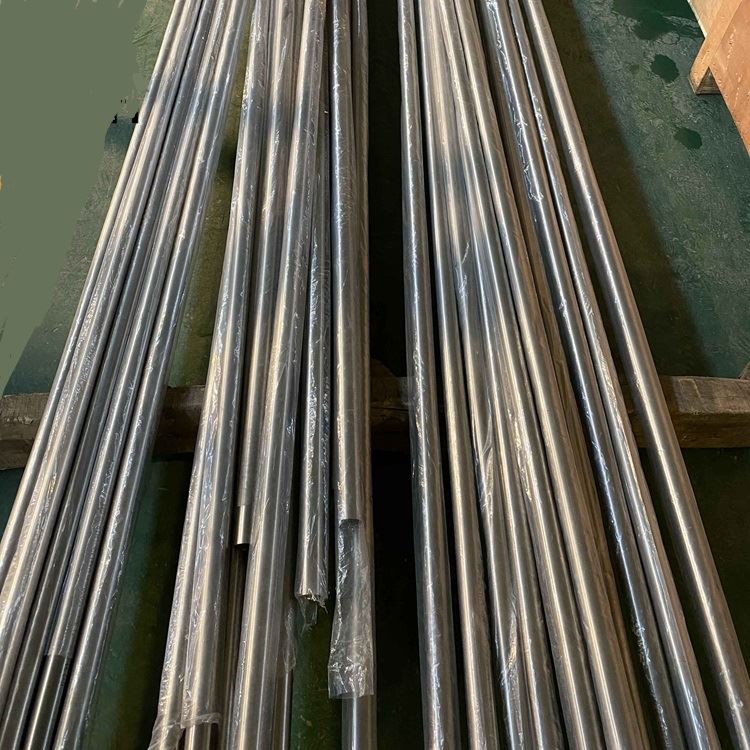

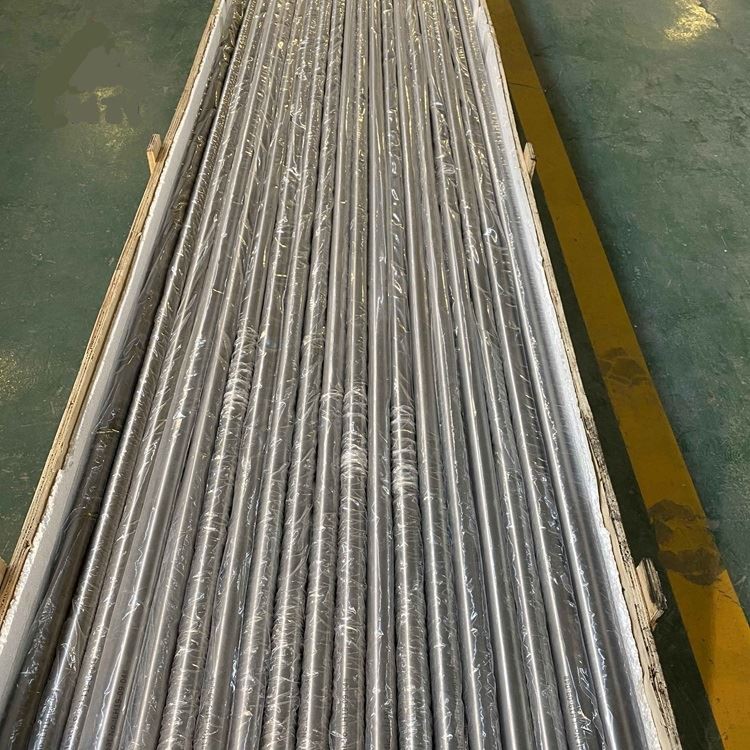

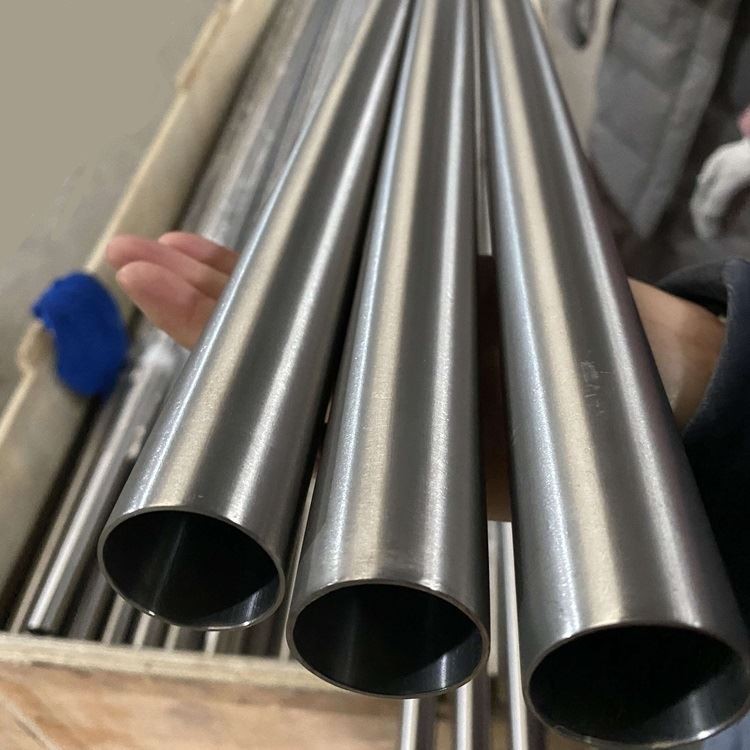

Titanium tube 1 titanium tubes 2 titanium tubes 3

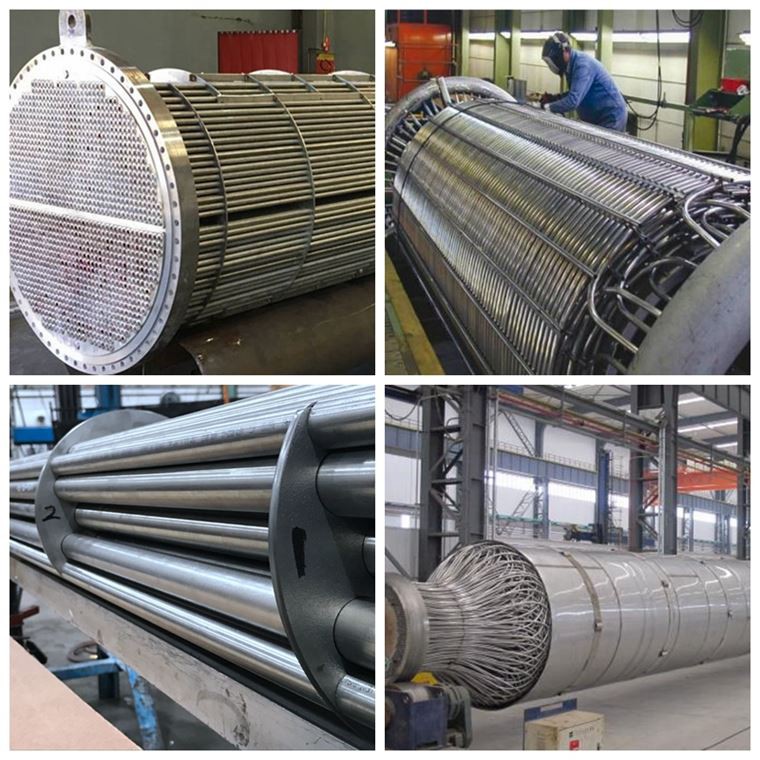

Application in heat exchangers:

Titanium pipe heat exchanger

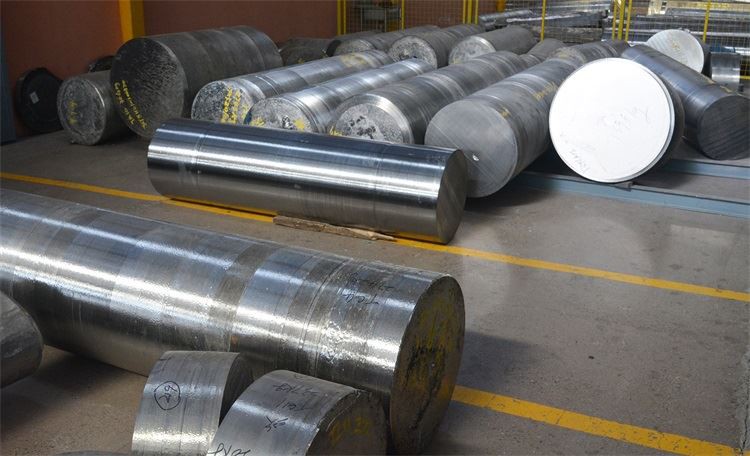

Raw Materials

titanium tube

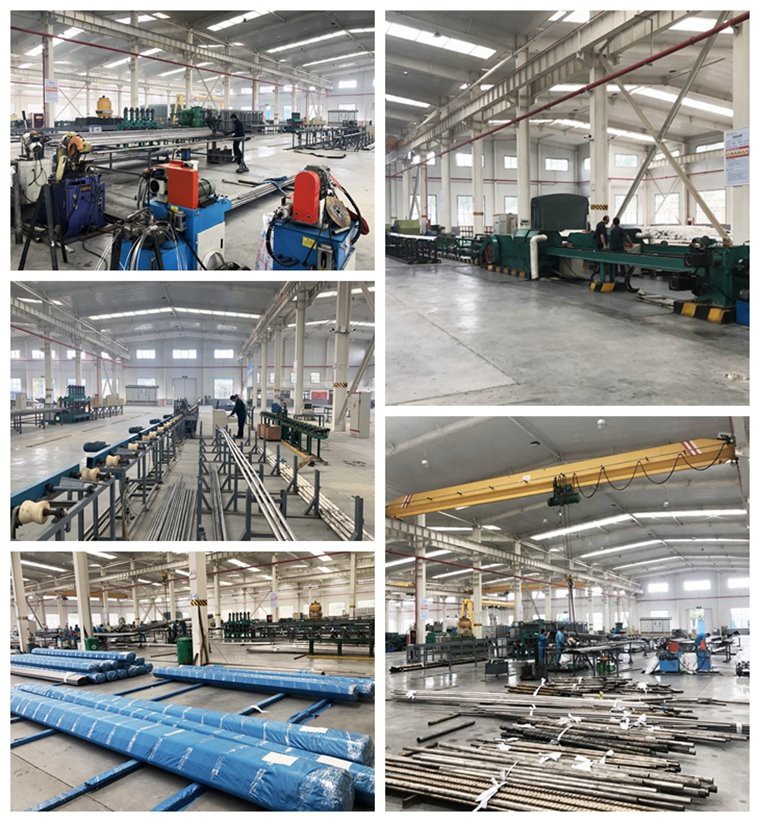

Factory

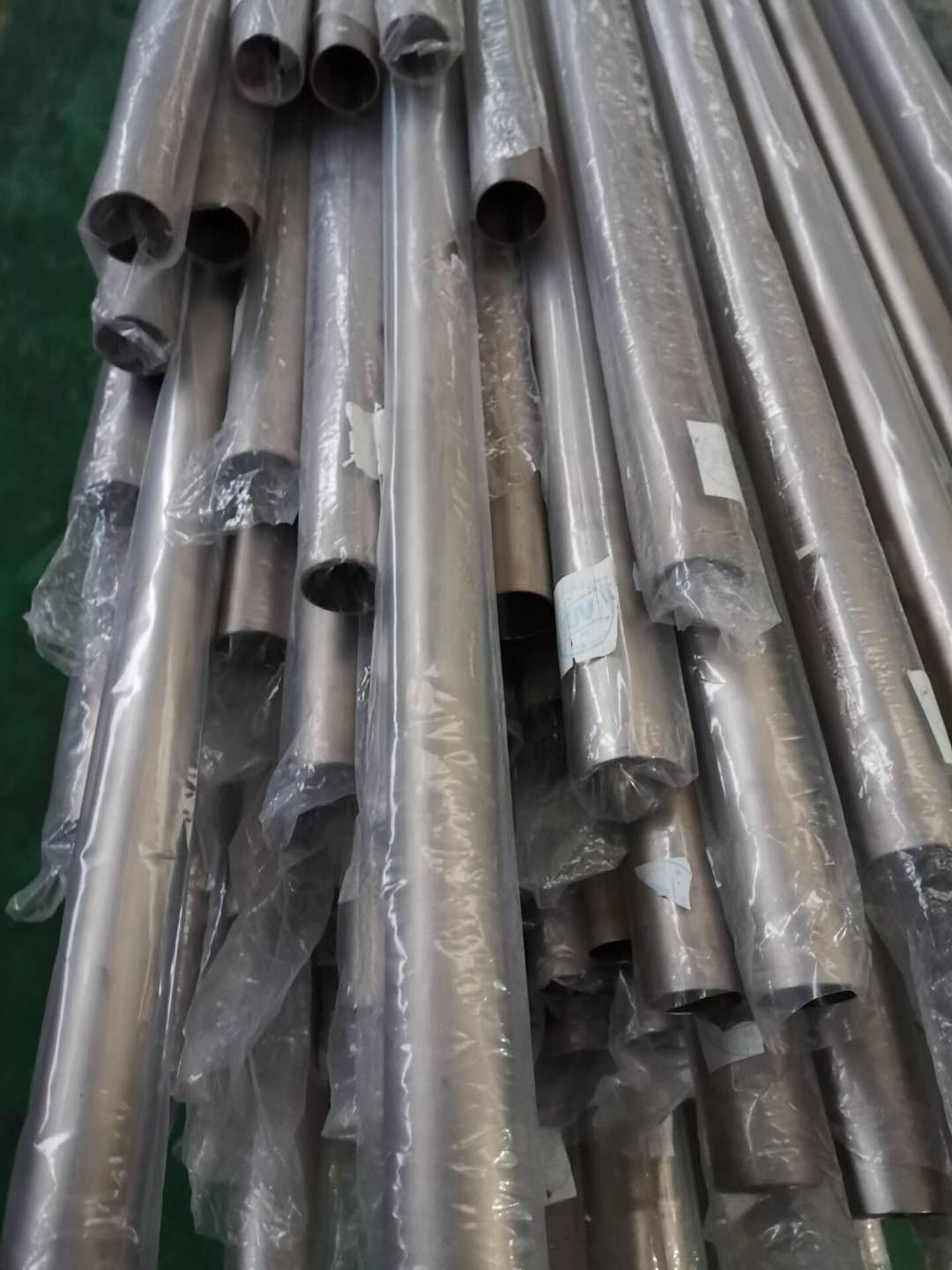

titanium tube (2)

Production Process

Titanium strip coil-Slitting forming-Welding-Shaping and sizing-Heat treatment-Straightening-Eddy current and ultrasonic testing-Air tightness testing-Finished welded pipe

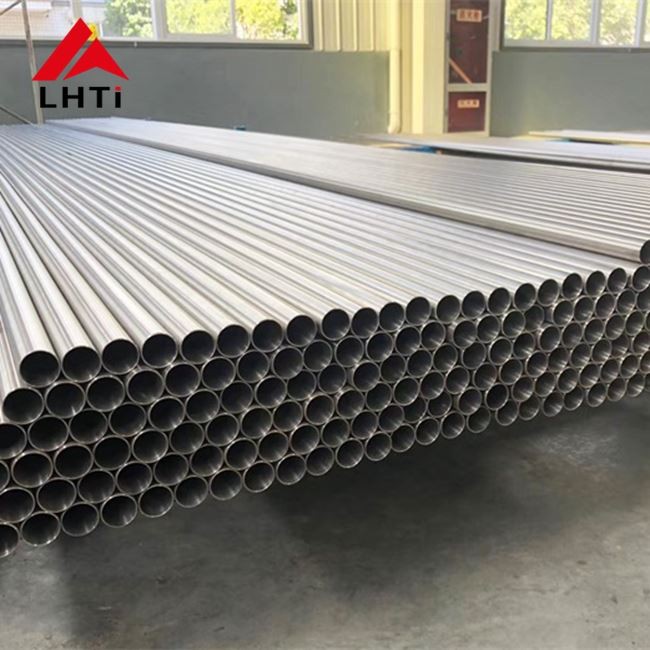

Our Stock

titanium tube (15)
