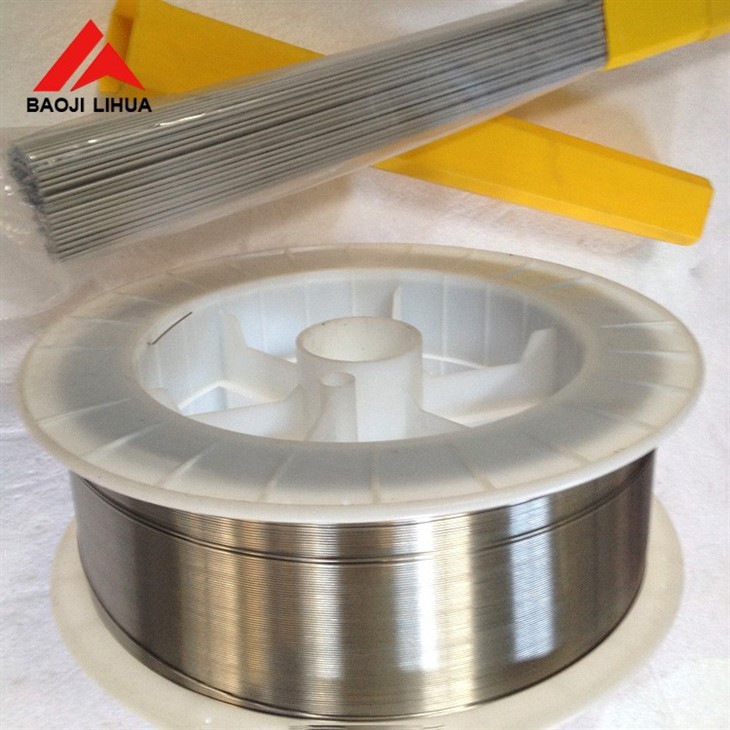

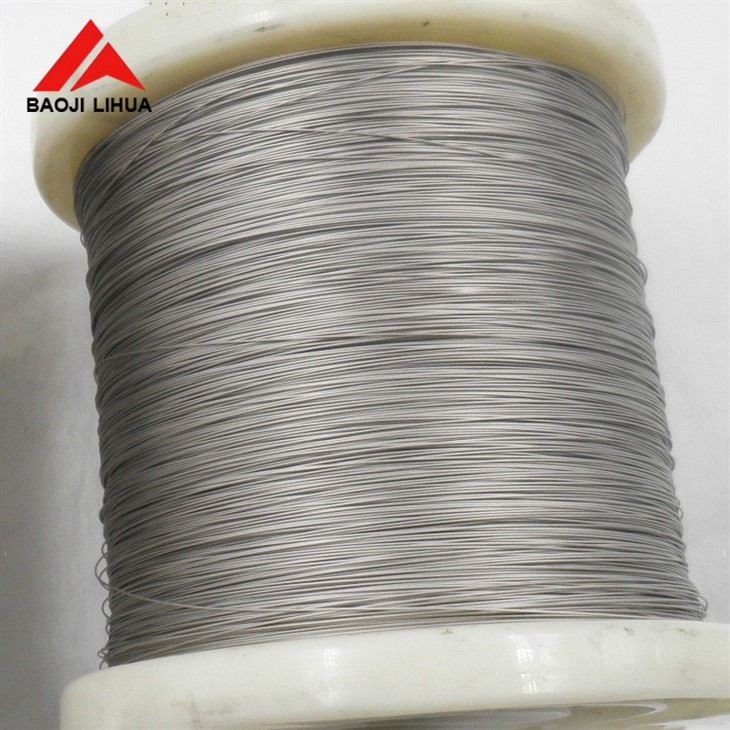

Titanium Wire Gr2 Welding Filler Rod 1.2mm
Product Name: Titanium Weld Wire
Standard: AWS A5.16
Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12
Unit Price: $21.5usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polishing
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium wire manufacturer
Standard: AWS A5.16
Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12
Unit Price: $21.5usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polishing
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium wire manufacturer
Send Inquiry
Chat Now
Product Introduction
Titanium Wire Gr2 Welding Filler Rod 1.2mm
Titanium Wire and Rod perfectly inherits the advantages of titanium and titanium alloys, and has a series of excellent characteristics such as good corrosion resistance, high specific strength, non-magnetic, high biocompatibility, low resistance to ultrasonic waves and good shape memory function.
| Item | Titanium wire |
| Material | Pure Titanium and alloy |
| Grade | GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR12 |
| Standard | ASTM B863 |
| Size | Dia(0.8--5) *L |
| Process | Bar billets-hot rolling-drawing-annealing-strength-pickling |
| Surface | Polishing, picking, acid washed, black oxide |
| Type | Straight , spool ,coil |
| Application | Chemical equipment, such as pipes, heat exchangers, evaporators, heaters, reaction kettles et |
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
| ASTM Base Metal Grade | Base metal | Normal composition | Recommended Filler Metal | |
| UTS(min.) ksi[Mpa] | YS(min.) ksi[Mpa] | |||
| Grade 1 | 35[240] | 20[138] | Unalloyed Ti CP1 | ERTi-1 |
| Grade 2 | 50[345] | 40[275] | Unalloyed Ti CP2 | ERTi-2 |
| Grade 4 | 80[550] | 70[483] | Unalloyed Ti CP4 | ERTi-4 |
| Grade 5 | 130[895] | 120[828] | Ti 6AL-4V | ERTi-5 |
| Grade 7 | 50[345] | 40[275] | Ti 0.15Pd | ERTi-7 |
| AWS | CHEMICAL SPECIFICATIONS | ||||||||
| AWS A5.16 | UNS | C | O | N | H | I | Al | V | Pd |
| Number | |||||||||
| ERTi 1 | R50100 | 0.03 | 0.03-0.10 | 0.012 | 0.005 | 0.08 | - | - | - |
| ERTi 2 | R50120 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | - |
| ERTi 4 | R50130 | 0.03 | 0.08-0.32 | 0.025 | 0.008 | 0.25 | - | - | - |
| ERTi 5 | R56400 | 0.05 | 0.12-0.20 | 0.03 | 0.015 | 0.22 | 5.5-6.7 | 3.5-4.5 | - |
| ERTi 7 | R52401 | 0.03 | 0.08-0.16 | 0.015 | 0.008 | 0.12 | - | - | 0.12-0.25 |
