Titanium Welding Filler Wire
Standard: AWS A5.16
Material: ERTi-1, ERTi-2, ERTi-5, ERTi-7, ERTi-12
Unit Price: $25usd/kg-$60usd/kg
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Bright
Product Name: Titanium Welding Wire
Standard: AWS A5.16
Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12
Shape: Straight, Spool, Coil
Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Surface: Pickling,polished
Available Diameter, Type of Titanium Welding Filler Wire
| Size (mm) | Φ0.8 | Φ 1.0 | Φ1.2 | Φ1.6 | Φ2.0 | Φ2.4 | Φ 2.5 | Φ3.0 | Φ3.2 | Φ 4.0 | Φ4.8 | Φ 5.0 |
| Size (inch) | 0.031" | 0.039" | 0.047" | 0.062" | 0.079" | 0.093" | 0.098' | 0.12" | 0.125" | 0.16' | 0.19' | 0.20' |
| Straight | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||
| Spool | √ | √ | √ | √ | ||||||||
| Coil | √ | √ | √ | √ | √ | √ | √ | √ | √ |
ASTM B265
| Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Rp 0.2 | Rm |
No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 170-310 | 240 | |||||
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 275-450 | 345-480 | |||||
Grade 3 | 0.25 | 0.3 | 0.05 | 0.1 | 0.015 | 18 | 360-480 | 480-700 | |||||
Grade 4 | 0.5 | 0.4 | 0.05 | 0.1 | 0.015 | 15 | 500-530 | 600-680 | |||||
Grade 5 | 0.4 | 0.2 | 0.05 | 0.1 | 0.015 | 5.5-6.7 | 10 | 800-1100 | 890-1400 | ||||
Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 275-450** | 345 | ||||
Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 25 | 414-460 | 499-600 |

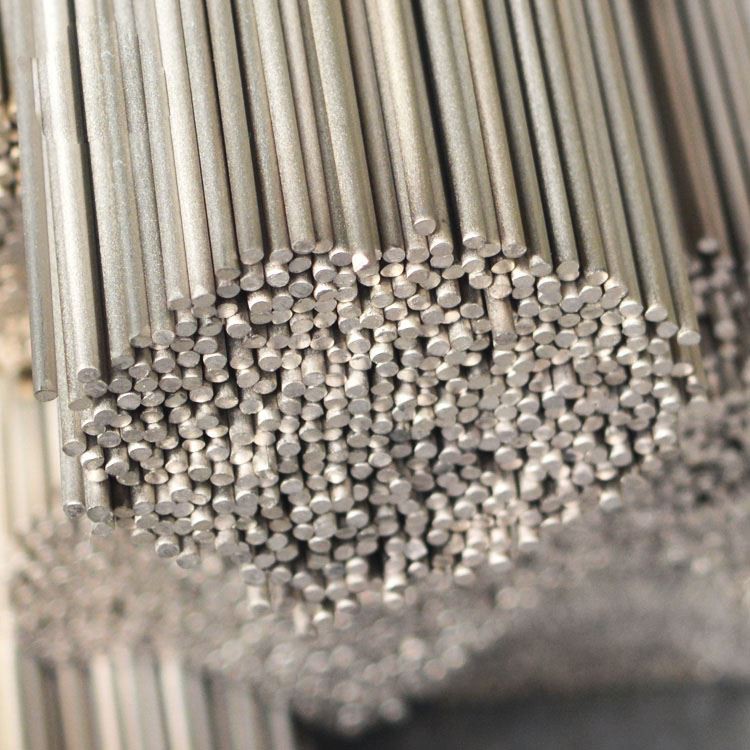

Detailed Images:
Titanium welding wire in actual applications:

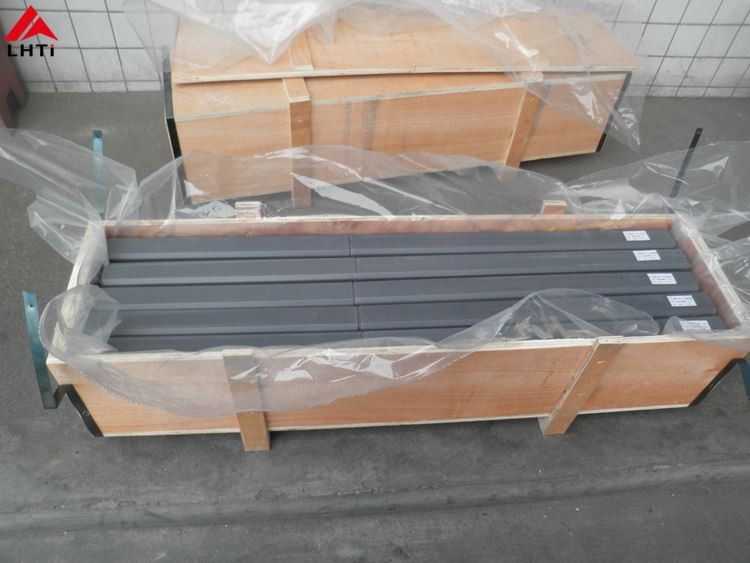

Packaging and shipping:
Straight wire is contained in plastic box, 5kg/box, with plywood box for export outside
Spool and coil wire is contained in standard export plywood box
About our company:
As a leading manufacturer & trader of titanium welding wire for over 15 years, Hamil Metals has many sizes in our stock and many of them in large quantitites, which can ensure immediate delivery.
We have exported our titanium welding wire to many countries, including Russia, Canada, Turkey and Netherlands etc. The quality of our products is widely recognized.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
