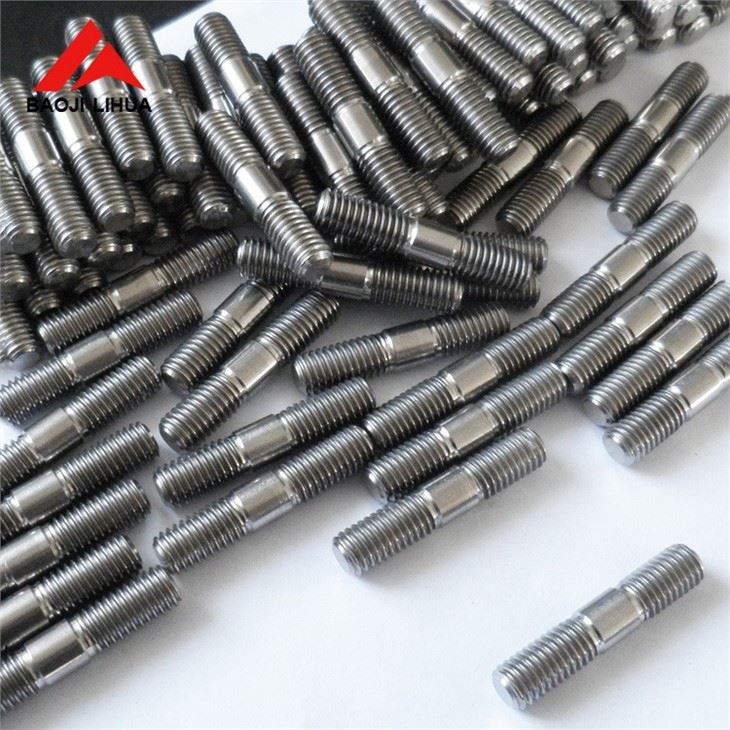

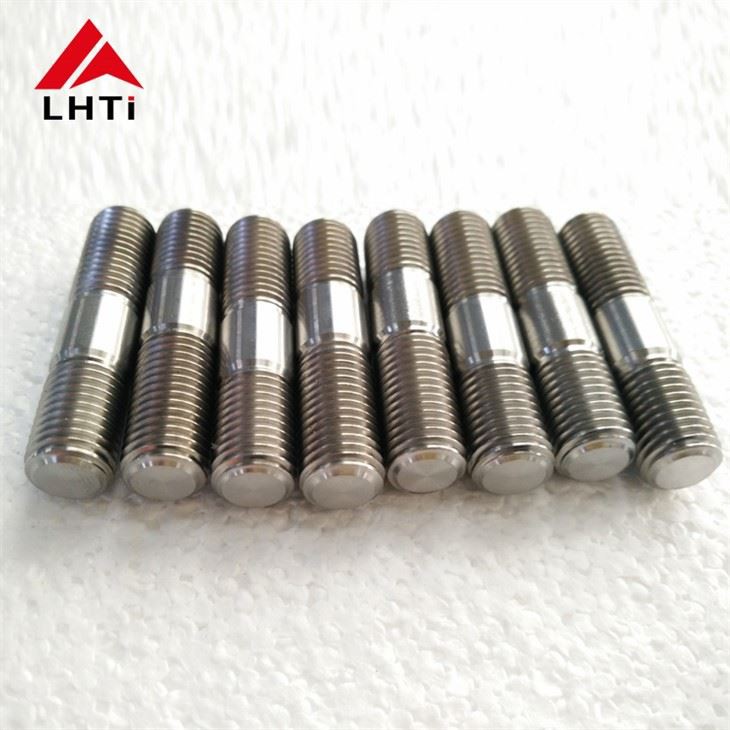

Titanium Stud M8
Material: Gr2 Gr5
Size: M3-M52*Length, or as customers' drawings
Surface: Polished
Technique: CNC Machined, Forged
MOQ: 200pcs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bolts and nuts manufacturer
Titanium bolts are widely used in various industries such as automobiles,chemical industry. Different from welding and riveting, the biggest feature of bolts is that they can be easily removed even after tightening and can be reused by re-tightening
Item name: Titanium Stud Bolt
Material: GR2 GR5
Size: M3-M52
Pitch: 1.25/1.5mm
Length: total length 5-300mm, the length of thread at both ends is based on your requirements
Technique: CNC/Forged
Surface: Polished
Chemical composition (Wt%)
ASTM No. | Fe max | O max | N max | C max | H max | Al | V | Bal |
Grade2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Grade 5 | 0.3 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.75 | 3.5-4.5 | Ti |
Physical Properties (Min)
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 2 | Unalloyed Ti ("Pure") 35A -CP1 | 58 | 400 | 40 | 275 | 20 |
Grade 5 | Ti6Al4V | 130 | 895 | 120 | 825 | 10 |

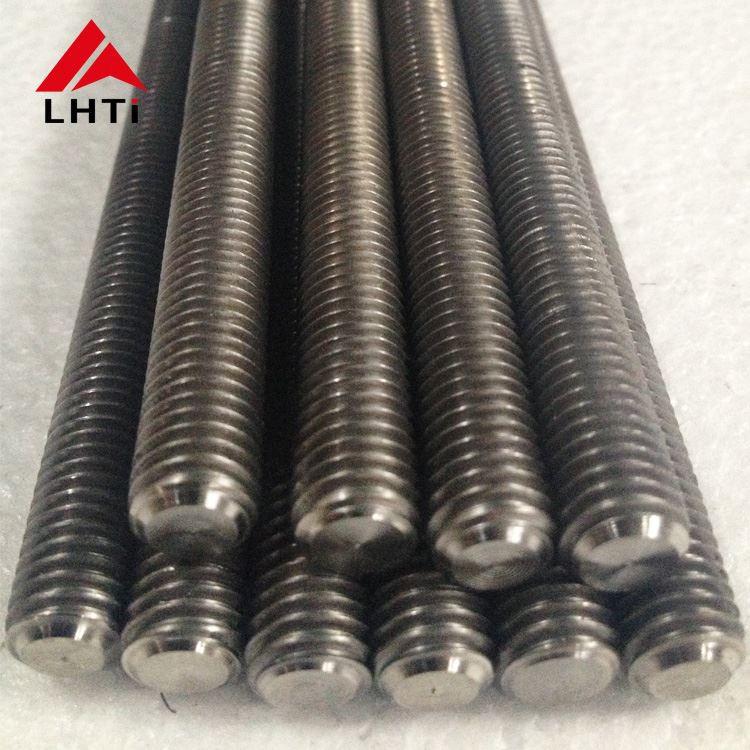

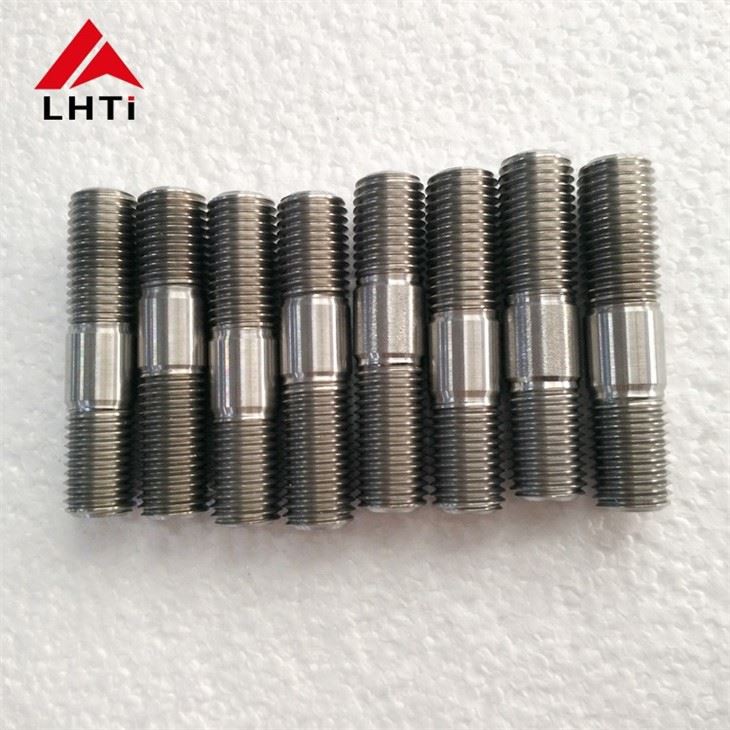

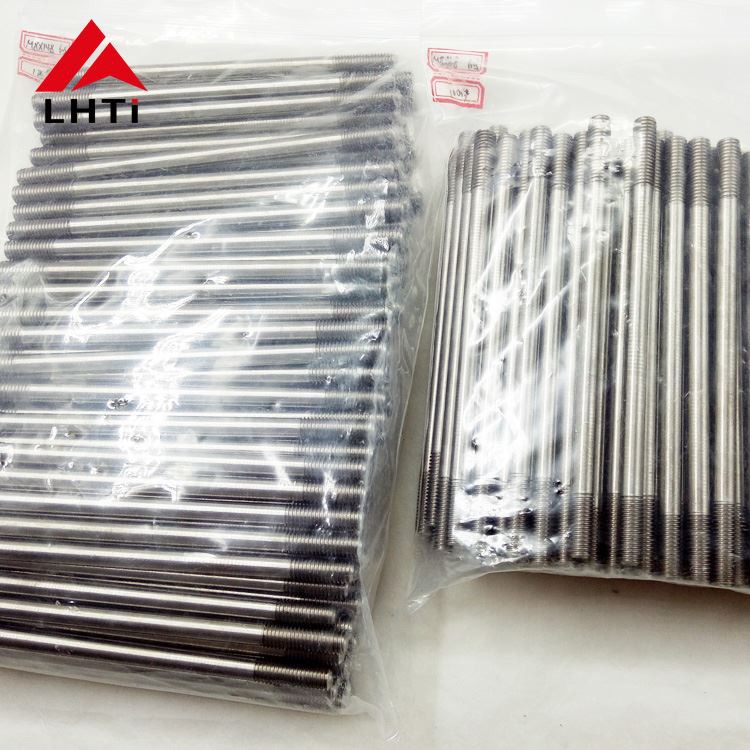

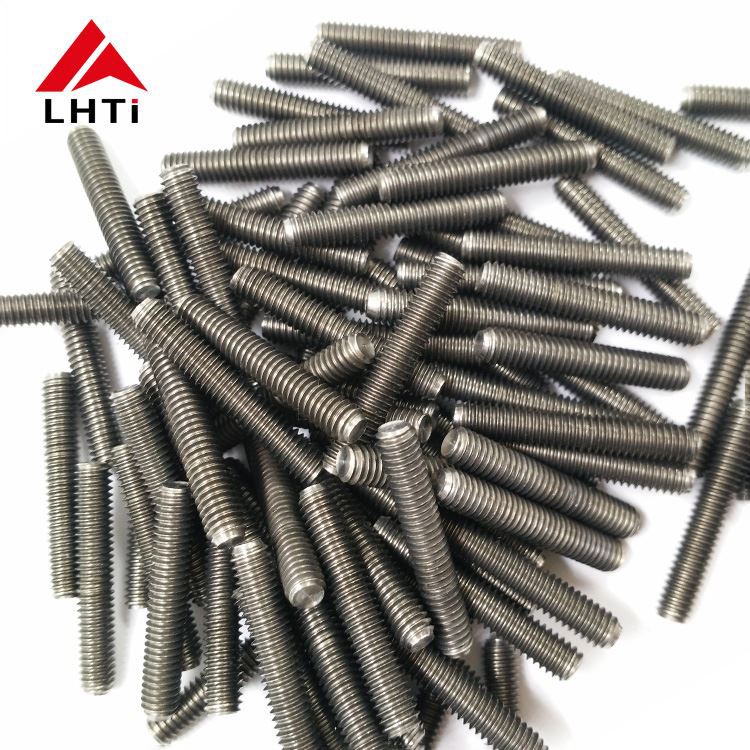

Detailed images:

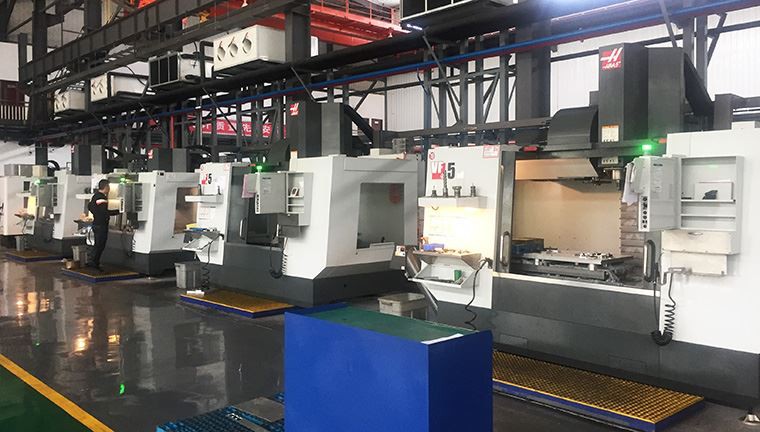

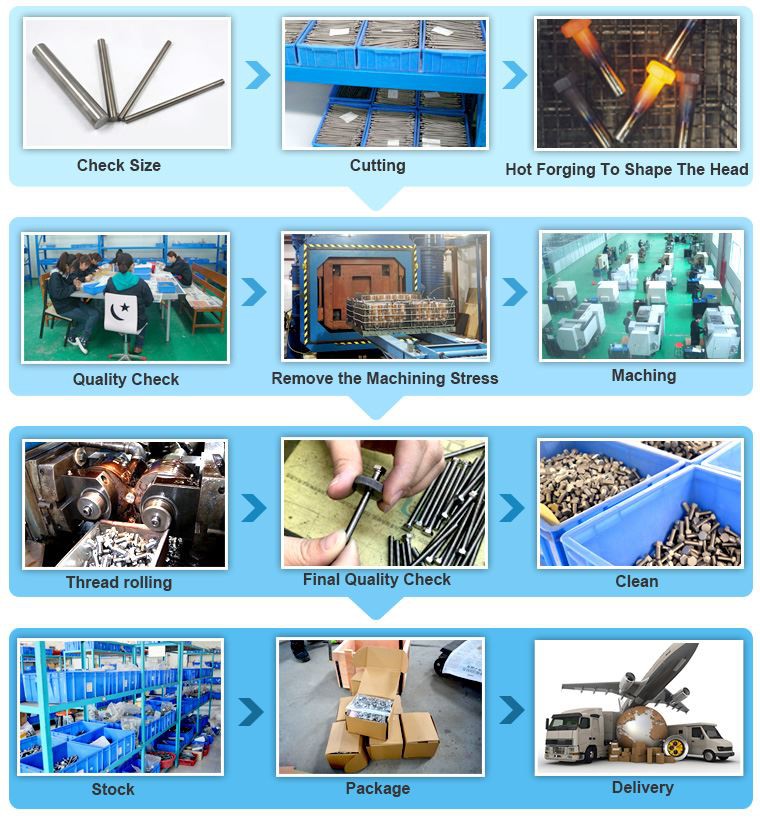

The production process:
About our company:
Baoji Lihua Non-ferrous Metal Co., Ltd. with over 15 years production and export experience of titanium fasteners,the factory covers an area of 1800 square meters, with strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annual production value is more than 30 million CNY.
The titanium fasteners we manufactured have good surface, accurate size, good performance, mainly used for automobiles and chemical industry.Now the company have been built long-term cooperations of titanium fasteners with customers from UK,Germany,USA,Japan, Singapore etc.
