Titanium Flat Washers

Titanium washers are light-weight, new-higher, ultra-hard, ultra-corrosion-resistant, and ultra-anti-loose. The grades can reach the standard of 8.8 grades and 10.9 grades and the weight is only 57 percent of that of the same grade steel screws. The products are applied in the fields of bicycles, motorcycles, automobiles, racing cars, yachts, sports, electronics, pharmaceuticals, petroleum, metallurgy, chemical industry, desalination, ocean engineering, construction industry, etc.

Titanium flat washers/gaskets are mainly stamped out of titanium plates. The shape is generally a flat gasket with a hole in the middle. The size of this hole is generally determined according to customer requirements.

Flat washers are usually thin pieces of various shapes used to reduce friction, prevent leakage, isolate, prevent loosening, or distribute pressure. Many materials and structures have such components, which are used to perform various similar functions. Limited by the material and process of threaded fasteners, the supporting surface of bolts and other fasteners is not large, so in order to reduce the compressive stress of the pressure-bearing surface to protect the surface of the connected part, washers are used. 　In order to prevent the loosening of the connection pair, anti-loose spring washers, multi-tooth lock washers, round nut stop washers, and saddle, wave, and cone elastic washers are used.

Flat washers are mainly used to reduce the pressure. When some parts are tightened with a large axial force, the washers are easy to be pressed into a dish shape. At this time, materials can be used and the hardness can be improved to solve the problem.

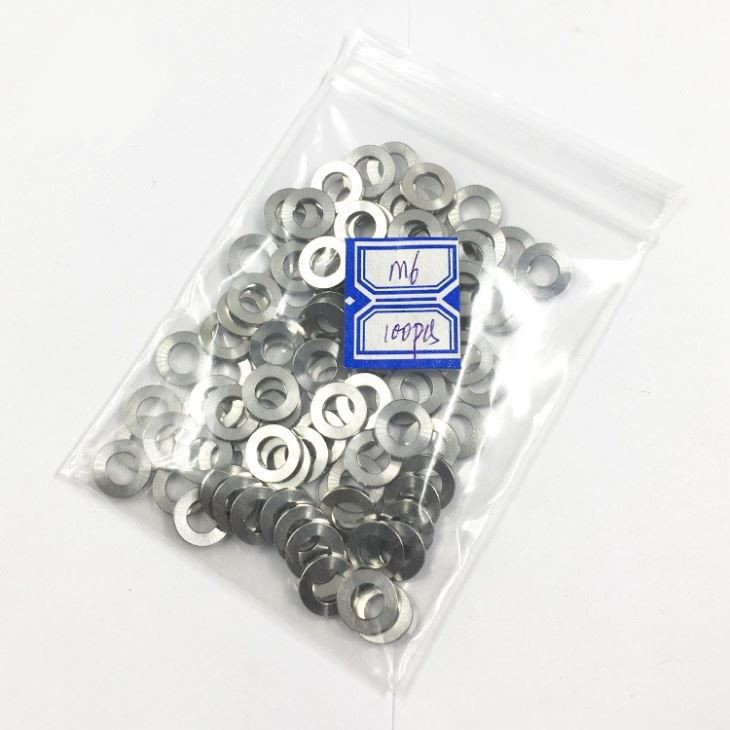

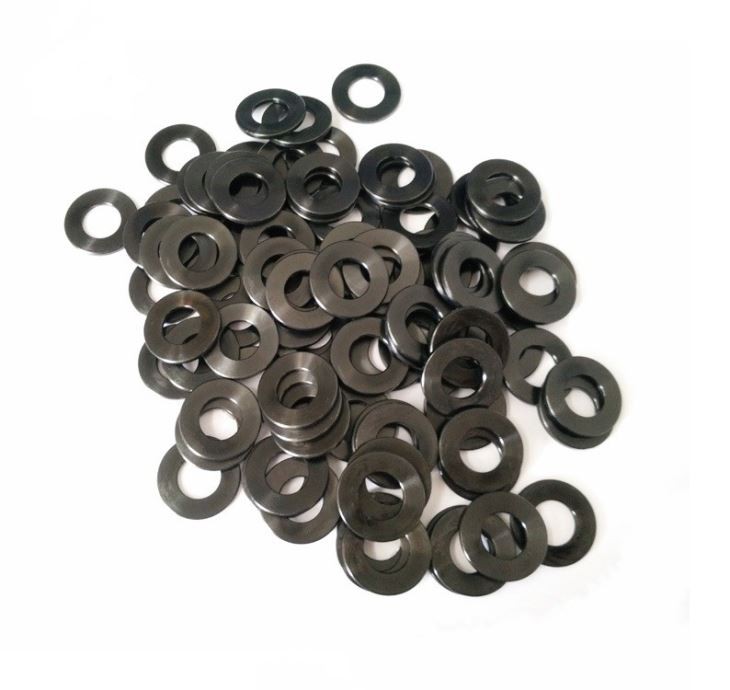

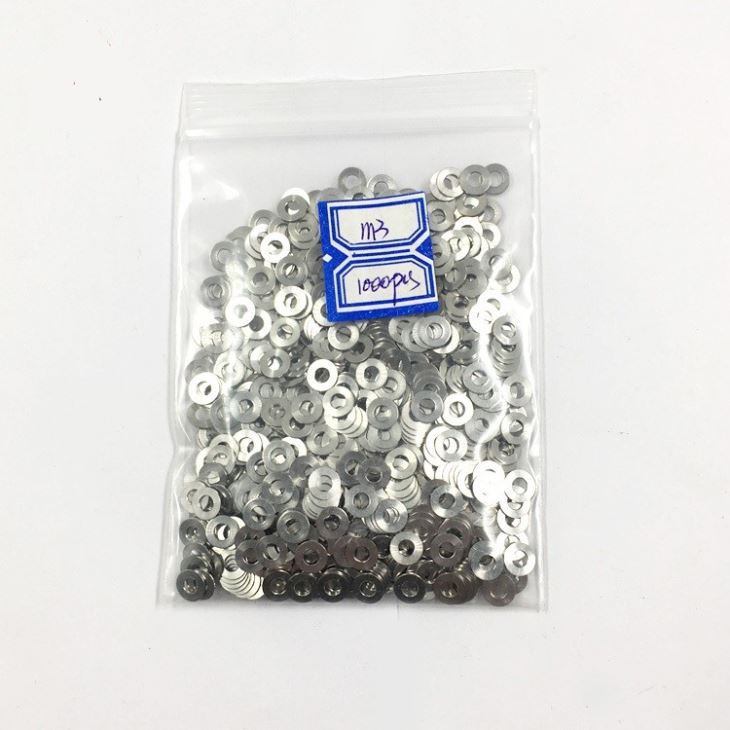

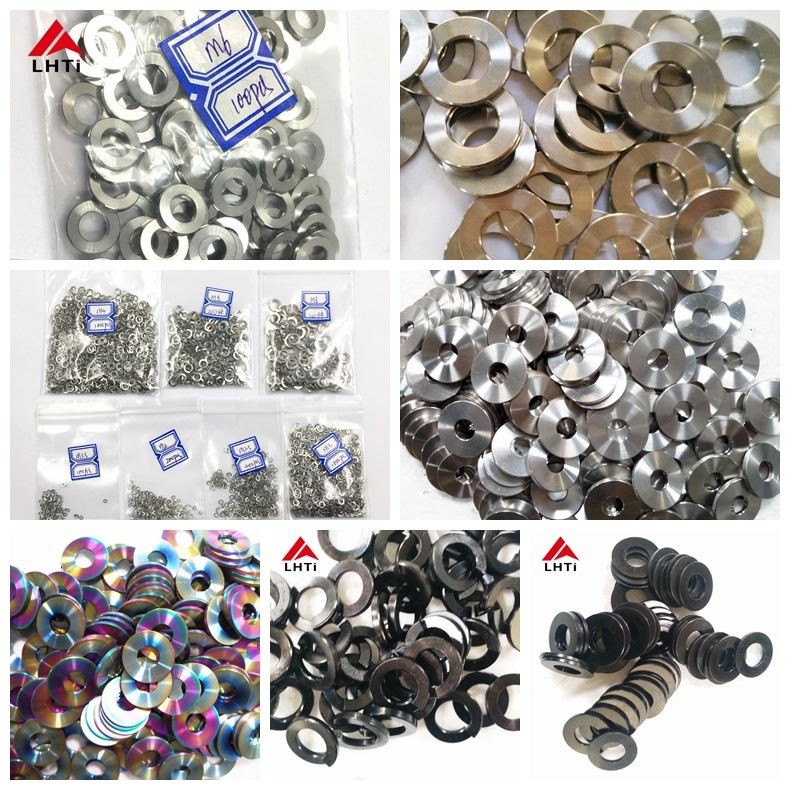

Detailed images:

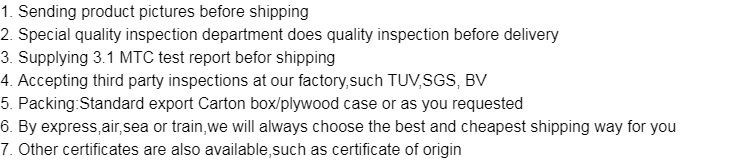

Packing and shipping:

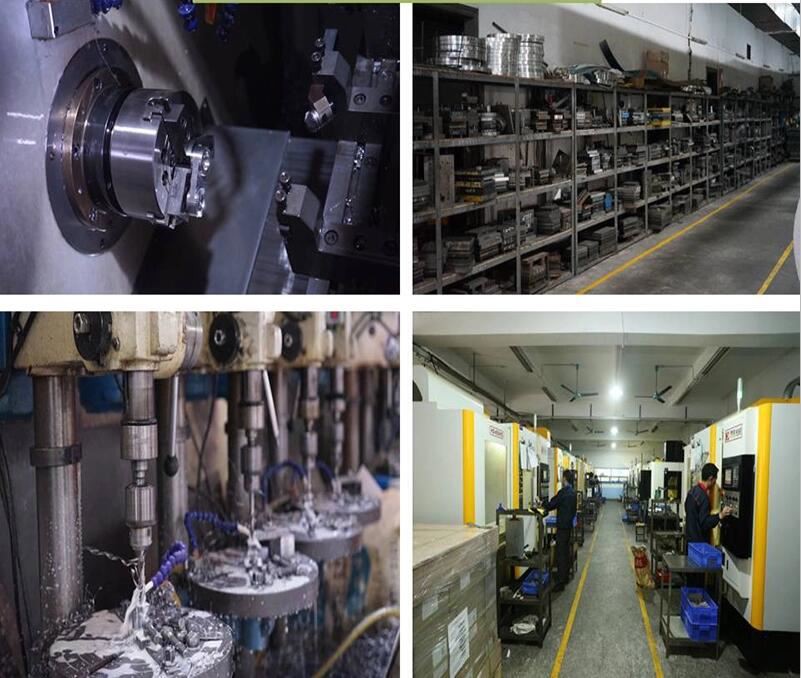

About us:

Baoji Lihua Non-ferrous Metals Co.,Ltd is specialize in producing and selling titanium products. We hold advanced technology and equipment. We adopt good raw materials and establish integrated system of quality control to ensure the high quality of our products.

Our main items are as below: titanium hex bolt,titanium hex nut ,titanium flat washer ,titanium spring washer ,titanium screw ,and so on, according to DIN,ANSI,BSW, and ISO standard. The products are widely used in various industries, such as aerospace, motorcycles, farming machines,construction,t ransportation, electric power,electronics,machinery,chemical,household electrical appliance,military,etc.

Our company was certificated by ISO 9001:2015 certificate .And many of our titanium products passed the third party inspections, such as SGS,TUV,BV etc.With its high qualty andscientific mangement and high effciency term the spirit of continuous innovation, Hamil metals Co.,Ltd willing to be your best partener.

Our adavantages:

1. More than 15 years producing titanium fasteners experience.

2. Specializing in the production of various non-standard products.

3. Provide customers with fastener connection solutions.

4. Superior material and competive price.

5. Reply your inquiry within 24 hours.
