DIN933 DIN934 Titanium Hex Bolts and Nuts

DIN933 DIN934 Titanium Hex Bolts and Nuts

DIN933 DIN934 Titanium Hex Bolts and Nuts

DIN933 DIN934 titanium hex bolts and nuts Product Name:DIN933 DIN934 titanium hex bolts and nuts
Material:Gr2 Gr5
Application: Chemical industry
Standard: DIN933 DIN934
Size:M3-M52
Technique:CNC machined, Forged
Color:Natural or anodized color
Surface:Machined, Anodizing, Black oxide

Send Inquiry

Chat Now

Product Introduction

Gr2 DIN933 DIN934 titanium hex bolts and nuts

Item Name	DIN933 Titanium bolts
Material	Titanium/ Titanium alloy
Grade	Gr2 Gr5 titanium
Standard	DIN933,DIN934
Specification	Screw / bolt: M2-M64*L6-300mm (or as your inquired ) Nut: M2-M30 Special size is available according to your drawing or requirement
Surface Treatment	Machined Anodizing, Black oxide
Color	Ti natural,different color is available
Features	light weight, acid and alkali resistance, anti-corrosion, excellent mechanical strength etc.
Applications	Industry

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Al	V	Bal
Grade2	0.3	0.25	0.03	0.1	0.015	-	-	Ti
Grade 5	0.3	0.2	0.05	0.08	0.015	5.5-6.75	3.5-4.5	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength	Yield Strength	Elongation min %
ksi	Mpa	ksi	Mpa
Grade 2	Unalloyed Ti ("Pure") 35A -CP1	58	400	40	275	20
Grade 5	Ti6Al4V	130	895	120	825	10

Detailed pictures:

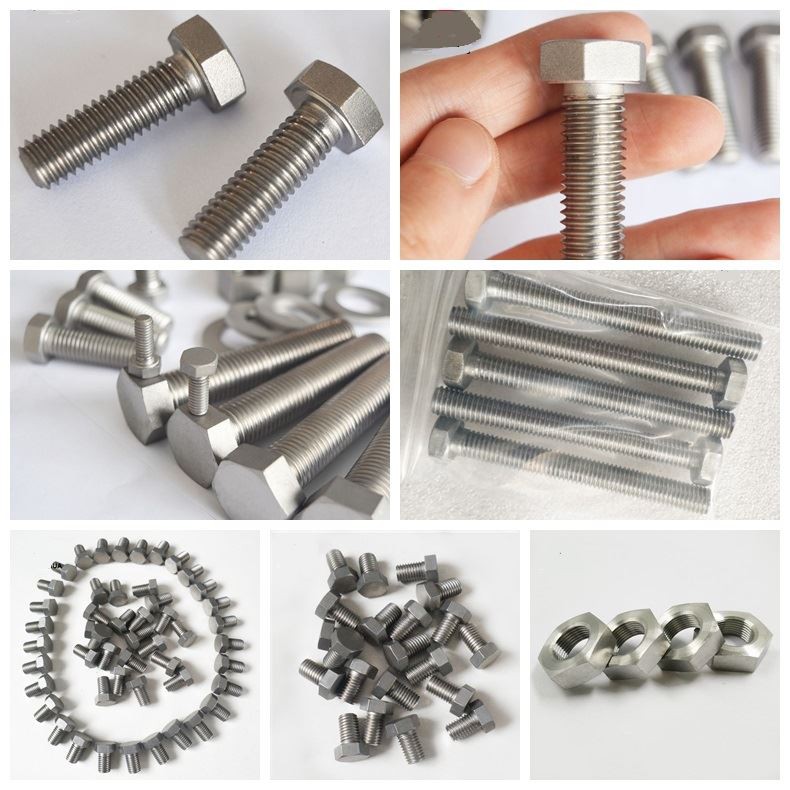

DIN 933 Ti screw

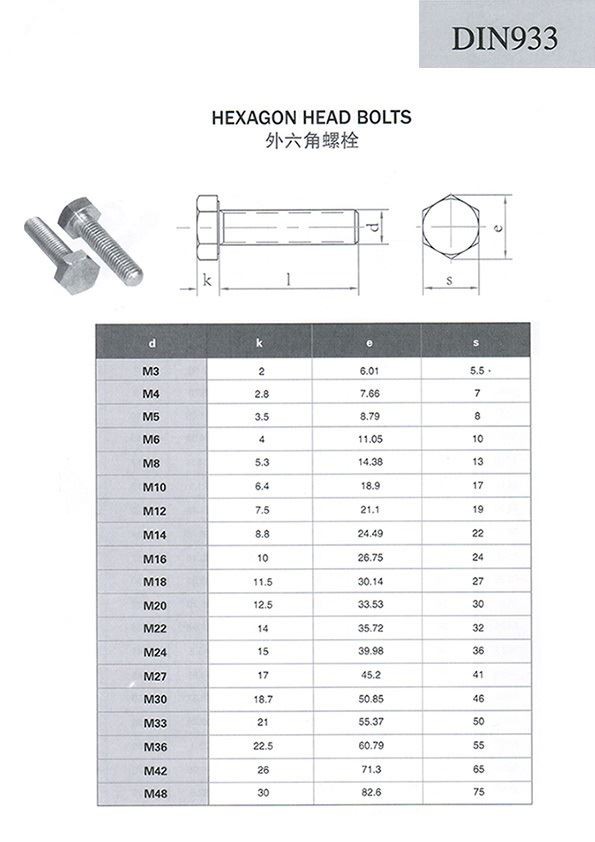

The drawing of DIN 933 titanium bolt:

DIN933

Hamil Metals Co., Ltd, established in 2006, is located on Tai Cheng Road in Baoji City, known as the "China Titanium Valley." With over 15 years of experience in producing and exporting titanium bolts, we have become a trusted name in the industry. Our titanium bolts serve a diverse array of applications, particularly in the chemical, aerospace, and automotive sectors.

We offer a range of standard titanium fasteners and can also provide customized bolts based on customer specifications. Our products are renowned for their exceptional quality, characterized by high dimensional accuracy, superior surface finish, robust strength, and extended service life.

Other titanium products we can manufacture:

Titanium pipes /tubes, titanium plate/ sheet, titanium pipe fittings, titanium valves, titanium wires.
