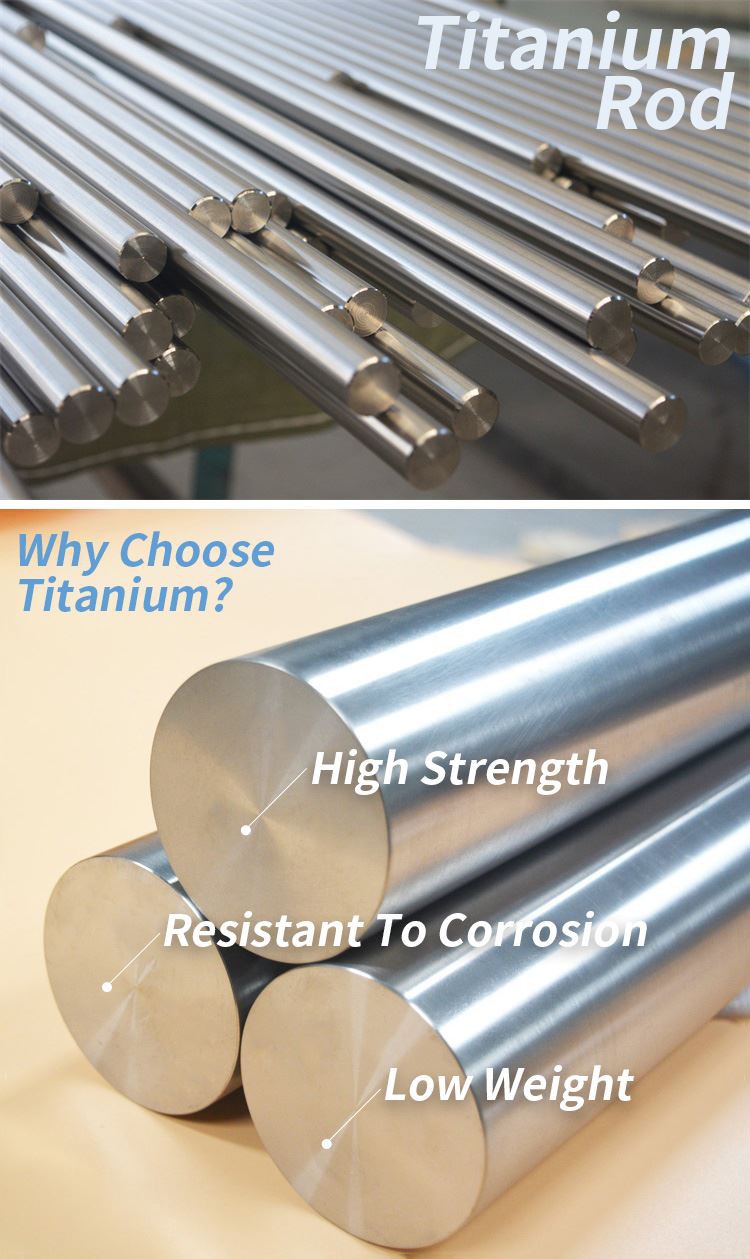

10mm Titanium Bar Gr5
Material:Grade 5 (Ti6Al4V)
Standard : ASTM B348
Size: Dia 5--200mm * Max L6000mm
Applications :Industrial
Supply status: Annealed
Package: Carton or plywood case.
GR5 titanium rod is made of a titanium alloy, the main component is Ti6Al4V. This is the most commonly used grade of titanium alloy and has high corrosion resistance. We offer GR5 titanium rod products in a variety of sizes, shapes and types. The minimum tensile strength of GR5 titanium rod is 950MPa and the minimum yield strength is 880MPa. The specification for this grade is ASTM B348.
| Specifications Chart | ASTM B348 |
| Diameter | 5 mm To 500 mm |
| Length | 100 mm To 3000 mm |
| Surface Finish | Bright Polished |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Shape | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc |
Grade 5 titanium Bar Chemical composition
| Grade | Ti | C | Fe | Al | V | O |
|---|---|---|---|---|---|---|
| Titanium Grade 5 | 90 min | – | 0.25 max | 6 min | 4 min | 0.02 max |
Grade 5 titanium Bar Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |

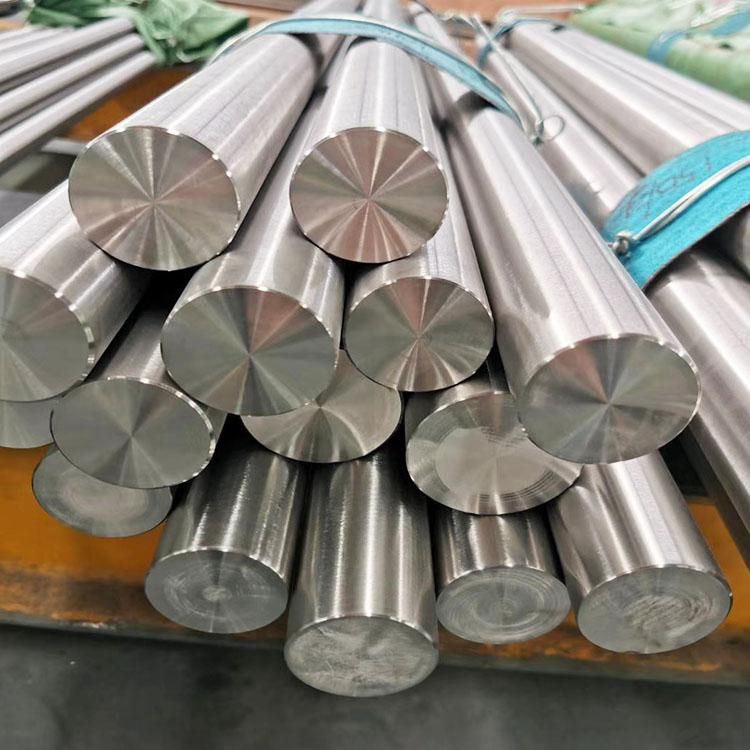

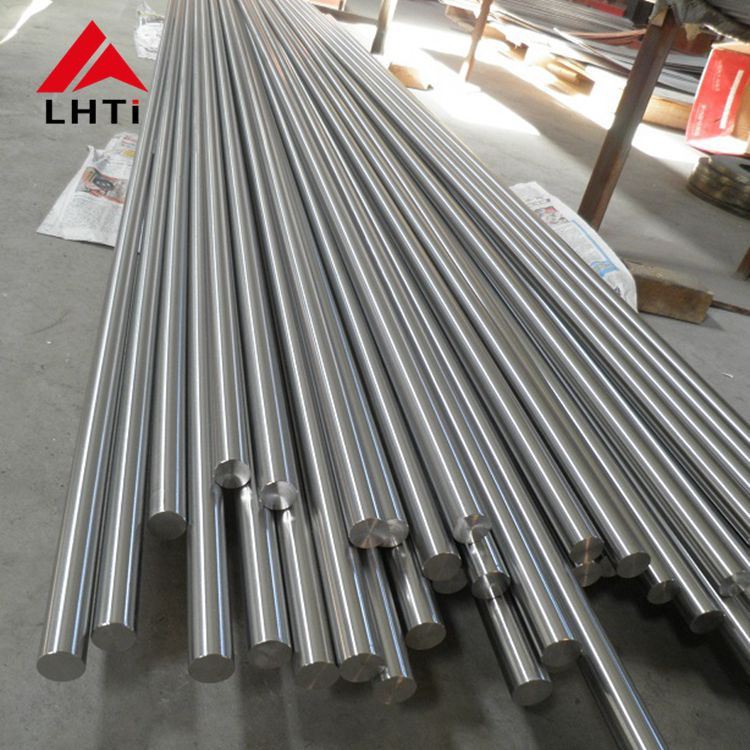

Detailed images:

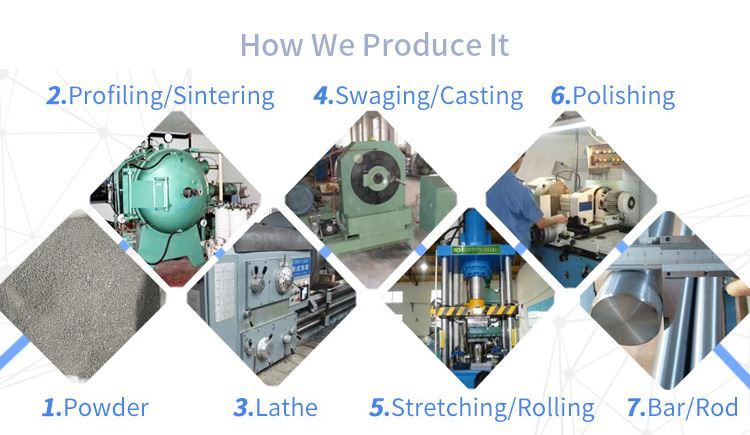

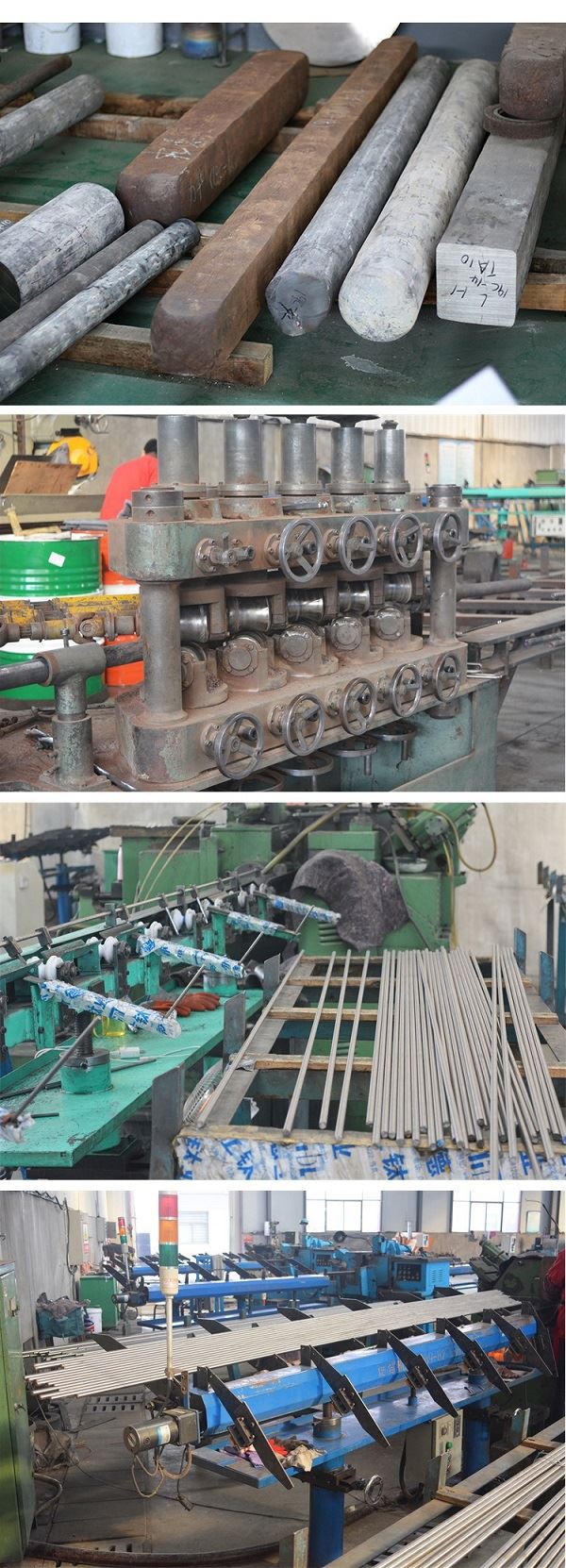

Production process of titanium bar:

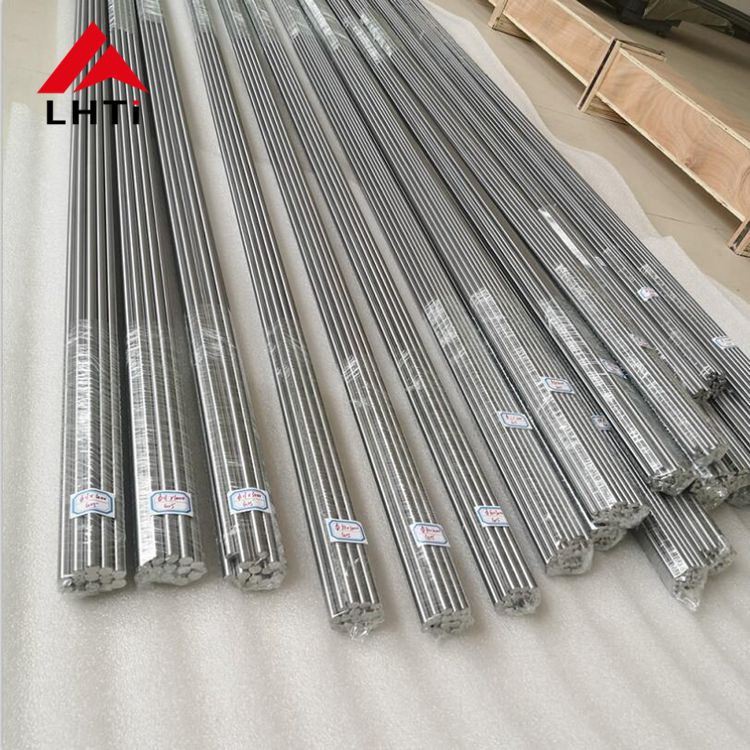

Packaging and shipping:
1. Before shipping we will supply the picture of your product for your reference.
2. Supply 3.1 MTC test report
3. We can also accept SGS or BV test at our factory
4. Packing: Standard export wooden case or as your request
5. By Air, By Sea, By Train, By express we will choose the best and cheaper shipping way for you
We are available in any time!
