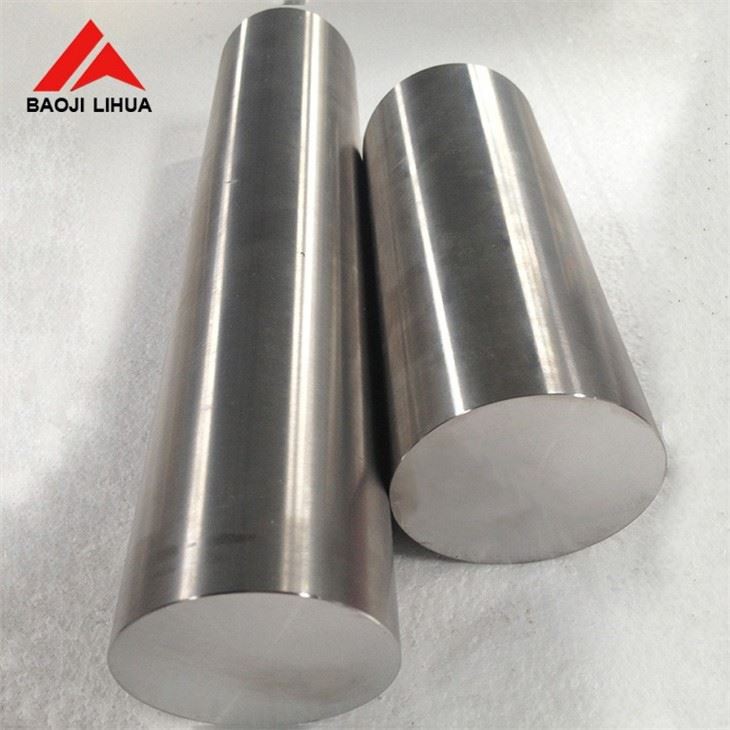

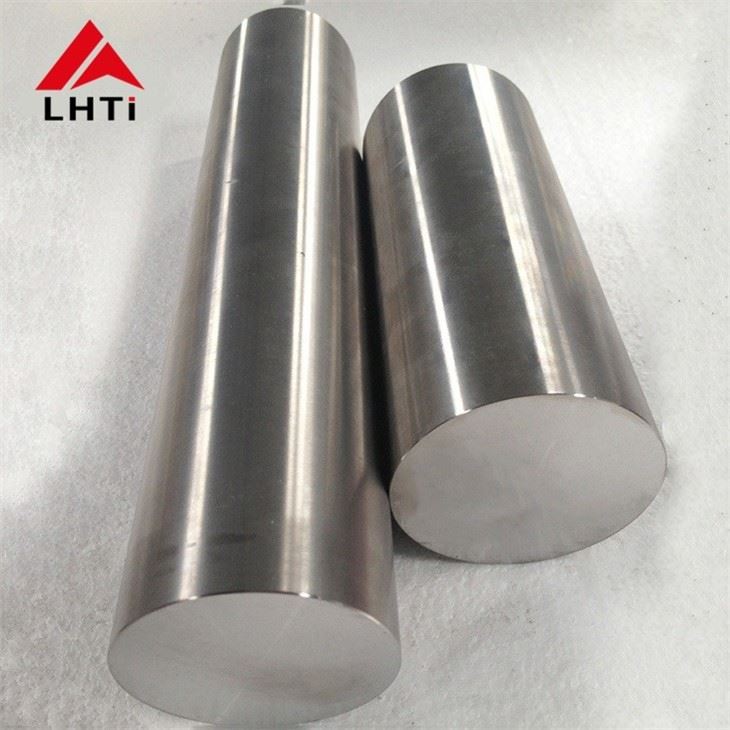

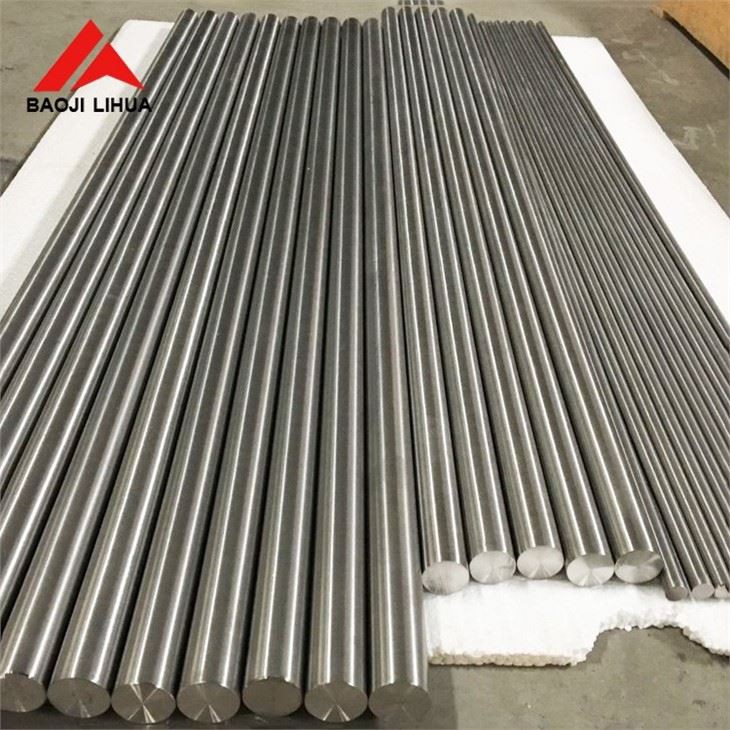

Gr.5 titanium alloy bar

Gr.5 titanium alloy bar

Product name: Gr.5 titanium alloy bar
Material: Ti6al4v (grade 5)
Standard : ASTM B348 AMS 4928 ASTM F136
Size: Dia 5--200mm * Max L6000mm
MOQ:10kgs

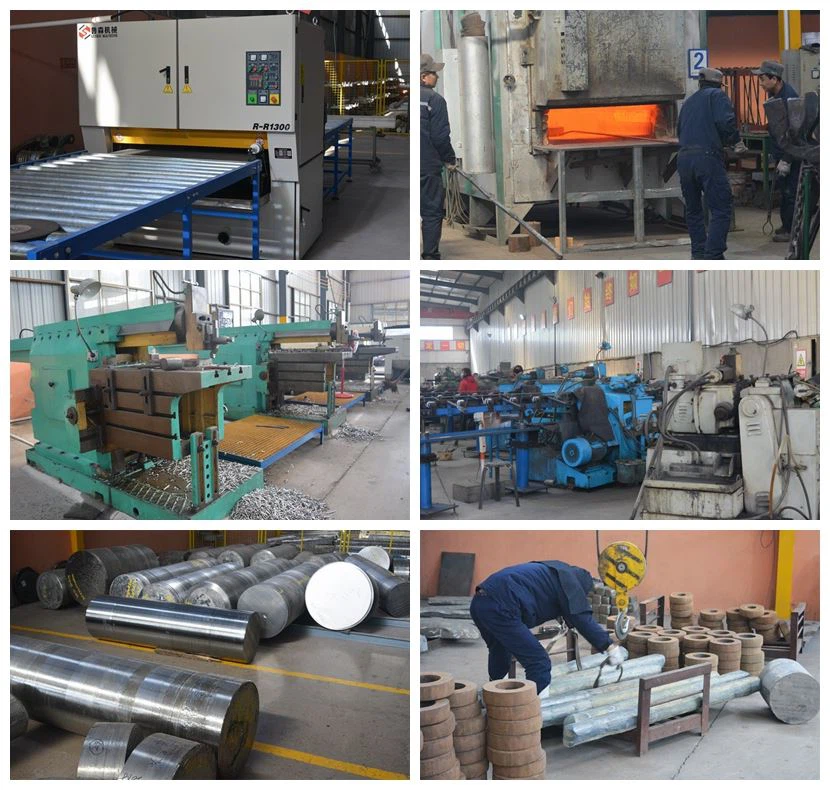

Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bar manufacturer
Applications :Industrial,medical, aviation
Supply status: Annealed
Package: Carton or plywood case.
Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
Feature : Low density, special strong strength, excellent corrosive resistance

Send Inquiry

Chat Now

Product Introduction

Grade 5 titanium rod belongs to α - β alloy, which is the most widely used titanium alloy material. GR5 titanium has good mechanical properties and hardness. Its density is the same with pure titanium: 4.51g/cm3, and its corrosion resistance is as good as that of pure titanium. Widely used in aerospace industry, marine industry, power generation, oil and natural gas, etc.

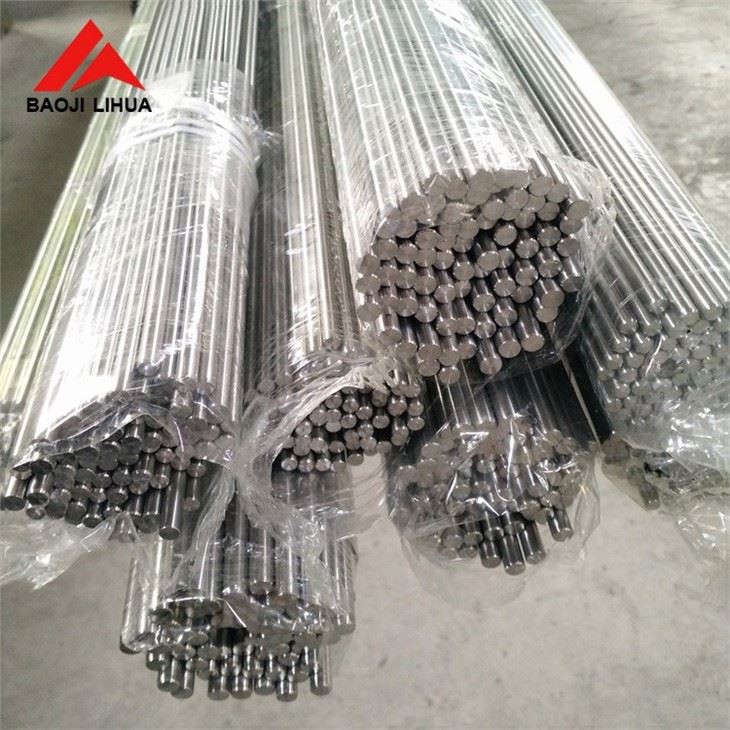

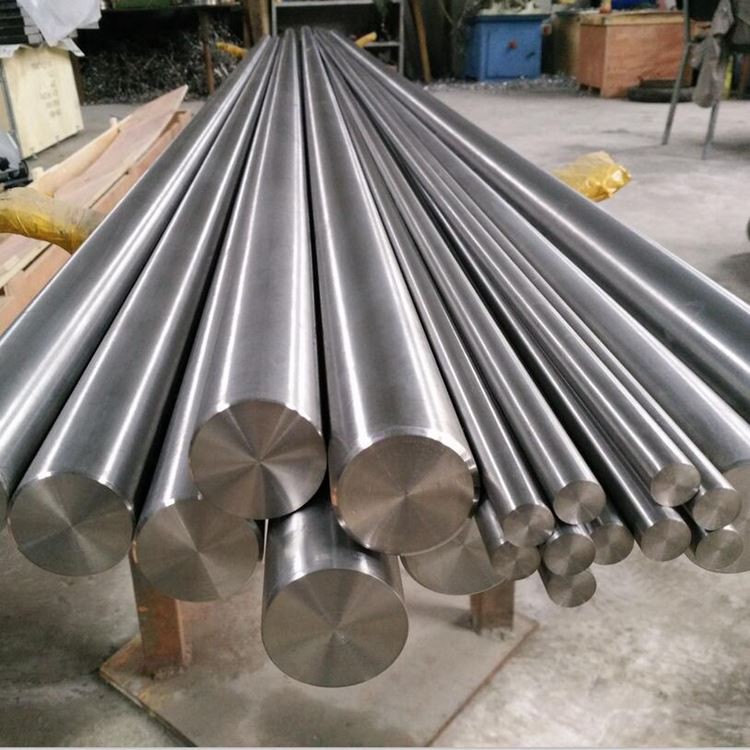

The diameter of titanium rod ranges from 5mm to 500mm, and the length from 50mm to 6000mm. The size can also be customized according to the needs of customers. In addition to the round titanium rod, we also improved other shapes, such as flat titanium rod, square titanium rod and hexagonal titanium rod.

Product name: Gr.5 titanium bar

Material: Ti6al4v (grade 5)

Standard : ASTM B348 AMS 4928 ASTM F136

Size: Dia 5--500mm * Max L6000mm

MOQ:10kgs

Factory Area:3000 ㎡

Company staff:48

Foreign trade team service staff:20

China's professional titanium bar manufacturer

Applications :Industrial,medical, aviation

Supply status: Annealed

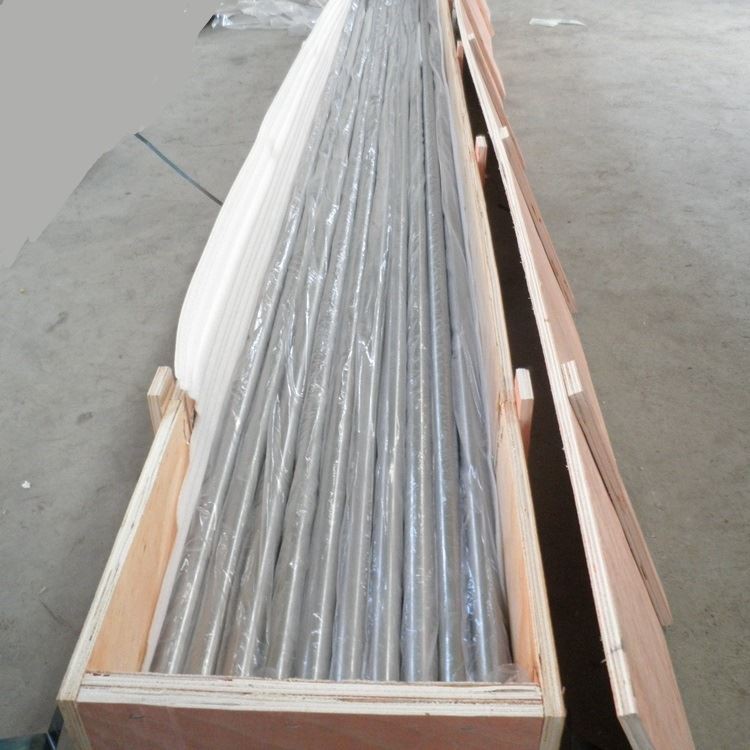

Package: Carton or plywood case.

Quality and Test : EN10204.3.1 certificate

Surface:CNC machined polished

MOQ : 10kgs

Feature : Low density, special strong strength, excellent corrosive resistance

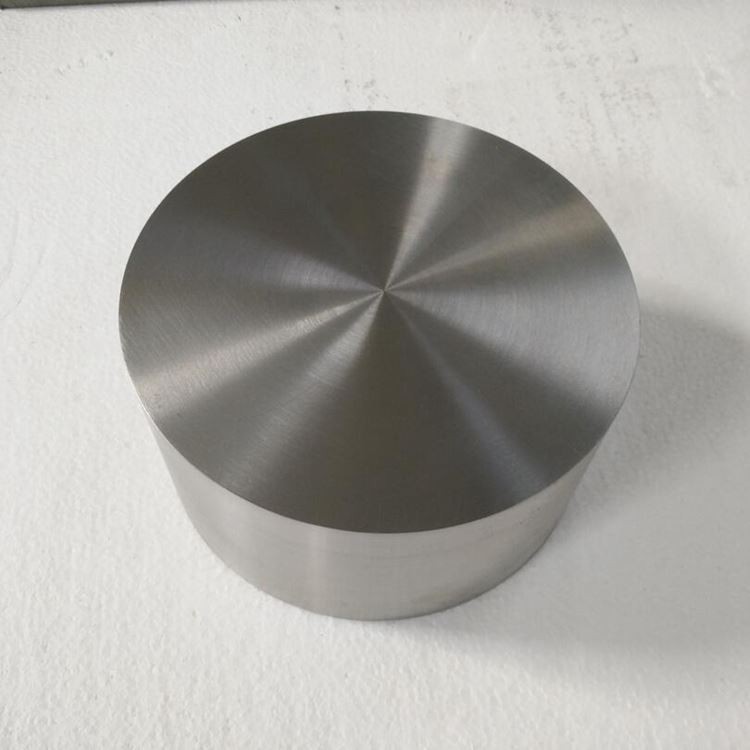

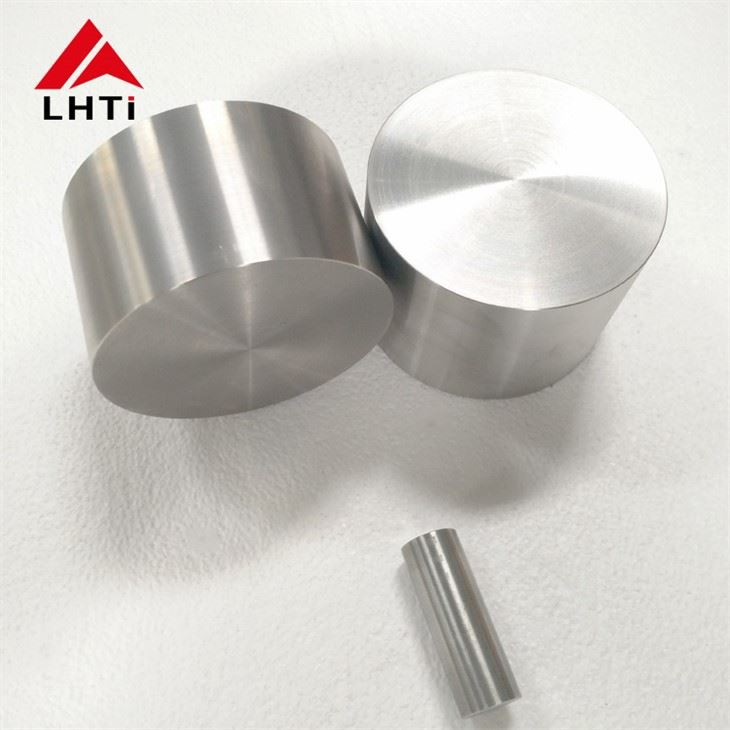

Gr.5 titanium alloy bar
Chemical compositions(weight%,<=)
Ti	Al	V	Fe	C
Remainder	5.5-6.75	3.5-4.5	0.30	0.08
N	H	O	Other(total)
0.05	0.015	0.2	0.4
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
895	825	10	25
