8mm Titanium Bar

8mm Titanium Bar

Product name: 8mm titanium bar
Material: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928 etc.
Size: Dia 5mm-300mm (0.2"-12"), Length 50mm-6000mm (2.0"-236")
Applications :Industrial
Supply status: Annealed
Package: Carton or plywood case.
Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
MOQ : 10kgs
Feature : Low density, special strong strength, excellent corrosive resistance

Send Inquiry

Chat Now

Product Introduction

Name	Titanium Bars / Titanium Rods
Standard	ASTM B348, ASTM F136, ASTM F67, AMS 4928,ISO5832-2,ISO5832-3
Available Materials	Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23,Ti-6AL7Nb(New Material)
Diameter	3mm~350mm
Certificates	ISO9001:2018, The third test report
Shape	Round bar, Square /flat bar, Hexagonal bar, Rectangle bar
Techniques	Hot or cold rolling forging or annealed
Delivery time	If in stock, 3-7 days; If production, 10-20 days
Application	Industrial, Medical, Salt-making, Petrochemical, Metallurgy, Electronics, Chemical

ASTM B348	C	O	N	H	Fe	Other

Grade-1	0.03	0.03-0.10	0.012	0.005	0.08
Grade-2	0.03	0.08-0.16	0.015	0.008	0.12
Grade-3	0.03	0.13-0.20	0.02	0.008	0.16
Grade-4	0.03	0.18-0.32	0.025	0.008	0.25
Grade-5	0.05	0.12-0.20	0.03	0.015	0.22	Al 5.5-6.5
						V 3.5-5.5
Grade-7	0.03	0.08-0.16	0.015	0.008	0.12	Pd 0.12-0.25
Grade-9	0.03	0.08-0.16	0.022	0.008	0.25
Grade-12	0.03	0.08-0.16	0.015	0.008	0.15	Mo 0.6-0.9
						Ni 0.2-0.4
Grade-5 ELI	0.03	0.03-0.11	0.012	0.005	0.2	Al 5.5-6.5
						V 3.5-5.5

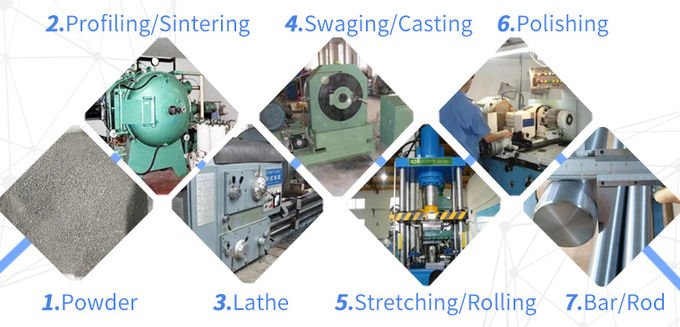

Titanium bar / titanium rod processing：

202009221606005018738

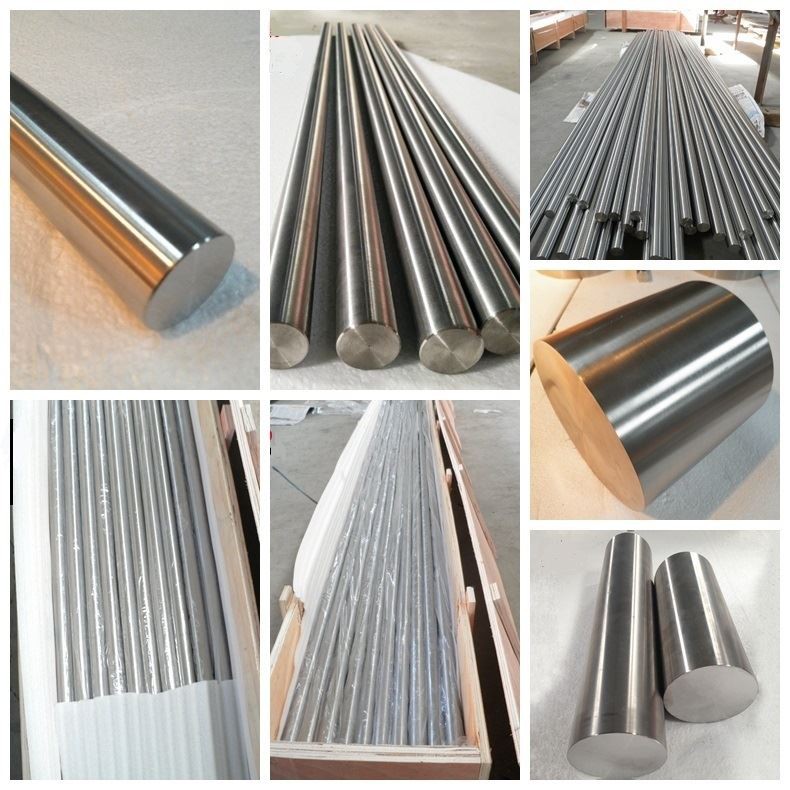

Detailed pictures of Titanium bar / titanium rod processing

Titanium bar (2)

Titanium 6-4 Bar

Titanium Ti 6al 4v Bar
