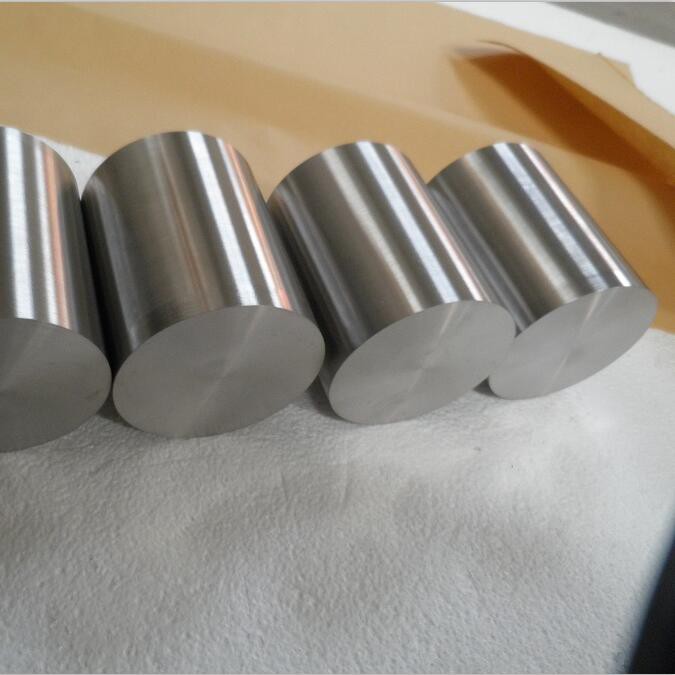

Titanium Ti 6al 4v Bar

Titanium Ti 6al 4v Bar

Product Name: Titanium ti 6al 4v bar Standard: ASTM B348 AMS 4928 ASTM F136 Material: Gr5 Unit Price: $20.5usd/kg- $55.5usd/kg Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: Max 6000mm Surface: Bright Condition: Annealed

Send Inquiry

Chat Now

Product Introduction

Titanium ti 6al 4v bar

Standards: ASTM B348 AMS 4928 ASTM F136

Diameters size in stock: 3mm/6mm/8mm/10mm/20mm/30mm, length: 1000mm-6000mm, or cutting to your needed length

Shapes: Round bar, square bar , hex bar

Process: Hot forging-hot rolling-turning light (polishing)

Specifications: (Diameter * Length / mm): 6mm-250mm * Max 6000mm

Delivery status: hot processing status, annealing status

Features: 1.Polished surface without any defects free from cracks no pitting.

2.Two ends flatting making sure length tolerance and good looking.

Titanium ti 6al 4v bar(UNS R50400)
Chemical compositions(weight%,<=)
Ti	Al	V	Fe	C
Remainder	5.5-6.75	3.5-4.5	0.30	0.08
N	H	O	Other(total)
0.05	0.015	0.2	0.4
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
895	825	10	25

Other titanium bar & titanium alloy bar:

Grade 1—UNS R50250. Unalloyed titanium

Grade 2—UNS R50400. Unalloyed titanium

Grade 7—UNS R52400. Titanium alloy (0.12 to 0.25 % palladium)

Grade 12—UNS R53400. Titanium alloy (0.3 % molybdenum, 0.8 % nickel)

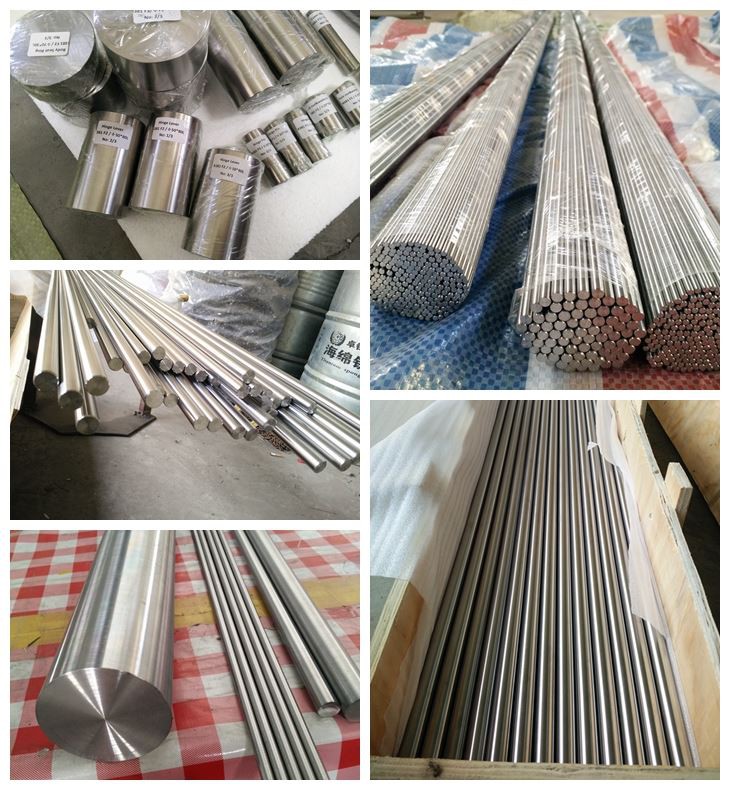

Titanium bar 32
