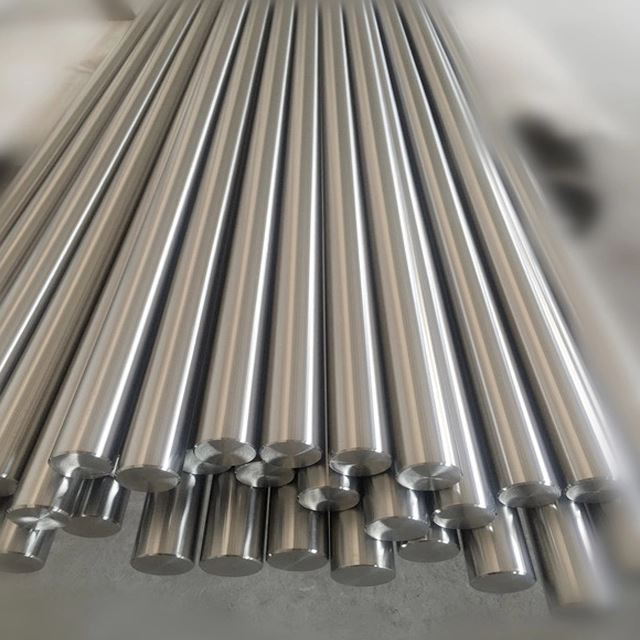

10mm Titanium Bar

10mm Titanium Bar

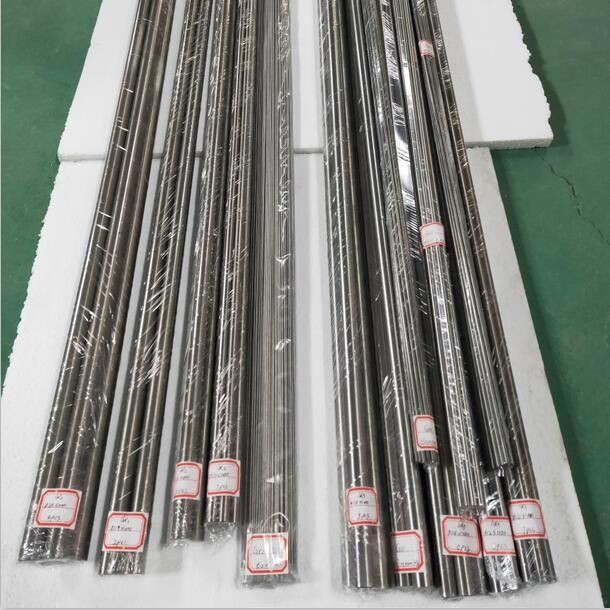

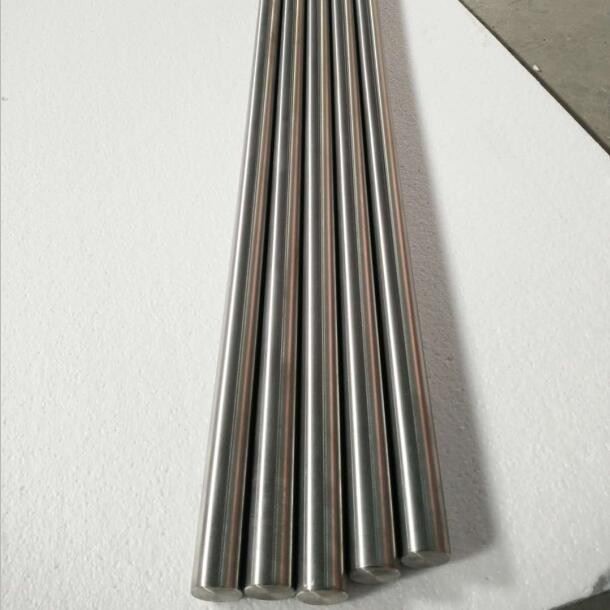

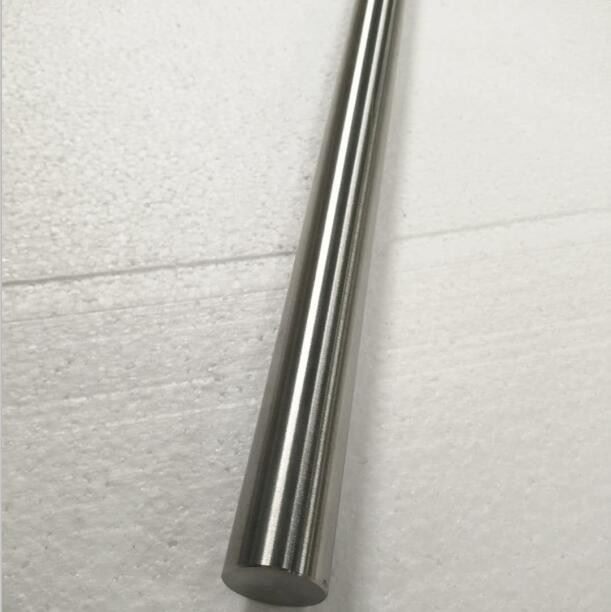

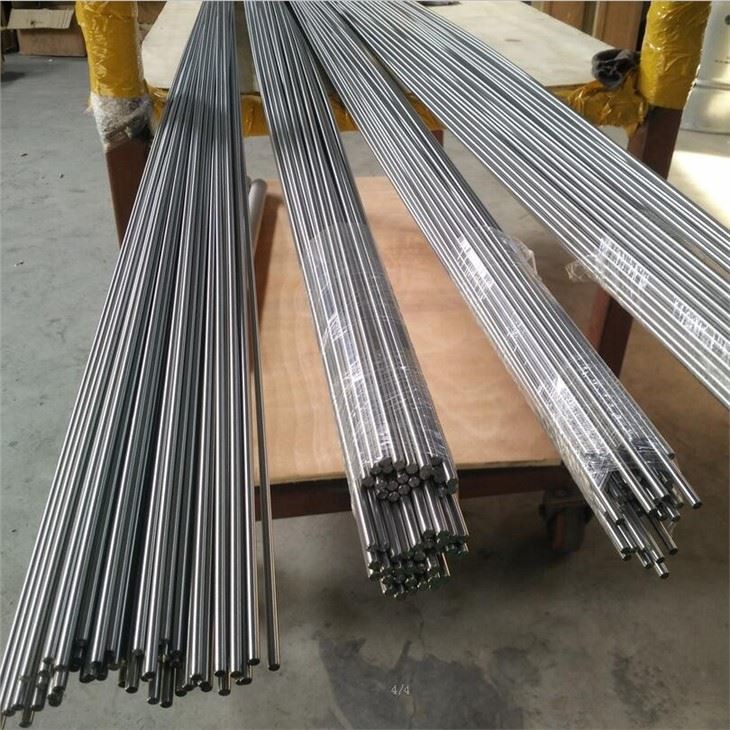

Product name: 10mm titanium bar
Application:Medical,surgical implant(Bone nail implant, dentistry etc.)
Standard : ASTM F136,ISO 5832-3
Material Grade: Grade 5,Grade 23(Ti6Al4V ELI)
Size: Dia (3.5-20)mm *L(up to 3000mm)
Diameter Tolerance :h9-h7
Shape:Round
Surface:Bright
Supply status: Annealed M
Certificate : ISO 9001, thrid party inspection is available(SGS TUV etc.).
Package: Export Carton box or plywood case.
Quality and Test : EN10204.3.1 certificate

Send Inquiry

Chat Now

Product Introduction

As the biomedical metal materials, titanium and titanium alloys have become artificial joints (hip, knee, shoulder, ankle, elbow, wrist, finger joints, etc.) and bone trauma products (intramedullary nails, steel plates, screws, etc.) by virtue of their excellent comprehensive properties. ), Spinal orthopedic internal fixation system, dental implants, dental trays, orthopedic wires, artificial heart valves, interventional cardiovascular stents and other medical internal plant products of choice. At present, there is no better metal material for clinical use than titanium alloy.

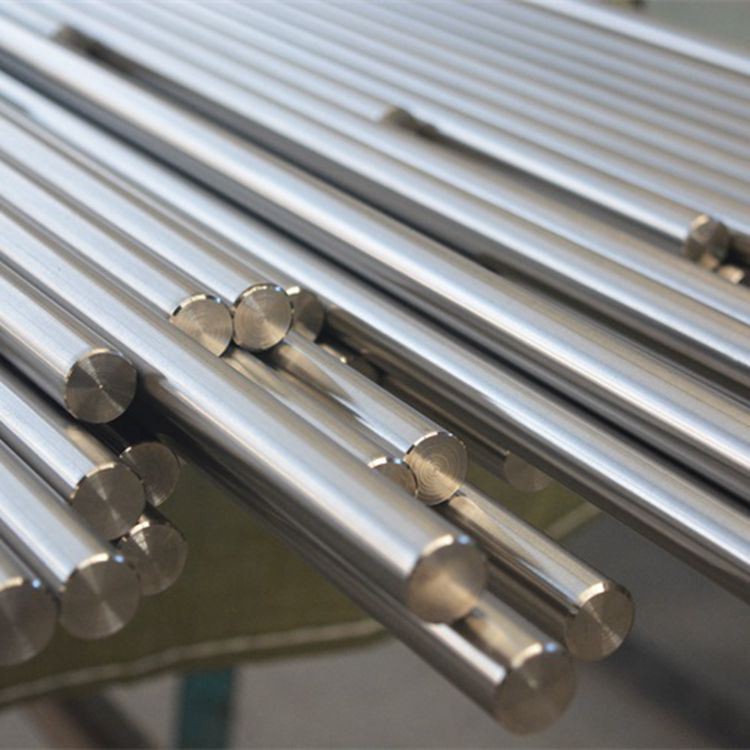

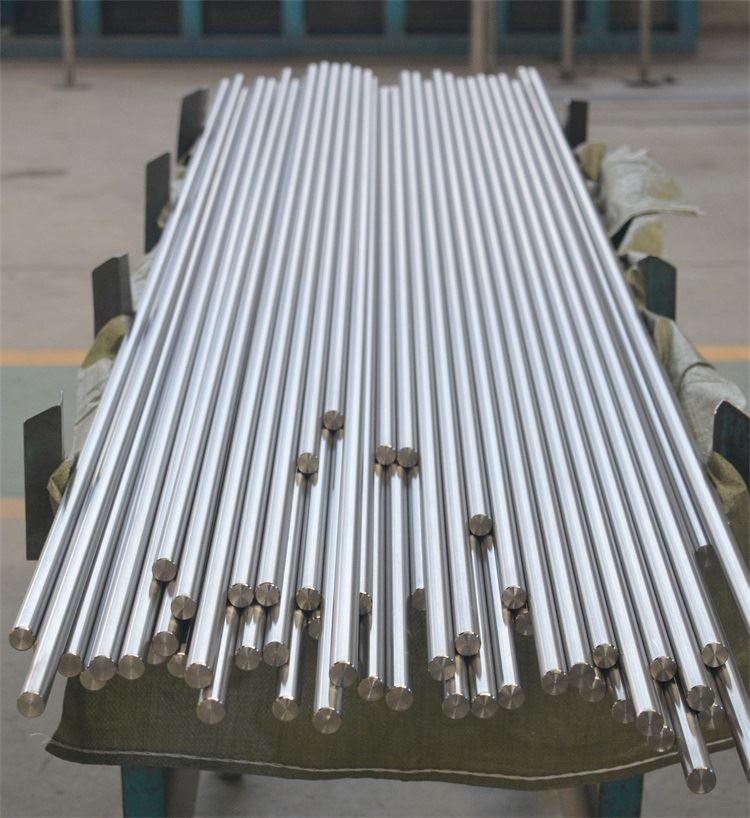

Product name:10mm titanium bar,medical titanium bar,Titanium bar used for surgical implant,gr23 titanium bar

Standard : ASTM F136,ISO 5832-3

Material Grade: Grade 5,Garde 23(Ti6Al4V ELI),Ti6Al7Nb

Size: Dia (3.5-20)mm * L(up to 6000mm)

Tolerance grade:h9-h7

Shape:Round

Surface:Bright

Supply status: Annealed M

Certificate : ISO 9001, thrid party inspection is available(SGS TUV etc.).

Package: Export Carton box or plywood case.

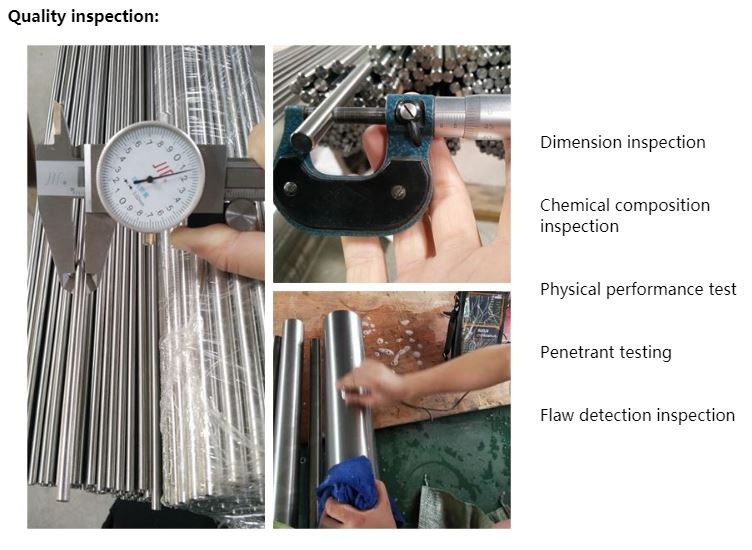

Quality and Test : EN10204.3.1 certificate

Application:Medical,surgical implant(Bone nail implant, dentistry etc.

Gr5 ELI(Gr23) Chemical compositions and physical properties
Chemical compositions(weight%,<=)
Ti	Al	V	Fe	C
Reminder	5.5-6.75	3.5-4.5	0.30	0.08
N	H	O	Other(total)
0.05	0.015	0.2	0.4
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
895	825	10	25
