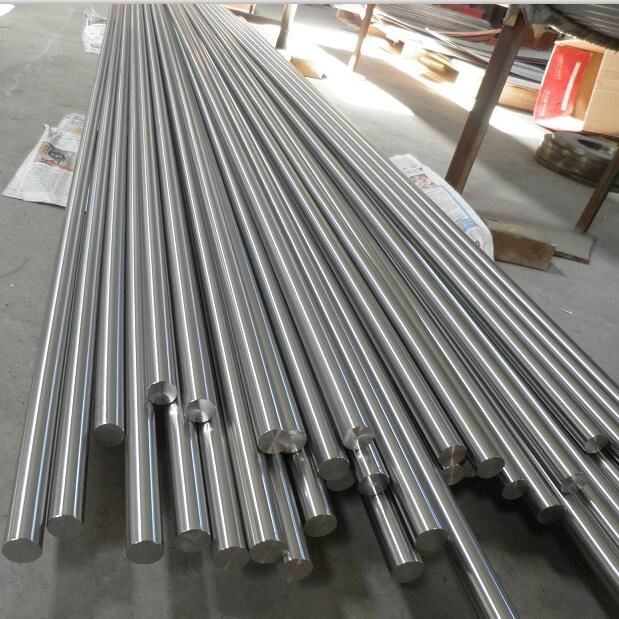

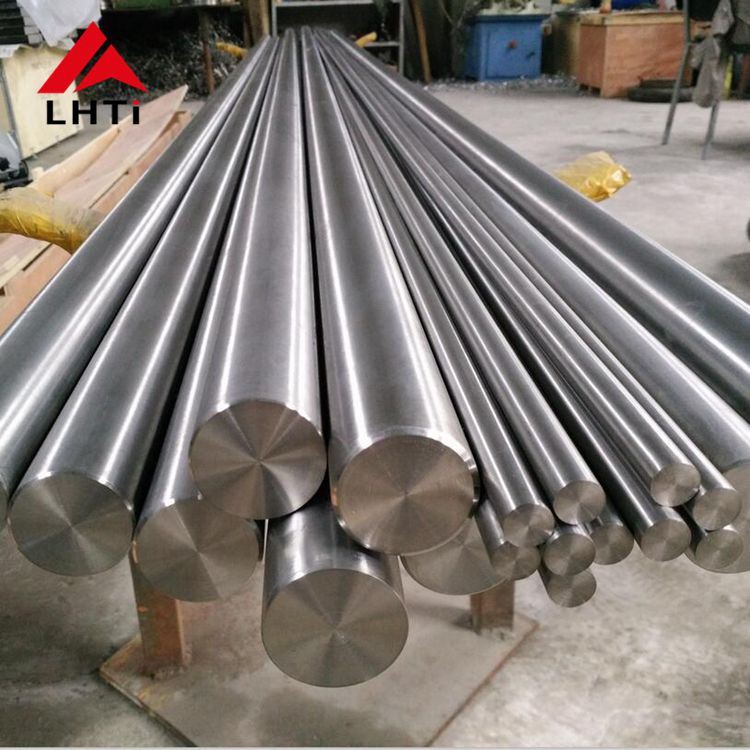

30mm Titanium Bar
Material:GR1, GR2, Gr3, Gr4, GR5, GR7, GR12
Standard : ASTM B348, AMS 4928
Size: Dia 5--200mm * Max L6000mm
Applications :Industrial
Supply status: Annealed

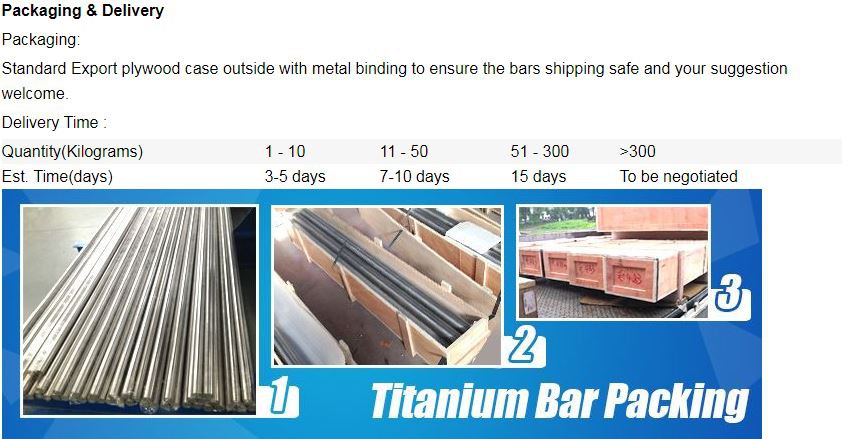

Package: Carton or plywood case.

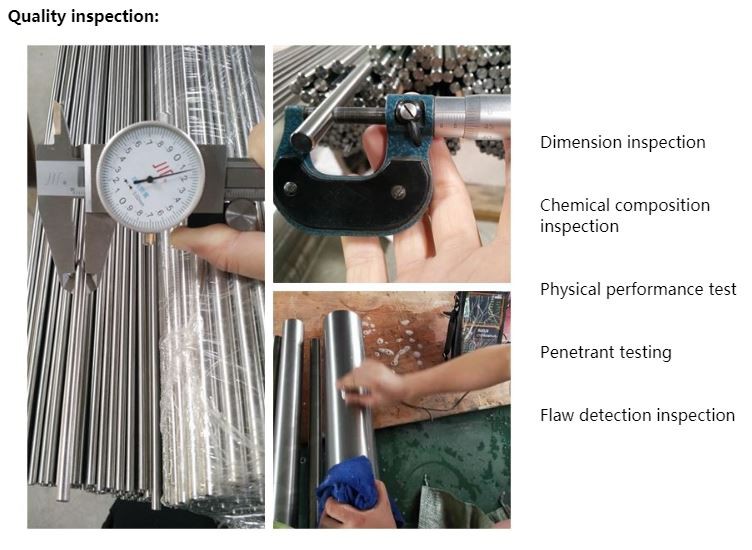

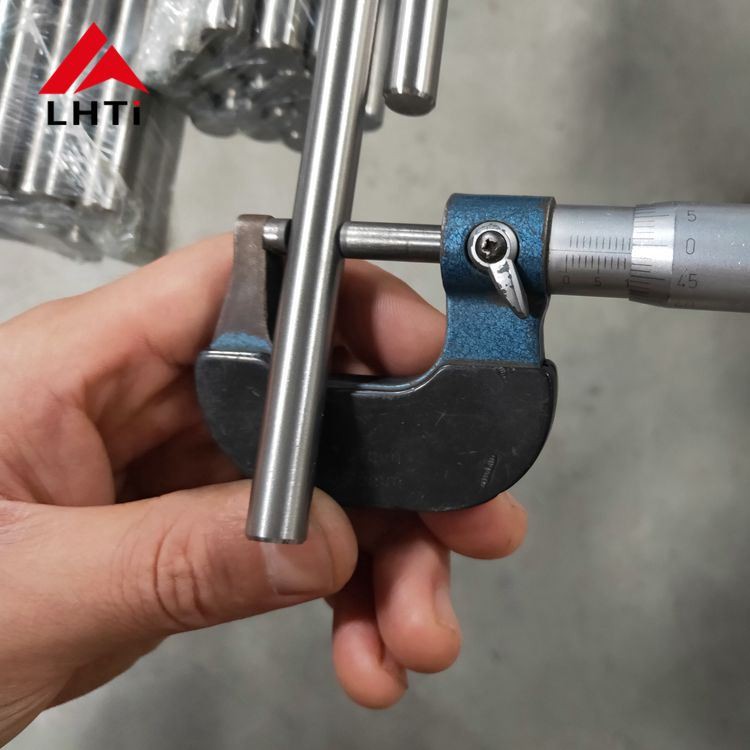

Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
MOQ : 10kgs
Feature : low density, special strong strength, excellent corrosive resistance
30mm titanium bar
Material:GR1, GR2, Gr3, Gr4, GR5, GR7, GR12
Standard : ASTM B348, AMS 4928,ASTM B F136/67
Size: Dia 5--200mm * Max L6000mm
Status: Annealed
Packing: Carton or plywood case.
Certificate : EN10204.3.1 certificate
Surface: Bright/ polished
MOQ : 10kgs
Application : Chemical Industrial,Aerospace, petrochemical, shipbuilding, automotive, etc.
Physical Properties | |||||
Tensile Strength(min) | Yeild Strength(min) | Elongation(%) | |||
ksi | MPa | ksi | MPa | ||
Grade 1 | 35 | 240 | 20 | 138 | 24 |
Grade2 | 50 | 345 | 40 | 275 | 20 |
Grade 3 | 65 | 450 | 55 | 380 | 18 |
Grade 4 | 80 | 550 | 70 | 483 | 15 |
Grade 5 | 130 | 895 | 120 | 828 | 10 |
Grade 7 | 50 | 345 | 40 | 275 | 20 |
Grade 12 | 70 | 483 | 50 | 345 | 18 |

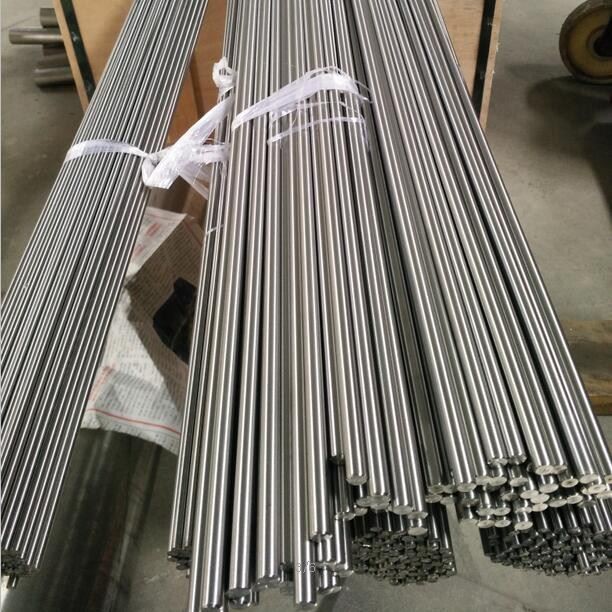

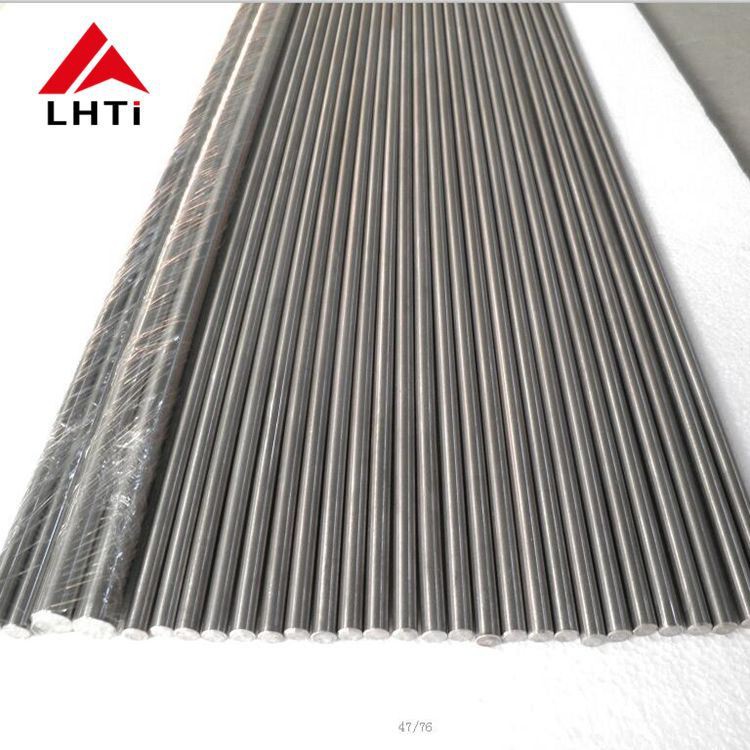

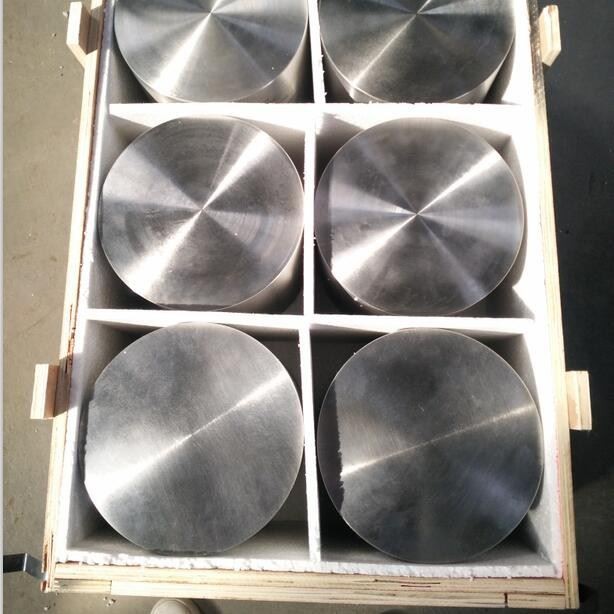

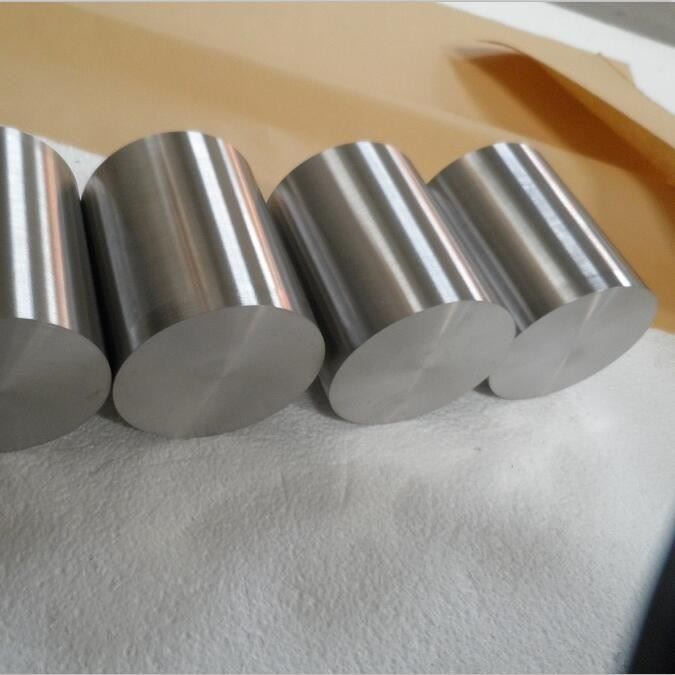

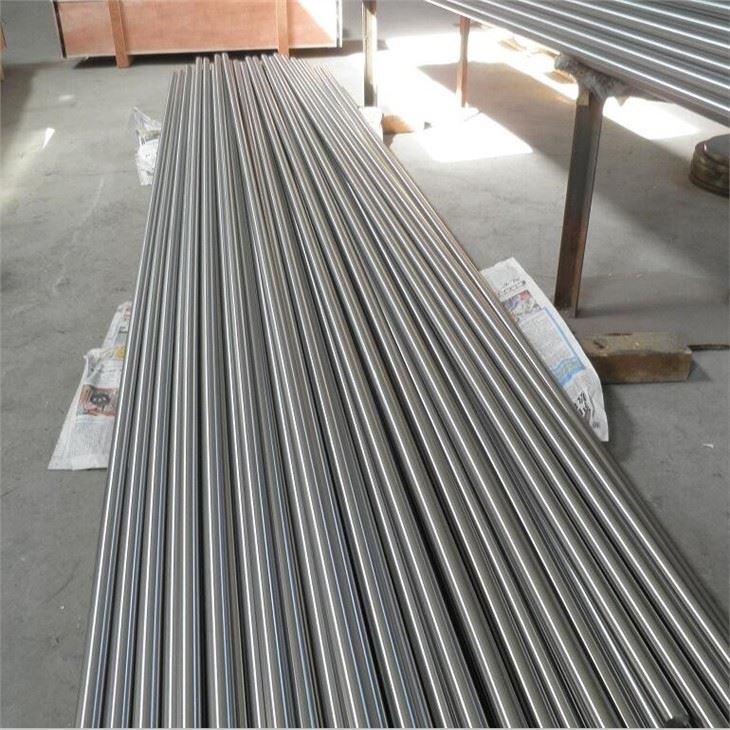

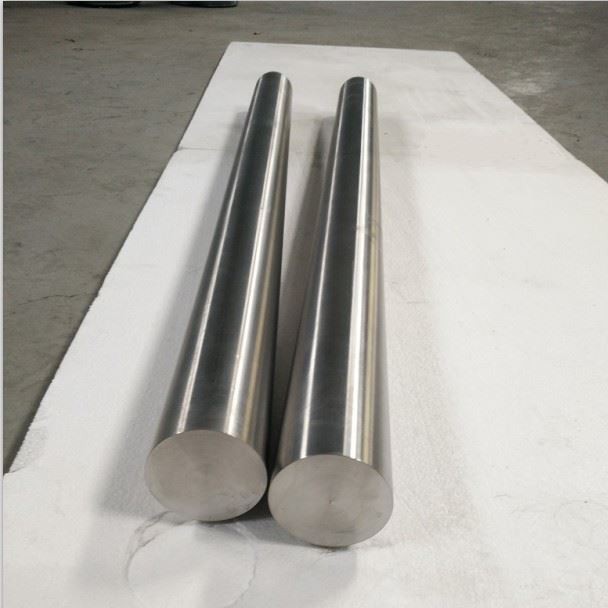

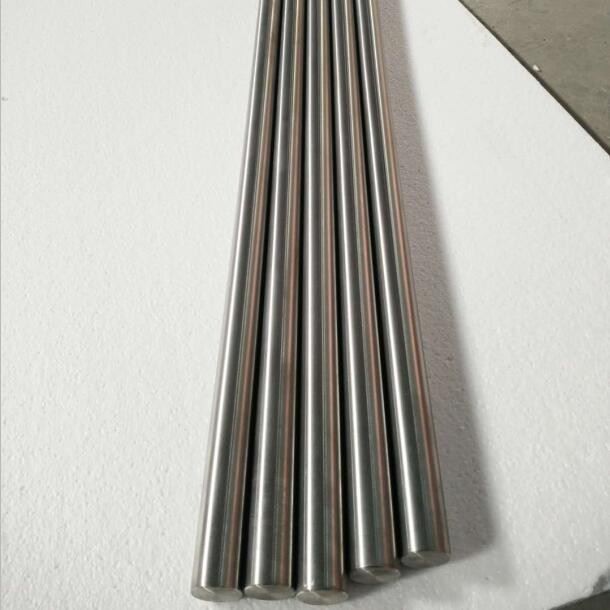

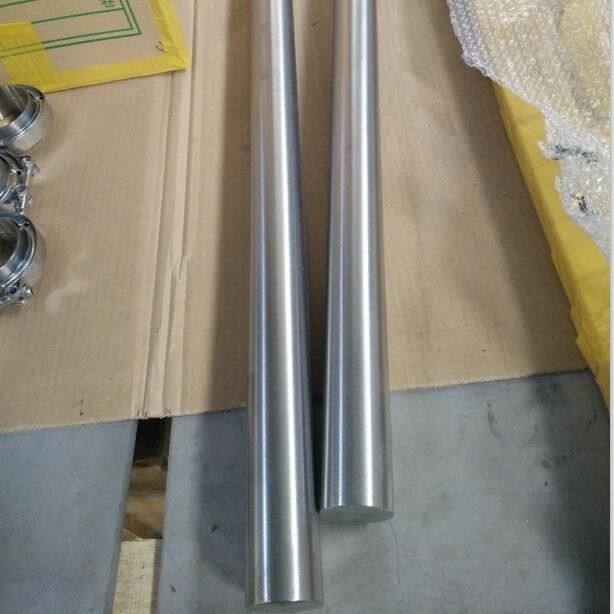

Detailed images
Advantages Of Titanium Bar
1.Light weight -Specific gravity(60% of specific gravity of steel and about 1.7 times that of aluminum)
2.Low thermal expansion-Hermal expansion coefficent(ne-half that of 18-8 stainless steel and one-third that of aluminum)
3.Low hear conductivity-Heat conductivity(nearly the same as 18-8stainless steel)
4.Low electric conductivity-(Electric conductivity)(about 3% of copper)
5.High flexibility-Longitudinal elastic modulus (one-half of iron or stainless steel and the same as copper)
6.Non-magnetism -Magnetic permeability(non-magnetic material; magnetic permeability = 1.0001)

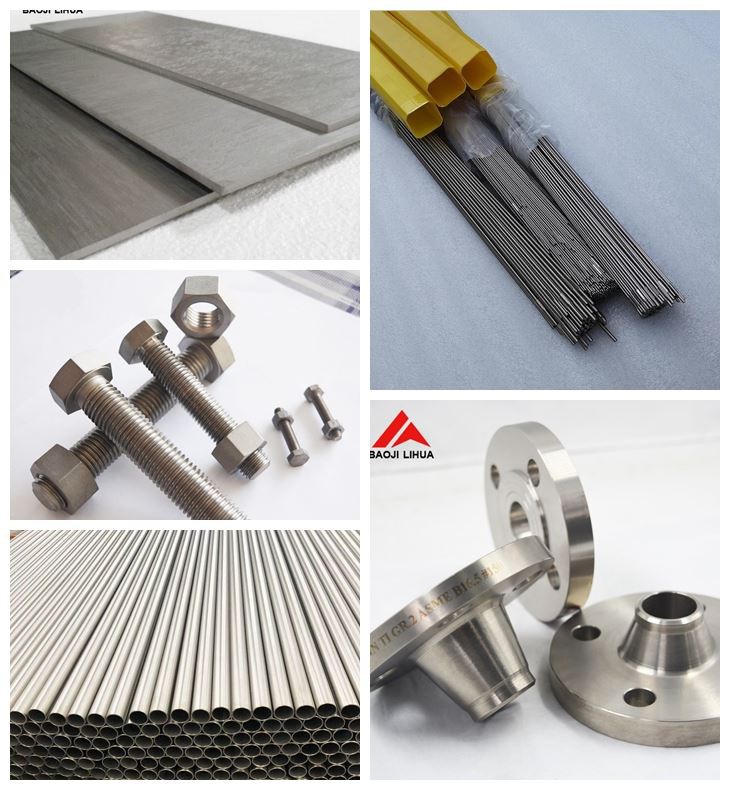

Retaled products:
Titanium plate, titanium wires, titanium bolts and nuts, titanium tubes, titaium flanges etc.
