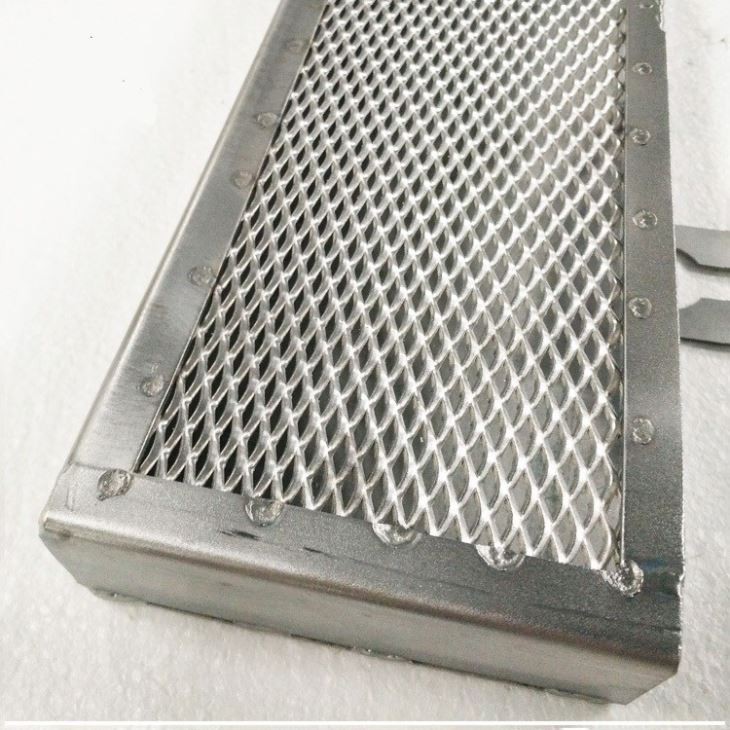

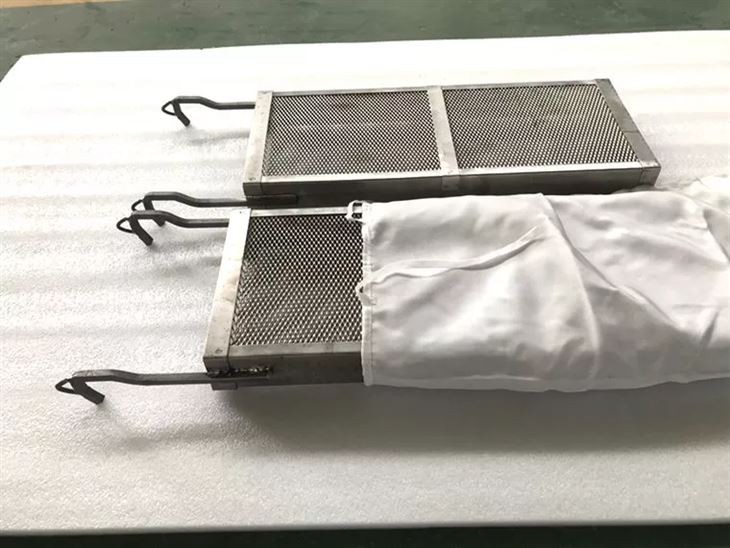

Titanium plating anode basket

Titanium plating anode basket

Product name: Titanium plating anode basket
Grades of Material: Titanium Gr1, Gr2
Processing state: annealed
Shapes: by customer's requirements or by drawing
Type: welded
Standard: ASTM B265 or as per

Send Inquiry

Chat Now

Product Introduction

Titanium plating anode basket Gr1 Gr2

Material	Grade1 ,Grade 2 Titanium
Dimension Shape	by customer's requirements or by drawing Length x Width x Thickness 400x120x50mm,500x130x55mm,600x150x55mm, 700x175x60mm, 800x195x60mm,900x215x65mm, 1000x250x65mm,400x120x50mm,500x130x55mm, 600x150x55mm,700x175x60mm,800x195x60mm, 900x215x65mm,1000x250x65mm, etc. Different dimension and shape is available,make according to the customized desgin and drawing
Specification	Sand blasting, Acid washing and Brush Coating
Main Working Parameters	I. Current density<2000A/M2. II. Temperature<60°C. III. PH 0.1~14. IV. Max content of Fluoride ion is 200PPM
Main Characters	I. Dimensionally stable II. MMO coating is insoluble. III. Energy-saving and high efficient. IV. High current efficiency and catalytic. V. Operating voltage is stable. VI. Long service life. VII. Light weight
Features	1. Hight anti-corrosion property 2. Lasting working life 3. Keep the operating voltage stably 4. High current efficiency 5. High catalytic property
Remarks	1. Titanium anode also could be called as MMO anode,DSA&Insoluble anode
2. Cathode can be provided
Application	Sewage treatment Cathode protection Noble metal plating (silver, gold) Sea water antifouling Testing electrode Electrolytic syn thesis of organic Electroplating Industry Electrodialysis Electrolytic water

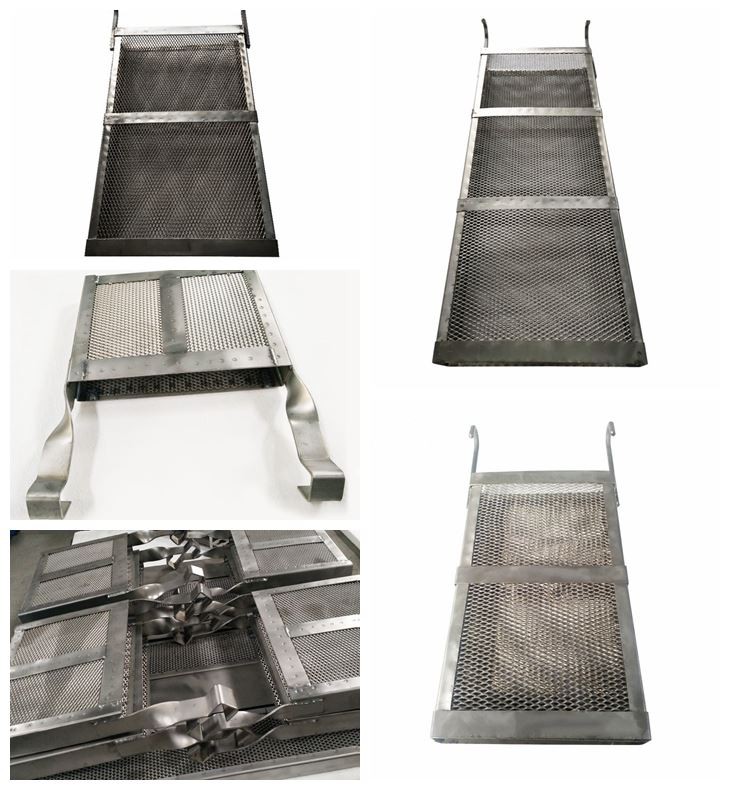

Titanium basket 21

Packaging:

As an import and export company,we pays special attention to packaging and service. Each titanium basket will be separately packed in plastic bags. Then the box is filled with foam film and pearl cotton to prevent collision and friction during transportation and damage to the surface. The outermost is a fumigation-free wooden box, standard export packaging, to ensure that the goods is safe and perfect when reach the destination.

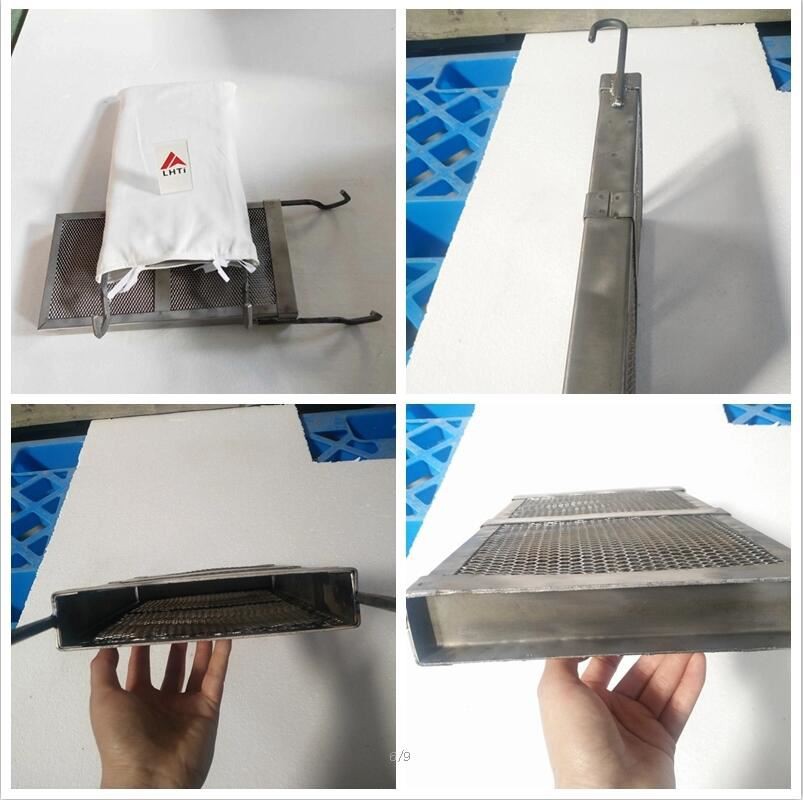

Titanium basket 14

About our company:

Hamil metals was established in 2006 and is located in Baoji City, which is known as "China Titanium Valley", with 15 years of experience in the production and export of titanium products. The titanium mesh basket we produce has good welding process and smooth surface treatment. The raw material of the titanium mesh basket is made of titanium plate according to ASTM B265 standard. The titanium mesh basket we provide has strong welding, good performance and long service life. The factory can design titanium mesh baskets of different shapes according to the customer's drawings. At present, the more common ones are round and square. They can also provide customers with ruthenium and iridium coatings or others.

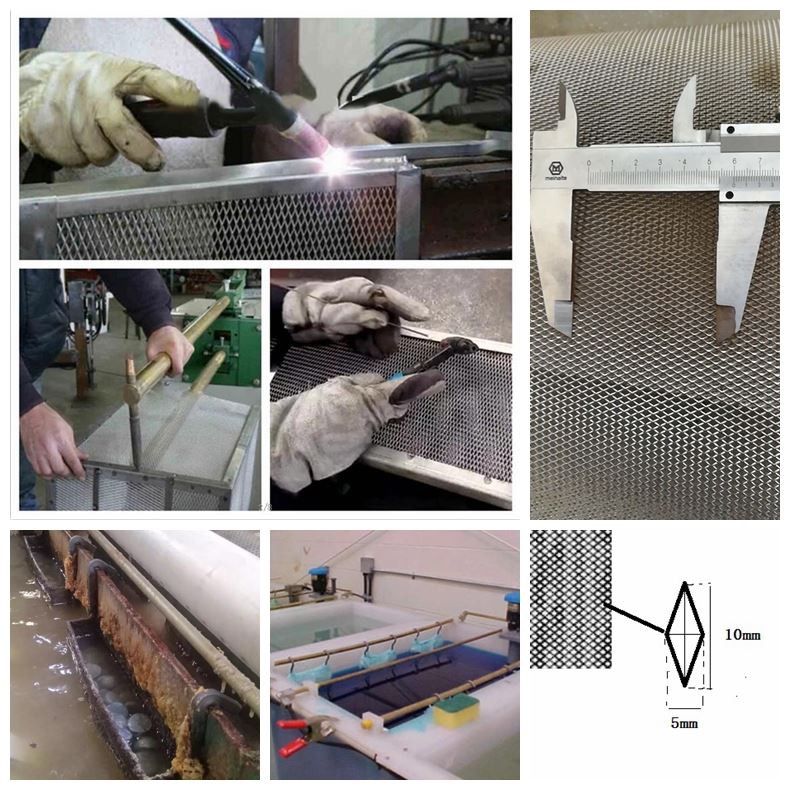

Titanium basket 20

If you have any interests, please don't hesitate to send inquiry.

We welcome the sample orders.
